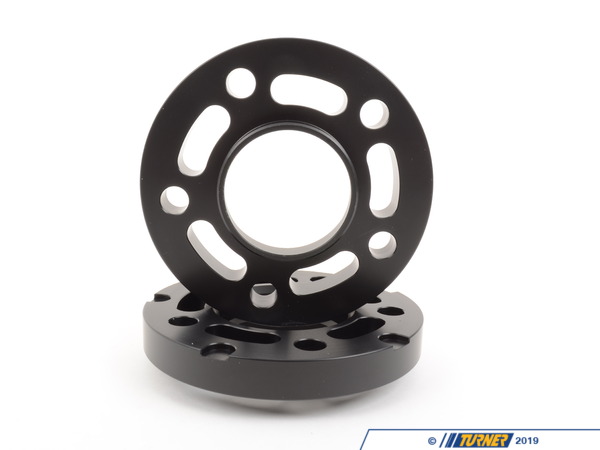

Turner BMW 20mm Big Pad Wheel Spacers (Pair) - F-Chassis
20MM (.79 inch) Big Pad Wheel Spacers for BMW E70 X5M, E71 X6/X6M, F02, F06, F07, F10, F12/F13, F22, F25, F3X, F8X M3/M4
These are our Big Pad wheel spacers designed for the latest generation of factory BMW wheels. The "wheel pad" is the back of the wheel that mounts to the hub on the car. Since the early 2000s the factory BMW wheel pad diameter has grown - 150mm, 152mm, 154mm, and now 156mm. Most of the wheel spacers on the market are 152mm. The difference from using the smaller spacer on a large pad will leave an unsightly step down between the back of the wheel and the brake rotor hat (see image). To fix this visual defect we use a larger diameter spacer - the Big Pad. This will have less of a step, or no step at all, when used with the larger pad size. Note that nearly all aftermarket wheel manufacturers use the smaller pad size (mainly to reduce unsprung weight). For more information on wheel pad sizes and their effects on fitment and strength, click to our spacers FAQ page.
Wheel spacers are the ideal solution to resolve a number of fitment and aesthetic problems. A spacer fits between the wheel and the hub assembly. The wheel will be pushed further outboard by the thickness of the spacer. Spacers allow you to correct wheel offset issues when the wheel is too 'tucked in' to the bodywork, clear the wheel from contact with the suspension or inner bodywork, clear larger brakes, improve handling and stability by increasing track width, or simply to get the right look and stance. Our wheel spacers are compatible with almost any type of BMW wheel and are a direct fit to the wheel hub (see below for any fitment notes). Longer wheel bolts or wheel studs are required.
This latest generation of the Turner Motorsport Wheel Spacers represent a total redesign of the wheel spacer concept - a ground-up, clean sheet design based on our years of BMW service and motorsports. We took everything we have learned from our service technicians, customers, and race team crew and built the spacer to beat all spacers. We've been in the BMW wheel spacer business probably longer than anybody and when it came time to make our own spacers, a basic spacer design just wouldn't do. We had to make a spacer that is lightweight (for lower unsprung mass), has a tough and durable coating to last through our New England winters, is easily removed (your mechanic will thank you), and is precisely engineered and manufactured for a proper fit on the hub and in the wheel. You won't find a better engineered wheel spacer on the market!
Turner Wheel Spacer Features
hub-centric design with hub-centric lip
precise tolerance fitment thanks to CAD process and CNC mill machine
large pad surface area - 156mm vs standard 150mm
aerospace grade aluminum lightweight but very strong with high resistance to corrosion
additional military-spec hardcoat for further corrosion resistance
innovative Quick Release pockets for easy removal (better than a chamfered back edge)
laser engraved size and part number for easy identification
stealthy anthracite or black color
Turner Motorsport track and street tested!
Made in the USA
Wheel Spacer Tech & FAQ
Important Note: It is vital that you measure the depth of your hub lip. The depth of the lip must not exceed the thickness of the spacer. This is critical on newer chassis cars that have deeper hubs than older models. For examples and tips on measuring, check out our How To Measure for Spacers page.
Wheel Spacer Encyclopedia - everything you wanted to know
Spacer Specs
bolt pattern: 5 x 120
center bore: 72.6mm
hubcentric: yes
wheel pad size: large
Extended Wheel Bolts
Required for all BMW wheel spacers is a set of longer wheel bolts or wheel studs. Spacers cannot be used with stock bolts. Our extended lug bolts are very high quality and high-grade steel lug bolt (grade 10.9). A black zinc coating will maintain a factory BMW appearance and provide long-lasting corrosion protection. Zinc finishes are designed to withstand 700 hours of salt spray testing.
T#:
339041
|
Part#:
TMS215377
10X Entries Into Our F80 M3 Sweepstakes 10X Entries For Our Spin To Win Sweepstakes!
Checking Vehicle Fitment...
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
Starting at $121.59
121.59
$121.59
This product is backed by our
Lifetime Replacement Program! Read more here
Lifetime Replacement Program! Read more here
Free Shipping
Qty
Select Options

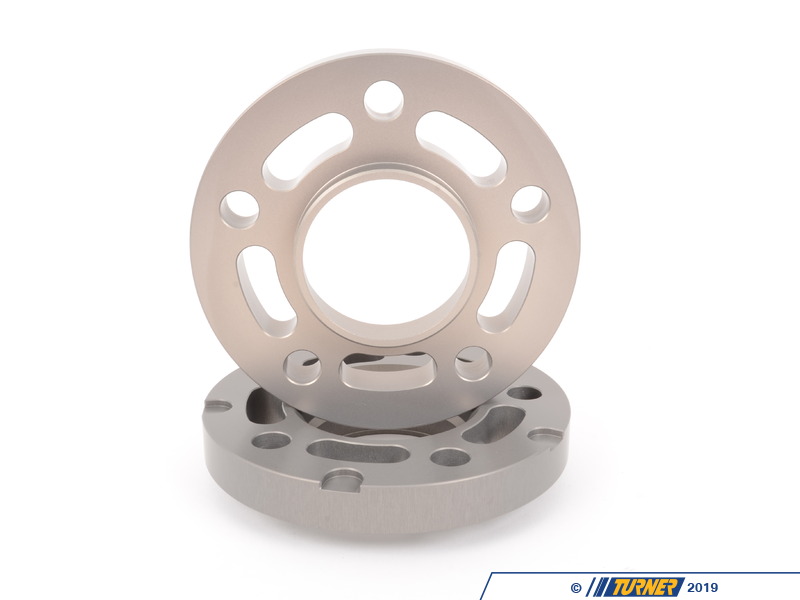

Anthracite/Grey (TWHF9905F20)
