E82 128i, E9X 328i 6MT Cooling Overhaul Package

Mfg Part #
TMS214377
Turner Part #
T#340252
Brand
Price:
Qty
551.93
In Stock
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

This cooling overhaul will cover just about everything you could replace on the 328's cooling system. We start with the basic water pump and thermostat bundle. These are already vital to the health and durability of the N52 328i. But to properly maintain these cars for the long term, the rest of the cooling system must be refreshed and preventatively replaced. Here you can add a radiator, expansion tank, cooling hoses, and the BMW antifreeze. This package fits 328i/328xi with N52 engine and manual transmission.

The sophisticated electronics of the ECU and water pump means catastrophic overheating should be a thing of the past. But the downside is that the electronics can shut down without any warning or symptoms. And troubleshooting is equally frustrating since the water pump electronics are not readable or serviceable. There are several clues to a faulty thermostat or water pump - the fan runs at full speed all the time (even immediately on a cold start), pending (soft) fault code for low coolant flow, or the water pump can be heard running constantly. But when the pump fails it's an immediate shut down of the engine which can be a major inconvenience and lead to additional repairs that might have been avoided with preventative maintance. We recommend a full cooling system overhaul on the E90/E92 every 80-90,000 miles and to check for soft/pending codes at every 5,000 mile service .


Base Cooling Overhaul Package - Water Pump and Thermostat
(click to expand)
Includes:

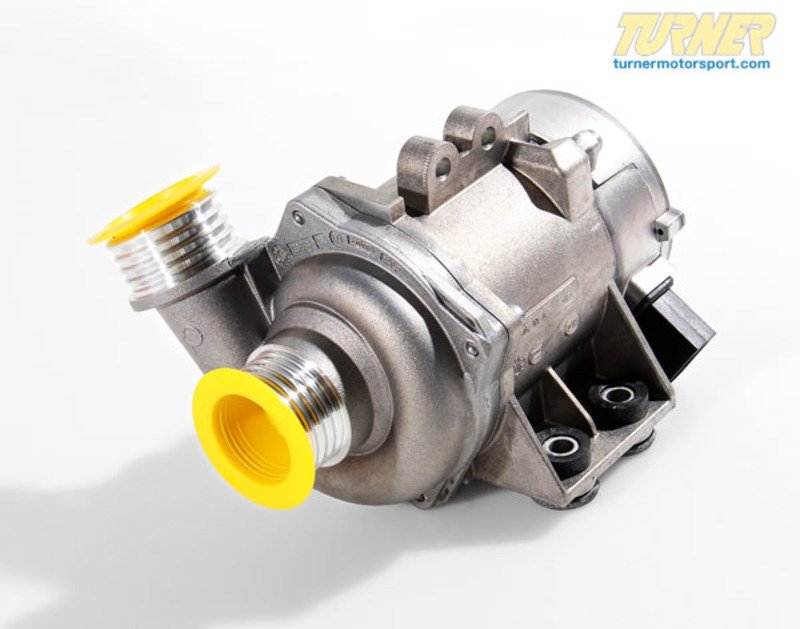

+ Genuine BMW electric water pump, p/n 11517586925
+ mounting screws for water pump (set of 3), p/n 11510392553

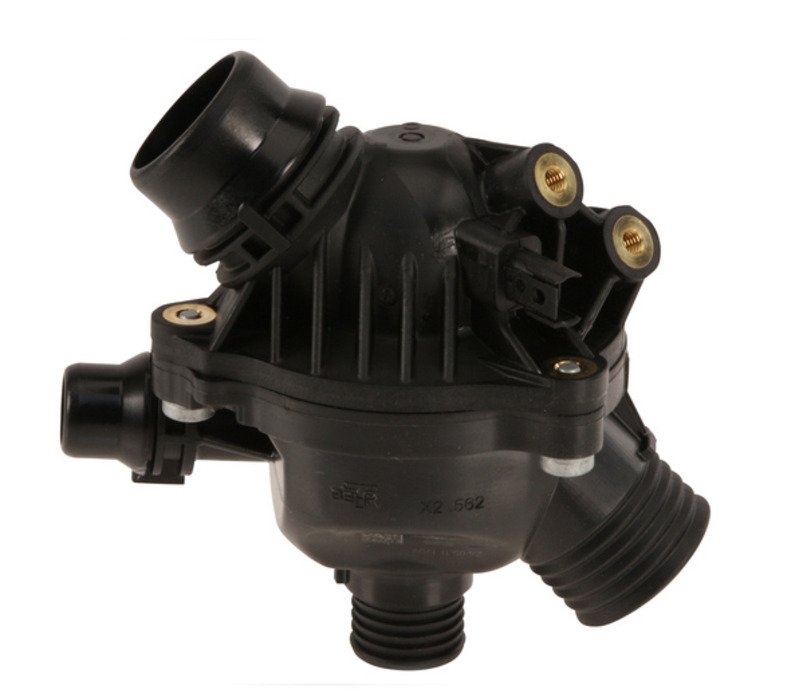

+ OEM Behr thermostat, p/n 11537549476
+ Original BMW connecting hose from thermostat to water pump, p/n 11537521049
+ OEM-style hose clamps for hose (x 2)

The water pump on the N52 engine has more cooling responsibilities than ever before. The good news is that the pump only works when, and only as much, as it needs to. That means the system can actually stop the pump when it doesn't need to be running. The bad news is that it's now an electrical part, so a failure is usually immediate and with no warning. The preventative replacement is your only insurance from a very inconvenient and costly breakdown in the future. Plus you get the very latest BMW water pump design with any improvements they've made since your original pump was installed.
Cooling Hoses
(click to expand)

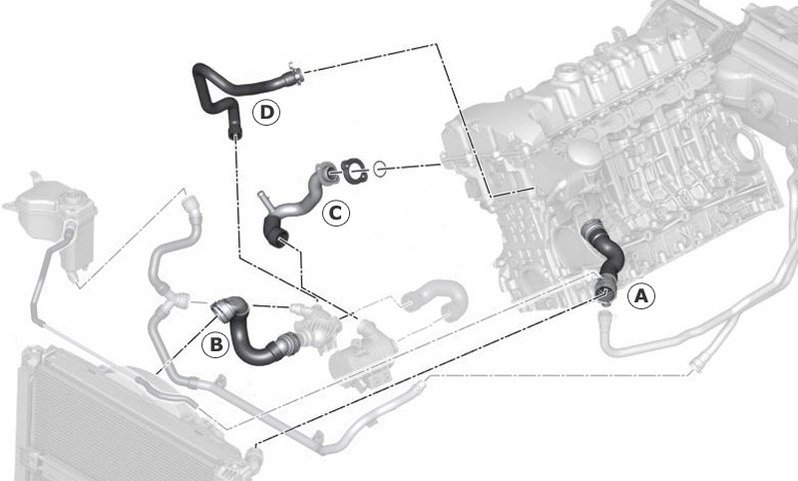

With regular driving the hoses should last a very long time. Even the plastic connectors seem to be holding up well. But as a preventative measure new hoses are recommended. We have also seen issues with re-using hoses as the spring connectors get weak over time and may not have the strength to hold the hose in place. They seem to have a tough time holding tension especially when they have been removed and reinstalled. In the interests of a thorough overhaul we recommend replacing these 328 water hoses during this job (see diagram):
  • 17127531579, upper radiator hose (A)
  • 17127564478, lower radiator hose (B)
  • 11537552396, water pump to engine ©
  • 11537545890, thermostat to cylinder head (includes new o-ring) (D)
    There are other hoses too but they are not often replaced during a radiator swap (radiator vent hose and heater core hose) and they don't see much wear. We offer these as well if you want a complete set (see Additional Items at the bottom of the page).
Expansion Tank Options
(click to expand)
The expansion tank on the 328 is not prone to failures (unlike previous 3-series cars) so a new one is not strictly required. There aren't many seams or stress points for it to crack and we haven't heard of too many issues. But we wanted to offer it as part of a complete overhaul in case you want to cover everything. Simiarly, the level sensor is not required unless you're getting erroneous 'low coolant' warnings from the dash/iDrive. We do strongly recommend replacing the cap because that is designed to be the weak point in the system. The cap is what regulates the pressure inside the system and it should be replaced every few years anyway.

BUY AS A PACKAGE AND SAVE $$!

This cooling package fits the following BMWs with the N52 engine and a manual transmission:
2008-2012 E82 BMW 128i
2007-2011 E90 BMW 328i 328xi 328i xDrive - Sedan
2007-2012 E91 BMW 328i 328xi 328i xDrive - Wagon
2007-2013 E92 BMW 328i 328xi 328i xDrive - Coupe
2007-2013 E93 BMW 328i - Convertible


Click on the options for your kit below and then click "update price" for your kit total.

Loading Kit Configurator

551.93
Current Price
x

Kit Configurator

Current Price:
551.93

Add a gallon of Original BMW antifreeze/coolant?

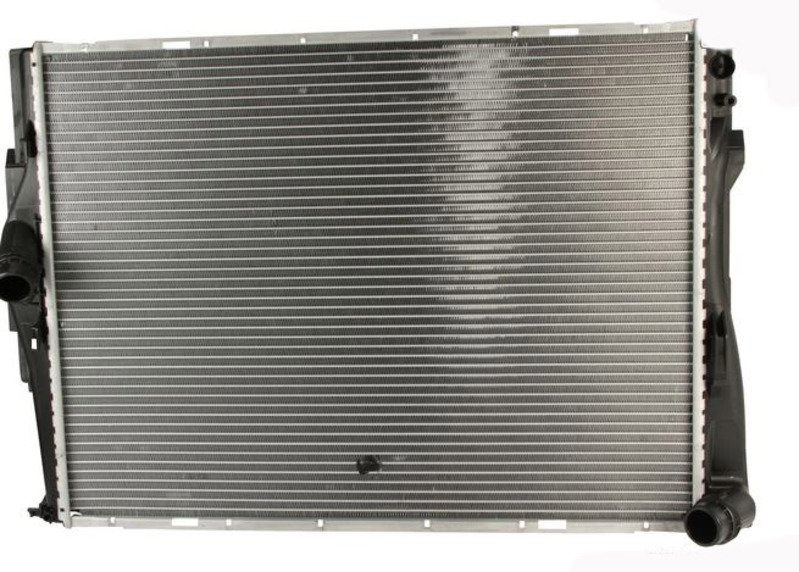

Select a radiator

Water pump and thermostat kit

Add coolant temp sensor?

Add hoses to your package here (see diagram to right):

Select any new expansion tank parts:

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E82 128i N52 3.0L
BMW E88 128i N52 3.0L
BMW E90 328i N52 3.0L
BMW E90 328xi N52 3.0L
BMW E91 328i N52 3.0L
BMW E91 328xi N52 3.0L
BMW E92 328i N52 3.0L
BMW E92 328xi N52 3.0L
BMW E93 328i N52 3.0L
