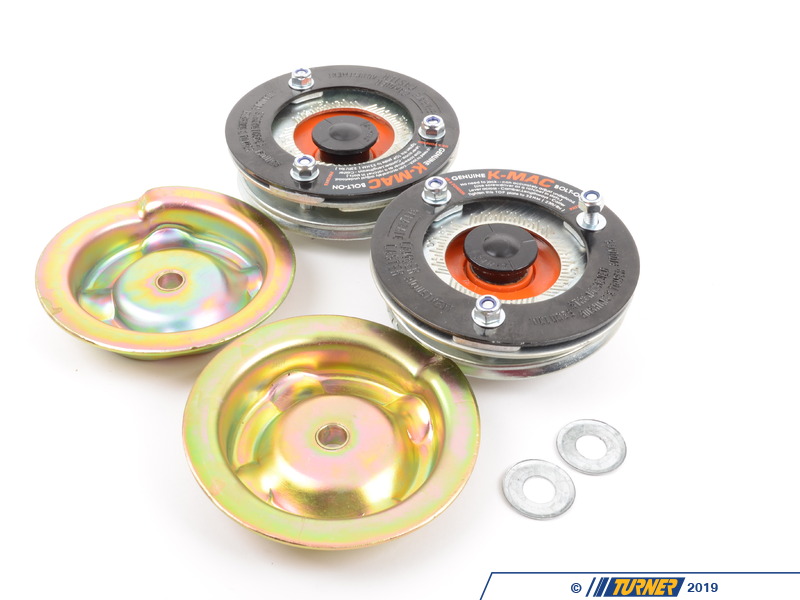

KMAC Stage 1 Street Front Adjustable Camber/Caster Plates - E32, E34

Location: Front
Type: Street, Stage 1

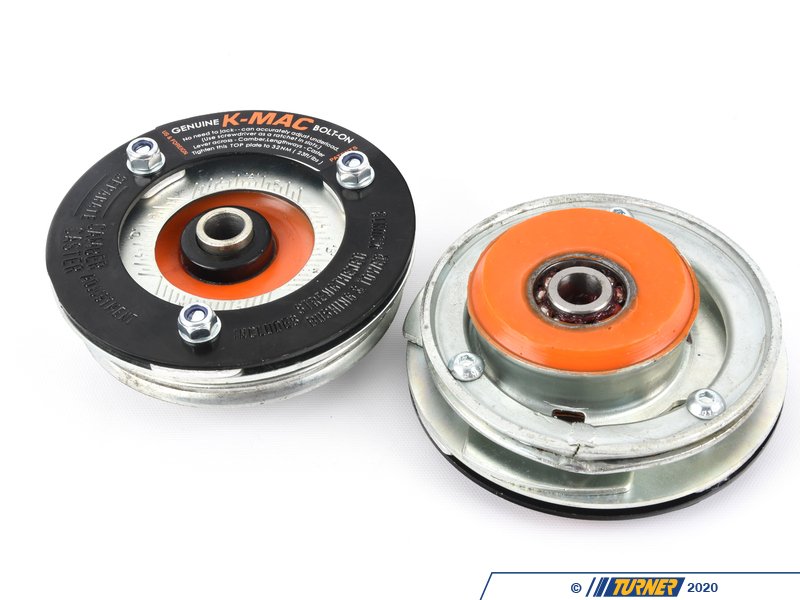

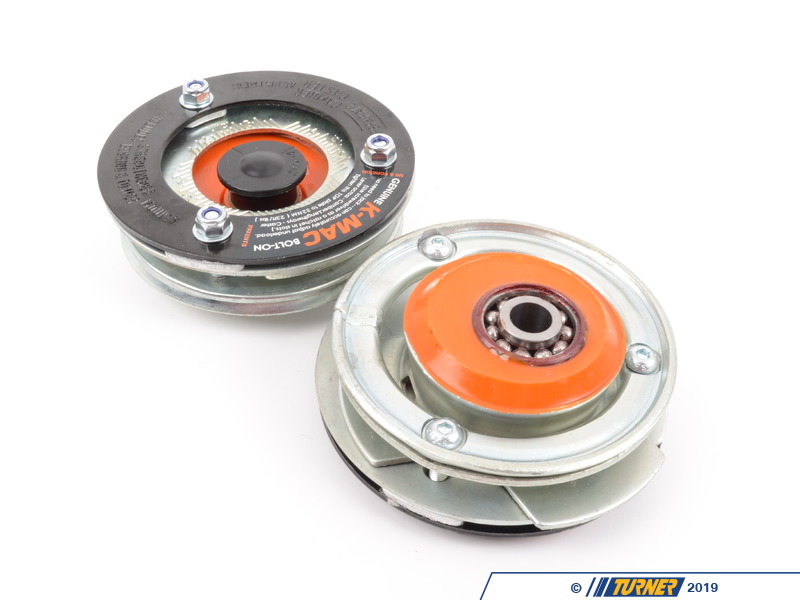

Bearing: captive-ball fully encased in polyurethane

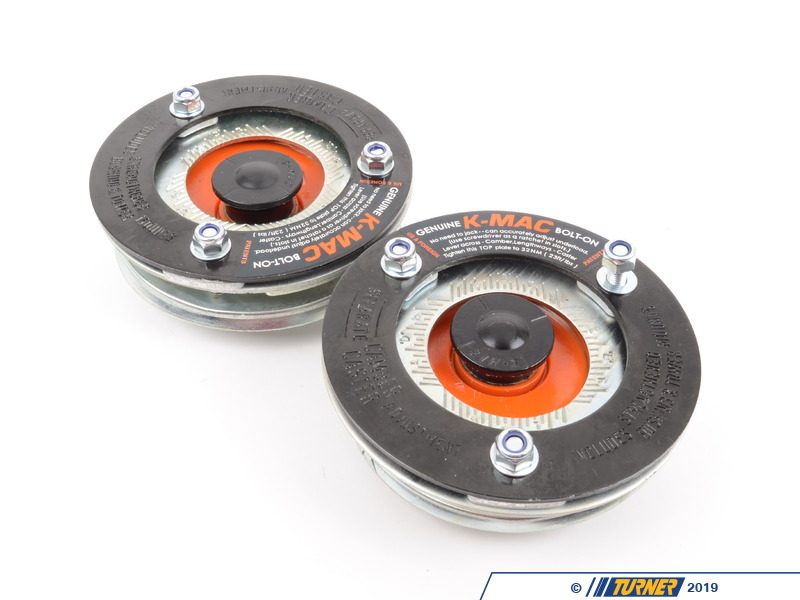

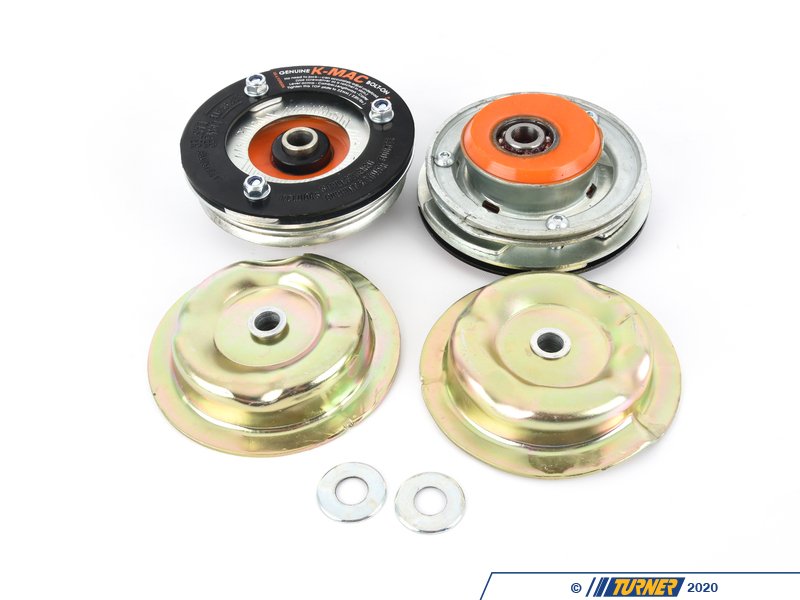

These front adjustable camber/caster plates will replace your stock front upper strut bearing. The KMAC plates are a 'floating' design so camber and caster are adjusted together. This design allows maximum range of adjustment since no other hardware interferes with the adjustments. Since these replace your stock strut bearings they are designed to work with a stock-type spring only. And when installed correctly will not significantly alter ride height. Adjustment is easily done by loosening the three nuts on top of the tower and sliding the camber plate into the position you want, then re-tighten the nuts. These mounts can be installed two ways - for camber correction or swapped side-side for increasing negative camber. Detailed instructions included. This KMAC part number replaces BMW part number 31 33 1 139 437, the strut mount with the integrated upper spring plate.

Note: suspensions vary from manufacturer to manufacturer. Turner Motorsport cannot be responsible for fitment issues caused by non-stock or specialized coil-over suspensions. As with any race-derived component, additonal fabrication may be required.

This item fits the following BMWs:
1988-8/92 E34 BMW 525i
1989-1995 E34 BMW 530i 535i 540i M5
1988-1994 E32 BMW 735i 735il 740i 740il 750il
