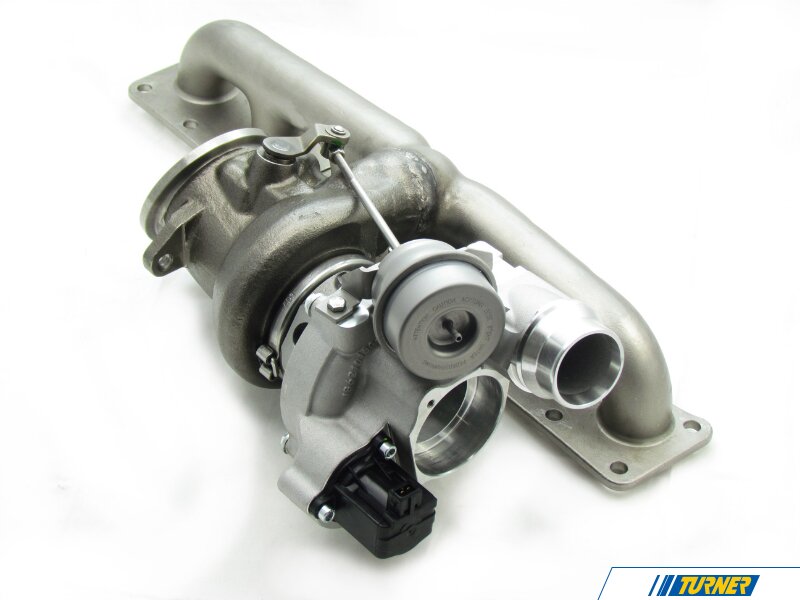

FrankenTurbo F650 Twin-scroll Hybrid Turbocharger - BMW E8X 135i/s, M135i, X1, E9X 335i/x

Product Details

The F650 is FrankenTurbo's premier offering for N55 owners seeking 550–650+ horsepower without the lag associated with massive single-turbo kits. This "Super-Hybrid" retains the responsive twin-scroll characteristics of the N55 while providing the top-end flow needed for competitive drag or track use. It is a direct-fit replacement for the PWG N55, specifically optimized for enthusiasts running high-octane fuels or Port Injection/Methanol.

Key Features:

• Stage 3 Flow Levels: Delivers performance comparable to the Pure750, but with a ground-up redesigned exhaust manifold for improved volumetric efficiency.

• Native Twin-Scroll Spool: Optimized for the PWG DME to retain fast transient response and low-end torque.

• Enhanced Oil/Coolant Journal System: Redesigned internal galleries provide superior cooling and lubrication under sustained high-load conditions.

• M2-Spec Diverter Option: Compatible with the higher-flow M2-platform diverter valve for faster pressure relief during shifts.

• Plug-and-Play Integration: Designed to interface with factory oil/coolant lines and downpipe connections (Requires 2" or larger turbo inlet).

Specifications:

• Max Potential Output: 650+ HP (with supporting fueling modifications).

• Turbine Material: Inconel 713C (High-temp resistance).

• Compressor Material: Point-milled 2618 Billet Aluminum.

• Shaft Diameter: 6.1mm 42CrMo High-strength steel.

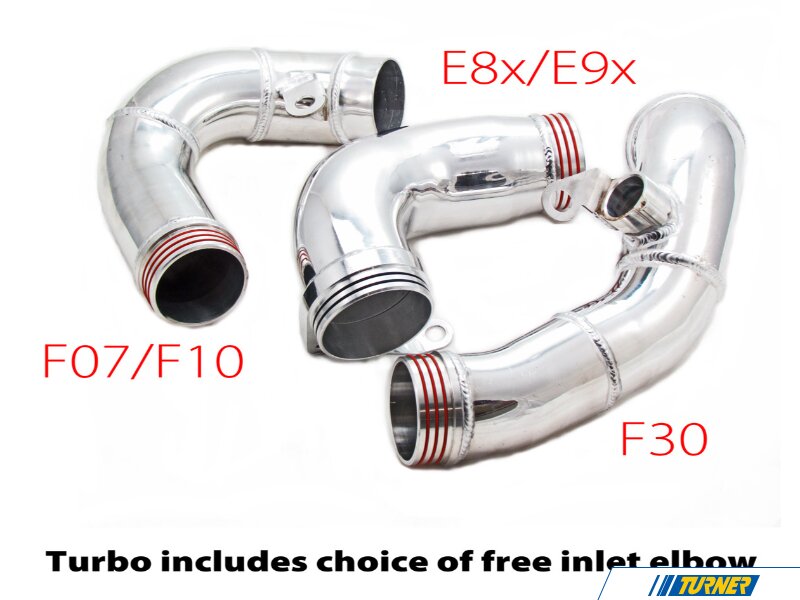

• Inlet Pipe: Includes free upgraded high-flow inlet pipe for F-chassis applications.

• Warranty: 2-year limited manufacturer warranty.
