BMW Differential and Gearing Upgrades for BMW 3 Series E36 (1992-1998)

Single piece 6061 construction, optimized cooling, provisions for temp sensor, and external cooler with removable air duct.

Built to last, made from a single piece of 6061 billet aluminum with a rugged and good-looking hard-coat anodizing our diff cover can handle anything you throw at it. Not only is it an absolute masterpiece to look at but the billet diff cover checks all the boxes for features needed. Reinforced mounting ears for strength and stability, never again will you break an ear off your diff cover like the factory units are known to do. Each ear is not only unified with the one-piece billet cover but also feature added material for the highest durability possible. This diff cover is cool, literally, the entire construction was designed with optimized cooling in mind. External fins are strategically placed on the rear face, bottom, and between the mounting ears of the cover, serving as effective heat sinks for optimal heat dissipation. This ensures stable temperatures, promoting longevity for both the fluid and your differential. Additionally, the internal design ensures continuous oiling and lubrication to the ring gear, maintaining its stability and preventing fatigue by controlling heat more effectively. An internal baffle at the cover's corner helps maintain proper pressure and prevents cavitation.

All of the OEM features were retained along with the upgrades. The mounting surface was designed to be compatible with both the OEM gasket or RTV of your choosing, some people don't trust the gaskets and we get it. You can transfer your speed sensor directly to your upgraded billet cover and it even features a provision for the sensor wire mounting. Factory bushing geometry allows you to use any E36 diff busing including rubber, poly, and even solid mounts. The drain and fill plugs on the diff cover are upgraded to -6AN using the provided high-pressure fittings with replaceable o-rings. The drain and fill plugs can now also be used for expanding to an external oil cooler allowing you to further expand the fluid capacity for optimized cooling and service intervals. To keep an eye on things from the driver seat is 1/8 NPT provision for temp sensors, this product from Turner has you covered at every turn.

Why the upgrade?

If you're new to differential covers used in earlier generations like the E30, you'll find significant improvements in the OEM E36 cover. Unlike the E30's single mount design, the E36 features a dual mount design, which was introduced to address common issues such as broken mounts due to worn-out bushings and aggressive driving. This upgrade significantly enhanced durability and reliability.

While the factory E36 differential cover was a significant improvement with its dual mounts compared to the previous generation, there are still some shortcomings that the original cover doesn't address. Most factory differential covers, including those on the E36, are cast from aluminum. However, due to the porous nature of cast aluminum, the mounting ears on these covers cannot withstand the intense shocks typical in motorsport or in vehicles with significantly increased power.

Upgrading to our Reinforced Billet Differential cover gives you the strength you need to push your car to its limits without worrying about snapping a diff mount from clutch kicking or other shocks to the drivetrain. In addition to its enhanced strength, this differential cover includes numerous other upgrades and conveniences. These include improved cooling and lubrication for the ring gear, upgraded fill and drain plugs, and the option to expand an external oil cooler for extreme motorsport usage. Designed to complement both upgraded daily drivers and extensively modified track cars, it also boasts a visually appealing design.

Key Benefits:

Reinforced mounting ears for strength and stability - never again will you break an ear off during an aggressive drive or track event
External fins on the back side, bottom, and mounting ears on the casing for maximum cooling and consistent fluid temps
Removeable air duct to direct air across the cooling fins for even more temperature control
Optimized internal design to keep fluid consistently on the ring gear
Integrated breather to prevent cavitation by venting the appropriate amount of pressure being built up in the diff housing
-6AN ports to incorporate the use of a differential cooler - this increases capacity and lowers temps allowing for extended fluid change intervals
1/8 NPT fitting for the use of a temp sensor to monitor fluid temperature
Design:

Single piece 6061 Billet aluminum construction
T6 Black hard coat anodizing for superior corrosion resistance and aesthetics
Compatible with most differential coolers(-6AN) and temp sensors(1/8 NPT)
Designed to accommodate oversized rear sway bars
Retains OEM mounting features including the use of the OEM gasket
Factory geometry bushing size for use with OEM and aftermarket poly bushings
Removeable air duct for easy access to sensors and drain/fill plug
Retains OEM speed sensor and wire mount location
Product development:

Our Reinforced Billet Diff Cover was designed, engineered, tested, and quality inspected by our Research and Development team at Turner. Nothing but the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long-term product testing.

As your E30 ages, the rear differential bushing can crack, dry rot, and split. It's time for an upgrade. The ECS Tuning Heavy Duty Differential Bushing is crafted with performance in mind. Instead of using polyurethane, which is known for increasing NVH, the enthusiasts at ECS chose HD 70D rubber. This material offers a close-to-factory feel without the excess deflection of softer bushings, ensuring a pleasurable driving experience free from differential whine and excess movement.

Features & Benefits:

Eliminates Weak OEM Mount: The aging E30 chassis deserves an upgrade. Replace your old, cracked, and worn factory bushing with this HD alternative for improved performance. Perfect for Street or Track: Constructed from HD rubber instead of polyurethane or Delrin, this bushing provides comfort for daily driving while remaining effective in performance applications. Added Responsiveness: The 70D HD rubber compound is stiffer than the stock material, reducing drivetrain movement and effectively locking down your rear differential. Easy Installation: Precision-manufactured to the exact specifications of your OEM differential bushing, the ECS heavy-duty replacement installs just like the factory component. Whether you are replacing an aging factory bushing, removing excess driveline movement, or balancing performance and comfort, ECS Tuning has you covered with their Heavy Duty Rear Differential Bushing.

Differential bushings are responsible for keeping the differential in solid alignment while dampening drivetrain vibration. While OE rubber bushings are fine when they are new from the factory, aged and worn out rubber bushings create a multitude of issues that can range from annoying to dangerous. As a factory bushing ages, it begins to harden and become brittle. When this happens the bushing will actually shrink and allow for movement at the differential mounting point. At this point, the differential is free to shift under load causing a noticeable clunking noise under acceleration and deceleration and massively increasing the stress on the driveshaft and axles. Manual transmissions suffer the worst from this as it can make shifting difficult since the differential will shift when the clutch is engaged and disengaged.

By replacing these bushings with full polyurethane, the movement is eliminated since the mounting point is supported by a much stiffer material that will not harden or shrink over time. This means less stress on the driveshaft and axles and greater longevity of supporting components.

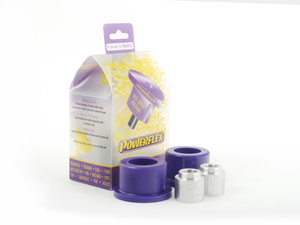

Engineered to perform, Powerflex performance polyurethane differential bushings offer a supreme level of control, while still providing enough comfort for the street, with advanced polyurethane that reduces NVH that often accompanies lesser bushings. Expect improved acceleration response, more direct shifting feel and overall improved drivetrain composure with Powerflex performance polyurethane bushings.

Poweflex is a leading manufacturer of aftermarket suspension bushings. Using state of the art design and manufacturing, all replacement bushings are engineered to out-perform and out-last the ones that came in the car. Each line of bushings is meticulously tested and then re-tested to ensure perfect fitment and enduring quality through the life of the vehicle. A full lifetime warranty backs every one of their products and demonstrates the level of confidence and commitment Powerflex has to their customers.

Differential bushings are responsible for keeping the differential in solid alignment while dampening drivetrain vibration. While OE rubber bushings are fine when they are new from the factory, aged and worn out rubber bushings create a multitude of issues that can range from annoying to dangerous. As a factory bushing ages, it begins to harden and become brittle. When this happens the bushing will actually shrink and allow for movement at the differential mounting point. At this point, the differential is free to shift under load causing a noticeable clunking noise under acceleration and deceleration and massively increasing the stress on the driveshaft and axles. Manual transmissions suffer the worst from this as it can make shifting difficult since the differential will shift when the clutch is engaged and disengaged.

By replacing these bushings with full polyurethane, the movement is eliminated since the mounting point is supported by a much stiffer material that will not harden or shrink over time. This means less stress on the driveshaft and axles and greater longevity of supporting components.

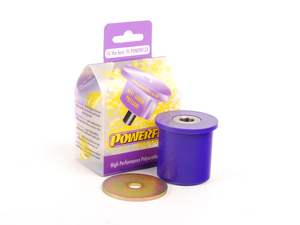

Engineered to perform, Powerflex performance polyurethane differential bushings offer a supreme level of control, while still providing enough comfort for the street, with advanced polyurethane that reduces NVH that often accompanies lesser bushings. Expect improved acceleration response, more direct shifting feel and overall improved drivetrain composure with Powerflex performance polyurethane bushings.

Poweflex is a leading manufacturer of aftermarket suspension bushings. Using state of the art design and manufacturing, all replacement bushings are engineered to out-perform and out-last the ones that came in the car. Each line of bushings is meticulously tested and then re-tested to ensure perfect fitment and enduring quality through the life of the vehicle. A full lifetime warranty backs every one of their products and demonstrates the level of confidence and commitment Powerflex has to their customers.

The main mounting bolt for the differential in the E36 is susceptible to shearing off during extreme driving conditions. This can cause internal damage to your diff, leaving you stranded at the track or on the side of the road. Active Autowerke's differential support bracket eliminates this issue forever in under an hour installation.

Previously used Active Autowerke Part Number AA-DSB-E36

This product fits the following BMWs:
1992-1999 E36 323i 325i 328i M3

Differential bushings are responsible for keeping the differential in solid alignment while dampening drivetrain vibration. While OE rubber bushings are fine when they are new from the factory, aged and worn out rubber bushings create a multitude of issues that can range from annoying to dangerous. As a factory bushing ages, it begins to harden and become brittle. When this happens the bushing will actually shrink and allow for movement at the differential mounting point. At this point, the differential is free to shift under load causing a noticeable clunking noise under acceleration and deceleration and massively increasing the stress on the driveshaft and axles. Manual transmissions suffer the worst from this as it can make shifting difficult since the differential will shift when the clutch is engaged and disengaged.

By replacing these bushings with full polyurethane, the movement is eliminated since the mounting point is supported by a much stiffer material that will not harden or shrink over time. This means less stress on the driveshaft and axles and greater longevity of supporting components.

Powerflex Black Series bushings are the ultimate in track and race bushings. Featuring 95A durometer polyurethane, Black Series bushings are 25% stiffer than street bushings. Engineered to perform, Powerflex performance polyurethane control arm bushings offer a supreme level of control, while still providing enough comfort for the street, with advanced polyurethane that reduces NVH that often accompanies lesser bushings. Expect improved acceleration response, more direct shifting feel and overall improved drivetrain composure with Powerflex performance polyurethane bushings.

Poweflex is a leading manufacturer of aftermarket suspension bushings. Using state of the art design and manufacturing, all replacement bushings are engineered to out-perform and out-last the ones that came in the car. Each line of bushings is meticulously tested and then re-tested to ensure perfect fitment and enduring quality through the life of the vehicle. A full lifetime warranty backs every one of their products and demonstrates the level of confidence and commitment Powerflex has to their customers.  *Door Buster Special - New Product*

Absorbs vibration in the drive-train to help dampen noise that would be transferred to the cabin of the vehicle.

This item fits the following BMW Chassis:
E36,E38,E39

If your differential is leaking fluid, this is the likely cause. Restore the tight seal with this Genuine BMW seal to prevent potential damage or future failure.

Fits the following BMW Chassis:
E30, E36, E28, E34, E24, E23, E32, E38, Z3
