BMW Transmission Parts for BMW Z3 (1996-2002)

The ZF S5D 320Z 5-speed transmission is known for its robust design, exceptional durability, and impressive power-handling capability. Unfortunately, as these transmissions age, shifter-related issues have become increasingly common. Problems such as difficulty selecting gears, a sticky shifter, or a decline in shift quality are often the result of worn detent springs, pins, and bushings. These components are essential for precise gear engagement and proper shifter centering, making their replacement a critical step in maintaining optimal performance.

Replacing detents requires specialized tools known as "drifts," which are notoriously hard to find. Fortunately, we've developed a complete Detent Tool Kit, featuring five precision-engineered drifts designed for exact fitment in the ZF transmission's detent bores. This toolset makes detent replacement straightforward and minimizes the risk of damage to internal transmission components.

Features

Complete Tool Kit: Includes five precision-machined drifts specifically designed for the ZF 5-speed transmission’s detent bores and caps. Hassle-Free Detent Replacement: Simplifies the process of removing and installing detents with professional-grade precision. Protects Your Investment: Reduces the risk of damaging internal transmission components during service. Durable Construction: Made from heavy-duty 1045 steel for exceptional strength and long-lasting reliability.

If allowed in the rules these solid aluminum transmission mounts offer many advantages over a urethane or Delrin mounts. It's no wonder that these mounts have found their way into the top BMW racers in the country. These are machined from solid aluminum and have zero deflection, engine torque will cause a rubber or urethane mount to flex or deflect allowing more torque to passed through the drive line (instead of being wasted winding up the mount). This puts the shift linkages in better consistent alignment. And unlike rubber or urethane the aluminum has zero wear and is not affected by leaking oil or other fluids so this is likely the last set of transmission mounts you will ever need. We very strongly recommend using the solid transmission and engine mounts together as a complete kit, mixing a rubber mount with a metal mount will cause undue stress on the mounting points and will lead to a failure. We never advise using a solid mount unless a corresponding solid mount is also used.

These are a no-compromise design for all-out racing use, full solid aluminum mounts should not be used on street-driven cars since there is no material to absorb vibration making these quite harsh for regular street use (track cars don't care about noise).

Product features and benefits:

• Crisper throttle response, positive shifter location, direct power transfer
• Precision machined billet 6061-T6 aluminum housing
• Grade 10.9 stud - fear not, big turbo owners
• Engineered in-house and made in America

This item fits the following BMWs:
1989-1995  E34 BMW  525i 530i 535i 540i M5
1992-1998  E36 BMW  318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic M3
1997-2003  E39 BMW  525i 528i 530i 540i M5
1999-2005  E46 BMW  323i 323ci 325i 325ci 328i 328ci 330i 330ci M3
2008-2012  E82 BMW  128i 135i 1M Coupe
2006-2011  E90 BMW  325i 328i 330i 335d 335i - Sedan
2006-2012  E91 BMW  328i - Wagon
2007-2013  E92 BMW  328i 335i 335is - Coupe
2007-2013  E93 BMW  328i 335i - Convertible
1997-2002  Z3 BMW  Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i M Roadster M Coupe ​

Liqui Moly is an official sponsor of Turner Motorsport. We work closely with Liqui Moly to ensure your BMW is receiving optimal lubrication! Select your vehicle to make sure you are viewing the best Liqui Moly options for your application.
Interval oil changes are often recommended for differentials to ensure long-term reliability and maximum wear prevention. Fresh oil will prevent excess wear and gear damage, maintaining smoother operation.

Check your owner's manual to determine when it is best to flush your differential and what type and weight fluid to use when re-filling your system.

This 75w140 weight oil's multi-viscosity are perfect for ensuring protection in all climates and its synthetic composition allows for smoother operation even under the most demanding conditions.

APPROVALS:

API GL5
LIQUI MOLY RECOMMENDS THIS PRODUCT FOR VEHICLES THAT NEEDS TO COMPLY THE FOLLOWING SPECIFICATIONS:

BMW Hinterachsgetriebeöl
Ford WSL-M2C 192A
Scania STO 1:0
VME
ZF TE-ML 05D
ZF TE-ML 12D
ZF TE-ML 16G
ZF TE-ML 21D
Liqui-Moly is a German chemical company that offers top of the line engine oils, additives, and car care products that are designed to extend the life of your engine and ensure the best lubrication and cleanliness off engine and transmission components possible. With more than 50 years of experience and reviews across the world from magazines and race teams, Liqui-Moly proves time and time again why they are one of the most innovative lead forces of performance automotive chemicals in the world.

The ZF 320z S5D is a common swap choice among BMW enthusiasts due to its reliable and robust nature. Unfortunately, it does have a weakness. The detent pins and springs that live inside of the transmission are known to wear down over time, often causing the shift lever to lean towards the 5th gear position when in neutral.

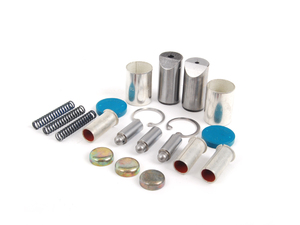

This full-service kit consists of everything you need to replace the failing detents in your ZF transmission. The kit contains only Genuine ZF components, all of which are sure to provide you with smooth shifting and operation for years to come.

This kit includes the following items:

3 Detent Covers - 07119937227 3 Shift Pin Kits - 23117525048 2 Shift Pin Bushing Kits - 23117542726 1 Detent Pin - 23311224849 1 Detent Pin - 23317502165 Remedying the ZF's detent issue is a must for any enthusiast planning to get the most out of their transmission. Proper centering is essential for quick and smooth shifting, both being desirable features in any application. This kit is easy to install with several DIY guides existing online. A set of "drift" tools are required for proper installation.

Ensure the longevity of your BMW's drivetrain with ECS Tuning's Magnetic Plugs. These plugs are meticulously engineered in-house to provide a perfect fit and feature a permanent magnet attached to the plug body. The magnet effectively attracts and captures tiny abrasive and ferrous metal particles, preventing their circulation through lubrication systems. Metal particles can accumulate due to various conditions such as normal wear, machining operations, casting flaws, and stress usage, leading to excessive wear of vital components. ECS Tuning's Magnetic Plugs help alleviate this concern by trapping these particles, thus safeguarding the internal components of your drivetrain. With a convenient 17mm hex head design, these plugs eliminate the need for special tools required for OEM plugs.

Key Benefits:

• Removes abrasive metal particles from drivetrain fluid
• Prevents excessive wear to internal components
• Meticulously engineered for a perfect fit
• Features a permanent magnet for efficient particle capture
• Convenient 17mm hex head design for easy installation

This is the shifter actuator pin that's part of BMW's gate system for the shifter.

Genuine BMW Locking Pin
This item fits the following BMW Chassis:
E36 M3,E34,E36,E39,E46,E53 X5


This is the OE shifter for the E46 325xi and the 330xi (up to 03/2003) and the E36 Z3 1.9 and 2.5.

The shift lever out of the Z3 1.9 delivers a smooth and quiet shift without the notchiness and effort of aftermarket short shift kits. The Z3 shifter in the E30 is approximately 20% shorter than the original E30 shifter - less reduction than a full short shift kit but the perfect compromise between stock and aftermarket. We have installed multiple shift levers in the E30 but the Z3 1.9 feels the best to us. The shift knob height is reduced by about 1/4". This is the Genuine BMW Z3 1.9 shift lever and a direct fit to 6/86-1992 E30 318i/is, 325e/es, and 325i/is.

E30 install note: there is a bowl-shaped vibration damper mounted with the transmission flex disc (guibo). This damper needs to be removed or you need to bend the stock selector rod so it will clear. Most E30s already have the vibration damper removed so don't be surprised if it's not there. If you do choose to remove it, this would be the perfect time to replace the flex disc. On some 325e models the flex disc is a larger diameter and the selector rod will need to be bent to clear it.

This item fits the following BMWs:
1990-1992 E30 BMW 318i 318is 318ic
6/1986-1992 E30 BMW 325e 325es 325i 325ic 325is

Replace the transmission output shaft seal with this Genuine BMW part. We recommend preventatively replacing all the transmission seals whenever the transmission is lowered.

Fits the following BMW chassis:
E36, E46, E34, E39
