BMW Suspension Parts for BMW 5 Series E39 (1996-2003)

Upgrade your BMW's suspension with ECS Tuning Adjustable Sway Bar End Links, designed to provide up to 60mm (2.36") of adjustability. These end links allow you to eliminate sway bar preload or fine-tune it for specific racing needs and corner balancing. When installed, they improve drivetrain clearance and enhance sway bar responsiveness by reducing deflection, ensuring superior handling. Perfect for lowered vehicles using springs, coilovers, or air-ride suspension systems, these adjustable sway bar end links allow you to remove unwanted preload caused by changes in the center-to-center distance between sway bar mounting points. By adjusting the end links to a neutral position, you eliminate sway bar preload, enhancing suspension performance in various driving conditions.

The main body of the ECS Sway Bar End Links is crafted from strong, lightweight 6061-T6 billet aluminum and anodized red for superior corrosion resistance. Featuring left and right-hand threaded center sections and machined hex wrench fittings, these end links allow for quick and easy on-the-car adjustments. Zinc-plated hardware ensures secure and lasting adjustments, while the heavy-duty ball joint ends come with weather-resistant rubber boots and stainless steel wire retainers, providing superior protection against salt, rain, and ozone for extended durability. Each kit also includes zinc-plated Nyloc nuts and hardened steel washers for secure installation and improved contact surface on the sway bar.

These end links are designed, engineered, and rigorously tested by ECS Tuning to ensure the highest quality. Whether you have a lowered or stock suspension, these adjustable sway bar end links are the perfect upgrade, offering a high-quality, heavy-duty replacement that fits your specific needs.

Features:

Range of Adjustment: 215mm (8.46") to 275mm (10.82") 6061-T6 Billet Aluminum Construction: Red anodized for superior corrosion resistance Zinc-Plated Hardware: Provides durability and superior corrosion protection Right and Left-Hand Threaded Center Sections: Quick and simple on-the-car adjustments Heavy-Duty Ball Joints(M10x1.5): Weather-resistant rubber boots and stainless steel wire retainers for long-lasting durability

It’s no secret that BMW’s suffer from weak, failure prone front thrust arm bushings.  The stock rubber bushings are designed to allow significant fore/aft movement of the front wheels and are fluid filled to help absorb road impacts.  This compliant design maximizes daily driving comfort and helps add to the “luxury” feeling of your BMW, but it also contributes to the numb, disconnected feeling that many enthusiasts complain about with modern BMW’s.  Not only is the OEM design far from ideal for the street or racing enthusiast that is looking for optimal handling and braking performance, the constant twisting and deflection required of the rubber bushing often causes premature failure, resulting in degraded handling, wheel shimmy, delayed steering response, delayed braking response, unwanted alignment change, and poor tire wear.

Introducing the new Turner Thrust Arm Ball Joints!  The Turner engineering team set out to design a solution that offers far superior durability when compared to OEM, requiring no modification and offering nearly instantaneous cornering and braking response for the absolute best road feel and driving experience possible.  Our thrust arm monoballs utilize a sealed OEM BMW ball joint for exceptional quality and durability.  The bearing assembly is precision CNC machined from 6061-T6 anodized aluminum and features a knurled OD to ensure a perfect press fit and longest lasting component life possible.

By utilizing a sealed ball joint, Turner achieved the ultimate in terms of low friction no bind suspension travel with no unwanted deflection, providing exceptional steering precision, turn-in response, and direct braking feedback; all while maintaining exceptional comfort and durability levels making these an excellent no compromise upgrade even for a street car.  These thrust arm monoball / ball joints are a must have for any track car, but are also completely street-able and are a great upgrade for any enthusiast that enjoys spirited driving.

Features:

Ball Joint / monoball

- OEM BMW sealed, greased ball joint for exceptional durability and service life, even in the most severe operating conditions

Housing

- 6061-T6 anodized housing for excellent corrosion resistance.

- Proprietary Turner designed knurled OD to provide the perfect fit for the wide range of thrust arm bore diameters among brands.

Bearing Inserts

- CNC machined 304ss, providing a precision fit between the ball joint and the subframe.

Performance

- Nearly instantaneous, crisp steering and braking response.

- Maintenance free, long lasting performance.

- Improved road feel without undesirable NVH.

You get the best of both worlds with this pair of Turner Motorsport adjustable sway bar links. We searched far and wide to find the hidden gem of swaybar links. You get the same quiet operation and long life as the stock links plus the strength and adjustability of rod-end style sway bar links.

With the wide range of suspensions and sway bars available today adjustable sway bar links can help you with many problems. Along with the ability to remove preload you can change the length to maximize sway bar geometry. Example: if the sway bar hoop comes too close to the steering rack, oil cooler, or under tray in its suspension travel you can adjust it by simply lengthening or shorting the adjustment rod. In some cases you may need a longer or shorter adjustment rod to achieve optimal geometry. We also offer these same links in other custom lengths (click here) that may not be specific to BMW chassis.

Features:

• Adjustable to neutralize preload on sway bar (balanced handling)
• The ability to set sway bar geometry and clearance
• Low friction ball joints
• High articulation
• Direct replacement for OEM sway bar links
• Watertight boot seal
• Ball joint is made by a world leader in ball joint technology, THK. THK's OEM Customers: BMW, Porsche, Ford, GM, Nissan, Honda, and Toyota

Turner Swaybar Link Specs:
TSU9912AF1: 220.00mm - 235.00mm / 8.66" - 9.25"
TSU4612AF3: 250.00mm - 265.00mm / 9.84" - 10.43"
TSU5012AF8: 280.00mm - 295.00mm / 11.02" - 11.61"
TSU9912A95: 290.00mm - 305.00mm / 11.42" - 12.00"

These adjustable sway bar end links can be used on a variety of BMWs. Please select your car below. Please note these end links do not fit non-M E36, except 325i/is produced before 6/1992.

BMW’s are known to have failure prone front thrust arm bushings.  The flexible rubber bushings, even those found in M performance models, allow significant movement of the front wheels to maximize daily driving comfort, but also allow considerable alignment change.  This results in a disconnected and numb road feel, standing between you and a confidence inspiring driving experience. Eventually the fluid filled rubber bushings fatigue and crack due to continual deflection and ozone degradation, and eventually the damping fluid leaks out resulting in complete failure.

For the enthusiast looking for superior performance and longevity with a crisp, confidence-inspiring driving experience, our sealed ball joint monoballs are the best solution available!  Our experience with spherical front control arm ball joints goes back to those we designed and used in our IMSA E90 328i and E92 M3 race cars (GS class Champions in 2011). We wanted to offer as many BMW owners possible a similar level of handling, precision, and control for the track and street.

Utilizing a sealed OEM BMW ball joint for exceptional quality and durability, making them completely at home on both the street and track with no compromise.  We have done extensive street, autocross, and track testing to ensure the ball joint used in this bushing design excels in each setting. The advantage of a sealed ball joint is that it eliminates all unwanted deflection while still allowing complete bind-free movement throughout suspension travel, resulting in exceptional control of wheel alignment.  What you get is superior steering precision, turn-in response, direct braking feedback, and better handling.

In short, if you're seeking the ultimate in precise, predictable handling and control, with crisp braking response and a long service life that’s equally at home on the street or track - look no further. We have you covered.

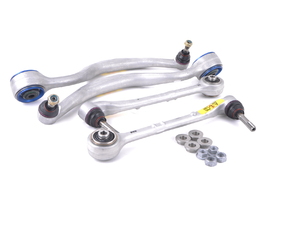

We offer these control arms with the monoball bearings pre-installed for your convenience. Since BMW recommends the control arms be replaced for every other bushing change, we prefer to sell these as a pre-assembled set. The bushings are also available separately if you wish to source your own control arms.

Control Arm Bearing

• CNC machined corrosion resistant 304 Stainless steel shell, bolt sleeves, & snap rings
• Sealed spherical ball joint for long service life & maintained OE fitment
• Suspension pre-load is no longer required when torquing the control arm hardware

Thrust Arm Bearing:

• OEM BMW sealed, greased ball joint for exceptional durability and service life, even in the most severe operating conditions
• 6061-T6 anodized housing for excellent corrosion resistance
• Proprietary Turner designed knurled OD to provide the perfect fit for the wide range of thrust arm bore diameters among brands
• CNC machined 304ss, providing a precision fit between the ball joint and the subframe

Benefits of Both:​

• Nearly instantaneous, crisp steering and braking response.
• Maintenance free, long lasting performance.
• Improved road feel without undesirable NVH.

Dinan Performance Springs are matched to your BMW's chassis and suspension components to deliver better handling and looks without sacrificing ride quality. Dinan BMW springs are carefully engineered to work within your car's suspension travel and to improve suspension geometry. Spring rates are slightly stiffer than stock and dialed in to reduce bodyroll. A stiffer suspension makes the car more fun to drive and the lower ride height improves the looks by reducing wheel-fender gap.

Dinan spring specs -

• F: -1/4" (6mm)

• R: -1/4" (6mm)

Fitment note: When used with stock shocks the Dinan Ride Quality Kit is strongly recommended. The Kit consists of shorter and stiffer bump stops and spring perches that work better with the lowered ride height of these springs. While not explicitly required, less than favorable ride quality and handling may result without them.

For over 35 years, Dinan has been America's premier tuning company, pioneering advancements in BMW modification while retaining a focus on balanced performance that preserves the original character and driving feel that a BMW offers. When you install a Dinan part on your car, know that it's not only carefully developed and tested, but that Dinan stands behind it with a four year, 50,000-mile warranty. Dinan believes so fully in their “total package” approach that once your car has been fitted with enough of their parts, they celebrate your conversion from stock to Dinan with an exclusive trunk badge, displayed proudly by BMW enthusiasts everywhere. The springs are worth 2 points towards your Dinan badge (Ride Quality Kit is worth 1 point).

This item fits the following BMWs:
1999-2003 E39 BMW M5

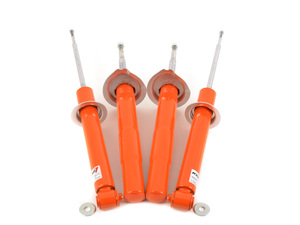

KONI's entry level performance STR.T (pronounced Street) shocks and struts bring improved handling and KONl quality to the budget minded driving enthusiast. Whether to simply refresh and upgrade a stock vehicle or to match with street performance lowering springs and other modifications, KONl STR.T provides performance at a value price point.


• Entry level performance shock absorber
• Compliments lower springs
• Perfect for OE replacement or vehicle improvement
• Non-adjustable
• Lifetime Warranty

Activate your Koni Rebate!

This kit fits the following BMWs:
E39 540i Sedan without EDC

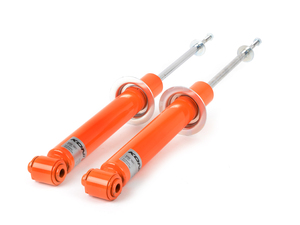

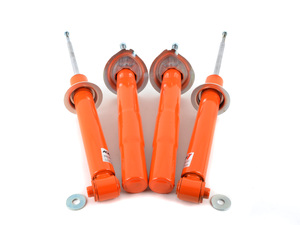

KONI's entry level performance STR.T (pronounced Street) shocks and struts bring improved handling and KONl quality to the budget minded driving enthusiast. Whether to simply refresh and upgrade a stock vehicle or to match with street performance lowering springs and other modifications, KONl STR.T provides performance at a value price point.


• Entry level performance shock absorber
• Compliments lower springs
• Perfect for OE replacement or vehicle improvement
• Non-adjustable
• Lifetime Warranty

Activate your Koni Rebate!

This kit fits the following BMWs:

1997-2003 E39 525i 528i 530i 540i Sedan (Will not fit vehicles with EDC/self-leveling rear suspension)

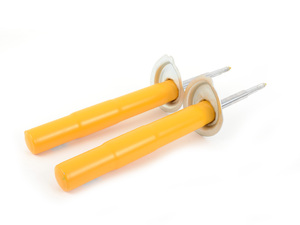

KONl Sport struts and shocks are the industry leader for user adjustable damping for daily drivers to weekend warriors. KONl Sport's familiar yellow color has for decades meant superior motion control and adjustability for the discerning driving enthusiast.

• Big handling improvements
• Reasonable ride quality
• Re-buildable for custom vehicle setups
• Best KONl shock for all lowering springs
• Lifetime Warranty​

Activate your Koni Rebate!

This item fits the following BMWs:
1997-2003 E39 540i M5 (not for cars with self-leveling or EDC suspension)

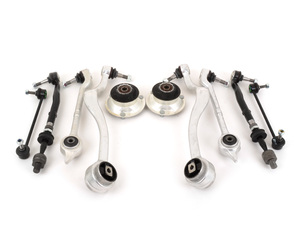

Eliminate the most common sources of suspension slop with our all new Turner Suspension Refresh Kits that feature only OEM parts! We do not include any "cheap parts" in our refresh kits to ensure long-lasting reliability and noise-free suspension.

This Level 2 kit replaces:

Front Strut Mounts
Control Arms
Outer Tie Rods
Sway Bar End Links

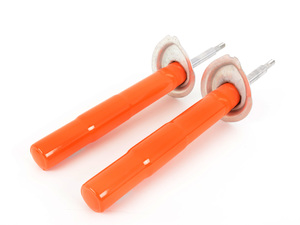

KONI's entry level performance STR.T (pronounced Street) shocks and struts bring improved handling and KONl quality to the budget minded driving enthusiast. Whether to simply refresh and upgrade a stock vehicle or to match with street performance lowering springs and other modifications, KONl STR.T provides performance at a value price point.

• Entry level performance shock absorber
• Compliments lower springs
• Perfect for OE replacement or vehicle improvement
• Non-adjustable
• Lifetime Warranty

Activate your Koni Rebate!

This item fits the following BMWs:
E39 525i 528i Sedans without EDC
E39 530i without EDC

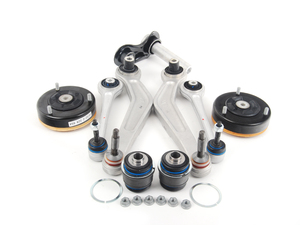

Eliminate the most common sources of suspension slop with our all new Turner Suspension Refresh Kits that feature only OEM parts! We do not include any "cheap parts" in our refresh kits to ensure long-lasting reliability and noise-free suspension.

This Level 1 kit replaces:

Rear Upper Control Arm
Rear Ball Joints
Shock Mounts
Hardware

Eliminate the most common sources of suspension slop with our all new Turner Suspension Refresh Kits that feature only OEM parts! We do not include any "cheap parts" in our refresh kits to ensure long-lasting reliability and noise-free suspension.

This Level 1 kit replaces:

Rear Control Arms
Shock Mounts
Ball Joints
Hardware

Eliminate the most common sources of suspension slop with our all new Turner Suspension Refresh Kits that feature only OEM parts! We do not include any "cheap parts" in our refresh kits to ensure long-lasting reliability and noise-free suspension.

This Level 1 kit replaces:

Rear Control Arms
Rear Control Arm Bushings
Rear Ball Joints
Rear Strut Mount
New Hardware

Eliminate the most common sources of suspension slop with our all new Turner Suspension Refresh Kits that feature only OEM parts! We do not include any "cheap parts" in our refresh kits to ensure long-lasting reliability and noise-free suspension.

This Level 2 kit replaces:

Subframe Bushings
Shock Mounts
Diff Bushings
Control Arms & Bushings
Sway Bar End Links
Hardware
