Flywheels for BMW 1 Series E82 (2008-2013)

Engineered in-house, we designed this lightweight, single-mass flywheel to provide more than 10 pounds of weight savings over the factory flywheel. While some ultra-lightweight performance flywheels are manufactured from aluminum, our designers opted for a more driveable experience with steel. The mass provided by steel helps dampen vibrations and noise, delivering near-factory refinement with most of the benefits of a lightweight flywheel: quicker throttle response, improved durability (and longevity), and more effective transfer of power to the wheels.

Modern flywheels are built with additional components that are designed to dampen and minimize vibrations from the engine and transmission. Weight has increased and reliability has decreased. With additional weight more energy is required for it to move. A lightweight flywheel does away with the dual mass design and its additional mass so more energy can be diverted to where it counts most - moving the car. The flywheel and clutch is one of the first areas that engine builders address when making the rotating assembly lighter for race engines. The dampening effect is just not needed on cars that are focused on performance. And with a single-mass flywheel the unreliable DMF design is eliminated.

When it comes to selecting a clutch to pair with a lightweight flywheel, consider the driving you’ll be doing. As a single mass flywheel eliminates the dual-mass dampening of the factory flywheel, to retain the lowest noise, lowest harshness driving experience possible, select a clutch with a dampened disc such as the ACT Heavy Duty. For dedicated track cars, a solid clutch hub is appropriate.

Our recommendations:

Street: ACT Heavy Duty
Track: ACT Xtreme for high torque cars or OE 335is LuK (with 440lbs-ft or less)
Features:

Precision machined from 4140 HT heat treated chromoly steel for exceptional toughness, even wear properties, and durability.
Material quality promotes even wear across the entire friction surface
Heat treated to HRC 28-32, tempered to relieve stress and improve dimensional stability and elevated temperatures
Hardness improves wear characteristics
Black oxide coated for corrosion resistance on non-friction surfaces.
8620 steel pilot bearing pin, case hardened and Precision ground for maximum wear resistance.
Precision balanced to exceed OEM specification (G16 spec to 175g-mm).
SFI 1.1 tested and certified to ensure safe operation under extreme operating conditions
SFI 1.1 specifies minimum material properties and requires a 3rd party lab certification test, spinning the flywheel to 1.5x redline for 1 hour to ensure the flywheel will not burst.
Specifically designed to work with N54 architecture clutches
Step height designed to optimize clamp load and maximize the usable range of clutch wear for a long service life
Performance:

Turner Flywheel 18.6 lbs
10 lbs lighter than the factory BMW flywheel (Stock Flywheel 28.9 lbs)
Faster revs
Improved throttle response
Improved acceleration
Sportier driving experience
Stock flywheel weight - 28.9lbs
Turner single mass flywheel weight = 18.55lbs

Single Mass Flywheel Conversion:

Audible chatter from the transmission after installation is considered normal. As with most single mass flywheels, there is less dampening in the flywheel to reduce "gear noise." This chatter noise may be more present when the transmission fluid temperatures are hotter and may be intensified by other modifications. Most gearboxes will experience some chatter noise at hotter temperatures. Please be advised that this noise will disappear once the clutch pedal is depressed. This symptom may be lessened by adjusting transmission fluid weight, turning off electrical/driveline consumers (A/C, High Beams, ETC.), and by raising the RPM slightly.

Installation:

Flywheel Hardware: For added peace of mind, apply Blue or Orange Loctite when installing factory flywheel bolts that do not come with pre-applied threadlocker.

This item fits the following BMWs with 8 bolt flywheel and build date up to 01/2009 or earlier:
2008-01/2009 E82 BMW 135i 135is 1M
2007-01/2009 E90 BMW 335i 335xi 335i xDrive - Sedan
2007-01/2009 E92 BMW 335i 335xi 335i xDrive - Coupe
2007-01/2009 E93 BMW 335i - Convertible
2008-01/2009 E60 BMW 535i 535xi 535i xDrive

BMW Lightweight Flywheels

• Crafted with precision from Forged Chromium-Molybdenum Steel
• Perfect fitment and finish for hassle-free installation
• Utilizes leading-edge Solidworks 3D CAD and Cosmos FEA software for design
• Advanced geometry minimizes drivetrain losses, offering 1-2% more power to the ground
• Precision balanced to exceed 12,000rpm for utmost reliability
• Made from imported Japanese SAE 4140 Steel
• Forged, double-tempered, and super sub-zero treated for unsurpassed toughness
• Proprietary Nitride surface treatment enhances surface hardness

The ACT Streetlite flywheel offers the following benefits:

Noticeably improved engine response and acceleration: Experience a significant boost in engine performance and acceleration with this component. OE to mild gear rattle: Expect only minimal gear rattle, from Original Equipment (OE) standards to a mild level, ensuring a smoother drive. Heat-treated forging for strength and toughness: Crafted using heat-treated forging, this part guarantees enhanced strength and durability. Induction-hardened ring gears for maximum life: The ring gears undergo induction hardening, providing maximum lifespan and reliability. One-piece construction allows less opportunity for failure and provides uniform efficient heat transfer from the clutch disc: The one-piece design reduces potential failure points and ensures uniform and efficient heat transfer from the clutch disc, preventing issues like warped inserts or loose ring gears. Recommended for street and race use: This component is ideal for both everyday street driving and competitive racing environments.

Forged, CNC machined, and dynamically computer balanced for smooth high RPM reliability: Expertly forged, CNC machined, and dynamically balanced via computer to ensure smooth and reliable performance at high RPMs.

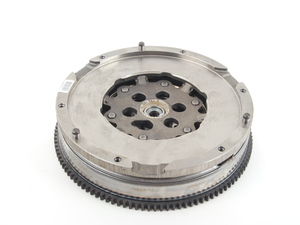

This is the stock twin mass flywheel for early N54 engines in the E82 135i, E9X 335i/xi, and E60 535i/xi (flywheel uses 8 mounting bolts). It's manufactured by OEM Shaeffler (LuK). Sachs recommends a new dual mass flywheel (DMF) on every other clutch replacement. There are several indicators for replacing the flywheel: damage to the clutch contact plate (from a severely worn clutch disc), grease leaking from inside (overheating), build-up of clutch material on the contact plate (excessive slipping and overheating), and failure of the internal damping system.

The dampening system uses rubber or coil springs to absorb driveline vibrations. Through age, excessive heat, and aggressive use the rubber loses its resilience and the metal springs lose their strength and become brittle. If the clutch and flywheel have become overheated the internal grease may break down as well. A DMF failure can be massive and catastrophic, not to mention dangerous as bits of metal and rubber fling themselves through the transmission bellhousing. Heat and aggressive driving will accelerate the wear so race and track cars should have their stock flywheels replaced at regular intervals or with any new clutch. Even normal street cars should plan for a new flywheel if it has high mileage.

DMF wear can only be checked with the transmission and clutch removed. If you can rotate the outer flywheel more than 20mm in either direction then it should be replaced.

A new pilot bearing (roller bearing) is included, pre-installed in the flywheel hub.

OEM Schaeffler (INA, LuK, & FAG) is an engineering company that focuses on high-performance, precision manufacturing. With their individual brands INA, Luk, and FAG providing exceptionally high quality parts directly to BMW, as well as countless other automotive companies, their history of reliability and variety of offered parts makes Schaeffler a go-to replacement parts provider for all of us here at Turner Motorsport.

As a leading source of high performance BMW parts and accessories since 1993, we at Turner Motorsport are honored to be the go-to supplier for tens of thousands of enthusiasts the world over. With over two decades of parts, service, and racing experience under our belt, we provide only quality performance and replacement parts.  All of our performance parts are those we would (and do!) install and run on our own cars, as well as replacement parts that are Genuine BMW or from OEM manufacturers. We only offer parts we know you can trust to perform!

This item fits the following BMWs:
2008-1/2009 E82 BMW 135i
2007-1/2009 E90 BMW 335i 335xi 335i xDrive - Sedan
2007-1/2009 E92 BMW 335i 335xi 335i xDrive - Coupe
2007-1/2009 E93 BMW 335i - Convertible
2007-1/2009 E60 BMW 535i 535xi 535i xDrive

This is an OEM LuK stock twin mass flywheel for the N52 non-turbo engine in the 128i, 325i/328i/330i, 525i/528i/530i, and Z4 30i. It's manufactured by OEM supplier LuK. Sachs recommends a new dual mass flywheel (DMF) on every other clutch replacement. There are several indicators for replacing the flywheel: damage to the clutch contact plate (from a severely worn clutch disc), grease leaking from inside (overheating), build-up of clutch material on the contact plate (excessive slipping and overheating), and failure of the internal damping system.

The dampening system uses rubber or coil springs to absorb driveline vibrations. Through age, excessive heat, and aggressive use the rubber loses its resilience and the metal springs lose their strength and become brittle. If the clutch and flywheel have become overheated the internal grease may break down as well. A DMF failure can be massive and catastrophic, not to mention dangerous as bits of metal and rubber fling themselves through the transmission bellhousing. Heat and aggressive driving will accelerate the wear so race and track cars should have their stock flywheels replaced at regular intervals or with any new clutch. Even normal street cars should plan for a new flywheel if it has high mileage.

OEM Schaeffler (INA, LuK, & FAG) is an engineering company that focuses on high-performance, precision manufacturing. With their individual brands INA, Luk, and FAG providing exceptionally high quality parts directly to BMW, as well as countless other automotive companies, their history of reliability and variety of offered parts makes Schaeffler a go-to replacement parts provider for all of us here at Turner Motorsport.

As a leading source of high performance BMW parts and accessories since 1993, we at Turner Motorsport are honored to be the go-to supplier for tens of thousands of enthusiasts the world over. With over two decades of parts, service, and racing experience under our belt, we provide only quality performance and replacement parts.  All of our performance parts are those we would (and do!) install and run on our own cars, as well as replacement parts that are Genuine BMW or from OEM manufacturers. We only offer parts we know you can trust to perform!

DMF wear can only be checked with the transmission and clutch removed. If you can rotate the outer flywheel more than 20mm in either direction then it should be replaced.

A new pilot bearing (roller bearing) is included, pre-installed in the flywheel hub.

This is an OEM LuK stock dual mass flywheel. When your clutch starts to experience engagement chatter because of hot spots and wear, replacing it with this OEM dual mass flywheel will restore your vehicles driveability and have you clutch shifting smoothly again. OEM replacement for BMW part # 21207640733 and 21207598460.

OEM Schaeffler (INA, LuK, & FAG) is an engineering company that focuses on high-performance, precision manufacturing. With their individual brands INA, Luk, and FAG providing exceptionally high quality parts directly to BMW, as well as countless other automotive companies, their history of reliability and variety of offered parts makes Schaeffler a go-to replacement parts provider for all of us here at Turner Motorsport.

As a leading source of high performance BMW parts and accessories since 1993, we at Turner Motorsport are honored to be the go-to supplier for tens of thousands of enthusiasts the world over. With over two decades of parts, service, and racing experience under our belt, we provide only quality performance and replacement parts.  All of our performance parts are those we would (and do!) install and run on our own cars, as well as replacement parts that are Genuine BMW or from OEM manufacturers. We only offer parts we know you can trust to perform!

This is the stock twin mass flywheel for the N54 engine in later E82 135i, E9X 335i, E60 535i, and Z4 35i (cars with 6-bolt mounting hub). It's manufactured by OEM supplier LuK. Sachs recommends a new dual mass flywheel (DMF) on every other clutch replacement. There are several indicators for replacing the flywheel: damage to the clutch contact plate (from a severely worn clutch disc), grease leaking from inside (overheating), build-up of clutch material on the contact plate (excessive slipping and overheating), and failure of the internal damping system.

The dampening system uses rubber or coil springs to absorb driveline vibrations. Through age, excessive heat, and aggressive use the rubber loses its resilience and the metal springs lose their strength and become brittle. If the clutch and flywheel have become overheated the internal grease may break down as well. A DMF failure can be massive and catastrophic, not to mention dangerous as bits of metal and rubber fling themselves through the transmission bellhousing. Heat and aggressive driving will accelerate the wear so race and track cars should have their stock flywheels replaced at regular intervals or with any new clutch. Even normal street cars should plan for a new flywheel if it has high mileage.

Tip: DMF wear can only be checked with the transmission and clutch removed. If you can rotate the outer flywheel more than 20mm in either direction then it should be replaced.

A new pilot bearing (roller bearing) is included, pre-installed on the flywheel hub.

OEM Schaeffler (INA, LuK, & FAG) is an engineering company that focuses on high-performance, precision manufacturing. With their individual brands INA, Luk, and FAG providing exceptionally high quality parts directly to BMW, as well as countless other automotive companies, their history of reliability and variety of offered parts makes Schaeffler a go-to replacement parts provider for all of us here at Turner Motorsport.

This item fits the following BMWs:
1/2009-2010 E82 BMW 135i
1/2009-2010 E90 BMW 335i 335xi 335i xDrive - Sedan
1/2009-2010 E92 BMW 335i 335is 335xi 335i xDrive - Coupe
1/2009-2010 E93 BMW 335i - Convertible
1/2009-2010 E60 BMW 535i 535xi 535i xDrive

This is the stock twin mass flywheel for the N55 engine used in the E82 135i, E9X 335, F3x 335/435, and F10 535i. It's manufactured by OEM supplier LuK. Sachs recommends a new dual mass flywheel (DMF) on every other clutch replacement. There are several indicators for replacing the flywheel: damage to the clutch contact plate (from a severely worn clutch disc), grease leaking from inside (overheating), build-up of clutch material on the contact plate (excessive slipping and overheating), and failure of the internal damping system.

The dampening system uses rubber or coil springs to absorb driveline vibrations. Through age, excessive heat, and aggressive use the rubber loses its resilience and the metal springs lose their strength and become brittle. If the clutch and flywheel have become overheated the internal grease may break down as well. A DMF failure can be massive and catastrophic, not to mention dangerous as bits of metal and rubber fling themselves through the transmission bellhousing. Heat and aggressive driving will accelerate the wear so race and track cars should have their stock flywheels replaced at regular intervals or with any new clutch. Even normal street cars should plan for a new flywheel if it has high mileage.

DMF wear can only be checked with the transmission and clutch removed. If you can rotate the outer flywheel more than 20mm in either direction then it should be replaced.

A new pilot bearing (roller bearing) is included, pre-installed in the flywheel hub.

This item fits the following BMWs with the single turbo N55 engine and manual transmission:
2011-2012 E82 BMW 135i
2011 E90 BMW 335i 335xi 335i xDrive - Sedan
2011-2013 E92 BMW 335i 335xi 335i xDrive - Coupe
2011-2013 E93 BMW 335i - Convertible
2012-2015 F30 BMW 335i 335iX - Sedan
2014-2016 F34 BMW 335iX - Gran Turismo
2014-2016 F32 BMW 435i 435iX - Coupe
2014-2016 F33 BMW 435i 435iX - Convertible
2014-2016 F36 BMW 435i 435iX - Gran Coupe
2011+ F10 BMW 535i 535i xDrive

An excellent performance upgrade so you can enjoy quicker revs and eliminate excess turbo lag. Made of high quality 6061-T6 billet aluminum, with a high-carbon steel replaceable friction surface, this flywheel from Clutch Masters is sure to be a great upgrade for anyone looking to reduce crankshaft drag and increase acceleration.

Typical benefits of a Clutch Masters lightweight flywheel:

• Reduced mass equals increased acceleration
• CM uses only 6061-T6 aircraft grade or better billet aluminum in the manufacturer of its flywheels
• CM uses an OE steel ring gear secured by bolts
• CM offers a limited lifetime warranty
• CM Billet Aluminum Flywheels meet SFI Spec 1.1 or 1.2

For vehicles with production date up to 01/2009

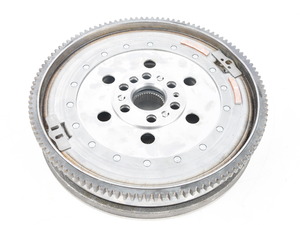

This is the stock OE BMW twin mass flywheel for the N54 engine in later E82 135i, E9X 335i, E60 535i, and Z4 35i (cars with 6-bolt mounting hub). Sachs recommends a new dual mass flywheel (DMF) on every other clutch replacement. There are several indicators for replacing the flywheel: damage to the clutch contact plate (from a severely worn clutch disc), grease leaking from inside (overheating), build-up of clutch material on the contact plate (excessive slipping and overheating), and failure of the internal damping system.

The dampening system uses rubber or coil springs to absorb driveline vibrations. Through age, excessive heat, and aggressive use the rubber loses its resilience and the metal springs lose their strength and become brittle. If the clutch and flywheel have become overheated the internal grease may break down as well. A DMF failure can be massive and catastrophic, not to mention dangerous as bits of metal and rubber fling themselves through the transmission bellhousing. Heat and aggressive driving will accelerate the wear so race and track cars should have their stock flywheels replaced at regular intervals or with any new clutch. Even normal street cars should plan for a new flywheel if it has high mileage.

DMF wear can only be checked with the transmission and clutch removed. If you can rotate the outer flywheel more than 20mm in either direction then it should be replaced.

A new pilot bearing (roller bearing) is included, pre-installed in the flywheel hub.

This item fits the following BMWs:
1/2009-2010 E82 BMW 135i
1/2009-2010 E90 BMW 335i 335xi 335i xDrive - Sedan
1/2009-2010 E92 BMW 335i 335is 335xi 335i xDrive - Coupe
1/2009-2010 E93 BMW 335i - Convertible
1/2009-2010 E60 BMW 535i 535xi 535i xDrive
