Please ensure your correct model is selected
Ohlins Racing has a long history dating back to 1976 of providing premium motorcycle and automotive suspension systems to numerous racing teams, individual racers, and OE brands such as BMW Motorsport, Audi, Lamborghini. Pagani, Ducati and Kawasaki. Over time, thanks to extensive R&D, testing, and tuning, their products have evolved into some of the highest quality suspension systems in the world, providing years of flawless operation on both the street and the track.
Ohlins' latest automotive suspension system, the DFV (Dual Flow Valve) Road and Track Coilover Kit, has bridged the gap between comfortable stock suspension and track focused coilover kits. These kits provide a ride that glides over typical bumps and dips in the road, all without the typical hard rattle and harsh feel of usual coilovers, and turn in tight and maintain tire grip and traction in corners significantly better than stock suspension ever could. This is all thanks to the spring rate chosen and Ohlins and their signature Dual Flow Valve. The DFV maintains comfort and agility by giving the same characteristics for both rebound and compression, allowing the wheel and tire to maintain constant contact with the road/track for maximum control.
The Dual Flow Valve works by controlling shock fluid flow based on resistance and impact velocity. This is controlled in both compression and rebound, giving the quick shock operation that helps maintain traction. At low shaft travel speeds, oil flows mostly through the shaft jet bleed. At higher shaft speeds, oil flows mostly through the compression/rebound ports in the piston. At very high shaft speeds, or during sudden accelerations from potholes or large bumps in the road, oil can then escape through the ports in the DFV, absorbing a large amount of energy that would otherwise throw off the balance and control of the vehicle and keeping the tire planted firmly on the ground. With all three compression and rebound ports working together according to pressure and shaft speed, the result is the notorious premium suspension feel that only Ohlins can offer.
In addition to managing the rebound and compression control, coilovers must also properly address heat changes in the shock oil. As the shock is pushed harder and longer, the oil quickly heats up due to friction and compression, and the oils flow characteristics change. The hotter the oil is, the easier it is for it to travel through ports and valves. To prevent this typical fade in control, Ohlins has implemented a temperature controlled needle bleed valve system that will expand as temperatures rise, slowly increasing restriction in the fluids flow through the valve gap. This produces a consistent dampening rate that maintains the vehicle's suspension characteristics lap after lap, turn after turn, no matter how hard you push your suspension's capabilities.
Features:
Specs:
*Now available are optional EDC Cancellation Modules that will prevent any lights or issues with suspension control systems. Turner Motorsport recommends purchasing these in addition to the suspension kit to get the most out of your Ohlins suspension system.
Find installation instructions HERE.
Find owner's manual HERE.
Fits the following BMWs:
2008-2013 E9X BMW M3
Experience enhanced performance without compromising daily comfort with the Öhlins Road & Track suspension range. Engineered for the ultimate balance between track-ready handling and refined road use, Öhlins Road & Track products provide unparalleled traction and control for track days while ensuring a smooth, enjoyable ride for everyday driving. Whether you’re seeking full suspension kits or individual shock absorbers and struts, this range meets the needs of both aftermarket enthusiasts and manufacturers striving to optimize chassis performance.
The Öhlins Road & Track shock absorber kit, specifically designed for BMW 1 Series (E81/E82/E87/E88) and BMW 3 Series (E90/E91/E92/E93) (2005–2013), brings track-level excitement to your vehicle without sacrificing the comfort and safety required for daily commuting.
The advanced Dual Flow Valve (DFV) technology enables quick damper stiffness adjustment with the simple turn of a golden knob. Switch to race mode by turning the knob clockwise upon arriving at the track, instantly enhancing low- and high-speed compression and rebound damping.
With Öhlins Road & Track coilovers, you’ll enjoy rapid response times, superior bump absorption, and exceptional traction for added safety when pushing limits. Experience enhanced balance and control near the tires' grip threshold, leading to faster, more agile handling on the track. The DFV components work seamlessly over both small and large road imperfections, maintaining control and grip on varied surfaces.
Switch back to road mode when leaving the track for a relaxed, comfortable drive, with increased grip and responsiveness that elevates your daily driving experience.
Bilstein has teamed up with Eibach to offer matched shock and spring packages. These Eibach springs are mated to a special set of Bilstein shocks to deliver a sporty and taut ride with as little impact on ride comfort as possible.
The Pro Kit uses an Eibach Pro Kit spring with Bilstein's Sport shocks and struts. Instead of taking parts from different manufacturers, Bilstein has tested the performance of the Eibach spring and tailored their shocks to be a true match for the new spring rate and ride height. This is known as a matched shock and spring and very few tuning companies take these extra steps. Eibach springs tend to be softer overall than most other aftermarket springs, which ensures the ride stays close to a stock comfort while still giving you a lowered stance and improved handling.
Bilstein B12 Features:
Most cars don't need coil overs to improve their handling and bodyroll. For most drivers, simply replacing the shocks and springs with performance versions will meet their goals. If your shocks need replacing, and you felt the handling could be improved a little bit, this is an excellent performance suspension for you.
This item fits the following BMWs:
2008-2012 E9X BMW M3
The B16 PSS10 coilovers offer a stiffer spring rate than stock and a lower ride height for less bodyroll and better handling. These are among the easiest coil over kits on the market - no special mounts required (works with stock mounts and sway bar links), larger adjustment knob allows for easy shock damping changes, and coil over spanner wrenches included for easy height changes. Bilstein backs up their technology with a limited lifetime warranty. TUV approved for fitment, safety, and quality!
Bilstein's monotube shock dampers in the PSS10 offer 10 precise settings for compression and rebound. A new setting is just a click away, allowing you to set a ride and handling combination that works for your setting. Instead of offering too many shock settings that you're never going to use, Bilstein has chosen ten optimal damping curves from a smooth street setting (P10) to an ultra-stiff track-only setup (P1). Shock changes are made from an easy-to-use over-sized adjuster knob.
Ride height adjustments are done from perches that ride on each shock body, which are zinc coated for excellent wear and corrosion resistance. You can set the ride height between 0.5 to 1.3 inches lower than stock ride height. Springs are progressively rated so their initial compression rating is quite soft and then becomes stiffer as the spring compresses. These are stiffer than most coil over kit manufacturers and the results of Bilstein's extensive testing on the German Nurgburgring and Autobahn.
The fitment of these is just like a standard shock and spring package. The front struts and rear shocks are compatible with the stock strut and shock mounts. You can re-use your own or choose a mount with additional features. Because the Bilstein design keeps the sway bar tab in the original location, you can re-use the stock sway bar links. Using the stock mounts keeps the cost and complexity down and allows for TUV certification. You can also be assured of the stock mount's quiet and long-lasting performance. The assembly of the front strut is the same as a the factory strut. In the rear, ride height is made by an adjustable spring perch that sits under the rear spring. Install instructions and diagrams included.
If you're looking for a supremely capable and high quality suspension, then look no further than the Bilstein PSS10. It combines all of the best German engineering with real-world development, and a lifetime warranty.
Fitment note: this system works only on cars not equipped with the factory EDC electronically adjustable shocks.
Featuring:
This coilover kit fits the following BMWs:
2008+ E82 BMW 128i 135i
2006+ E90 BMW 325i 328i 330i 335d 335i
2007+ E92 BMW 328i 335i 335is
2007+ E93 BMW 328i 335i
Bilstein has teamed up with Eibach to offer matched shock and spring packages. These Eibach springs are mated to a special set of Bilstein shocks to deliver a sporty and taut ride with as little impact on ride comfort as possible.
The Pro Kit uses an Eibach Pro Kit spring with Bilstein's Sport shocks and struts. Instead of taking parts from different manufacturers, Bilstein has tested the performance of the Eibach spring and tailored their shocks to be a true match for the new spring rate and ride height. This is known as a matched shock and spring and very few tuning companies take these extra steps. Eibach springs tend to be softer overall than most other aftermarket springs, which ensures the ride stays close to a stock comfort while still giving you a lowered stance and improved handling.
Bilstein B12 Features:
Most cars don't need coil overs to improve their handling and bodyroll. For most drivers, simply replacing the shocks and springs with performance versions will meet their goals. If your shocks need replacing, and you felt the handling could be improved a little bit, this is an excellent performance suspension for you.
This item fits the following BMWs:
2007-2013 E9X BMW 328i 335i/is
Looking for coilovers that will provide reliability on street driven vehicles but are also capable of feeding your weekend track demon's desire for performance? BC Racing's BR Series coilover kit may be just the thing for you.
BR Series coilovers are the most popular and versatile option offered by BC racing, offering features such as 30-level dampening adjustment (simultaneous compression and rebound control), linear springs where possible, and a minimum of 2 inches ride height drop. To ensure performance, comfort, and quality, all BR Series kits are Dyno tested during the design stage to determine the best valving and spring rates, then installed and tested for a minimum of 6 months. This kit features mounts and brackets that are fully compatible with all stock mounting points and components.
The upper shock/strut mounts are all constructed of 6061-T6 Aluminum for strength and weight savings. BC Racing design 1 of 3 types of upper mounts for each vehicle: Caster/Camber Plates (+/- 3* camber), Camber Plates (+/- 3* camber), and Rubber Mount Plates (NVH reduction). The included mount option for this kit is shown in the kit specs and features below.
Lower shock mounts are powder coated for corrosion protection and constructed of either 6061-T6 aluminum that has been milled from a single piece (fork or bolt eye mount) or of STKM13C steel with all brackets welded robotically.
The included springs come in one of 3 styles: linear, S-barrel, and V-barrel. Linear springs are used in most applications unless limited by the OE design that does not allow the use of linear springs. All spring options are made from SAE9254 steel and have a zinc coating applied under the powder coating for increased spring corrosion protection and long term reliability.
All shock bodies used in the BR Series coilovers use a 53mm shock body (unless noted otherwise) for added strength, performance, and increased fluid capacity. All shocks are then powder coated black chrome for clean styling and corrosion protection.
Specs and Features:
The H&R Coil Over kit takes the traditional shock/spring package one step further. This particular coil over set features aluminum front strut bodies instead of steel. This results in a 30-40% weight reduction compared to a stock strut. H&R combines their progressive-rate springs with specially valved shocks and adds height adjusters that let you set the ride height to your own personal tastes. These coil overs are designed for street use with progressive rate springs that start out soft and stiffen as they are compressed. This helps to keep the ride compliant while still giving better handling and balance.
H&R designs each suspension to work as a coil over. This means that the correct amount of travel has been built into each shock. And the shocks are valved specifically for the spring rates to give a tight and controlled ride without being harsh or ultra-stiff. Each H&R coil over is TUV tested and approved and meets ISO quality standards. These are used with the stock strut and shock mounts for a quick and easy install.
SPECIAL PRICING FOR A VERY LIMITED TIME!
FREE GROUND SHIPPING
Height adjustment range:
F: -1.25-2.5"
R: -.75-2.0"
This coilover fits the following BMWs:
2006-2011 E90 BMW 325i 328i 330i 335d 335i - Sedan
2007-2013 E92 BMW 328i 335i 335is - Coupe
Factory Pre-set Damping
The Variant 1 is KW's basic simple and effective coil over kit that is still packed with lots of features -
This is the ideal coil over kit for a convertible or wagon owner who does not plan on tracking or autocrossing the car and just wants a lower, more aggressive stance and better handling. KW has set the shock damping rates to be an excellent balance for a smooth yet taut ride, and to resist bodyroll motions for better handling. The Variant 1 differs from the Street Comfort set in that it has stiffer springs and revised shock settings. If you want a sportier ride and better handling than stock the Variant 1 is an excellent choice.
Coil over suspensions are better engineered suspension options compared to a standard shock + spring package. Since the springs and shocks in a coil over are designed by a team of engineers to work together, there is much better suspension travel and more precisely tuned specifications for spring and shock rates. Using separate shock and spring specs may result in premature coil bind or shock bottoming. And most coil over kits offer more features than the traditional packages. Coil overs are also more useful when larger wheels/tires are used because you can precisely set the ride heights to clear the new tires.
Fitment Note: Wheel spacers may be required depending on wheel/tire sizing and ride height setting.
Lifetime warranty!
This item fits the following BMWs:
2007-2012 E91 BMW 328i - Wagon
2007-2013 E93 BMW 328i 335i - Convertible
For those who demand the absolute best performance comes the ST XTA coilover. The full driving behaviour of your car can be adjusted using KW damper technology along with an adjustable aluminum uniball top mount for fine-tuning of the camber and caster!
ST XTA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. For increased performance, the ST XTA features an aluminium adjustable topmount allowing the camber and caster to be adjusted depending on your driving needs or vehicle setup.
Fits These BMW's
E90/92/93 M3 without EDC
May 1st through June 30th get up to $150 back with ST Consumer Rebate! Please see link below for details.
Enhance your BMW's performance with KW Clubsport coilovers, an ideal suspension solution for both track day events and street use. Crafted specifically for the Nordschleife using track day tires, these coilovers offer unparalleled handling capabilities. The optional adjustable top mounts enable fine-tuning of suspension geometry to match tire requirements and intended usage.
KW Clubsport coilovers guarantee exceptional handling, peak performance, superior agility, and remarkable lap times, meeting the demands of both road and race track usage for your BMW.
The B16 PSS10 coilovers offer a stiffer spring rate than stock and a lower ride height for less bodyroll and better handling. These are among the easiest coil over kits on the market - no special mounts required (works with stock mounts and sway bar links), larger adjustment knob allows for easy shock damping changes, and coil over spanner wrenches included for easy height changes. Bilstein backs up their technology with a limited lifetime warranty. TUV approved for fitment, safety, and quality!
Bilstein's monotube shock dampers in the PSS10 offer 10 precise settings for compression and rebound. A new setting is just a click away, allowing you to set a ride and handling combination that works for your setting. Instead of offering too many shock settings that you're never going to use, Bilstein has chosen ten optimal damping curves from a smooth street setting (P10) to an ultra-stiff track-only setup (P1). Shock changes are made from an easy-to-use over-sized adjuster knob.
Ride height adjustments are done from perches that ride on each shock body, which are zinc coated for excellent wear and corrosion resistance. You can set the ride height between 0.5 to 1.3 inches lower than stock ride height. Springs are progressively rated so their initial compression rating is quite soft and then becomes stiffer as the spring compresses. These are stiffer than most coil over kit manufacturers and the results of Bilstein's extensive testing on the German Nurgburgring and Autobahn.
The fitment of these is just like a standard shock and spring package. The front struts and rear shocks are compatible with the stock strut and shock mounts. You can re-use your own or choose a mount with additional features. Because the Bilstein design keeps the sway bar tab in the original location, you can re-use the stock sway bar links. Using the stock mounts keeps the cost and complexity down and allows for TUV certification. You can also be assured of the stock mount's quiet and long-lasting performance. The assembly of the front strut is the same as a the factory strut. In the rear, ride height is made by an adjustable spring perch that sits under the rear spring. Install instructions and diagrams included.
If you're looking for a supremely capable and high quality suspension, then look no further than the Bilstein PSS10. It combines all of the best German engineering with real-world development, and a lifetime warranty.
Fitment note: this system works only on cars not equipped with the factory EDC electronically adjustable shocks.
Featuring:
Fits the Following Vehicles:
2012+ BMW F30 328i 328d 320i 335i 330e 330i 340i
2014+ BMW F32/F36 428i 435i 430i 440i
2014-2016 BMW F22 228i
The H&R Coil Over kit takes the traditional shock/spring package one step further. H&R combines their progressive-rate springs with specially valved shocks and adds height adjusters that let you set the ride height to your own personal tastes. These coil overs are designed for street use with progressive rate springs that start out soft and stiffen as they are compressed. This helps to keep the ride compliant while still giving better handling and balance.
H&R designs each suspension to work as a coil over. This means that the correct amount of travel has been built into each shock. And the shocks are valved specifically for the spring rates to give a tight and controlled ride without being harsh or ultra-stiff. Each H&R coil over is TUV tested and approved and meets ISO quality standards. These are
SPECIAL PRICING FOR A VERY LIMITED TIME!
FREE GROUND SHIPPING
used with the stock strut and shock mounts for a quick and easy install.
Height adjustment range:
F: -1.25-2.5"
R: -.75-2.0"
SPECIAL PRICING FOR A VERY LIMITED TIME!
This coilover kit fits the following BMWs:
2006-2011 E90 BMW 325i 328i 330i 335d 335i - Sedan
2007-2012 E92 BMW 328i 335i 335is - Coupe
2007-2012 E93 BMW 328i 335i - Convertible

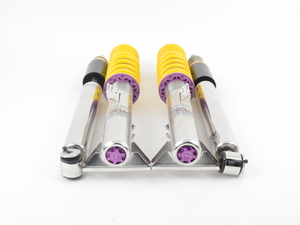

Adjustable Rebound & Compression Damping
Want full control? The KW V3 gives you multiple settings for both rebound and compression. You have full access over ride comfort and handling to dial in that perfect setup. Race teams rely on adjustments to get that perfect lap time and having shock controls at your fingertips is key. KW V3 features -
Whether you track the car often or only use it for backroad carving the V3 will give you the tools to set up an ideal handling condition. You can crank it up for smooth and fast surfaces or soften it for city or rough roads. Since each shock is 2-way adjustable you can alter the front-rear balance to account for brake dive or squat during power application coming out of the corner. You are in total control!
Coil over suspensions are better engineered suspension options compared to a standard shock + spring package. Since the springs and shocks in a coil over are designed by a team of engineers to work together, there is much better suspension travel and more precisely tuned specifications for spring and shock rates. Using separate shock and spring specs may result in premature coil bind or shock bottoming. And most coil over kits offer more features than the traditional packages. Coil overs are also more useful when larger wheels/tires are used because you can precisely set the ride heights to clear the new tires.
Fitment Note: Wheel spacers may be required depending on wheel/tire sizing and ride height setting.
Lifetime warranty!
This item fits the following BMWs:
2007-2012 E91 BMW 328i - Wagon
2007-2013 E93 BMW 328i 335i - Convertible
The H&R Coil Over kit takes the traditional shock/spring package one step further. H&R combines their progressive-rate springs with specially valved shocks and adds height adjusters that let you set the ride height to your own personal tastes. These coil overs are designed for street use with progressive rate springs that start out soft and stiffen as they are compressed. This helps to keep the ride compliant while still giving better handling and balance.
H&R designs each suspension to work as a coil over. This means that the correct amount of travel has been built into each shock. And the shocks are valved specifically for the spring rates to give a tight and controlled ride without being harsh or ultra-stiff. Each H&R coil over is TUV tested and approved and meets ISO quality standards. These are used with the stock strut and shock mounts for a quick and easy install. This suspension is a direct replacement for cars without EDC. For an EDC-equipped model you will need an EDC emulator and non-EDC mounts.
SPECIAL PRICING FOR A VERY LIMITED TIME!
FREE GROUND SHIPPING
Height adjustment range:
F: -1.0-1.6"
R: -.3-1.3"
SPECIAL PRICING FOR A VERY LIMITED TIME!
This coilover suspension kit fits the following BMWs:
2008-2012 E93 M3 convertible
Enhance the performance and aesthetics of your BMW E90/E92 M3 with our meticulously designed Coilover line. Tailored for daily drivers, these coilovers offer a smooth and comfortable ride akin to a stock setup, while delivering an aggressive appearance and significantly improved handling—all at an unmatched value.
Combat the common issues of weak front thrust arm bushings in BMWs with our free Turner Motorsport upgrade. Offering superior durability and nearly instantaneous cornering and braking response.
Elevate your driving experience with these must-have upgrades suitable for both street and track enthusiasts.
Adjustable Rebound Damping
The KW Variant 2 gives shock rebound control to give you more options in fine-tuning the handling of the car. The V2 includes the same features of the V1 kit, including -
This kit is an excellent compromise between a fully-adjustable V3 suspension and the basic V1 street kit. It's great for someone who does not want to make complicated and time-consuming shock adjustments. Just dial in the rebound for more grip and less body motions. Set it back for a compliant street ride.
Coil over suspensions are better engineered suspension options compared to a standard shock + spring package. Since the springs and shocks in a coil over are designed by a team of engineers to work together, there is much better suspension travel and more precisely tuned specifications for spring and shock rates. Using separate shock and spring specs may result in premature coil bind or shock bottoming. And most coil over kits offer more features than the traditional packages. Coil overs are also more useful when larger wheels/tires are used because you can precisely set the ride heights to clear the new tires.
Fitment Note: Wheel spacers may be required depending on wheel/tire sizing and ride height setting.
Lifetime warranty!
This item fits the following BMWs:
2007-2012 E91 BMW 328i - Wagon
2007-2013 E93 BMW 328i 335i - Convertible
