Camber Plates

One of the tricks for getting your BMW to handle better is to add negative camber to the front wheels. This will put more of the tire's width in contact with the ground during cornering. With more rubber there is more grip. BMWs typically have less camber in the front to create understeer. But if you're running a stock setup on the track or autocross you are giving up speed and time as the front tires run out of grip sooner than they should.

Our E90 E92 E93 fixed camber plates are designed from the knowledge we gained from our highly successful racing campaigns with the E46 in the Speed World Challenge series. Our camber plates are offset for the best camber and caster combination for racing purposes when using the stock-diameter sized springs. Camber increases to -2.5° depending on your individual suspension setup, while only increasing ride height by 6mm. The rate of camber change is virtually unaffected throughout the range of suspension travel, reducing the need for other geometry correction. Fixed mount camber plates are legal in many racing and autocross classes - these are the perfect camber solution when adjustable plates are not allowed in your class.

These are very simple to install, requiring only pressing out locator dowels and studs in your factory strut mounts. See below for detailed instructions.

Building on years of building some of the most used (and talked about!) Street and Race camber plates for the E46 M3 has brought us to the next iteration of this key suspension component. Introducing the Turner Motorsport Hybrid Street/Track Caster/Camber Plate designed exclusively for the E46 M3.

Front caster/camber plates play a key role in suspension configuration - providing a point to adjust alignment in the front of the vehicle. Without camber plates, it is not possible to dial in proper street and track alignment specifications to maximize handling and tire wear. A properly configured alignment is frequently the difference between a good car and a great car, trailing the pack and pace-setting lap times, frustrating tire wear and long tire life, or exhilarating handling and a car that fights through the turns.

Understanding the needs of a track enthusiast, our Race camber plates allow for zero deflection and are ideal for a dedicated track vehicle. For a dedicated street vehicle, our Street camber plates are another tried-and-true option that are comfortable and perform very well. Hearing the call from customers that don't fall cleanly into one of these groups, we've designed the best of both worlds - a rebuildable polyurethane-isolated spherical bearing, or as we call it, a "hybrid" design. These camber plates deliver exceptional lifespan, high performance, with excellent road manners.

We paid extra attention to the bearing we selected, knowing we needed a bearing that would not only be quiet, but reliable. Tens of thousands of street and track miles on a variety of applications yielded zero failures of the high quality PTFE-lined, maintenance-free stainless steel monoball spherical FK bearing. One of our secrets in enabling this high-performance bearing to function to its full potential is the 80a polyurethane isolation bushing. We identified just the right material density to allow for absorption of road noise while allowing dampers to articulate precisely and predictably. This tiny bit of cushion takes the brunt of potholes and rough roads, protecting the bearing from wear which may otherwise lead to premature failure. Equally critical to maximizing bearing life is the addition of dust seals to prevent moisture and dirt contamination.  To top it all off, the entire assembly is rebuildable in the event that, over the years, a component does wear out.

By re-using the OEM spring perch and radial bearing, we've avoided supporting the weight of the vehicle on the strut shaft monoball - further extending the life of the bearing and mimicking a well-designed factory element. Spring perches for 60mm or 2.5" springs are also available; use of factory-style springs requires no additional perch. Inspect the shocks you plan on using these with, measuring the shock diameter (16mm or 14mm) and inspecting the seat (square or tapered) to ensure you select the correct kit for your application. Not sure which you need? Give us a call, we're happy to help.

• Adjustable camber (3+ degrees of adjustment) and caster (2.5+ degrees of adjustment) without removing strut from the vehicle
• Wide plate assembly offers excellent load distribution to address concerns with strut tower deformation
• Compatible with factory-style springs, or with the addition of available 60mm or 2.5" perches, race-style springs as well
• Maintenance free, PTFE lined, stainless steel monoball spherical bearing for full shaft articulation
• 80A polyurethane isolation bushings for noise, vibration, and harshness (NVH) control
• Rebuildable bushing/bearing assembly with individually replaceable components

Turner Motorsport Hybrid Street/Track Camber Plates: content on the street, ready to rip on the track.

Click here for installation instructions.

This item fits the following BMWs:
2001-2006 E46 BMW M3

**For vehicles with coilover front suspension**

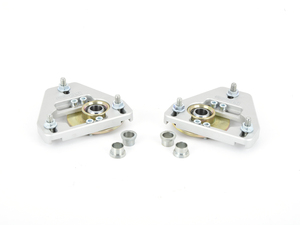

When looking to dial in your steering geometry and alignment for reduced tire where and/or better track handling, the stock suspension is quite limited. To fix this, you can install Camber/Caster plates such as these plates from IRP. Camber/Caster plates allow for adjustment of the top position of the shock's mounting position. These slight adjustments have a huge impact on the stance of the of the wheel when driving straight down the road and when turning into a corner. With simple adjustments, you can increase the grip of the tires in hard turns, improve tread life, or even just make an alignment correction for a vehicle with a lowered ride height.

The IRP Camber Caster plates are made of an aircraft grade aluminum body, for strength and low weight, with an adjustable mounting plate that utilizes a steel monoball mounting point. This makes the plate resistant to corrosion and prevents deformation even with the stiffest shocks and springs.

Features:

• Decreased understeer
• Decreases outside edge tire wear
• Aircraft Grade Aluminum Construction
• Steel Monoball and Mounting Sleeves

Fits the following BMWs:
1991-1999 E36 BMW

One of the tricks for getting your BMW to handle better is to add negative camber to the front wheels. This will put more of the tire's width in contact with the ground during cornering. With more rubber there is more grip. BMWs typically have less camber in the front to create understeer. But if you're running a stock setup on the track or autocross you are giving up speed and time as the front tires run out of grip sooner than they should.

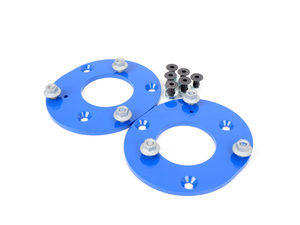

Increasing the negative camber of your 1995 E36 M3 will reduce understeer and prolong the life of your tires when used on the track. These plates simply bolt on top of the factory upper strut bearings and increase negative camber by 2 degrees. We maximized the available camber available with a stock-diameter sized spring. Vehicle height in the front will be raised by .25". We also added material to the surface area of the mount to increase stiffness of contact area, therefore reducing the strut tower deformation and increasing the strength of the strut towers. Fixed mount camber plates are legal for many racing and autocross classes. These are the perfect camber solution when adjustable plates are not allowed in your class.

Instructions for Turner 1995 E36 M3 Front Fixed Camber Plates

This item fits the following BMWs:
1994-1995 E36 BMW M3

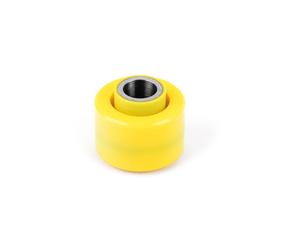

This is a NEW replacement polyurethane bushing used in our E46 M3 Front Street Camber Plates. This is a custom-manufactured part for Turner Motorsport, made with our own specifications. Replacement is straight-forward but does require the camber plates to be removed from the car. Price is for each bushing.

This item fits the following BMWs:
2001-2006 E46 BMW M3 with Front Turner Street Camber Plate

**For vehicles with stock style springs**

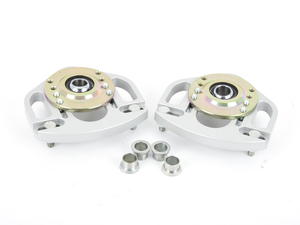

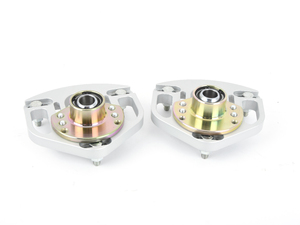

When looking to dial in your steering geometry and alignment for reduced tire where and/or better track handling, the stock suspension is quite limited. To fix this, you can install Camber/Caster plates such as these plates from IRP. Camber/Caster plates allow for adjustment of the top position of the shock's mounting position. These slight adjustments have a huge impact on the stance of the of the wheel when driving straight down the road and when turning into a corner. With simple adjustments, you can increase the grip of the tires in hard turns, improve tread life, or even just make an alignment correction for a vehicle with a lowered ride height.

The IRP Camber Caster plates are made of an aircraft grade aluminum body, for strength and low weight, with an adjustable mounting plate that utilizes a steel monoball mounting point. This makes the plate resistant to corrosion and prevents deformation even with the stiffest shocks and springs.

Features:

• Decreased understeer
• Decreases outside edge tire wear
• Aircraft Grade Aluminum Construction
• Steel Monoball and Mounting Sleeves

Fits the following BMWs:
1999-2006 E46 BMW

Upgrade your Mini's front top strut mounts with the K-MAC ultimate design. These mounts offer separate Camber and Caster adjustment, ensuring precise alignment even under load. Made from high-grade aircraft aluminum, they are durable and lightweight. With K-MAC's patented system, adjustments are quick and easy, allowing you to switch between Street and Race settings in just 30 seconds. The design also features heavy-duty centers encased in elastomer for extended life and minimal stack height.

• Separate Camber and Caster adjustment
• Quick and easy adjustments
• Made from aircraft grade 7075 aluminum
• Durable and lightweight construction
• Compatible with OEM diam springs or smaller coil overs

One of the tricks for getting your BMW to handle better is to add negative camber to the front wheels. This will put more of the tire's width in contact with the ground during cornering. With more rubber there is more grip. BMWs typically have less camber in the front to create understeer. But if you're running a stock setup on the track or autocross you are giving up speed and time as the front tires run out of grip sooner than they should.

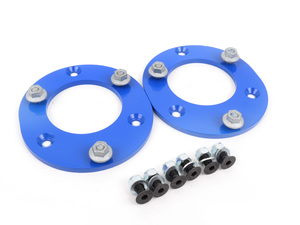

These fixed steel camber plates for your E30/E24/E28 will add 3/4 degree of negative camber and will reduce understeer during hard cornering and save the outside edge of your tire. These plates mount to the top of the upper strut bearing and relocate the top of the strut further in. Combine these with the BMW offset upper strut bearings for even more negative camber. These are the perfect camber solution when adjustable plates are not allowed in your class. We used these in our ultra-successful J-Stock suspension as they maximize the available camber in the tire well when using the large, stock-diameter springs.

Instructions for Turner E30 Front Fixed Camber Plates

This item fits the following BMWs:
1984-1991 E30 BMW 318i 318is 318ic 325e 325es 325i 325ic 325is M3
