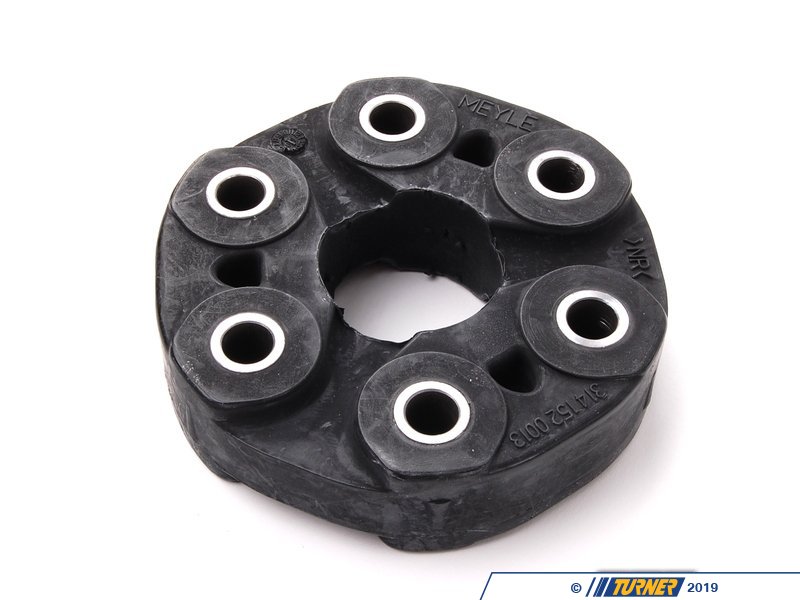

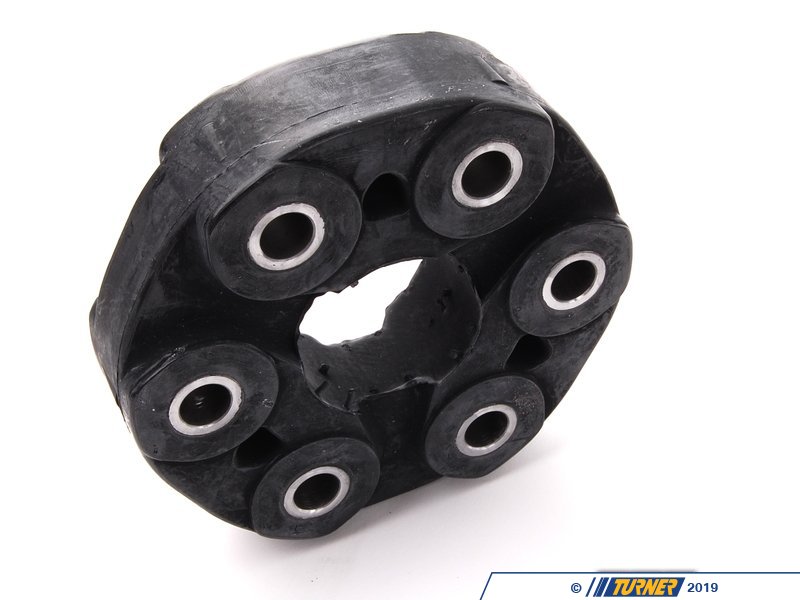

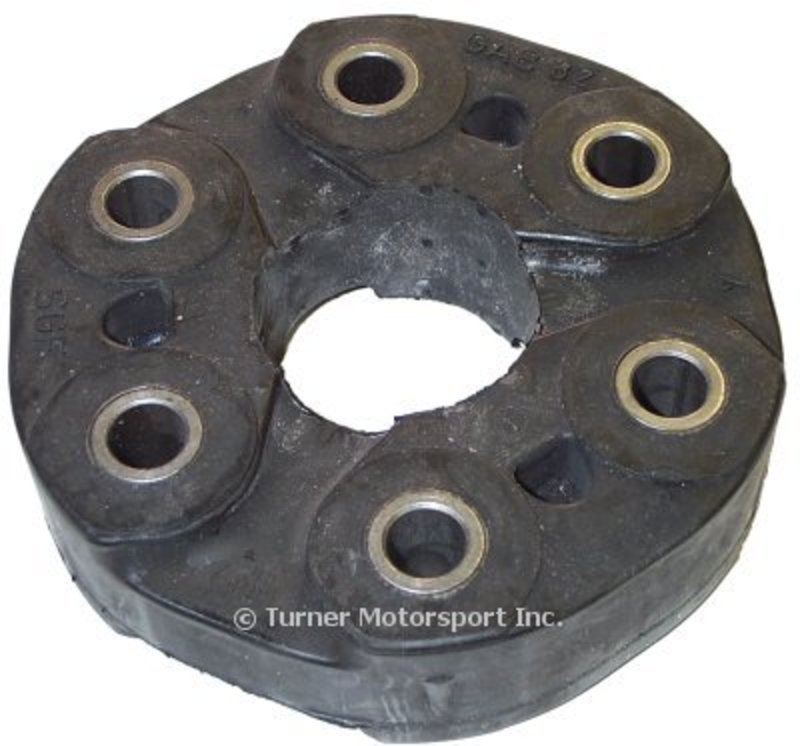

Meyle HD- High Durability Flex Disc Guibo - E36 M3, E46 M3, E34 M5 1995-2006

Product Details

Tired of replacing your guibo every 20,000 miles? Why is it cracking so often?

Upgrade your drivetrain with the MEYLE HD Flex Disc (26112226527)—the ultimate solution to premature guibo failure. Engineered as a "smarter-than-OE" upgrade, this HIGH DURABILITY flex joint features an optimized internal yarn structure rated for massive torque loads up to 3,000 Nm and an upgraded rubber compound capable of withstanding extreme temperatures up to 270°F (130°C) compared to standard 90°C OE limits  MEYLE HD drastically reduces internal friction and heat buildup while effectively dampening drivetrain noise and harsh vibration peaks. The result? Smooth power delivery, exceptional fatigue resistance, and the best option for heavy track use or high power.

Specs:

• 135mm diameter
• (PCD) 96mm bolt circle with 12mm bolt holes
• Max Torque Capacity: 3,000 Nm
• Temperature Resistance: Up to 130°C / 270°F (vs OE 90°C)
• Reinforced Full-surface yarn packages
• 4-Year MEYLE HD Manufacturer Warranty

Turner Tips:
Pay close attention to the small directional arrows molded into the edge of the guibo. Each arrow must point directly toward the mating flange arm (transmission or driveshaft). Always install fresh mounting hardware, and remember to hold the bolt head stationary while torquing the lock nut. Turning the bolt instead of the nut will twist the rubber body and lead to premature failure before you even leave the garage!
Upgrade for E30 M3/E36 328i: This guibo is a classic durability upgrade as it packs significantly more rubber and reinforced yarn between the bolt holes compared to the standard E30 M3/E36 328i flex disc, it offers a much longer service life under tracking or High power builds. It is approximately 5 mm thicker than the factory unit (26117511454). When installing, simply loosen the center sleeve nut on the telescoping 2-piece driveshaft and compress it slightly to accommodate the extra thickness
