FrankenTurbo F825 Twin-scroll Hybrid Turbocharger

Product Details

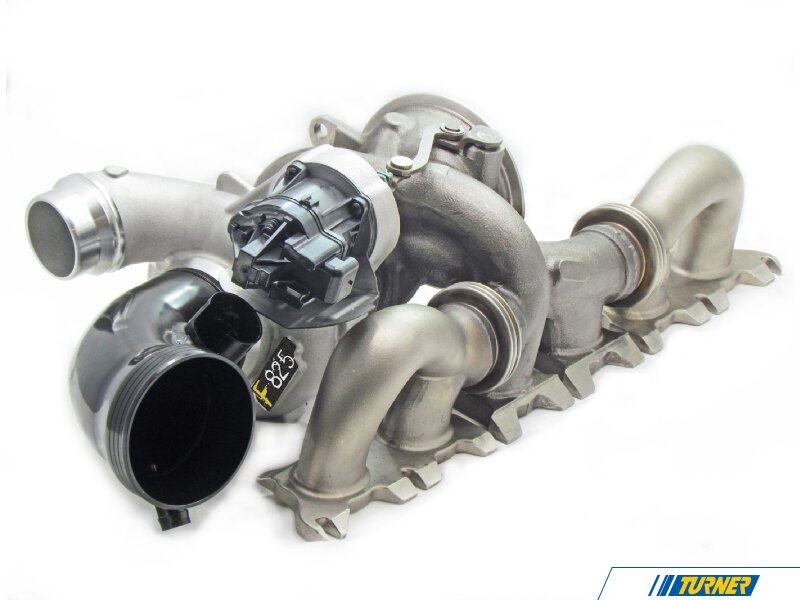

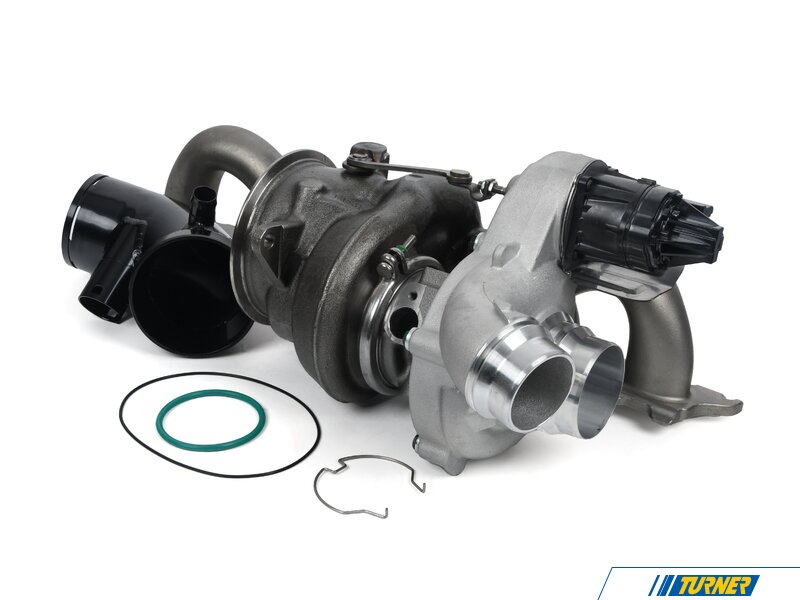

The F825 Hybrid Turbocharger is a precision-engineered forced induction unit designed for the B58B30M0 engine. This unit addresses the volumetric efficiency limitations of the Gen 1 B58 platform by significantly increasing the flow capacity of the intake and exhaust volutes. By re-machining the internal housings and utilizing a specialized mixed-flow turbine design, the F825 reduces backpressure (PMEP), allowing for cooler EGTs and more aggressive ignition timing. Every F825 unit is VSR high-speed balanced to ensure structural integrity at the extreme rotational speeds required for high-horsepower B58 builds.

Key Features

• Point-Milled Billet Technology: The compressor wheel utilizes an aggressive profile to increase airflow efficiency and prevent surge at high pressure ratios.

• VSR High-Speed Balanced: Each assembly is vibration-tested to tolerances tighter than OEM requirements for maximum long-term reliability.

• Inconel 718 Turbine: High-nickel alloy turbine wheel provides exceptional resistance to thermal fatigue during sustained high-load pulls.

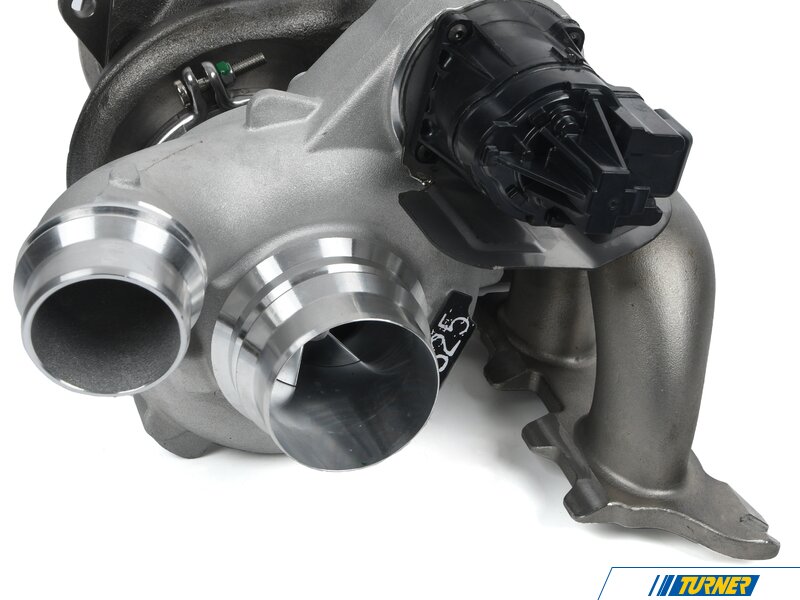

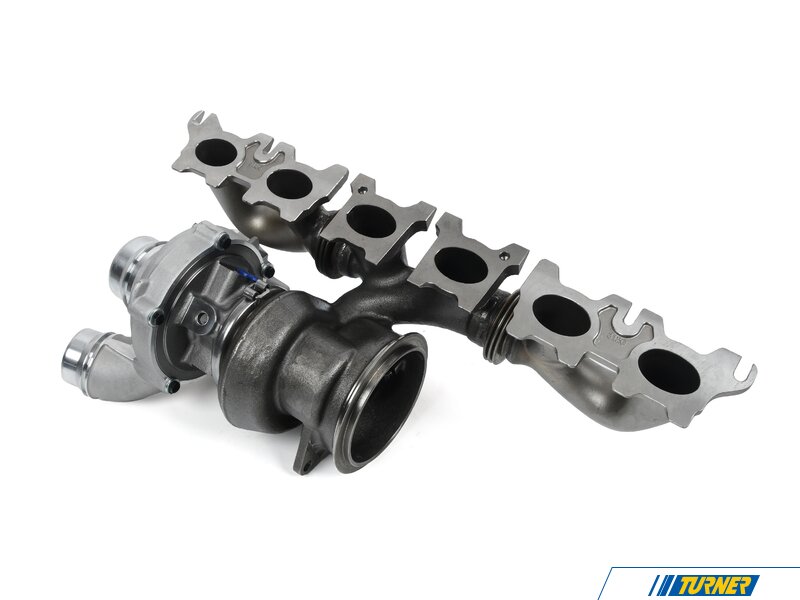

• CNC-Ported Manifold: The integrated exhaust manifold is internally ported to ensure smooth gas transition into the enlarged turbine housing.

• Full Software Compatibility: Calibration-friendly for all major B58 tuning suites.

Specifications

• Turbo Series: F825 Extreme B58 Hybrid

• Compressor Tech: 6+6 Blade Extended-Tip Billet Aluminum

• Bearing System: Upgraded Journal Bearing with 360° Thrust Washer

• Housing Material: High-Silicon Molybdenum Cast Steel

• Cooling System: Oil and Water Cooled (OEM Spec)

• Max Operating Speed: 125,000+ RPM
