BMW 1502-2002 (1962 - 1977) Rear Beam Mount Bushing Inserts

Product Details

In wheel-to-wheel racing, vintage rallying, or time attack with the BMW 02-Series (1502–2002tii), consistency is your primary metric. The factory rear beam configuration relies on highly compliant rubber mounts that allow substantial lateral and vertical subframe movement under heavy cornering, braking, and acceleration loads. This deflection leads to dynamic toe and camber changes, compromising your tire contact patch when it matters most.

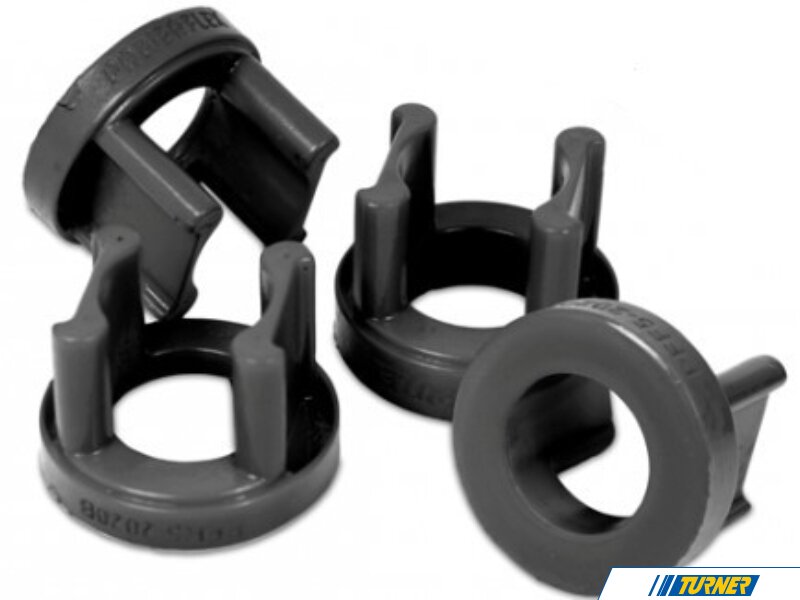

The Powerflex Black Series Rear Beam Mount Inserts are engineered to bridge the gap between compliance and solid mounting. By precision-molding these inserts to completely fill the voids of the original OEM rear beam bushings, they mechanical lock the subframe in place. The result is a rigid, predictable rear chassis structure that translates driver inputs directly to the tarmac.

Technical Track Advantage

• Track-Spec 95 Shore A Compound: Engineered from Powerflex's hardest proprietary Black Series polyurethane formulation. Designed specifically to withstand the extreme, high-frequency loading of motorsport environments with near-zero deflection.

• Preserved Suspension Geometry: Minimizes rear subframe twisting. This stabilizes the rear roll center, maintains optimal tire-to-ground contact, and prevents unpredictable snap-oversteer during mid-corner transitions.

• Rapid Pit Deployment: Unlike full-replacement bushing which require press-removal of the entire factory housing, these inserts slide directly into the existing voids. This design drastically reduces installation time and simplifies paddock maintenance.

• Advanced Material Durability: Impervious to track surface contaminants, high thermal loads from nearby exhaust routing, and chemical degradation from oils or race fuels.
