BMW Suspension Parts for BMW X Series E53 (2000-2006)

Looking for coilovers that will provide reliability on street driven vehicles but are also capable of feeding your weekend track demon's desire for performance? BC Racing's BR Series coilover kit may be just the thing for you.

BR Series coilovers are the most popular and versatile option offered by BC racing, offering features such as 30-level dampening adjustment (simultaneous compression and rebound control), linear springs where possible, and a minimum of 2 inches ride height drop. To ensure performance, comfort, and quality, all BR Series kits are Dyno tested during the design stage to determine the best valving and spring rates, then installed and tested for a minimum of 6 months. This kit features mounts and brackets that are fully compatible with all stock mounting points and components.

The upper shock/strut mounts are all constructed of 6061-T6 Aluminum for strength and weight savings. BC Racing design 1 of 3 types of upper mounts for each vehicle: Caster/Camber Plates (+/- 3* camber), Camber Plates (+/- 3* camber), and Rubber Mount Plates (NVH reduction). The included mount option for this kit is shown in the kit specs and features below.

Lower shock mounts are powder coated for corrosion protection and constructed of either 6061-T6 aluminum that has been milled from a single piece (fork or bolt eye mount) or of STKM13C steel with all brackets welded robotically.

The included springs come in one of 3 styles: linear, S-barrel, and V-barrel. Linear springs are used in most applications unless limited by the OE design that does not allow the use of linear springs. All spring options are made from SAE9254 steel and have a zinc coating applied under the powder coating for increased spring corrosion protection and long term reliability.

All shock bodies used in the BR Series coilovers use a 53mm shock body (unless noted otherwise) for added strength, performance, and increased fluid capacity. All shocks are then powder coated black chrome for clean styling and corrosion protection.

Specs and Features:

• 9k Front & 12k Rear Spring Rate
• Linear front & Linear rear springs
• Coilover Rear Shocks and Springs
• Valved specifically to spring style and rate
• Camber Plate Front Mounts
• Aluminum and Rubber Rear Mounts
• Black Powder Coated Components
• All OE style brackets and mounting for perfect fit
• 30 Levels of Simultaneous Compression and Rebound Dampening
• 2 inch minimum and 3+ Inches of total potential drop
• Great for Track, Street, and any other conditions

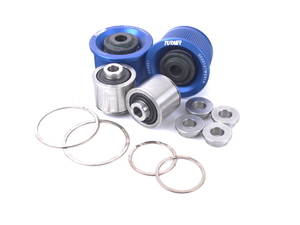

BMW’s are known to have failure prone front thrust arm bushings.  The flexible rubber bushings, even those found in M performance models, allow significant movement of the front wheels to maximize daily driving comfort, but also allow considerable alignment change.  This results in a disconnected and numb road feel, standing between you and a confidence inspiring driving experience.  Eventually the fluid filled rubber bushings fatigue and crack due to continual deflection and ozone degradation, and eventually the damping fluid leaks out resulting in complete failure.

For the enthusiast looking for superior performance and longevity with a crisp, confidence-inspiring driving experience, our sealed ball joint monoballs are the best solution available!  Our experience with spherical front control arm ball joints go back to those we designed and used in our IMSA E90 328i and E92 M3 racecars (GS class Champions in 2011).  We wanted to offer E31, E32, E34, E38, E39, E53, E60, E63, E64, and E83 owners similar levels of handling precision and control for the track and street.

The bearing housing is precision CNC machined from 6061-T6 anodized aluminum and features a knurled OD to ensure a perfect press fit, and utilize a sealed OEM BMW ball joint for exceptional quality and durability, making them completely at home on both the street and track with no compromise.  We have done extensive street, autocross, and track testing to ensure the ball joint used in this bushing design excels in each setting.  The advantage of a sealed ball joint is that it eliminates all unwanted deflection while still allowing complete bind-free movement throughout suspension travel, resulting in exceptional control of wheel alignment.  What you get is superior steering precision, turn-in response, direct braking feedback, and better handling.

In short, if you're seeking the ultimate in precise, predictable handling and control, with crisp braking response and a long service life that’s equally at home on the street or track - look no further. We have you covered.

Features:

Bearing housing

• Precision CNC machined from 6061-T6 blue anodized aluminum
• Knurled OD to provide the perfect fit for the wide range of thrust arm bore diameters among brands.
• CNC machined 304ss ball joint sleeve inserts, providing a precision fit between the ball joint and the subframe.

Bearing

• OEM BMW sealed and greased ball joint for exceptional durability and service life.

Performance

• Nearly instantaneous, crisp steering and braking response.
• Maintenance free, long lasting performance.
• Improved road feel without undesirable NVH.

This item is an upgrade to the following BMWs:
2004-2010 E83 X3 X3 2.5i, X3 3.0i, X3 3.0si, X3 xDrive30i
2000-2006 E53 X5 X5 3.0I, X5 4.4i, X5 4.6is, X5 4.8is
1997-2003 E39 5 series 540i, 540iT (sedans and touring wagon)
2000-2003 E39 M5 sedan
1995-2001 E38 7 series 740i, 740iL
1995-2001 E38 7 series 750i, 750iL

This is a small, 'dogbone' shaped piece that runs from the rear lower control arm to the hub. The lower outer ball joint is mounted in the same location and this is often replaced with the ball joint.

OEM Lemförder is an engineering company that focuses on high-quality, precision manufacturing of critical suspension and steering components. Providing exceptionally high quality parts directly to BMW, as well as 50+ other big name automotive companies, such as Mercedes and Audi, their history of reliability and variety of offered parts makes them one of the biggest names for a go-to OEM parts provider. Lemförder parts place an important emphasis on design, production, and assembly, ensuring maximum reliability. They even coat all parts possible with corrosion protection for extended longevity.

As a leading source of high performance BMW parts and accessories since 1993, we at Turner Motorsport are honored to be the go-to supplier for tens of thousands of enthusiasts the world over. With over two decades of parts, service, and racing experience under our belt, we provide only quality performance and replacement parts.  All of our performance parts are those we would (and do!) install and run on our own cars, as well as replacement parts that are Genuine BMW or from OEM manufacturers. We only offer parts we know you can trust to perform!

Brand: Lemforder (OEM)
Price is for each - order 2 to replace both on the car.
This item fits the following BMWs:
1995-2001 E38 BMW 740i 740il 750il
1997-2003 E39 BMW 525i 528i 530i 540i M5
2000-2003 E52 BMW Z8 Roadster
2000-2006 E53 BMW X5 3.0i X5 4.4i X5 4.6is
2004-2010 E60 BMW 525i 525xi 530i 530xi 528i 528xi 528i xDrive 535i 535xi 535i xDrive 545i 550i
2004-2011 E63 E64 BMW 645ci 650i
2002-2008 E65 BMW 745i 745li 750i 750li 760i 760li

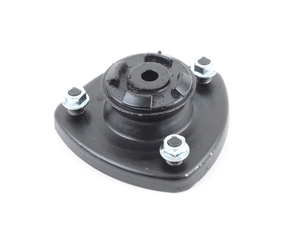

Strut mounts can begin to wear and fail over time, causing a knock in the suspension to occur. Replace yours with a high quality OEM Lemförder replacement to ensure a tight, noise-free ride.

OEM Lemförder is an engineering company that focuses on high-quality, precision manufacturing of critical suspension and steering components. Providing exceptionally high quality parts directly to BMW, as well as 50+ other big name automotive companies, such as Mercedes and Audi, their history of reliability and variety of offered parts makes them one of the biggest names for a go-to OEM parts provider. Lemförder parts place an important emphasis on design, production, and assembly, ensuring maximum reliability. They even coat all parts possible with corrosion protection for extended longevity.

As a leading source of high performance BMW parts and accessories since 1993, we at Turner Motorsport are honored to be the go-to supplier for tens of thousands of enthusiasts the world over. With over two decades of parts, service, and racing experience under our belt, we provide only quality performance and replacement parts.  All of our performance parts are those we would (and do!) install and run on our own cars, as well as replacement parts that are Genuine BMW or from OEM manufacturers. We only offer parts we know you can trust to perform!

BMW’s are known to have failure prone front thrust arm bushings.  The flexible rubber bushings, even those found in M performance models, allow significant movement of the front wheels to maximize daily driving comfort, but also allow considerable alignment change.  This results in a disconnected and numb road feel, standing between you and a confidence inspiring driving experience. Eventually the fluid filled rubber bushings fatigue and crack due to continual deflection and ozone degradation, and eventually the damping fluid leaks out resulting in complete failure.

For the enthusiast looking for superior performance and longevity with a crisp, confidence-inspiring driving experience, our sealed ball joint monoballs are the best solution available!  Our experience with spherical front control arm ball joints goes back to those we designed and used in our IMSA E90 328i and E92 M3 race cars (GS class Champions in 2011). We wanted to offer as many BMW owners possible a similar level of handling, precision, and control for the track and street.

Utilizing a sealed OEM BMW ball joint for exceptional quality and durability, making them completely at home on both the street and track with no compromise.  We have done extensive street, autocross, and track testing to ensure the ball joint used in this bushing design excels in each setting. The advantage of a sealed ball joint is that it eliminates all unwanted deflection while still allowing complete bind-free movement throughout suspension travel, resulting in exceptional control of wheel alignment.  What you get is superior steering precision, turn-in response, direct braking feedback, and better handling.

In short, if you're seeking the ultimate in precise, predictable handling and control, with crisp braking response and a long service life that’s equally at home on the street or track - look no further. We have you covered.

We also offer these control arms with the monoball bearings pre-installed for your convenience. Since BMW recommends the control arms be replaced for every other bushing change, we prefer to sell these as a pre-assembled set. The bushings are also available separately if you wish to source your own control arms.

Control Arm Bearing

• CNC machined corrosion resistant 304 Stainless steel shell, bolt sleeves, & snap rings
• Sealed spherical ball joint for long service life & maintained OE fitment
• Suspension pre-load is no longer required when torquing the control arm hardware

Thrust Arm Bearing:

• OEM BMW sealed, greased ball joint for exceptional durability and service life, even in the most severe operating conditions
• 6061-T6 anodized housing for excellent corrosion resistance
• Proprietary Turner designed knurled OD to provide the perfect fit for the wide range of thrust arm bore diameters among brands
• CNC machined 304ss, providing a precision fit between the ball joint and the subframe

Benefits of Both:​

• Nearly instantaneous, crisp steering and braking response.
• Maintenance free, long lasting performance.
• Improved road feel without undesirable NVH.

This item is an upgrade to the following BMWs:
2004-2010 E83 X3 X3 2.5i, X3 3.0i, X3 3.0si, X3 xDrive30i
2000-2006 E53 X5 X5 3.0I, X5 4.4i, X5 4.6is, X5 4.8is
1997-2003 E39 5 series 540i, 540iT (sedans and touring wagon)
2000-2003 E39 M5 sedan
1995-2001 E38 7 series 740i, 740iL
1995-2001 E38 7 series 750i, 750iL

BMW’s are known to have failure prone front thrust arm bushings.  The flexible rubber bushings, even those found in M performance models, allow significant movement of the front wheels to maximize daily driving comfort, but also allow considerable alignment change.  This results in a disconnected and numb road feel, standing between you and a confidence inspiring driving experience. Eventually the fluid filled rubber bushings fatigue and crack due to continual deflection and ozone degradation, and eventually the damping fluid leaks out resulting in complete failure.

For the enthusiast looking for superior performance and longevity with a crisp, confidence-inspiring driving experience, our sealed ball joint monoballs are the best solution available!  Our experience with spherical front control arm ball joints goes back to those we designed and used in our IMSA E90 328i and E92 M3 race cars (GS class Champions in 2011). We wanted to offer as many BMW owners possible a similar level of handling, precision, and control for the track and street.

Utilizing a sealed OEM BMW ball joint for exceptional quality and durability, making them completely at home on both the street and track with no compromise.  We have done extensive street, autocross, and track testing to ensure the ball joint used in this bushing design excels in each setting. The advantage of a sealed ball joint is that it eliminates all unwanted deflection while still allowing complete bind-free movement throughout suspension travel, resulting in exceptional control of wheel alignment.  What you get is superior steering precision, turn-in response, direct braking feedback, and better handling.

In short, if you're seeking the ultimate in precise, predictable handling and control, with crisp braking response and a long service life that’s equally at home on the street or track - look no further. We have you covered.

We offer these control arms with the monoball bearings pre-installed for your convenience. Since BMW recommends the control arms be replaced for every other bushing change, we prefer to sell these as a pre-assembled set. The bushings are also available separately if you wish to source your own control arms.

Features:

Control Arm Bearing

• CNC machined corrosion resistant 304 Stainless steel shell, bolt sleeves, & snap rings
• Sealed spherical ball joint for long service life & maintained OE fitment
• Suspension pre-load is no longer required when torquing the control arm hardware

Performance

• Nearly instantaneous, crisp steering and braking response.
• Maintenance free, long lasting performance.
• Improved road feel without undesirable NVH.

Fits the following BMW models:

E53 - all 3.0i 4.4i 4.6is 4.8is


Bushings tends to wear over time and split or even break free from the internal sleeve, causing excessive movement and sloppy control feel. OEM Lemförder bushings are the perfect option to restore suspension back to day 1 quality.

OEM Lemförder is an engineering company that focuses on high-quality, precision manufacturing of critical suspension and steering components. Providing exceptionally high quality parts directly to BMW, as well as 50+ other big name automotive companies, such as Mercedes and Audi, their history of reliability and variety of offered parts makes them one of the biggest names for a go-to OEM parts provider. Lemförder parts place an important emphasis on design, production, and assembly, ensuring maximum reliability. They even coat all parts possible with corrosion protection for extended longevity.

As a leading source of high performance BMW parts and accessories since 1993, we at Turner Motorsport are honored to be the go-to supplier for tens of thousands of enthusiasts the world over. With over two decades of parts, service, and racing experience under our belt, we provide only quality performance and replacement parts.  All of our performance parts are those we would (and do!) install and run on our own cars, as well as replacement parts that are Genuine BMW or from OEM manufacturers. We only offer parts we know you can trust to perform!
