Emissions System

The factory rubber/plastic hoses become brittle and crack over time. Brittle and cracked hoses can cause multiple vacuum leaks that are impossible to repair without hose replacement. Vacuum leaks can cause many problems including rough running, missing, stalling at idle, and even a no-start condition.

The factory hoses offered through BMW are plastic and will yield the same results of becoming brittle and damaged over time. Our solution is a premium replacement that will outlast everyone of the OEM replacements. Our Silicone Crankcase Vent Hose can be used to replace the factory brittle hose to ensure your S54 is free from vacuum leaks and performing properly.

CSL Vent Hose (11157833649) - Silicone Crankcase Vent hose is a direct replacement

Key benefits:

Lifetime replacement of the brittle OEM plastic crankcase breather hose that is susceptible to cracking overtime from constant heat cycling

Design:

Retains OEM hose end fittings to ensure proper seal

“Black” 3 ply reinforced silicone w/ “White” Turner logo

Our engineers at Turner sought out to solve the degrading issues that happens with the factory crankcase vent hose and found the best solution is a silicone replacement. Our Turner Silicone Crankcase Vent Hose can be used to replace the factory brittle hose to prevent vacuum leaks and lackluster performance. Simply take your factory crankcase vent hose and remove the ends; the factory ends can be installed on the new Silicone Vent Hose with the supplied clamps for a tight seal.

Turner Silicone Crankcase Vent Hose replaces the following part #'s:

CSL Vent Hose (11157833649) - Silicone Crankcase Vent hose is a direct replacement
Non-CSL Vent Hose(11157831311) - Silicone hose will make a "U" bend with direct fitment and can also be trimmed for your own preferable fit.

- Key benefits:

Lifetime replacement of the brittle OEM plastic crankcase breather hose that is susceptible to cracking overtime from constant heat cycling
- Design:

Turner logo forward facing when hood is open
Retains OEM hose end fittings to ensure proper seal and reduce cost
“Black” 3 ply reinforced silicone w/ “White” Turner logo
includes 2 German style 430 stainless worm-drive clamps for installation
- Special care instructions:

Do not overtighten hose clamps, hand tight is recommended.
Carefully cut the OEM plastic casing from both plastic fittings for reuse

A combination of billet fittings and AN lines for an upgraded and serviceable crankcase vent hose. Attaches between the oil separator and the CSL air box.

The factory rubber/plastic hoses become brittle and crack over time. Brittle and cracked hoses can cause multiple vacuum leaks that are impossible to repair without hose replacement. Vacuum leaks can cause many problems including rough running, missing, stalling at idle, and even a no-start condition. The factory hoses offered through BMW are plastic and will yield the same results of becoming brittle and damaged over time.

We have created a full motorsport style solution with our CSL Crankcase made from machined 6061 billet aluminum with AN style fittings and nylon fiber braided lines. This is a fully serviceable replacement that will outlast every one of the OEM replacements. Our AN crankcase line can be used to replace the factory brittle hose to ensure your S54 is free from vacuum leaks and performing properly.

OEM CSL Vent Hose (11157833649) - Direct Replacement

Key benefits:

Lifetime replacement of the brittle OEM plastic crankcase breather hose
Fully Serviceable
Motorsport Aesthetic to compliment your CSL Intake Plenum
Design:

Fittings are made from billet 6061-T6 aluminum and finished in Type II black anodizing
Pre-anodized machined Turner branding
Nylon fiber braided lines
Fittings are a direct replacement for the plastic OEM fittings

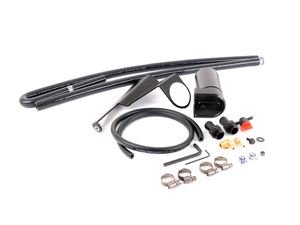

There are a few reason having a catch can is an upgrade for a vehicle, from a separator system that no longer works to one that was never there. Modern day emissions regulations require the use of a closed crankcase ventilation (PCV) system to recirculate combustion blow-by gases from the crankcase back in to the intake to be burned.  Unfortunately, these blow by gases contain water vapor (which is a byproduct of combustion) and pick up oil mist from and the windage cloud and cam lubrication system as they travel through the crank case.  Due to less than 100% effective air/oil separation in the stock PCV system, some oil mist and water vapor gets carried back to the intake tract and over time cause oil deposits and carbon buildup in the intake manifold, intake ports, and on the back of intake valves.  All will eventually lead to poor performance and reduced fuel economy, and the presence oil mist can in the intake charge even increase the risk of engine damaging detonation.

With direct injected engines this problem becomes more prevalent, and the N54 in your 135i or 335i is no exception.  We're seeing a lot of N54 powered cars with drivability and performance issues due to significant carbon buildup in the intake ports and backs of intake valves.  The “factory fix” is a walnut blasting service that commonly needs performed every 30,000 to 70,000 miles.  Don't be part of this statistic!  Our shop recommends an oil catch can be installed in-line in the PCV system to help reduce the build-up of performance robbing deposits and greatly reduce the need for costly walnut blasting service and related repairs in the future.

​ The catch can utilizes a strategically designed 4 chamber baffle plate system engineered to create multiple changes in the direction of airflow to cause oil droplets to fall out of suspension, maximizing the efficiency of the PCV air/oil separation.  A dipstick is integrated into the cap so you can monitor the oil level, and the can is easily serviced.  At each oil change simply unscrew the canister and empty the trapped oil with your regular used oil.  The Turner Motorsport Oil Catch Can is CNC machined from billet 6061-T6 aluminum and with a stealthy black anodized finish for lasting durability and appearance, and includes everything needed for an OEM-like fully reversible installation. Another feature the Turner catch can has is the ability to add on a drain kit so you no longer have to fumble around getting the fill can out of a tight space. The drain can be run down to the belly pan of your car so draining can be done at the same time you change your oil or anytime in between.

*Click here for catch can instructions*

Features:

• 6061-T6 billet machined body, anodized black for lasting protection and appearance
• Strategically positioned 4 chamber baffle system maximizes oil / air separation
• Knurled and black anodized oil dipstick makes inspecting oil volume of reservoir clean and simple
• Sealed with a pre-installed viton O-Ring
• 8oz reservoir
• Includes 2.5mm allen key to remove baffle plates for cleaning
• Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
• Closed / recirculated design reduces oil ingestion and promotes cleaner emissions and odor-less operation
• Optional use drain hole - drain kit included!
• Passenger side mounting kit - Designed specifically for your N54!

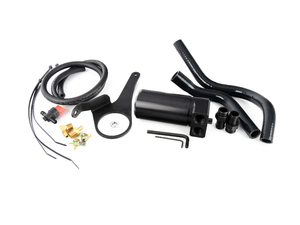

The Turner N55 oil catch can was designed with a strategically positioned 4 chamber baffle system with an added easy drain feature. The intent behind this design was to offer the most effective oil/air separation while being incredibly easy to maintain. The included drain kit allows you to route the drain hose to a mounted location near the belly pan of the vehicle making it convenient to empty at oil change intervals.

Modern day emissions regulations require the use of a closed crankcase ventilation (PCV) system to recirculate combustion blow-by gases from the crankcase back in to the intake to be burned.  Unfortunately, these blow by gases contain water vapor (which is a byproduct of combustion) and pick up oil mist from and the windage cloud and cam lubrication system as they travel through the crank case.  Due to less than 100% effective air/oil separation in the stock PCV system, some oil mist and water vapor gets carried back to the intake tract and over time cause oil deposits in the intake manifold, intake ports, and on the back of intake valves.  All will eventually lead to poor performance and reduced fuel economy, and the presence of this oil mist in the intake charge may even increase the risk of engine-damaging detonation.

With forced induction, track use, and/or extended high RPM usage, these symptoms increase as the factory PCV system is overwhelmed, and a catch can becomes a must for your F3x N55.

*Click here for catch can instructions

Features:

• 6061-T6 billet machined body, anodized black for lasting protection and appearance
• Strategically positioned 4 chamber baffle system maximizes oil / air separation
• Knurled and black anodized oil dipstick makes inspecting oil volume of reservoir clean and simple
• Sealed with a pre-installed viton o-Ring
• Includes 2.5mm allen key to remove baffle plates for cleaning
• Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
• Closed / recirculated design reduces oil ingestion and promotes cleaner emissions and odor-less operation
• Valved drainage system - no removal of can necessary to empty

There are a few reason having a catch can is an upgrade for a vehicle, from a separator system that no longer works to one that was never there. Modern day emissions regulations require the use of a closed crankcase ventilation (PCV) system to recirculate combustion blow-by gases from the crankcase back in to the intake to be burned.  Unfortunately, these blow by gases contain water vapor (which is a byproduct of combustion) and pick up oil mist from and the windage cloud and cam lubrication system as they travel through the crank case.  Due to less than 100% effective air/oil separation in the stock PCV system, some oil mist and water vapor gets carried back to the intake tract and over time cause oil deposits and carbon buildup in the intake manifold, intake ports, and on the back of intake valves.  All will eventually lead to poor performance and reduced fuel economy, and the presence oil mist can in the intake charge even increase the risk of engine damaging detonation.

With direct injected engines this problem becomes more prevalent, and the N54 in your 135i or 335i is no exception.  We're seeing a lot of N54 powered cars with drivability and performance issues due to significant carbon buildup in the intake ports and backs of intake valves.  The “factory fix” is a walnut blasting service that commonly needs performed every 30,000 to 70,000 miles.  Don't be part of this statistic!  Our shop recommends an oil catch can be installed in-line in the PCV system to help reduce the build-up of performance robbing deposits and greatly reduce the need for costly walnut blasting service and related repairs in the future.

​ The catch can utilizes a strategically designed 4 chamber baffle plate system engineered to create multiple changes in the direction of airflow to cause oil droplets to fall out of suspension, maximizing the efficiency of the PCV air/oil separation.  A dipstick is integrated into the cap so you can monitor the oil level, and the can is easily serviced.  At each oil change simply unscrew the canister and empty the trapped oil with your regular used oil.  The Turner Motorsport Oil Catch Can is CNC machined from billet 6061-T6 aluminum and with a stealthy black anodized finish for lasting durability and appearance, and includes everything needed for an OEM-like fully reversible installation. Another feature the Turner catch can has is the ability to add on a drain kit so you no longer have to fumble around getting the fill can out of a tight space. The drain can be run down to the belly pan of your car so draining can be done at the same time you change your oil or anytime in between.

*Click here for catch can instructions *

Features:

• 6061-T6 billet machined body, anodized black for lasting protection and appearance
• Strategically positioned 4 chamber baffle system maximizes oil / air separation
• Knurled and black anodized oil dipstick makes inspecting oil volume of reservoir clean and simple
• Sealed with a pre-installed viton O-Ring
• 8oz reservoir
• Includes 2.5mm allen key to remove baffle plates for cleaning
• Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
• Closed / recirculated design reduces oil ingestion and promotes cleaner emissions and odor-less operation
• Optional use drain hole - drain kit included!
• Driver side mounting kit - Designed specifically for your N54!

A combination of billet fittings and AN lines for an upgraded and serviceable crankcase vent hose. Attaches between the oil separator and the CSL air box.

The factory rubber/plastic hoses become brittle and crack over time. Brittle and cracked hoses can cause multiple vacuum leaks that are impossible to repair without hose replacement. Vacuum leaks can cause many problems including rough running, missing, stalling at idle, and even a no-start condition. The factory hoses offered by BMW are plastic and will yield the same results of becoming brittle and damaged over time.

We have created a full motorsport-style solution with our CSL Crankcase made from machined 6061 billet aluminum with AN-style fittings and nylon fiber braided lines. This is a fully serviceable replacement that will outlast every one of the OEM replacements. Our AN crankcase line can be used to replace the factory brittle hose to ensure your S54 is free from vacuum leaks and performing properly.

OEM CSL Vent Hose (11157833649) - Direct Replacement for cars with secondary shut-off valve. (11157834056)

Key benefits:

Lifetime replacement of the brittle OEM plastic crankcase breather hose
Fully Serviceable
Motorsport Aesthetic to compliment your CSL Intake Plenum
Design:

Fittings are made from billet 6061-T6 aluminum and finished in Type II black anodizing
Pre-anodized machined Turner branding
Nylon fiber braided lines
Fittings are a direct replacement for the plastic OEM fittings
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.

Due to weak plastic construction, the factory plastic crankcase ventilation breather hose is known to fail. After years of exposure to piping-hot engine bay temperatures and chemical-laden oil vapors, the corrugated plastic tubing can crack, crumble, or fail altogether.

We set out to bulletproof your N52 CCV system with a durable silicone breather hose, designed to provide a comprehensive upgrade and permanent replacement for the factory plastic hose. By replacing the flimsy, heat-hardened OEM plastic hose with a four-ply fluorosilicone hose, you'll experience peace of mind knowing your N52 is free from the inevitable return of oil leaks, vacuum leaks, and drivability concerns that would have been.

This breather hose is found at the front of the engine, and is used to connect the oil separator to the valve cover. It replaces OEM part number 11157522931.

Features:

Silicone construction ensures a durable replacement that is sure to outlast OE plastic
Designed as a direct replacement for the factory breather hose
Retains heating function and OE electrical connector
Design:

Four-ply wire-reinforced fluorosilicone hose is designed to resist degradation due to exposure to oil vapors
O-rings are pre-installed in OE connectors for a lasting seal
Includes pre-installed zinc-coated hose clamps for durability and corrosion resistance
Product Development:

Our Silicone CCV Hose Upgrade was designed, engineered, tested, and quality inspected by our Research and Development team in our Wadsworth, Ohio, facility. We strive for the highest level of precision and quality through leading-edge product development technology, including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modelling, rapid prototyping utilizing our in-house 3D printer, and rigorous long-term product testing.

Turner Motorsport Silicone PCV Hose for BMW M57

Upgrade your BMW M57 engine with our Silicone PCV Hose, a premium replacement for the fragile, failure-prone factory hose. Over time, the stock rubber hose deteriorates due to constant exposure to heat and oil, leading to cracks and leaks. Our solution? A high-quality silicone hose engineered for superior durability and long-term reliability.

To further enhance performance, we’ve lined the hose with fluorosilicone, providing exceptional resistance to oil and chemical degradation. Designed in-house using advanced CAD modeling and 3D scanning, this hose offers a precise OEM fit while eliminating the common weaknesses of rubber construction.

Each kit includes stainless steel hose clamps for a secure, hassle-free installation. Whether you’re replacing a worn-out PCV hose or upgrading for added peace of mind, this premium solution ensures your BMW M57 runs smoothly and efficiently for years to come.

Features:

Direct OEM Fit – Retains factory hose dimensions while eliminating reliability issues.
High-Performance Silicone – Resists heat-related wear for long-lasting durability.
4-Ply Fluorosilicone Lining – Superior protection against oil and chemical exposure.
Stainless Steel Clamps Included – Secure installation and extended service life.
Give your BMW M57 the reliability it deserves—upgrade to the Turner Motorsport Silicone PCV Hose today!

A new oxygen sensor can improve driveability and lengthen engine life. Ultimately, you achieve a smoother running engine that is more fuel efficient. Feedback from the oxygen sensor provides closed-loop control of the injected quantity of fuel for optimum air-fuel mixture, enabling virtually complete combustion to take place. Contaminants in gas and certain atmospheric conditions can drastically shorten the life of any oxygen sensor, therefore they should be checked with every periodic maintenance and changed if necessary. Bosch Part # 13 231. Replacement for BMW part # 11781735499 and 11781738282.

Bosch is one of the largest OEM producers of Genuine BMW and aftermarket parts in the world, providing parts for almost every major automotive manufacturer. Bosch has likely supplied many of the original electrical (and mechanical) parts for your BMW. Thanks to their quality, high durability, and reliability, you should expect a long service life from Bosch products.

As a leading source of high performance BMW parts and accessories since 1993, we at Turner Motorsport are honored to be the go-to supplier for tens of thousands of enthusiasts the world over. With over two decades of parts, service, and racing experience under our belt, we provide only quality performance and replacement parts.  All of our performance parts are those we would (and do!) install and run on our own cars, as well as replacement parts that are Genuine BMW or from OEM manufacturers. We only offer parts we know you can trust to perform!

This item fits the following BMWs:
1988-1991 E30 BMW 325i 325is 325ix 325ic
1992-1995 E36 BMW 318i 318is 318ic 318ti
1992-1995 E36 BMW 325i 325is 325ic M3
1993-1995 E34 BMW 530i
1993-3/1994 E34 BMW 540i
1993-1994 E32 BMW 740i 740il
1988-1994 E32 BMW 750il
1990-1994 E31 BMW 850i 850ci
