BMW Suspension Parts for BMW Z3 (1996-2002)

Whether you need a camber change or you are looking for more adjustment with your camber plates, you can change your camber by shimming the strut and spindle with the TMS bolt kit. There are some things to take into account with this kit so please read the installation tips below. An alignment is strongly recommended after installing this kit.

Click here for installation instuctions.

This item fits the following BMWs:
1992-1998 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic M3
1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i M Roadster M Coupe
2006-2008 E85 E86 BMW Z4 M Roadster M Coupe

Our renowned TMS adjustable front sway bar / swaybar links for BMWs are now available in custom lengths, making them easy to order for any aftermarket or custom suspension setups. Simply measure for your ideal link length, and order the links with the best length range (below). Each sway bar link has a 10mm diameter mounting pin/stud, which is the typical factory/stock size for a universal fitment. These are sold by the pair, and each set includes two matching sway bar end links.

These end links offer the quiet operation and long life of "stock" BMW end links, but with the strength and adjustability of rod-end style sway bar links. These sway bar links can be used on a wide variety of BMWs and aftermarket BMW suspensions. When measuring, please consider that the length ranges of our Custom Adjustable end links are measured from the center to center on the end link mounting stud / pin, as shown in our diagram.

Note for E9X M3: the unique mounting on the M3 strut requires a set of our adapter seats (#TSU9912AF9). You can add them with your links from the menu below.


TMS Part#Center to Center (mm)Center to Center (inch)

TSU9912A35155.00mm - 170.00mm6.10" - 6.69"

TSU9912A40170.00mm - 185.00mm6.69" - 7.28"

TSU9912A45180.00mm - 195.00mm7.08" - 7.67"

TSU9912A50190.00mm - 205.00mm7.48" - 8.07"

TSU9912A55207.00mm - 222.00mm8.15" - 8.74"

TSU9912AF1220.00mm - 235.00mm8.66" - 9.25"

TSU9912A70240.00mm - 255.00mm9.45" - 10.04"

TSU4612AF3250.00mm - 265.00mm9.84" - 10.43"

TSU9912A80261.00mm - 276.00mm10.28" - 10.87"

TSU5012AF8280.00mm - 295.00mm11.02" - 11.61"

TSU9912A95290.00mm - 305.00mm11.42" - 12.00"

TSU9912110320.00mm - 335.00mm12.59" - 13.19"

TSU9912115330.00mm - 345.00mm12.99" - 13.58"

TSU9912130362.00mm - 377.00mm14.25" - 14.84"

TSU9912135370.00mm - 385.00mm14.57" - 15.16"

TSU9912140381.00mm - 396.00mm15.00" - 15.60"

TSU9912145389.00mm - 404.00mm15.31" - 15.91"

Please select your length below.

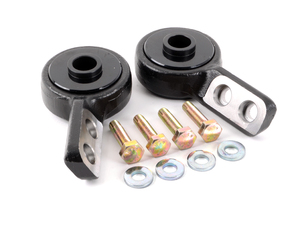

Here at Turner we understand the importance of an upgrade that will get the results you need on the track and still be tolerable on the drive around town. When it comes to control arms on the track, making them as stiff as you can (usually using solid mounts) is the best way to increase your driving precision by eliminating the deflection of rubber. The next best thing to create a balance would be to stiffen up the control arm with polyurethane, giving you the option of a more stock like feel with 80a or closer to the solid feel with 95a durometers.

When it comes to the E36 chassis you also get the options of choosing a stock centered design or going with the E30 inspired offset bushing to increase castor, further taking advantage of improvd handling. These poly bushings will give your control arms a direct connection between your suspension and the body of the car eliminating the slop felt under take-off and braking so you feel more in control of your vehicle.

This item fits the following BMWs that use a centered-style bushing:

1984-1991 E30 BMW 318i, 318is, 325, 325e, 325es, 325i, 325is
1992-1999 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic
1996-1999 E36 BMW M3 S52
1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i MZ3 M Coupe M Roadster

Our experience with spherical front control arm ball joints go back to those we designed and used in our IMSA E90 328i and E92 M3 racecars (GS class Champions in 2011).  We wanted to offer e30, e36, and e46 owners similar levels of handling precision and control for the track and street, but weren’t satisfied with the other options out there. Instead of a Delrin® bushing or unsealed spherical bearing alone, we selected an oversized sealed greaseable spherical monoball to offer unparalleled durability and precision, but designed a Delrin® adapter sleeve to help isolate the added noise, vibration, and harshness that a full solid monoball bearing will have. While race-ready, our hybrid Delrin®/monoball control arm bearings are more at home on the street than other kits that are advertised as “race-only” bearings. We did extensive street, autocross, and track testing to ensure the spherical bearing used in this bushing design excelled in each setting.

The stock rubber bushings, even those found in the M3, allow significant fore/aft movement of the front wheels to help absorb road impacts, especially when being pushed hard.  This soft flexible design maximizes daily driving comfort, but also allows considerable alignment change.  This unwanted deflection stands between you and a crisp, confidence-inspiring driving experience.  The advantage of a monoball bearing is that it will not deflect under load, eliminating all unwanted deflection while still allowing complete freedom of movement in the desired angles. What you get is superior steering precision with better handling from more consistent alignment and direct braking feedback, with exceptional service life.  Thanks to the Delrin® insert and double lip seals, there's none of the extra noise or reduced service life often found on other spherical bearings.

In short, if you're seeking front control arm bushings that offer precise, predictable handling, crisper braking feel, with a long service life free from noise - look no further. We have you covered.

Watch to learn more about Turner Monoball Bushings

Features:

Bearing housing

• Precision CNC machined from 6061-T6 blue anodized aluminum with a pre-installed grease fitting and grease distribution channels making this a serviceable design
• Knurling allows for a wide variance in lollipop dimension, although this particular SKU comes pre-installed, so you won't need to worry about that. Want to install your own? Click here.

Bearing

• A high quality sealed bearing with Delrin® inserts. Delrin® was chosen due to durability under pressure, while still soft enough to create a perfect play-free fitment on the control arm.
• Replaceable for infinite service life - no need to replace the entire mount in the event a bearing happens to fail.

Includes new hardware. Grease before installation and with each oil service with high quality Moly grease for maximum service life. Need a grease fitting tool?

Installation is relatively easy - see our instructions here.

This item fits the following BMWs that use a centered-style bushing:

1984-1991 E30 BMW 318i, 318is, 325, 325e, 325es, 325i, 325is
1992-1999 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic
1996-1999 E36 BMW M3 S52
1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i MZ3 M Coupe M Roadster

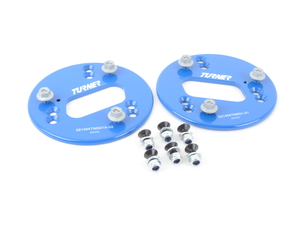

One of the tricks for getting your BMW to handle better is to add negative camber to the front wheels. This will put more of the tire's width in contact with the ground during cornering. With more rubber there is more grip. BMWs typically have less camber in the front to create understeer. But if you're running a stock setup on the track or autocross you are giving up speed and time as the front tires run out of grip sooner than they should.

Increasing the negative camber of your E36 M3 will reduce understeer and prolong the life of your tires when used on the track. These plates simply bolt on top of the factory upper strut bearings and increase negative camber by .5 or 2 degrees, depending on the holes you chose to use. We maximized the available camber available with a stock-diameter sized spring. Vehicle height in the front will be raised by .25”. We also added material to the surface area of the mount to increase stiffness of contact area, therefore reducing the strut tower deformation and increasing the strength of the strut towers. Fixed mount camber plates are legal for many racing and autocross classes. These are the perfect camber solution when adjustable plates are not allowed in your class.

This item fits the following BMWs:
1996-1999 E36 BMW M3
1998-2002 E36/7 BMW Z3 M Coupe M Roadster

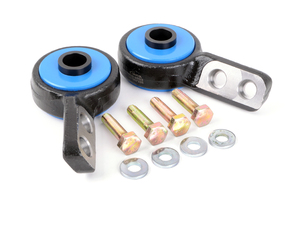

Here at Turner we understand the importance of an upgrade that will get the results you need on the track and still be tolerable on the drive around town. When it comes to control arms on the track, making them as stiff as you can (usually using solid mounts) is the best way to increase your driving precision by eliminating the deflection of rubber. The next best thing to create a balance would be to stiffen up the control arm with polyurethane, giving you the option of a more stock like feel with 80a or closer to the solid feel with 95a durometers.

When it comes to the E36 chassis you also get the options of choosing a stock centered design or going with the E30 inspired offset bushing to increase castor, further taking advantage of improvd handling. These poly bushings will give your control arms a direct connection between your suspension and the body of the car eliminating the slop felt under take-off and braking so you feel more in control of your vehicle.

This item fits the following BMWs that use a centered-style bushing:

1984-1991 E30 BMW 318i, 318is, 325, 325e, 325es, 325i, 325is
1992-1999 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic
1996-1999 E36 BMW M3 S52
1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i MZ3 M Coupe M Roadster

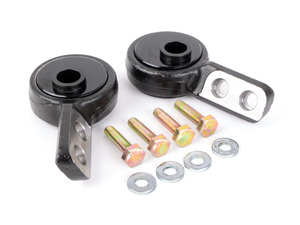

Here at Turner we understand the importance of an upgrade that will get the results you need on the track and still be tolerable on the drive around town. When it comes to control arms on the track, making them as stiff as you can (usually using solid mounts) is the best way to increase your driving precision by eliminating the deflection of rubber. The next best thing to create a balance would be to stiffen up the control arm with polyurethane, giving you the option of a more stock like feel with 80a or closer to the solid feel with 95a durometers.

When it comes to the E36 chassis you also get the options of choosing a stock centered design or going with the E30 inspired offset bushing to increase castor, further taking advantage of improvd handling. These poly bushings will give your control arms a direct connection between your suspension and the body of the car eliminating the slop felt under take-off and braking so you feel more in control of your vehicle.

This item fits the following BMWs that use a centered-style bushing:

1984-1991 E30 BMW 318i, 318is, 325, 325e, 325es, 325i, 325is
1992-1999 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic
1996-1999 E36 BMW M3 S50 S52
1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i MZ3 M Coupe M Roadster

Discover the Turner Motorsport URO Rear Shock Mount Reinforcement Plate, individually priced for E30, E36, E46, and Z3 BMW models. This mounting plate provides essential support at the rear shock mounting point, enhancing stability and durability. Engineered by URO, renowned for quality auto parts, this reinforcement plate is designed to address and prevent issues related to the rear shock mounting, ensuring a reliable and secure connection for a variety of BMW models.

• Individually priced for cost-effective customization.
• Enhances support at the rear shock mounting point.
• Designed for E30, E36, E46, and Z3 BMW models.
• URO quality ensures durability and reliability.
• Addresses and prevents issues related to rear shock mounting.

Upgrade your BMW's rear shock mounting system with the Turner Motorsport URO Rear Shock Mount Reinforcement Plate for increased stability and longevity.
