E36 Front Subframe Reinforcement Kit

Mfg Part #
TDR3675301
Turner Part #
T#3642
Brand
Price:
Qty
44.95
In Stock
Free Shipping Free Shipping
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

Made in the USA The motor mount area on a subframe is one of those easily-forgotton areas that may be hiding a serious problem. The subframe on the E36 has a gusset ('ear') welded on for the motor mounts. These gussets take the stress of the motor mount as the engine torques (more upgrades = more torque = more stress). Worn motor mounts only transfer more stress to the subframe. Unfortunately, the gusset is not well-reinforced from the factory and cracks can develop along the welds and the gusset begins to collapse. A total failure of the guesset will shift your engine to the side and forward, taking out many other components along the way and leading to a very costly repair.

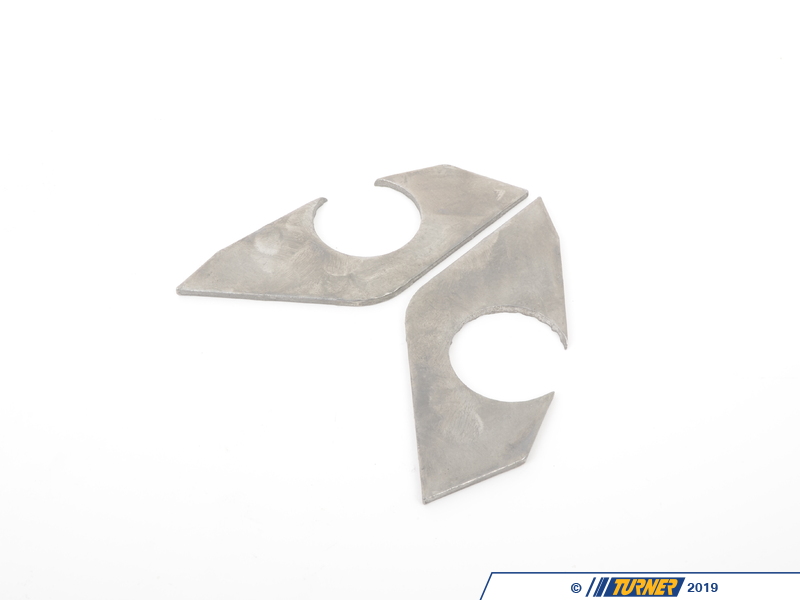

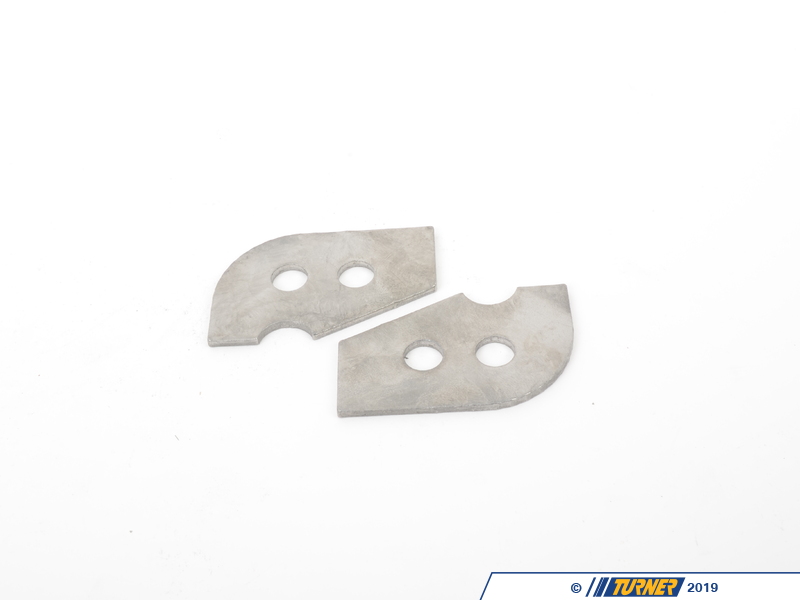

The next time you replace the motor mounts, oil pan gasket, checking your oil pump nut, or any other time you drop the front subframe, you should install these reinforcements. This kit comes with steel reinforcing plates that are welded to the underside of the guesset as well as plates to close off the bottom of the gusset for extra strength. Instructions included (or see the link below).

Click Here for Installation Instructions.

This item fits the following BMWs:
1992-1998 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic M3
1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i M Roadster M Coupe

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E36 318i M42 1.8L
BMW E36 318i M44 1.9L
BMW E36 318ic M42 1.8L
BMW E36 318ic M44 1.9L
BMW E36 318is M42 1.8L
BMW E36 318is M44 1.9L
BMW E36 318ti M42 1.8L
BMW E36 318ti M44 1.9L
BMW E36 323ic M52 2.5L
BMW E36 323is M52 2.5L
BMW E36 325i M50 2.5L
BMW E36 325ic M50 2.5L
BMW E36 325is M50 2.5L
BMW E36 328i M52 2.8L
BMW E36 328ic M52 2.8L
BMW E36 328is M52 2.8L
BMW E36 M3 S50 3.0L
BMW E36 M3 S52 3.2L
BMW Z3 1.9 M44 1.9L
BMW Z3 2.3 M52 2.5L
BMW Z3 2.5i M54 2.5L
BMW Z3 2.8 M52 2.8L
BMW Z3 3.0i M54 3.0L
BMW Z3 M Coupe S52 3.2L
BMW Z3 M Coupe S54 3.2L
BMW Z3 M Roadster S52 3.2L
BMW Z3 M Roadster S54 3.2L
*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
