CANchecked MFD28 Multi Function Display - 2.8" Gen2 (LHD) - E9X M3 & Non-M
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
Product Details
Total visibility over your engine's vital signs is a necessity for any serious performance or track build, and the CANchecked 2.8-inch Gen2 Multi-Function Display delivers motorsport-level data monitoring directly to the cabin of your left-hand drive E9X 3-Series or M3.

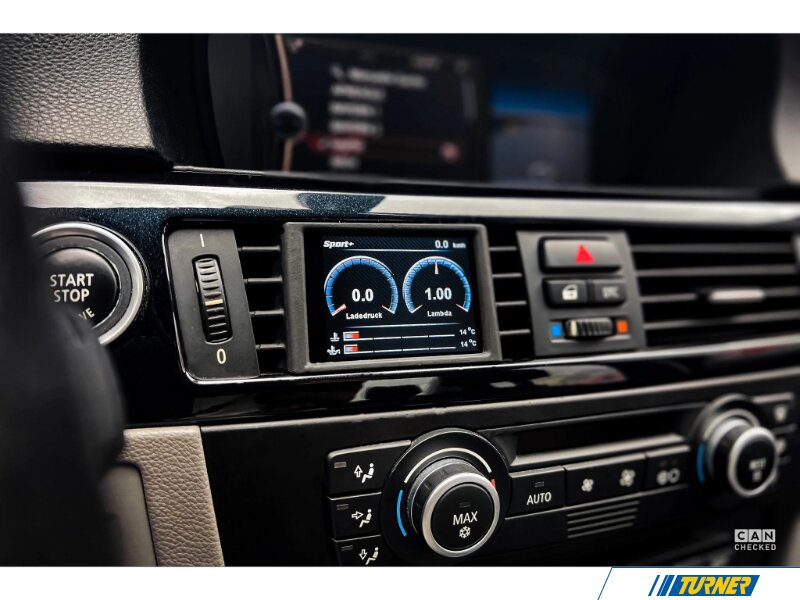

Engineered specifically for the E90, E91, E92, and E93 chassis, this system integrates a high-resolution screen into your dashboard utilizing a specialized trim panel that completely preserves the operation of your factory ventilation. This ensures a clean, distraction-free installation that rivals factory equipment while vastly outperforming traditional aftermarket gauges.
Utilizing the proven MFD28 Gen2 platform, this display grants real-time access to up to 128 critical data points, depending on your ECU compatibility. You can accurately track essential metrics like temperatures, pressures, fueling data, and ignition timing to optimize and protect your vehicle at the limit.
For ultimate driver focus, the system allows you to navigate through its pre-configured or fully customized layouts, designed via CANchecked’s Display Setup Software (DSS), using the factory cruise control buttons. This tactile, hands-on-the-wheel control means you can seamlessly switch data views on the fly, providing the critical insight necessary to push your E-Series platform to its absolute potential on the street or the circuit.
Product Details
- 2.8-inch high-resolution multi-function display (MFD28 Gen2 platform)
- Vehicle-specific integration with OEM-style trim panel

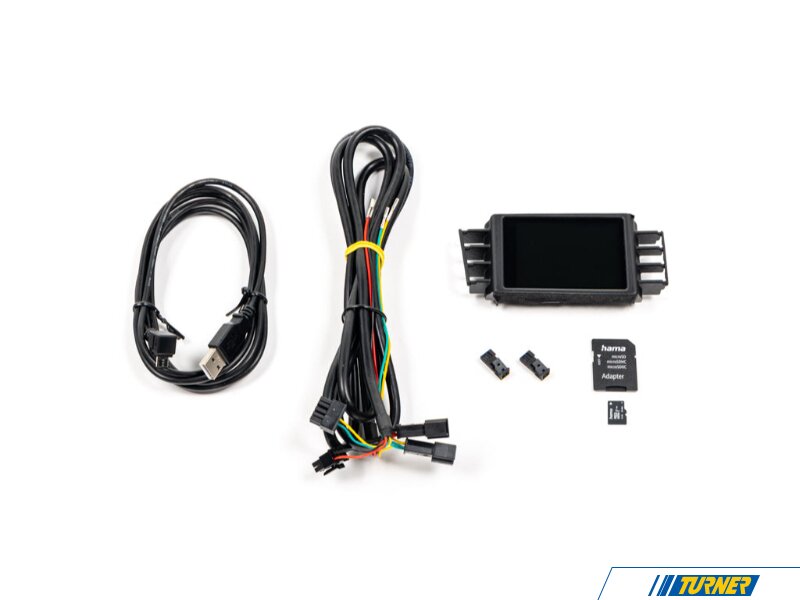

- Plug and play installation using included wiring harness
- CAN Bus communication for direct ECU data access
- Supports up to 128 sensor values depending on ECU compatibility
- 10 fully configurable display views via DSS software
- Pre-configured layouts for quick setup
- 4 additional analog inputs for external sensors
- Cruise control button integration for display navigation
- Internal data logging capability for performance analysis
- Optional anti-reflective film for improved visibility
Technical Overview
- Direct ECU data access via CAN Bus communication
- Supports a wide range of parameters including temperature, pressure, fueling, ignition, and performance data
- Displays both ECU broadcast data and analog sensor inputs
- High-speed data query optimized for BMW E-Series protocols
- Compatible with DSS (Display Setup Software) for full customization
- Internal logging allows post-drive data analysis and video synchronization
- TRI configuration file included for pre-defined sensor mapping
Display Functions
- Multiple configurable layouts including multi-value, bar graph, and gauge-style views
- Performance monitoring including G-forces, speed, and steering angle
- Real-time boost, oil pressure, fuel pressure, and temperature monitoring
- Gear display and throttle input tracking
- Custom startup screen capability
- Integrated warning alerts and threshold monitoring
- Navigation via factory cruise control buttons
Driver Performance Features
- G-force tracking (lateral and longitudinal acceleration)
- Brake pressure and throttle position monitoring
- Steering angle data for cornering analysis
- Track-focused data views for performance driving improvement
- Downloadable logs for post-session review and analysis
Supported Engine Data (Varies by Model)
- Engine oil temperature, coolant temperature, intake air temperature, exhaust gas temperature
- Boost pressure, fuel pressure, oil pressure, brake pressure
- Lambda values, ignition timing, injection correction
- Engine speed, torque, power output, air mass, throttle angle
- Vehicle speed, battery voltage, gear position
Supported Engines
- M57, N43, N47, N52, N53, N54, N55, N57
- S65 (E9X M3)
