BMW Gaskets, Gasket Sets, Seals, & O-Rings for BMW Z4 M Roadster S54 (2003-2008)

If there is a large amount of oil on the sides of the engine or if you can smell burning oil, chances are it's a bad valve cover gasket. The gasket fails and allows oil to seep down onto the side of the engine and other parts causing a mess and reducing the amount of oil in your engine. This replacement gasket from Elring is perfect to prevent any further oil leaks.

Includes the following Seals:

• Valve cover gasket
• Spark plug seals
• Nut seals
• Grommets

Elring is one of the biggest OEM names in the manufacturing of high quality gaskets that are available for very affordable prices. Elring has supplied many automotive names for years with the gaskets that seal your car's components from day 1 so you can rest assured that these components will last for a long time to come!

Fits the following BMW engines:
S54 3.2L

Includes the head gasket.

Sometimes you have to take the cylinder head off of your vehicle to diagnose problems, have it rebuilt, or replace a faulty head gasket. It tends to be a fairly labor intensive job, so anytime you can make it easier is definitely helpful.

When it comes time for reassembly, one of the biggest problems is finding quality gaskets and seals. Turner has your solution with this cylinder head gasket kit. With so many gaskets that are one use only to replace, getting them all done at the same time can be made harder by not having everything you need. With the proper, high quality gaskets, your reassembly will go much easier with no need for trip after trip to the local auto parts stores. Intake, exhaust, downpipe, valve cover, and in some applications valve seals will all help to get your engine into top condition.

When it's time to put everything back together, there are some things that should not be overlooked. Most cylinder head fasteners found on European automobiles are a one time use or stretch bolt. To be sure that everything is tightened down properly, it is important to replace them to get the proper torque reading and ensure the longevity of your repair.

Elring is one of the biggest OEM names in the manufacturing of high quality gaskets that are available for very affordable prices. Elring has supplied many automotive names for years with the gaskets that seal your car's components from day 1 so you can rest assured that these components will last for a long time to come!

When your CPV O-ring fails it causes a slow oil leak on the passenger side of the engine, making an oily mess that frequently resembles a rear main seal leak. Replacing the CPV with an upgraded o-ring ensures a long-term solution to this common problem.

The factory o-ring over time fails from heat cycling and oil exposure due to the Buna rubber used in OEM o-rings, while the included Viton Fluoroelastomer is resistant to a much higher temperature to ensure prolonged life without leaking.

Is your BMW showing signs of an oil leak? One of the most common causes is a failing oil pan gasket, a vital component that prevents oil loss and keeps your engine running smoothly. Over time, the gasket—typically made from metal with a durable rubber sealing bead—can wear out due to heat cycles, pressure fluctuations, and general aging. When the rubber bead deteriorates, it compromises the seal and results in leaks.

Ignoring an oil pan gasket leak can lead to more significant issues, such as low oil levels, reduced engine efficiency, and even serious engine damage. Addressing this problem early is crucial to maintaining your vehicle's performance and longevity.

For a reliable solution, choose Corteco. Known for their precision engineering and OE-grade materials, Corteco gaskets are crafted to deliver a perfect fit and exceptional durability. Trust Corteco to provide a high-quality replacement that ensures your BMW stays leak-free and running at its best.

This top-end gasket set covers the cylinder head on the S54 engine used in the E46 M3, Z3 M Roadster/M Coupe, and E85/E86 Z4 M Roadster, M Coupe. If you're pulling the head, intake manifold, or doing any other upper end engine work this set can be a time and money saver. This set includes all of the commonly replaced gaskets, seals, and o-rings when overhauling the head. It's also a useful kit to have and dip into any time you're doing upper end engine work. Not having a critical seal or gasket on hand can ruin your work and this gasket set can prevent that from happening. This Victor Reinz set includes the head gasket.

BMW #QtyDescription

071199035461left timing rail upper bolt seal

071199630724VAN0S oil line seal ring

071199631292crankcase vent banjo bolt seals

071199632522screw plug seal ring

071199633421right upper timing rail bolt seal ring

071199634181timing chain tensioner seal ring

111214373952valve cover stud grommet seal

1112783097213valve cover stud grommet seal

111278312716spark plug hole profile gasket

111278320341main valve cover gasket

111278370241oil fill cap seal ring

111278370251crankcaske oil separator seal ring

111417367581VAN0S-camshaft plate o-ring

111578309661crankcase oil separator o-ring, large

111578321191crankcase oil separator plug o-ring

113113173181inside o-ring for internal VAN0S regulating valve

113490644572valve stem seal, 2 sets = 24 valves

113678319381VAN0S unit profile gasket

114113060821outside o-ring for internal VAN0S regulating valve

115313184021thermostat-to-water pump o-ring

115378307083coolant pipe o-ring gasket

115378307092thermostat housing connector o-ring

116114076951intake bellows o-ring profile gasket

116178301041intake bellows-to-airbox gasket

116278306676exhaust manifold port gasket

117275052591air pump valve profile gasket

121417483982camshaft position sensor o-ring

135478314836throttle body o-ring

136414374746fuel injector o-ring, upper

136478306116fuel injector o-ring, lower

111278359181head gasket

This item fits the following BMWs:
2001-2006 E46 BMW M3
2001-2002 Z3 BMW Z3 M Roadster Z3 M Coupe
2006-2008 E85 BMW Z4 M Roadster Z4 M Coupe

Ensure optimal engine performance with the BMW S54 3.2L O-Ring.

Specifically designed for BMW engines, this o-ring provides a reliable seal to prevent leaks and maintain engine integrity. Crafted with high-quality materials, it withstands high temperatures and pressures, ensuring long-lasting durability. With easy installation and precise fitment, this o-ring is essential for any BMW owner looking to maintain their engine's performance and reliability.

• Provides a reliable seal to prevent leaks
• Withstands high temperatures and pressures
• Ensures long-lasting durability
• Easy installation for convenience
• Precise fitment for BMW engines

This is the front crankshaft seal (48x65x10) for most BMW's with M50, M52, M54 S54 engines. With more than 100 years in the industry, Elring is one of the oldest names in the European autoparts segment. Delivering OE-quality you can rest assured the job will be done right the first time.

This item fits the following BMWs:
1992-1998 E36 BMW 323is 323ic 325i 325is 325ic 328i 328is 328ic
1999-2005 E46 BMW 323i 323ci 325i 325ci 325xi 328i 328ci 330i 330ci 330xi M3
1991-1995 E34 BMW 525i
1997-2003 E39 BMW 525i 528i 530i
2004-2005 E60 BMW 525i 530i
2004-2006 E83 BMW X3 2.5i X3 3.0i
2000-2006 E53 BMW X5 3.0i
1997-2002 Z3 BMW Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i
2003-2006 E85 BMW Z4 2.5i Z4 3.0I
2006-2008 E85 BMW Z4 M Roadster M Coupe

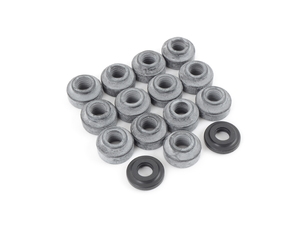

13 of these rubber O-ring seals are used in the fastening of the valve cover of the S54 BMW. This is a single o-ring.
When doing any sort of repair or maintenance there is no replacement for genuine factory parts. Turner Motorsport carries the Genuine BMW brand with pride and has the parts you need to complete your next project with confidence.

Genuine BMW ENGINE RUBBER SEAL
