Bottom-End Gasket Set - E36 323/328/M3, E39 528i 97-98, Z3 2.8 97-98, MZ3 98-00

Mfg Part #
11111740981
Turner Part #
T#1306
Brand
Price:
Qty
69.40
In Stock
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

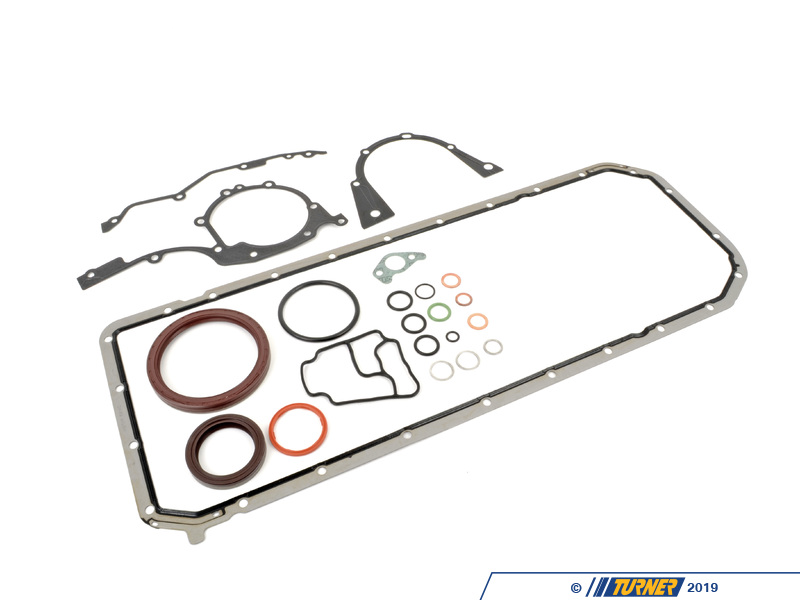

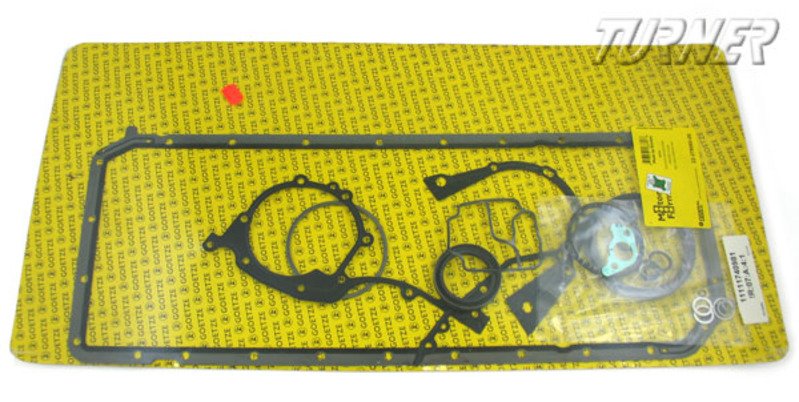

This is a complete lower end / bottom-end gasket set for the M52 2.8 liter and S52 3.2 liter engine. With the motor out of the car, any overhaul work must include new gaskets and seals and this kit saves both time and money.

This set of gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when performing this overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With this area of the engine apart you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because some states have very strict emissions regulations and vacuum and oil leaks can lead to failed inspections tests. On newer cars this can also create issues in the on-board diagnostics system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.

Complete Parts List
(click to expand)
BMW p/nQtyDescription

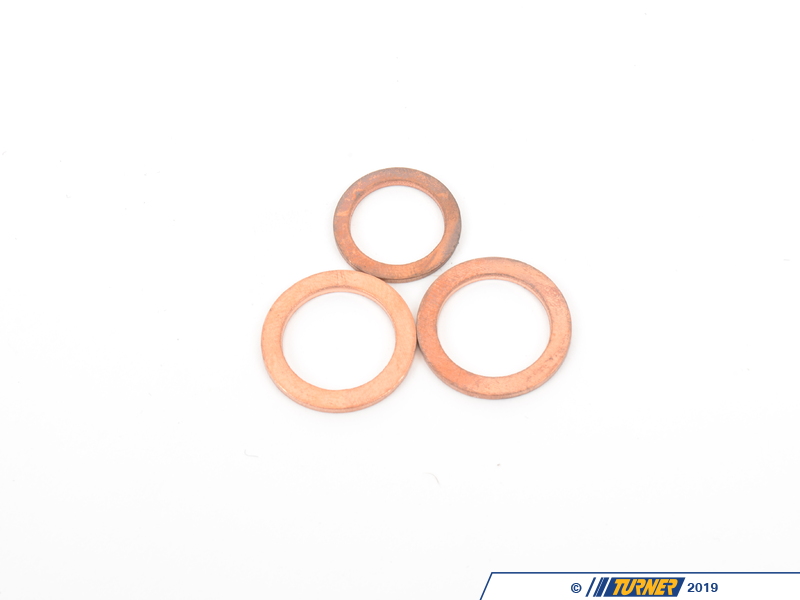

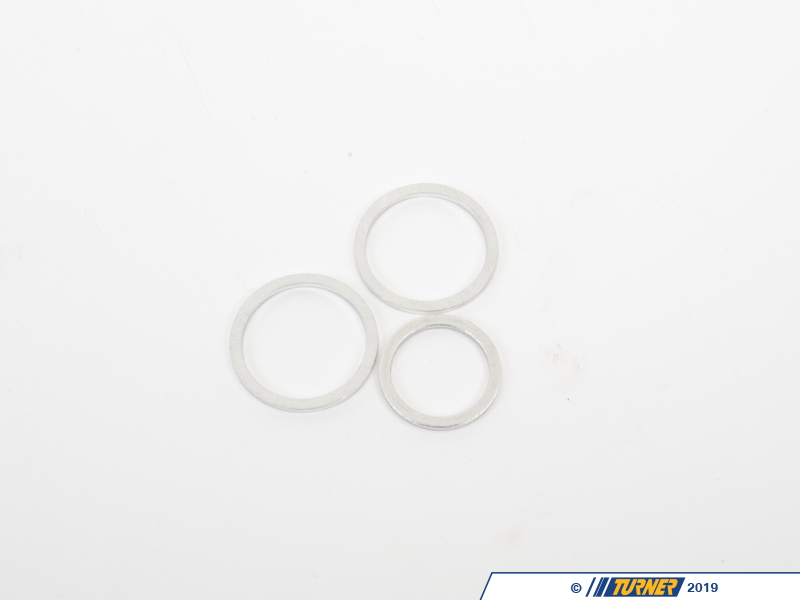

071199631511oil pan drain plug seal washer
071199632001block coolant drain seal washer
071199633002block coolant drain seal washer
(Euro model only)

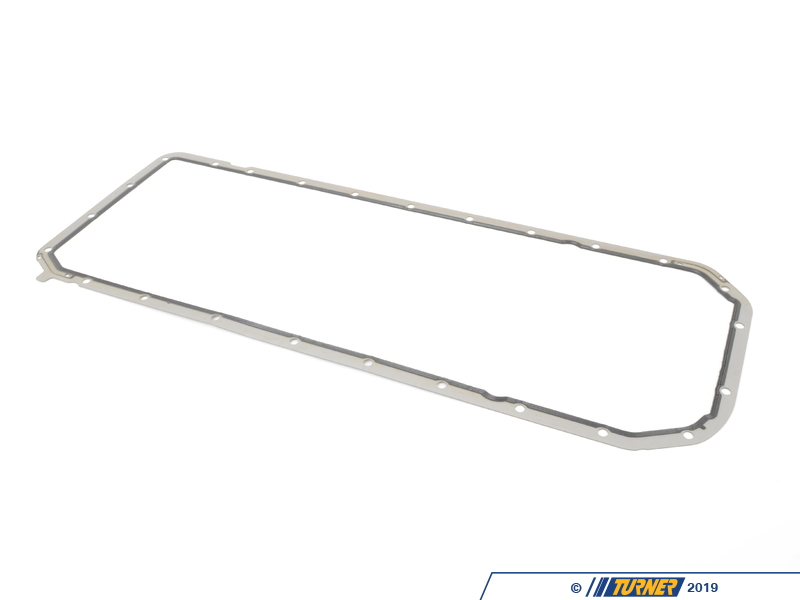

111314372371oil pan gasket
111414322401rear main seal cover gasket

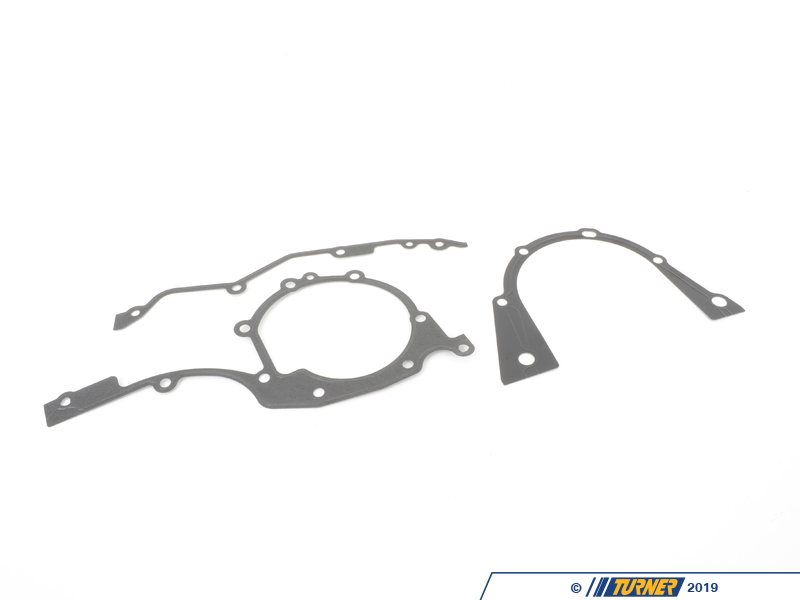

111417408421front timing cover gasket
111417408451front timing cover gasket

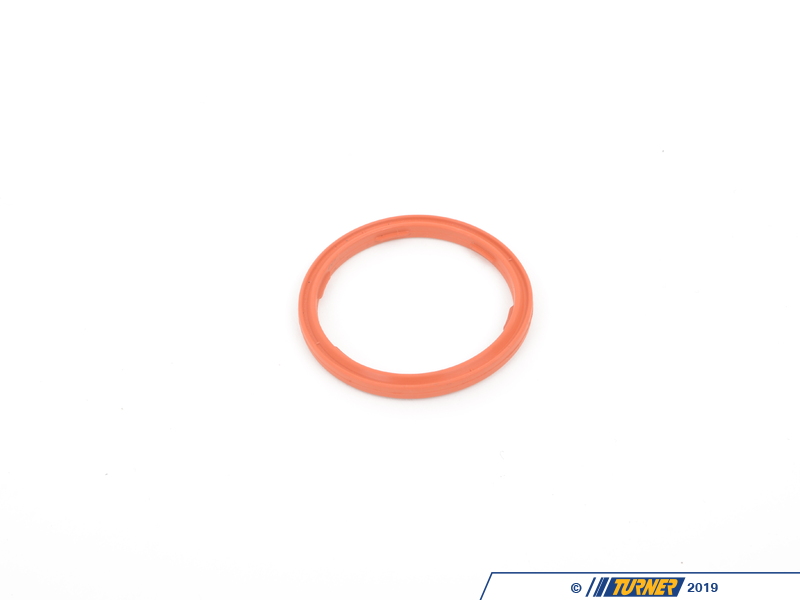

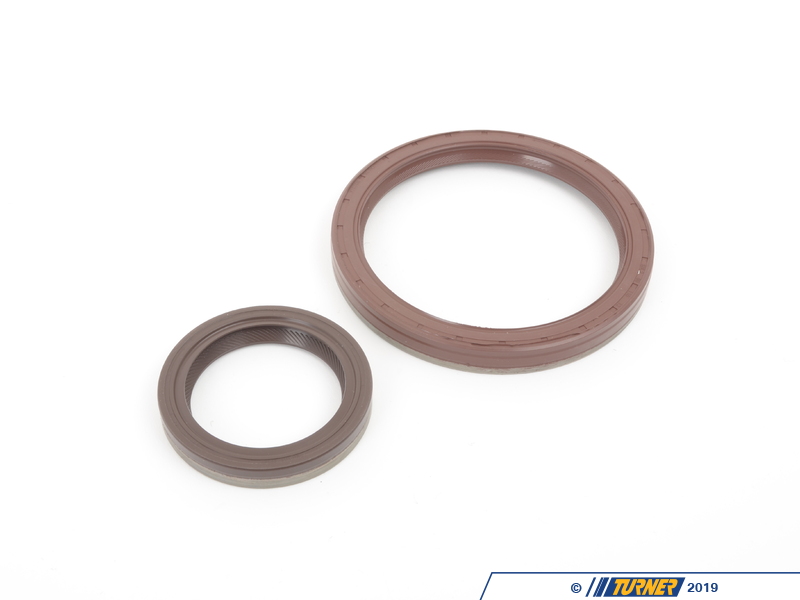

111422495321front crankshaft seal
111422495331rear main seal

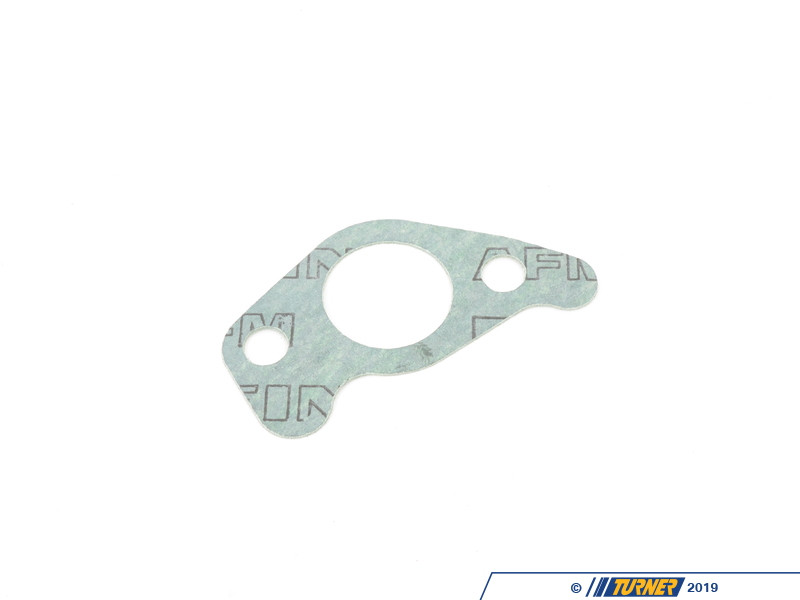

114117039471oil pump pipe gasket

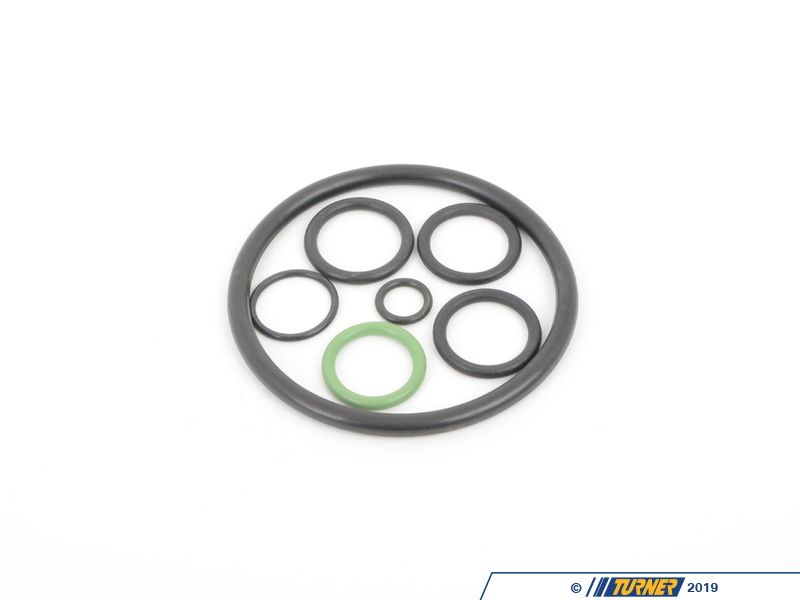

114117228371oil pump valve o-ring

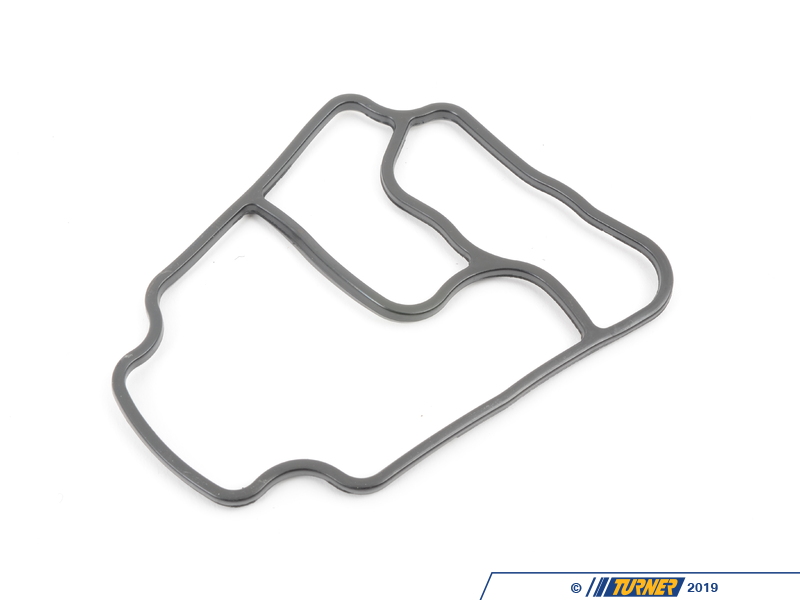

114217198551oil filter housing gasket
114317176661upper dipstick tube o-ring
114317400451lower dipstick tube o-ring
115117114841water pump o-ring
115317038482coolant pipe o-ring
121417483981crankshaft sensor o-ring
126117442921oil level sender o-ring (528i only)
324110935962VAN0S oil line seal ring


This item fits the following BMWs:
1996-1999 E36 BMW 323is 323ic 328i 328is 328ic M3
1997-1998 E39 BMW 528i
1997-1998 Z3 BMW Z3 2.8
1998-2000 Z3 BMW M Roadster M Coupe

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E36 323ic M52 2.5L
BMW E36 323is M52 2.5L
BMW E36 328i M52 2.8L
BMW E36 328ic M52 2.8L
BMW E36 328is M52 2.8L
BMW E36 M3 S50 3.0L
BMW E36 M3 S52 3.2L
BMW E39 528i M52 2.8L
BMW Z3 2.3 M52 2.5L
BMW Z3 2.8 M52 2.8L
BMW Z3 M Coupe S52 3.2L
BMW Z3 M Roadster S52 3.2L
