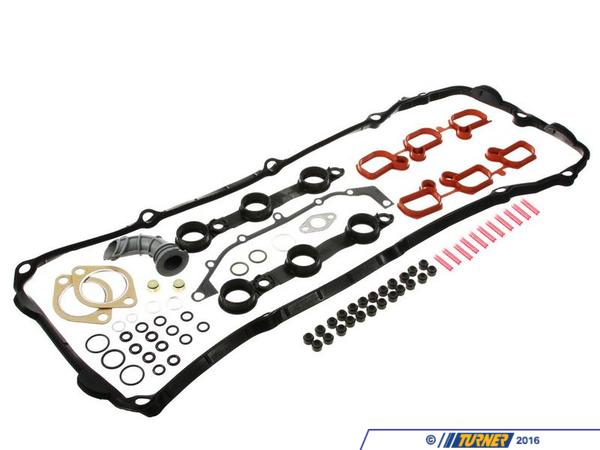

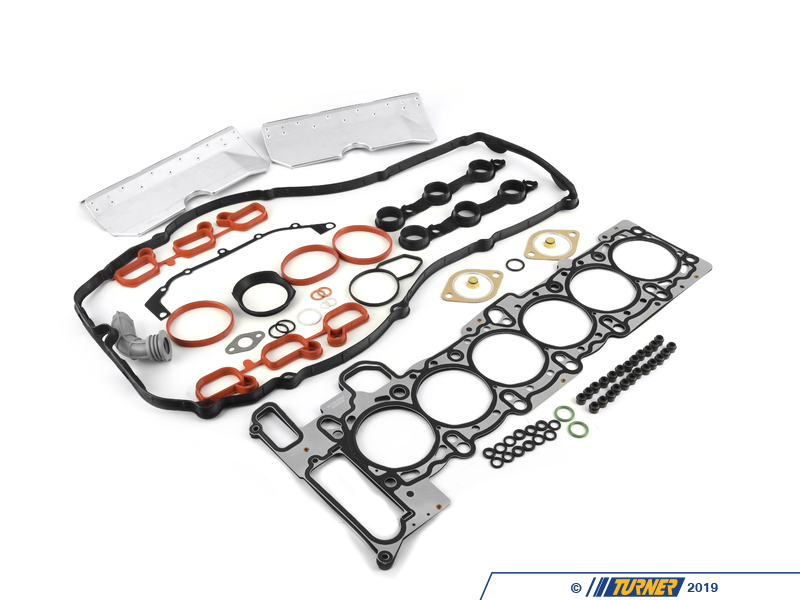

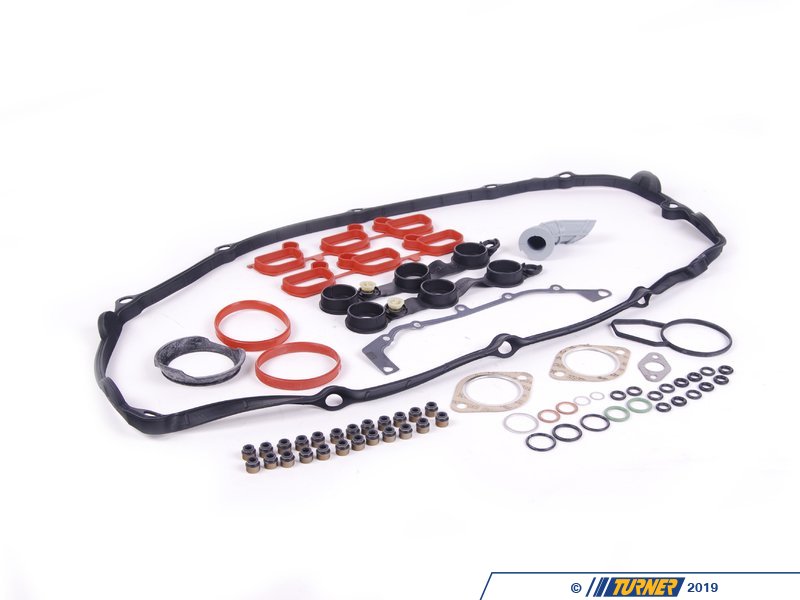

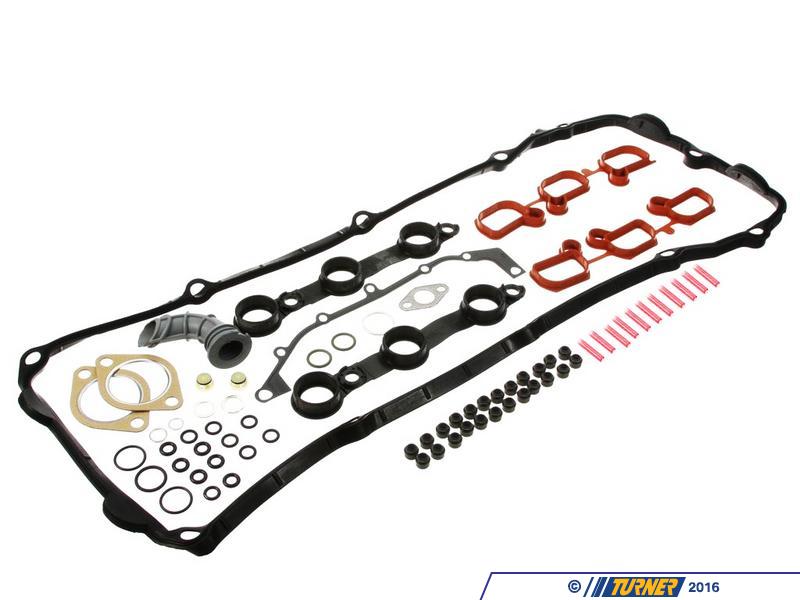

Victor Reinz Cylinder Head Installation Kit - E39, E46, E53, Z3

This set of top-end gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when pulling the cylinder head for overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With the head off the car you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because the newer BMW models have very strict emissions controls and vacuum and oil leaks can create turmoil in the system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.

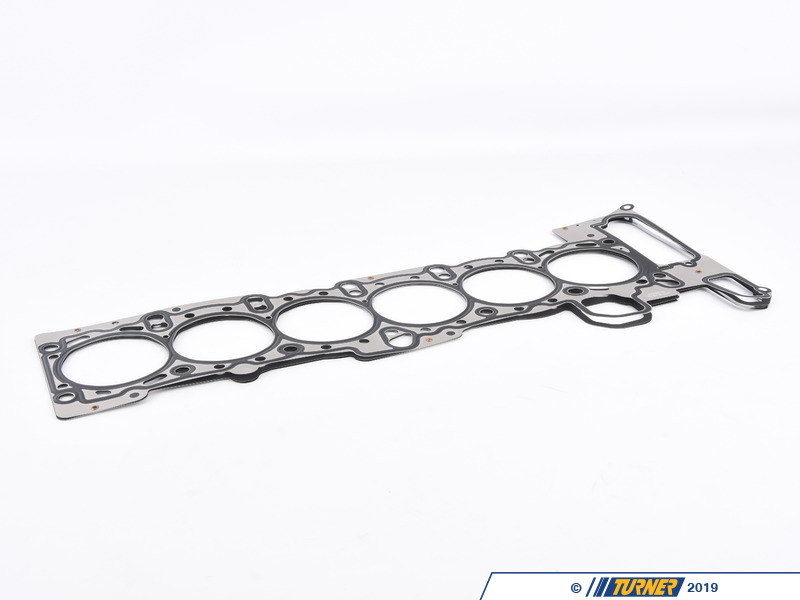

Note: because of rebuild options, the head gasket is not included in this set. Add one from the options below.

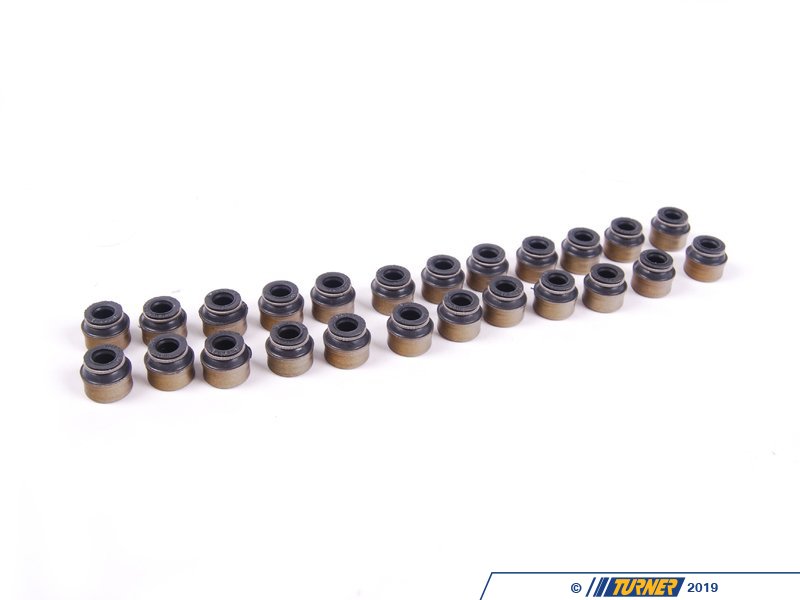

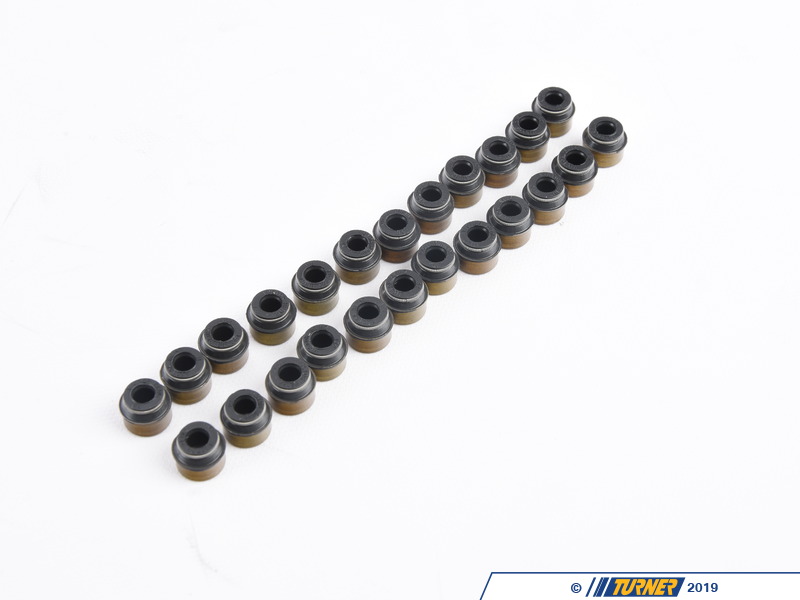

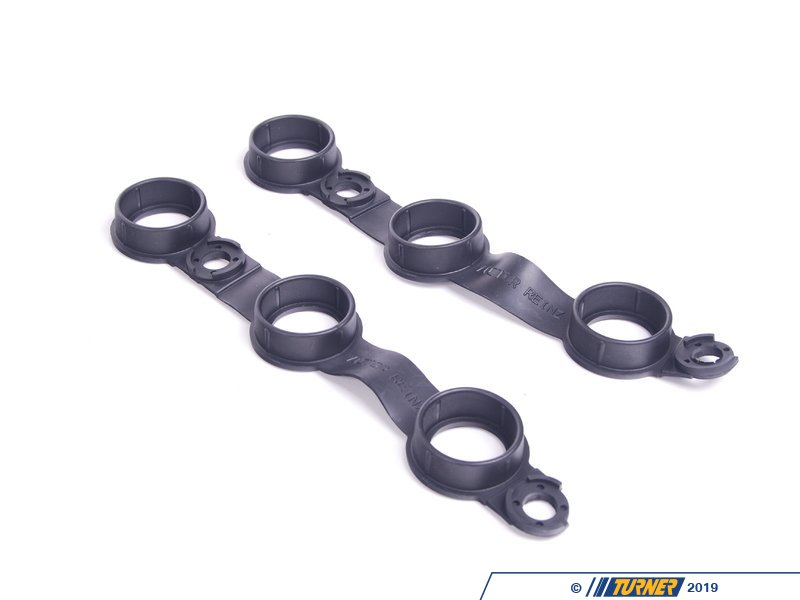

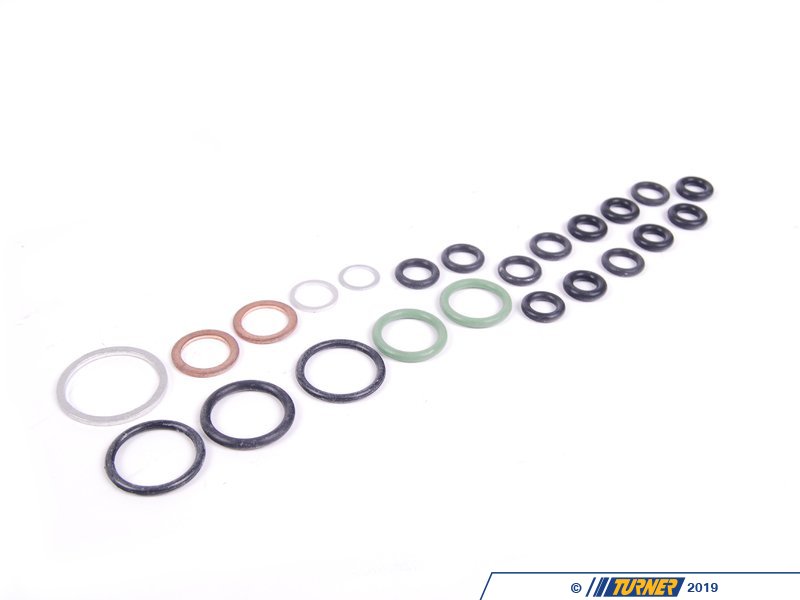

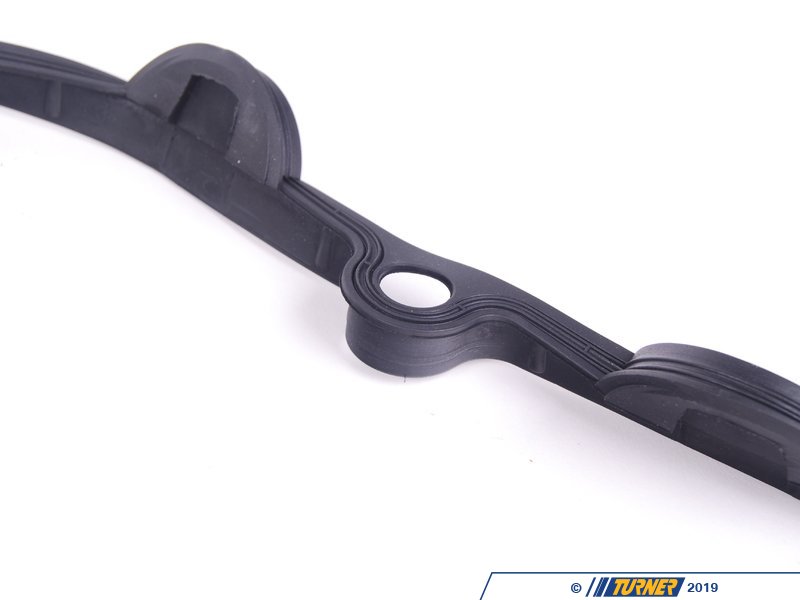

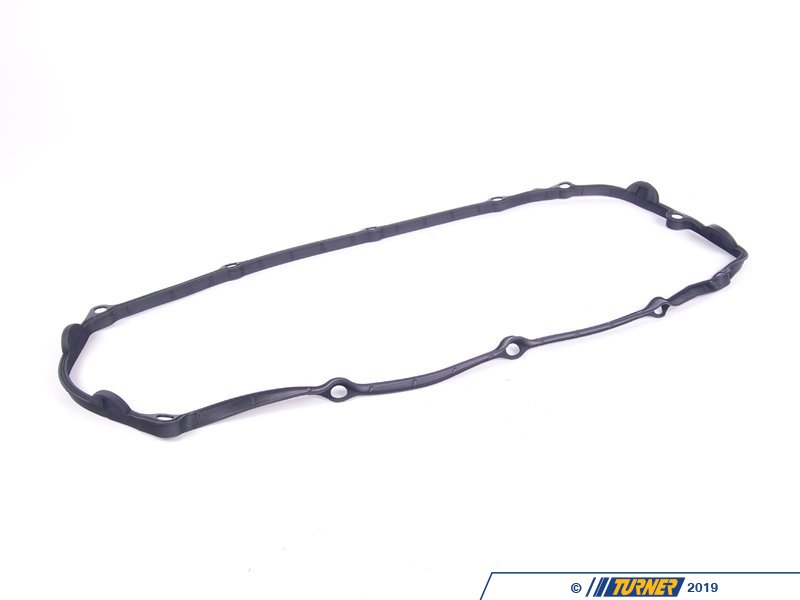

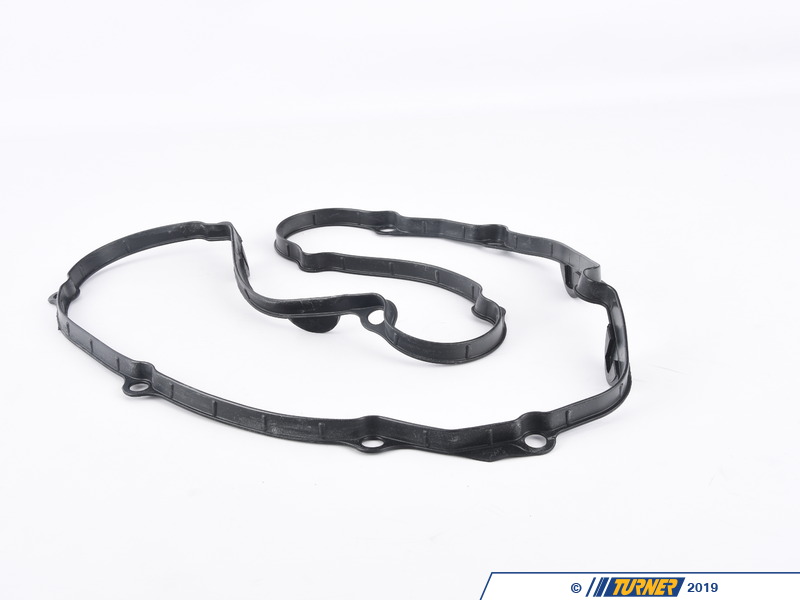

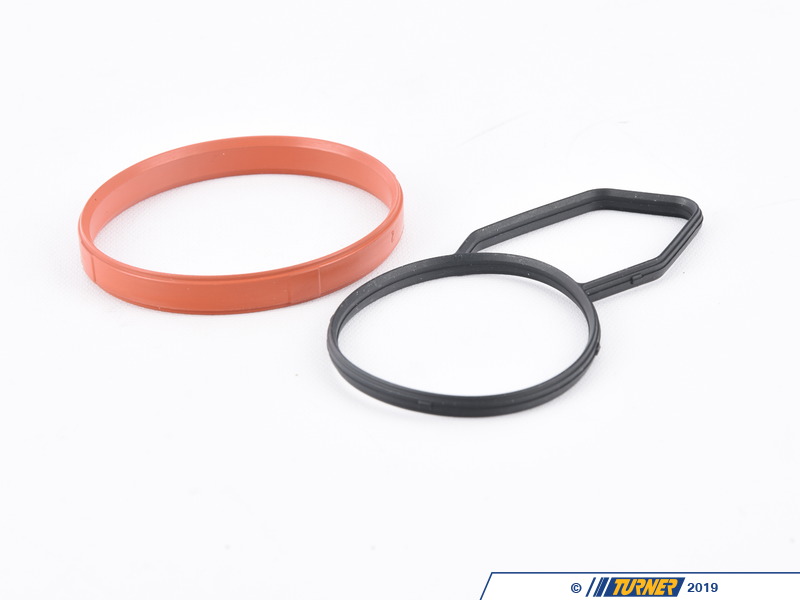

Complete Parts List(click to expand) BMW p/n Qty Description 07119963073 1 screw plug seal ring07119963130 1 plug gasket ring07119963418 1 timing chain tensioner seal ring11129070990 1 valve cover gasket set11127526447 1 oil fill cap seal ring11349064457 2 valve stem seal,
2 sets = 24 valves

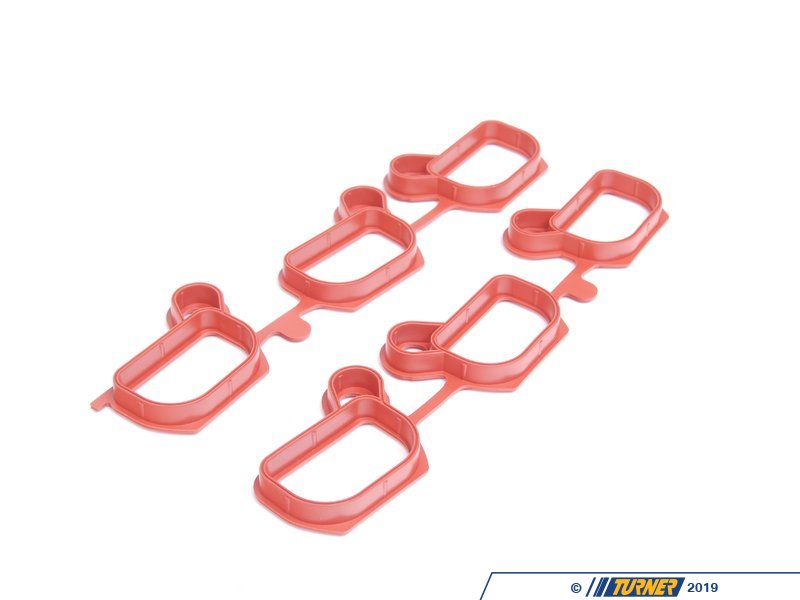

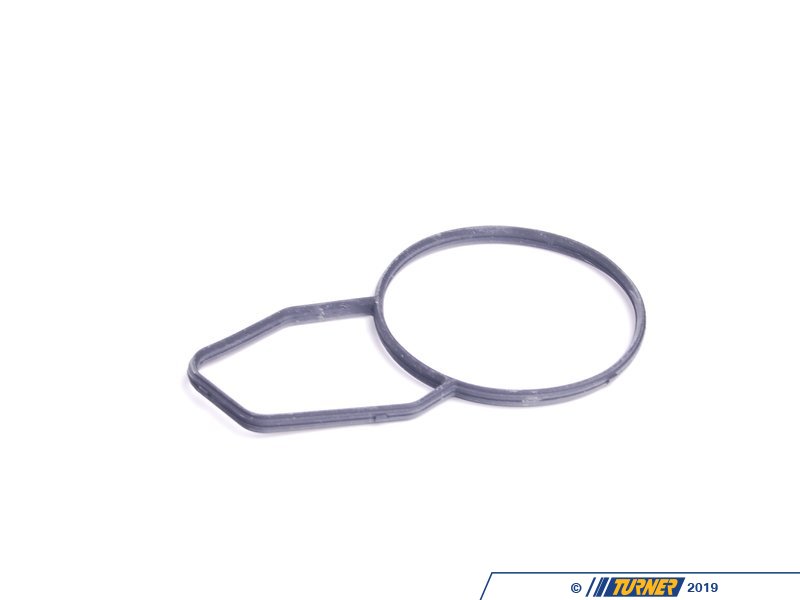

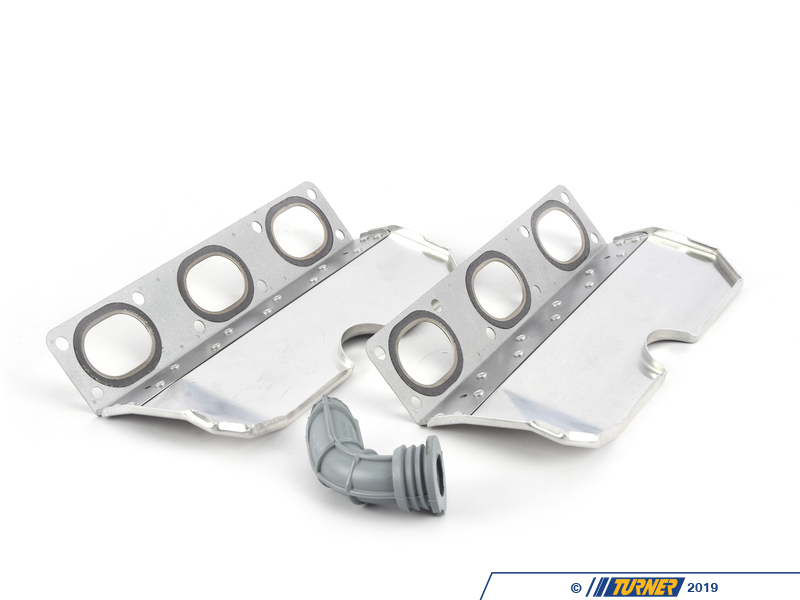

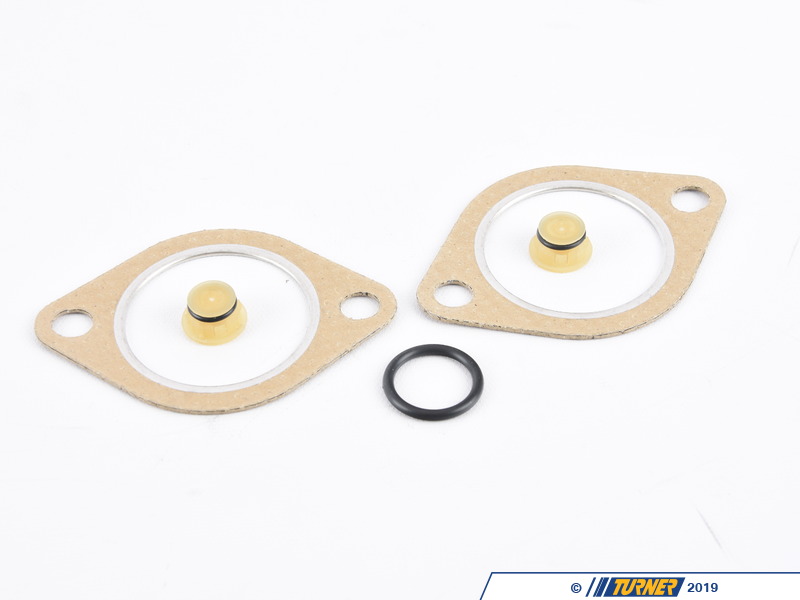

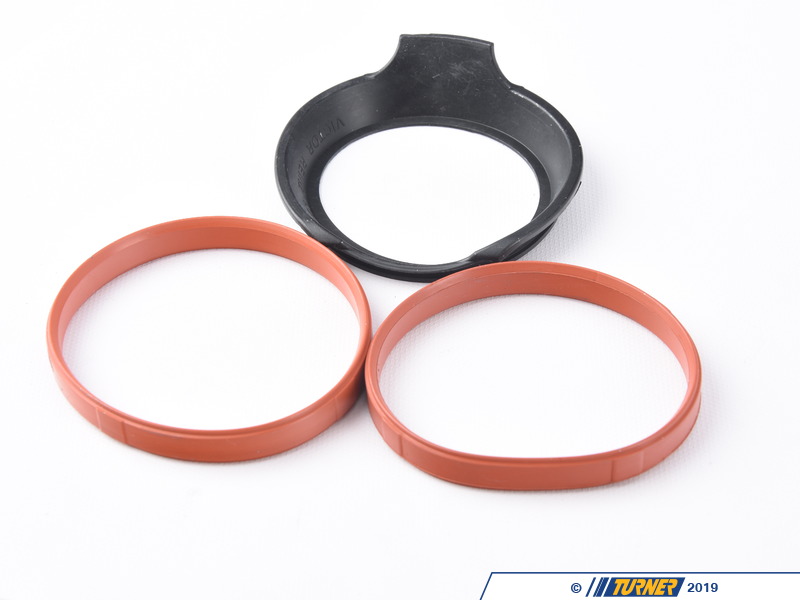

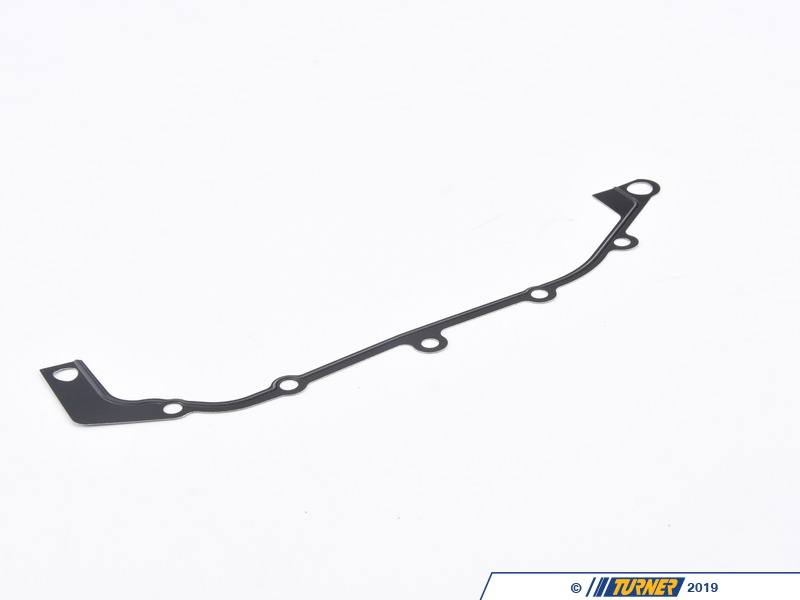

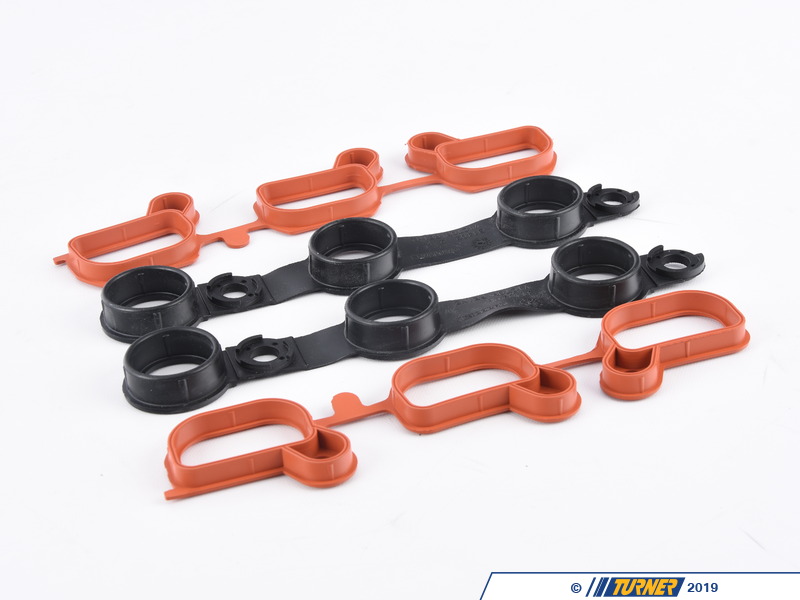

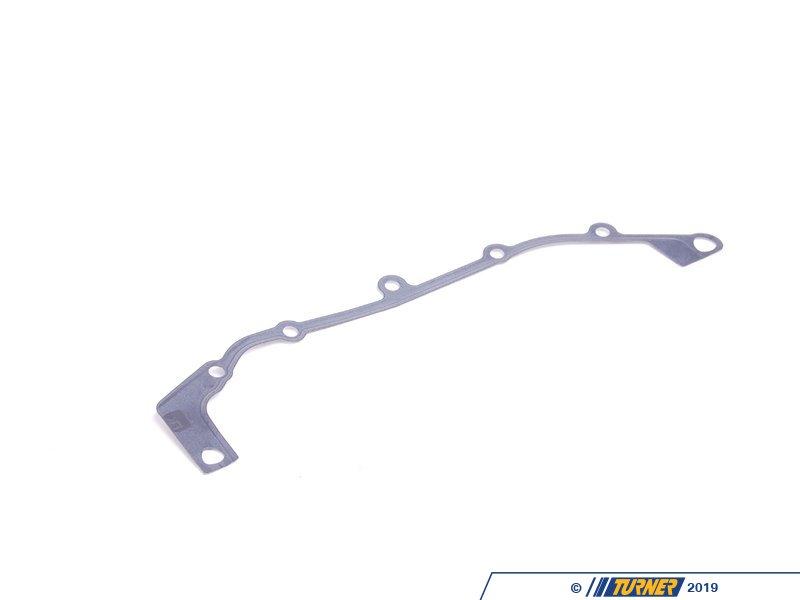

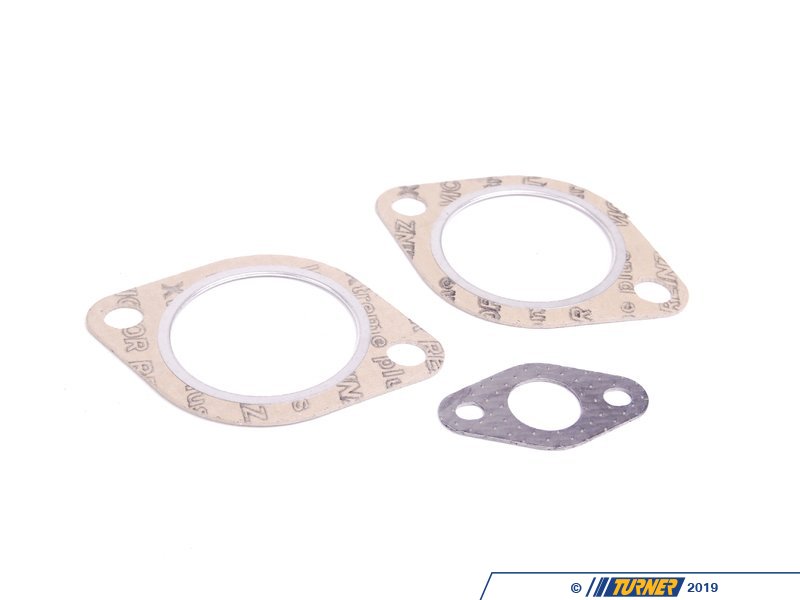

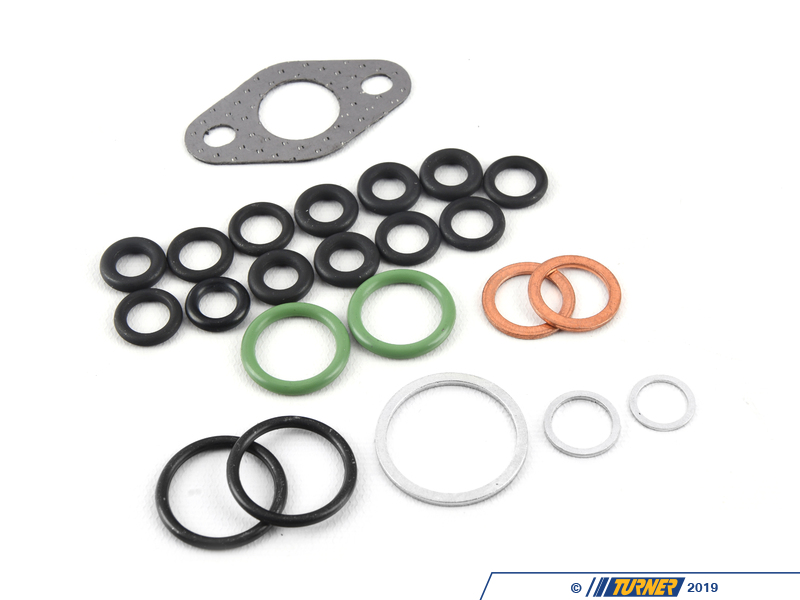

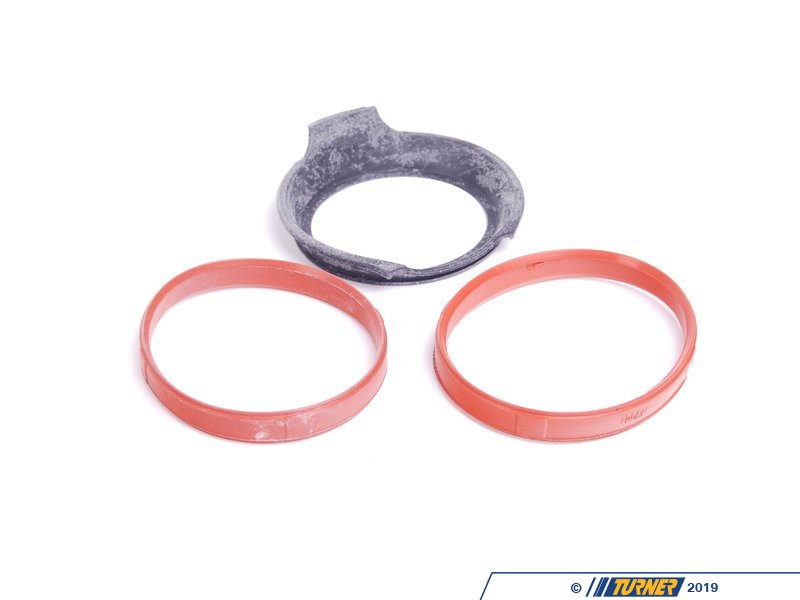

11361433513 2 VAN0S plug11361433817 1 VAN0S cover profile gasket11361703713 2 VAN0S solenoid o-ring11531435808 1 coolant pipe o-ring11537509357 1 thermostat housing profile gasket11611436631 1 intake manifold runner profile gaskets11611437453 1 idle control valve o-ring11727505259 1 air pump valve profile gasket12141748398 2 camshaft position sensor o-ring13547504728 1 profile gasket13547504729 1 profile gasket13621743299 1 o-ring13641437486 6 fuel injector o-ring13641437487 6 fuel injector o-ring18107502346 2 exhaust manifold flange gasket32411093596 2 VAN0S oil line seal ring11621732969 2 exhaust manifold heat shield

This item fits the following BMWs:
2001-2002 E46 BMW 325i 325ci 325xi 330i 330ci 330xi
2001-2002 E39 BMW 525i 530i
2001-2002 E53 BMW X5 3.0i
2001-2002 Z3 BMW Z3 2.5i Z3 3.0i
T#: 12886 | Part#: 11127507597
144.16 $144.16
