Emissions System for BMW X Series E53 (2000-2006)

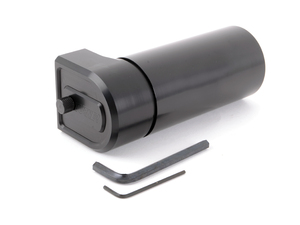

When we designed this catch we wanted to have the most function options available, the best separation method, and the easiest to service. The Turner engineered catch cans offer a pre-setup design based ion desired flow direction, however this does not limit you to this flow. The inner baffle orientation can be easily adjusted to flow in both directions in case you decide to move this catch can to a different vehicle. A 4 chamber system  baffle system inside the catch can was engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can. Having a closed / recirculated design reduces oil ingestion and promotes cleaner emissions and odor-less operation.

Our catch can was also designed with the idea that the cans fill level can easily be checked with a top mounted dipstick and an optional use bottom drain hole. The drain system comes complete with a valve and hose to be mounted at a lower area of the vehicle so when you're doing an oil change you can drain the catch can.

Features:

• 6061-T6 billet machined body, anodized black for lasting protection and appearance
• Strategically positioned 4 chamber baffle system maximizes oil / air separation
• Knurled and black anodized oil dipstick makes inspecting oil volume of reservoir clean and simple
• Sealed with a pre-installed viton O-Ring
• Includes 2.5mm allen key to remove baffle plates for cleaning
• Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
• Closed / recirculated design reduces oil ingestion and promotes cleaner emissions and odor-less operation
• Optional use drain hole - drain kit included!
• Universal mounting kit

After the introduction of the M52TU/M54 engines, BMW observed an uptick in CCV-related issues, especially in cold regions. Vehicles operating in extremely low temperatures often encountered a blockage in the CCV dipstick hose, leading to elevated crankcase pressure and visible blue smoke from the exhaust. To address this issue, BMW introduced cold climate-specific hoses with foam insulation, preventing condensation and facilitating quicker oil warm-up. This kit incorporates top-notch reproduction cold climate hoses to ensure optimal CCV performance across all weather conditions.

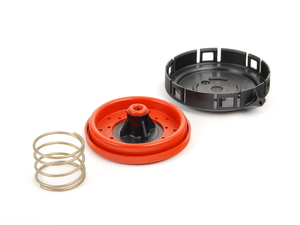

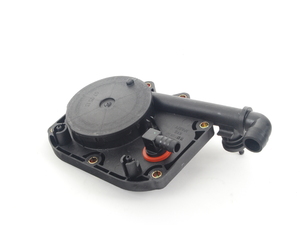

The crankcase ventilation valve, known as the oil separator, PCV, CCV, or crankcase pressure regulator valve, plays a vital role in redirecting oil from your vehicle's intake system back into the engine oil pan. This system comprises numerous plastic and rubber hoses, prone to damage due to prolonged exposure to chemicals and heat.

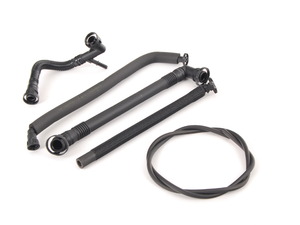

Designed to tackle or prevent impending CCV system failures, this kit includes four foam-insulated hoses made from durable plastic capable of withstanding heat fluctuations and chemical exposure. Additionally, a new ventilation valve is included for a comprehensive and long-lasting repair solution.

Signs indicating the need for crankcase ventilation system replacement include:

Whistling sounds from the intake manifold, caused by crankcase pressure venting through holes in the CCV hoses. Blue smoke emitting from the tailpipe, indicating oil consumption. Excessive oil usage. Milky or yellowish buildup under the oil cap, suggesting condensation due to ventilation valve malfunction. If you're experiencing misfires, lean fuel codes, decreased fuel efficiency, or noticeable oil consumption, it's advisable to overhaul your crankcase ventilation system. Opt for this reliable system from Febi-Bilstein for a repair that meets factory standards and ensures consistent performance.

Part of the vacuum and emissions system that runs from the intake manifold back to the connecting hose.
When doing any sort of repair or maintenance there is no replacement for genuine factory parts. Turner Motorsport carries the Genuine BMW brand with pride and has the parts you need to complete your next project with confidence.

Fits the following BMW's:
E46 M52 (from 01/2000) and M54
E39 M52 (from 01/2000) and M54
E53 M54
E60 M54
E83 M54
Z3 M52 (up to 01/2000 for 2.3L and from 01/2000 for 2.8L) and M54
Z4 M54

This secondary air pump helps to reduce emissions by mixing fresh air with the exhaust. When this part fails cause a engine fault code and it will trigger a "service engine soon" light.

This item fits the following BMWs:
3/2003-2005 E46 BMW 325i 325ci 325xi 330i 330ci 330xi
2004-2005 E60 BMW 525i 530i
2004-2010 E60 BMW 545i M5
2004-2011 E63 BMW 645ci M6
10/2003-2006 E53 BMW X5 3.0i
2004-2005 E83 BMW X3 3.0i

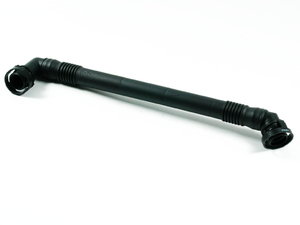

This is the BMW crankcase return line that goes from the intake manifold to the top CCV connecting hose. We also offer a complete CCV repair kit
Since the late 1800’s Febi has been fabricating replacement metal parts. This history is self evident in the quality and vast amount of applications they service. With more than 34,000 repair solutions for cars and commercial vehicles you can be sure Febi has you covered.

This item fits the following BMWs:
1999-2005 E46 BMW 323i 323ci 325i 325ci 325xi 328i 328ci 330i 330ci 330xi
1997-2003 E39 BMW 525i 528i 530i
2004-2010 E60 BMW 525i 530i
2004-2005 E83 BMW X3 2.5i X3 3.0i X3 3.0si
2000-2006 E53 BMW X5 3.0i
1/2000-2002 Z3 BMW Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i
2003-2005 E85 BMW Z4 2.5i Z4 3.0i
