BMW Engine Parts for BMW Z4 M Roadster S54 (2003-2008)

Upgrade your engine build with Turner's WPC-treated Race Series Bearings, engineered for serious performance enthusiasts. Starting with ACL’s high-performance bearing shells, these Race Series bearings are built to withstand extreme RPMs and stress. Utilizing a "Duraglide" tri-metal construction and a high-strength overlay plate, these bearings offer superior oiling and heat resistance for high-RPM operation.

Our WPC-treated bearings take ACL’s already impressive design and enhance it even further. The WPC treatment process strengthens and smooths the bearing surface by firing high-speed, ultra-fine particles at the bearing shells, reducing friction and improving durability. This advanced surface treatment ensures smoother operation and improved heat dissipation, which are critical for any high-performance engine.

Key Features:

Duraglide Tri-Metal Construction: ACL's Race Series bearings feature a high-strength overlay for enhanced performance. Optimized Oiling: Designed to promote better oil flow during high-RPM conditions. Precise Fitment: Manufactured with OEM-level precision using micron tolerance machining. WPC-Treated for Strength: Surface treatment adds strength and reduces friction for improved engine performance. No Flash Plating: Allows for better heat transfer and bearing retention. Thermal Discharge Process: Smoother, stronger components through WPC’s unique thermal discharge technology. Enhanced Heat and Friction Resistance: Built to combat the biggest enemies of high-performance engines. Don’t settle for standard bearings—choose Turner Motorsport WPC-treated Race Series Bearings for the ultimate engine performance upgrade. Perfect for your next engine rebuild or rod bearing service!

Unlock the full potential of your S54’s valvetrain with our High Performance Cam Followers/Rocker Arms, built for precision, durability, and reliability in high-revving performance engines.

Crafted from forged chromoly steel and finished with a diamond-like carbon coating, these cam followers are engineered to deliver exceptional strength, reduced friction, and outstanding wear resistance, ideal for demanding street or track use. Each unit is precision-ground for consistent clearances and smooth, stable valvetrain motion at all RPMs. Despite heavy-duty construction, our design retains the same weight as the factory rocker arm, preserving OE valvetrain geometry and balance while offering superior longevity and performance.

Rocker arms wear in conjunction with the camshafts, meaning the two must be replaced simultaneously. Aftermarket and performance camshaft options (Schrick, CAT-Cams, etc.) are typically ground from softer blanks and, as a result, cannot be used with factory rocker arms. We tested our performance cam followers with aftermarket camshafts to validate compatibility, ensuring smooth, reliable, and safe operation under demanding conditions.

Features:

Forged chromoly construction for maximum strength and durability Diamond-like carbon-coated surface reduces friction, extends service life, and permits compatibility with aftermarket and performance camshaft options Precision-ground tolerances ensure consistent and quiet operation OEM weight match maintains valvetrain balance and reliability Superior wear resistance for performance and endurance applications NOTE: Rocker arms are wear items and must be replaced alongside a new set of camshafts, regardless of profile or manufacturer. Installing a new set of rocker arms onto a used set of camshafts is NOT recommended.

Kit Contents:

One set of 12 DLC-Coated Rocker Arms (services intake OR exhaust camshaft) 24 Rocker Arms / 2 Sets of 12 Rocker Arms required to complete both intake and exhaust camshafts. Product Development: Our Turner Performance Rocker Arms are the result of advanced engineering, testing, and quality assurance by Turner’s Research & Development team. Every stage of development employs FARO laser scanning, SolidWorks 3D CAD modeling, and in-house rapid prototyping for precise fitment and design validation. Performance and durability are proven through Mustang AWD 500 SE dyno testing and Superflow SF-750 Flowbench analysis, ensuring each component meets Turner’s uncompromising standards for performance and quality.

All vehicles will lose some degree of performance due to heat soak under the right operating conditions.  Engine management systems constantly monitor operating conditions and modifying parameters based on sensor inputs. BMW integrated the intake air temp sensor in the MAF housing on models such as the E39 M5, and, being sandwiched behind a hot radiator and in some applications next to an even hotter valve cover, this is less than ideal for performance applications. Absorbing excess heat from its surroundings, the MAF can’t shed it fast enough, and the ECU reads an inaccurately high intake air temperature. Compensating for this false hot air measurement, the ECU pulls timing and runs a richer fuel mixture, resulting in a significant loss of torque.

What can you do?  Locate an intake air temp sensor in a location where it can properly measure incoming air temps and where it's less prone to heat soak. Mounting the sensor further away from the heat source and isolating it from the MAF housing, it can both resist the effects of heat soak longer and respond to temperature changes more quickly.  The result is you’ll experience reduced torque loss and more consistent power output when you’re pushing your engine hard.

The Turner engineering team was initially skeptical of the claimed performance benefits of this modification. They first set out validate the functionality and performance benefit of a temp sensor relocation. Replicating stop-and-go traffic heat soak in a 2001 540i was a simple task in a controlled environment - their dynometer. First the car was heat soaked to simulate being stuck in traffic or moving at low speeds by running the car four times on the dyno with the dyno's cooling fans disabled. The fans were then turned on for three more runs to observe the recovery rate once air flow was reintroduced. The test: following this procedure once with a stock IAT, and once with their relocation kit in place.

The result? Turner recovered 11lb-ft torque at 2500rpm through use of their relocation kit, with even greater recovery to be found for M5 owners. Here are the heat soak-related torque losses Turner experienced:

Stock IAT location:
18rwtq at 2500rpm
10rwtq at 3000rpm
9rwtq at 3700rpm

Turner IAT Relocation:
7rwtq at 2500rpm
5rwtq at 3000rpm
5rwtq at 3700rpm

**Click here for installation instructions**

The Turner engineering team designed a complete plug and play kit (unlike all other options on the market) that makes for quick, easy, and reversible installation. Weather-sealed connectors keep out the elements, while sheathed wiring offers a clean appearance underhood. With a harness nearly 3 feet long - the Turner IAT relocation kit offers flexibility in positioning, but not too long that you're left with unsightly excess wiring. Turner recommends positioning the sensor in a location away from engine heat, but still within the intake ducting to achieve accurate intake temp readings - such as the far side of the base of the airbox. Vehicles with cold air intakes with cone-style filters can even position the sensor in the end of the filter. Simply drill a hole in your (cool) location of choice and plug in the harness. More information including installation instructions and some good examples of sensor mounting locations can be found in our DIY PDF.

We include everything you need to relocate your IAT, just select your desired sensor brand below - Genuine BMW or original equipment Beru.

Also the perfect plug-n-play option for anyone looking to upgrade their intake to utilize an Alpha-N tune!

Note for vehicles with M62 engine: applicable to 1999 and up

When we designed this catch we wanted to have the most function options available, the best separation method, and the easiest to service. The Turner engineered catch cans offer a pre-setup design based ion desired flow direction, however this does not limit you to this flow. The inner baffle orientation can be easily adjusted to flow in both directions in case you decide to move this catch can to a different vehicle. A 4 chamber system  baffle system inside the catch can was engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can. Having a closed / recirculated design reduces oil ingestion and promotes cleaner emissions and odor-less operation.

Our catch can was also designed with the idea that the cans fill level can easily be checked with a top mounted dipstick and an optional use bottom drain hole. The drain hole can be used with a valve and hose to be mounted at a lower area of the vehicle so when you're doing an oil change you can drain the catch can.

Features:

• 6061-T6 billet machined body, anodized black for lasting protection and appearance
• Strategically positioned 4 chamber baffle system maximizes oil / air separation
• Knurled and black anodized oil dipstick makes inspecting oil volume of reservoir clean and simple
• Sealed with a pre-installed viton O-Ring
• Includes 2.5mm allen key to remove baffle plates for cleaning
• Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
• Closed / recirculated design reduces oil ingestion and promotes cleaner emissions and odor-less operation
• Optional use drain hole (valve and hose sold separately, watch for our model specific drain kits!)

Unlock the full potential of your S54’s valvetrain with our High Performance Cam Followers/Rocker Arms, built for precision, durability, and reliability in high-revving performance engines.

Crafted from forged chromoly steel and finished with a diamond-like carbon coating, these cam followers are engineered to deliver exceptional strength, reduced friction, and outstanding wear resistance, ideal for demanding street or track use. Each unit is precision-ground for consistent clearances and smooth, stable valvetrain motion at all RPMs. Despite heavy-duty construction, our design retains the same weight as the factory rocker arm, preserving OE valvetrain geometry and balance while offering superior longevity and performance.

Rocker arms wear in conjunction with the camshafts, meaning the two must be replaced simultaneously. Aftermarket and performance camshaft options (Schrick, CAT-Cams, etc.) are typically ground from softer blanks and, as a result, cannot be used with factory rocker arms. We tested our performance cam followers with aftermarket camshafts to validate compatibility, ensuring smooth, reliable, and safe operation under demanding conditions.

Features:

Forged chromoly construction for maximum strength and durability Diamond-like carbon-coated surface reduces friction, extends service life, and permits compatibility with aftermarket and performance camshaft options Precision-ground tolerances ensure consistent and quiet operation OEM weight match maintains valvetrain balance and reliability Superior wear resistance for performance and endurance applications NOTE: Rocker arms are wear items and must be replaced alongside a new set of camshafts, regardless of profile or manufacturer. Installing a new set of rocker arms onto a used set of camshafts is NOT recommended.

Kit Contents:

24 DLC-Coated Rocker Arms (required to complete both camshafts) Schwaben Magnetic Valve Shim Tool Wiseco 8.9mm Valve Adjustment Shim Set Schwaben Feeler Gauge Set Product Development: Our Turner Performance Rocker Arms are the result of advanced engineering, testing, and quality assurance by Turner’s Research & Development team. Every stage of development employs FARO laser scanning, SolidWorks 3D CAD modeling, and in-house rapid prototyping for precise fitment and design validation. Performance and durability are proven through Mustang AWD 500 SE dyno testing and Superflow SF-750 Flowbench analysis, ensuring each component meets Turner’s uncompromising standards for performance and quality.

Boost your engine's capabilities with the Dinan N-Series Performance Ignition Coils - a vivid set of six in striking red. Precision-engineered to amplify ignition power, these coils guarantee heightened throttle response, seamless idling, and a notable surge in overall power. Meticulously crafted for durability, they seamlessly integrate into your vehicle, enhancing both performance and aesthetic appeal under the hood.

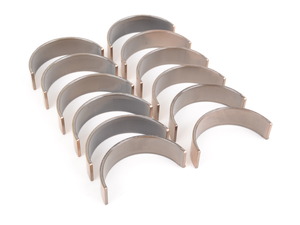

Introducing the BMW S54B32 (E46 M3, Z3M, Z4M) Race Series High-Performance Connecting Rod Bearing Set by ACL. Elevate your BMW's performance with these precision-engineered connecting rod bearings, specifically designed for the S54 engine.

Key Features:

Premium Quality: Crafted with the utmost precision and durability, this con rod bearing set ensures high performance and reliability for your BMW. Race Series Design: Engineered to meet the demands of race applications, these bearings are well-suited for high-performance driving scenarios. Enhanced Engine Protection: The bearings provide essential protection for your engine components, ensuring their longevity even under extreme conditions. Perfect Fit: Designed to seamlessly fit the BMW S65 V8 engine in the E90 M3, these bearings are a direct replacement for your stock components. Improved Performance: Experience enhanced engine performance and responsiveness, making it ideal for racing and high-performance driving. Upgrade your BMW S54 engine with the Race Series High-Performance Connecting Rod Bearing Set from Automotive Components Limited. Enhance your vehicle's performance and enjoy peace of mind knowing your engine is protected by top-quality components.

For BMW M54 applications, coil styles vary between M or N depending on the vehicle's production date. Models produced up to September 2002 require the M series style coil, while those manufactured after September 2002 use N series style coils. It's crucial to visually compare and verify the correct coil needed for your vehicle before making a purchase.

Benefits:

• Specific coil styles for different BMW M54 application dates
• Helps ensure the right replacement part for your vehicle's coil
• Visual verification recommended prior to purchase for compatibility

If you're experiencing hard starting, flaky charging, or other electrical issues, your engine ground strap may be the culprit. On older BMWs, the engine ground strap is a thin, non-insulated cable that spans from the engine mount arm to the frame horn. Despite the seemingly simple nature of this part, on older cars, it is known to cause massive headaches. Due to its non-insulated design, years of exposure to water, dirt, and road salt will cause the wire to corrode, ultimately leading to complete failure. A break in this cable will cause an open circuit, resulting in issues with the vehicle's electrical system and potentially leading to a no-start condition.

To solve this issue, ECS has engineered an exact-fit, upgraded ground strap for your BMW! Unlike its OEM counterpart, this design features insulated, large-gauge copper wire for dependable conductivity and long-lasting durability. Additionally, factory-style lugs are zinc-coated, crimped, and soldered, ensuring protection against corrosion and oxidation.

Whether you're replacing a visibly corroded strap or proactively preventing failure, this solution from ECS is sure to provide lasting performance and protection.

FEATURES

Direct-fit replacement and upgrade for E30 (318i/is), E36, E39, E46, and others Solves intermittent grounding issues caused by aging OEM straps Clean, stealthy design that fits seamlessly in factory engine bays Factory length and lug orientation for drop-in fitment 2 AWG tinned copper cable for excellent conductivity and corrosion resistance Zinc-coated lugs, crimped and soldered to resist moisture and oxidation Black UL1015-grade insulation withstands oil, heat, and abrasion Discreet ECS label for a clean, OEM+ look Replaces OEM part numbers 12421737755 and 12421714262.

A beautiful addition and durable upgrade for your engine

Tired of staring at that bright red plastic oil dipstick? Waiting for a way to add a nice touch to your engine bay without going over the top? ECS Tuning is proud to announce our billet aluminum oil dipstick! Designed to OE specifications with an easy-to-read fill line, we offer three different finishes. Available in black, polished, or clear anodized, we have an offering for every type of enthusiast. Not only does it look better, but also performs better. Because of the durability, it is easier to insert than the factory ribbon dipstick. So, no more fighting with your dipstick to re-install it.
