E9X M3 Racing Dry Sump Oil Kit

Mfg Part #
TMS1432
Turner Part #
T#1432
Brand
Note:This product is no longer available.

Product Details

This dry sump oil kit is designed specifically for race applications of the S65 V8 engine, in particular in the E9X M3. This is the kit that we used on our Grand-Am E92 M3s. Dry sumping the engine delivers the most consistent and reliable oil pressure possible (a must for any track-driven M3, not just professional sprint and enduro racing). The dry sump system was one of the first upgrades we made to the S65 when we took it racing. Not only can oil fall away from the oil pump pickup, but vibrations can lead to failure of the pump itself. This dry sump kit is the best solution. It also reduces a large a amount of parasitic power loss thanks to the extremely high efficiency of the Dailey pump. With this kit you will never have to worry about a loss of oil pressure from a failure of the stock street parts. As this was originally developed for professional motorsports, no expense was spared in the development or production of this dry sump kit.

This is a complete setup, which includes all related parts to make this as much of a "bolt on" conversion as possible. Oil lines and the oil tank are still required to complete the conversion. These are not provided in the kit due to the variances with their mounting locations and sizes. Our kit now includes more parts than before but at the same price!

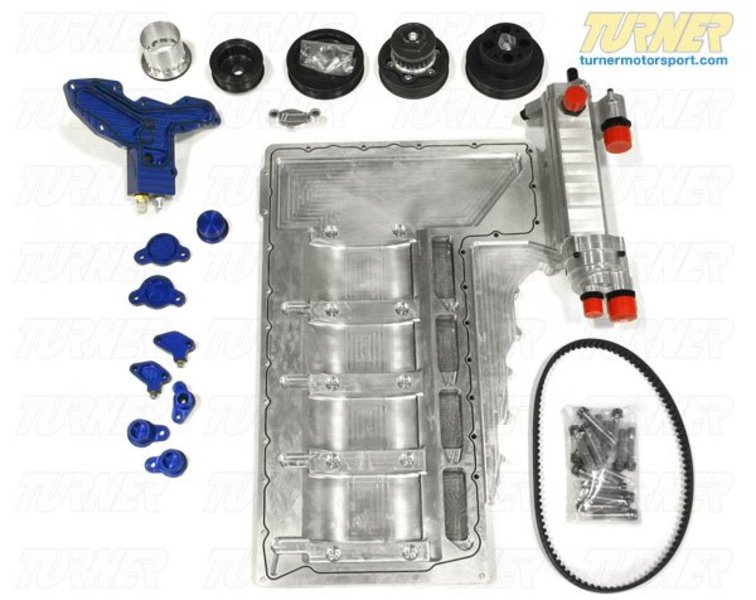

M3 Dry Sump Kit includes the following:

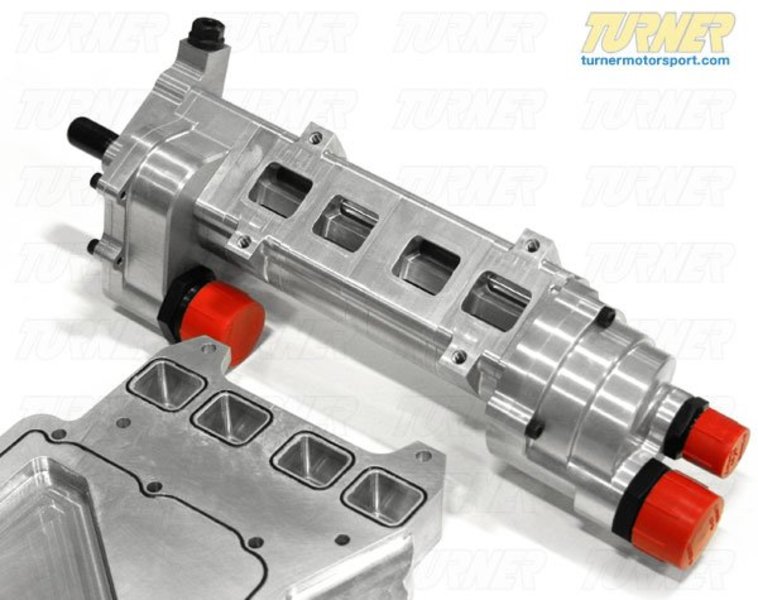

  • Dailey 5 Stage Dry Sump Oil Pump / Air Seperator
  • S65 B40 Oil Pan Assembly (CNC aluminum)
  • Dry Sump Pulley Kit
  • Dry Sump Belt
  • HTD Pulley
  • Oil pump drive gear
  • Hex head hat washer
  • S65 Dry Sump rear main seal
  • S65 Dry Sump front main seal
  • S65 Dry Sump power steering pulley kit
  • Alternator Pulley
  • S65 idler pulley
  • EGR Cover Mount set
  • PVC plug and cover
  • S65 thermostat tube
  • o-rings and gaskets
  • S65 oil block assembly with fittings
  • S65 crank pressure sensor adaptor
  • S65 power steering belt
  • S65 main drive belt
    Professional installation is highly recommended. Due to the nature of racing parts of this nature, this kit is sold with no express or implied warranty.

    The stock S65 connecting rod bolts are a known weakness so we recommend replacing them with new ARP rod bolts at the same time. Add them to the same order from the options below.

    This item fits the following BMWs:
    2008-2011 E90 BMW M3 - Sedan
    2008-2013 E92 BMW M3 - Coupe
    2008-2013 E93 BMW M3 - Convertible
  • This Part Fits the Following BMWs

    Make Model Submodel Engine
    BMW E90 M3 S65 4.0L
    BMW E92 M3 S65 4.0L
    BMW E93 M3 S65 4.0L
