Packaged by Turner Timing Chain Kit 11311435026-KT

Timing Chain Kit

Timing chain guides are a main failure point in the otherwise bulletproof M62. Common symptoms of failure include excessive vibration or “slap” from the timing chain, and the possibility of plastic particles throughout the oil. Symptoms typically begin to surface between 80,000 and 100,000 miles. If left untouched, the issue can compound itself so far as to allow the timing chain to jump out of time, leaving you with a potentially damaged head and larger repair costs. This kit has been assembled using quality OE replacement components. From new timing chain guides to a replacement oil pan drain plug, this kit has you covered to assure that all the needed parts are on hand and ready to install. Kit includes: All required Gaskets and seals Camshaft timing chain tensioners with retaining clips Timing chain chain tensioner for crankshaft to camshaft with sealing washer Timing chain guide rails Water pump hose o-rings Fan shroud rivets Oil separator valve Timing chain – Crankshaft to camshafts without master link Cylinder head timing chains Replacement oil filter with associated o-ring. Dipstick O-ring Valve cover bolt seals Crankshaft bolt
Packaged by Turner
T#: 15777300 | Part#: 11311435026-KT
Checking Vehicle Fitment...

Please ensure your correct model is selected

Does NOT fit your Change Vehicle

Fits your Change Vehicle

Change Vehicle

693.82
SALE: $693.82 (20% OFF)
WAS: $861.99 on 05-03-2026

This product was last offered at the strikethrough price on
05-03-2026

Partial Replacement
This product is backed by our
Lifetime Replacement Program! Read more here
Free Shipping on orders $49 and up
Availability:
In Stock
Est. Ship Date:
on Aug 10, 2026
Qty
Add to Wish List
Facebook Twitter Pinterest Google+ Email Price Alert
Packaged by Turner Timing Chain Kit 11311435026-KT
Timing Chain Kit
$693.82

Timing chain guides are a main failure point in the otherwise bulletproof M62. Common symptoms of failure include excessive vibration or “slap” from the timing chain, and the possibility of plastic particles throughout the oil. Symptoms typically begin to surface between 80,000 and 100,000 miles. If left untouched, the issue can compound itself so far as to allow the timing chain to jump out of time, leaving you with a potentially damaged head and larger repair costs.

This kit has been assembled using quality OE replacement components. From new timing chain guides to a replacement oil pan drain plug, this kit has you covered to assure that all the needed parts are on hand and ready to install.

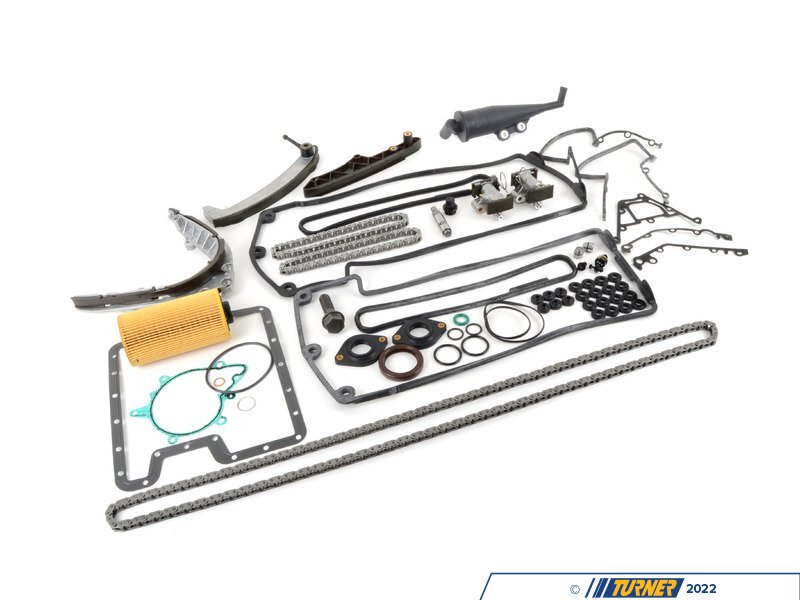

Kit includes:

  • All required Gaskets and seals

  • Camshaft timing chain tensioners with retaining clips

  • Timing chain chain tensioner for crankshaft to camshaft with sealing washer

  • Timing chain guide rails

  • Water pump hose o-rings

  • Fan shroud rivets

  • Oil separator valve

  • Timing chain – Crankshaft to camshafts without master link

  • Cylinder head timing chains

  • Replacement oil filter with associated o-ring.

  • Dipstick O-ring

  • Valve cover bolt seals

  • Crankshaft bolt



Prop 65 WarningProp 65 Warning
Qty Description T# Part# Lifetime
1 Genuine BMW Differential Plug Gasket, 22x27 - 07119963355 T#348476 07119963355~OEB YES
2 Genuine BMW Non-Return Valve - M62 4.4L T#19417 11121706921 YES
1 Genuine BMW Collar Screw M18X1,5X65 - 11231736585 - E34,E38,E39,E53 T#12927 11231736585 YES
2 Water Pump O-Ring (Small) - Priced Each T#360675 11531710055 YES
2 BMW Expanding Rivet T#7436 17111712963 YES
1 OEM Hengst Engine Oil Filter Kit - M70 S70 M60 M62 M73 S62 T#369003 11427510717~HE NO
1 ECS Tuning Magnetic Oil Drain Plug - M12x1.5 T#361057 002201ECS01A YES
2 Victor Reinz Timing Cover Gasket - With Flange - E38, E39, E53 T#361214 11141435023~VIC YES
6 Victor Reinz Valve Cover Seal Washer - E30, E36, Z3 T#372808 11121721879~VIC YES
1 Elring Oil Pan Gasket - E53 X5 M62 4.4L 4.8L T#19203 11137500261~OEB YES
1 Victor Reinz Dipstick O-Ring - E31, E32, E34, E38, E39, E46, E52, E53, Z3, Z4 T#362335 11431707164~VIC YES
2 Rein Cooling O-Ring - E53, E60, E63, E64, E65, E66, E70 T#362446 11531710048~CRP YES
1 Elring Valve Cover Gasket - Cylinders 1-4 - (right side) - M62 V8 1999-2003 T#2799 11120034104~TMS YES
1 Elring Valve Cover Gasket - Cylinders 5-8 - (left side) - M62 V8 1999-2003 T#2800 11120034105~TMS YES
1 Elring Upper Timing Cover Gasket - Cylinders 5-8 - M62 4.4L 4.6L T#375775 11141741533~ELR YES
1 Lower Timing Case Gasket Set - E39 E38 E32 E34 E53 T#6643 11141436978~OEB YES
1 Upper Timing Cover Gasket - Cylinders 1-4 - E39 E38 E53 T#362656 11141741127 YES
16 BMW M54 S54 Valve Cover Sealing Washer T#377327 11121437395~URO YES
1 Water Pump Gasket T#27238759 11511731372~ELR YES
1 Timing Chain Tensioner - E31 E39 E38 E53 E34 E32 Z8 T#5403287 11317531813~BRP YES
1 Timing Chain Guide Rail - M62 T#5403292 11311745406~BRP YES
1 Timing Chain Tensioner Rail - Right - M62 T#5470982 11311741236~BRP YES
1 Timing Chain Guide Rail - M62 4.4L M62 4.6L T#5471013 11311741777~BRP YES
1 Timing Chain - Main - M62 4.4L M62 4.6L T#5471029 11311741746~BRP YES
2 Upper Timing Chain - E39 M5, Z8 T#5471036 11311406167~BRP YES
1 Camshaft Timing Chain Tensioner - M62 4.4L M62 4.6L T#5471065 11311435026~BRP YES
1 Camshaft Timing Chain Tensioner - M62 4.4L M62 4.6L T#5471072 11311435027~BRP YES
1 URO Alternator Gasket E38, E39, E53 T#5901284 12317507996~URO YES
1 Oil Separator - Crankcase Ventilation System T#8741203 11151705237~BRP YES
1 Crankshaft Seal - Front T#17871152 11141275466~BAV NO

Product Q&A

Lifetime Replacement

Some kit components are covered by our Lifetime Replacement Program

Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.

If you have any questions, would like to learn more or are ready to place a replacement claim, click here!

MAKE MODEL SUBMODEL ENGINE Special Fitment Notes
BMW E53 X5 M62 4.4L Use vehicle selector to confirm fitment
BMW E53 X5 M62 4.6L Use vehicle selector to confirm fitment
