Rear Axle Carrier Panel (RACP) failure is a well-documented issue that plagues all BMW E46 models. Due to thin sheet metal mounting, the forces applied during cornering, acceleration, and braking create stress fractures in the carrier panel, resulting in large cracks or breaks that risk the structural integrity of your chassis. To fix this issue, many enthusiasts opt to install weld-in reinforcement plates on the underside of the RACP. While this remedies the formation of additional stress cracks and adds rigidity to failure-prone areas, it does not prevent the entire carrier panel from flexing during high-performance driving.
Our all-new Rear Subframe Reinforcement Brace is engineered to add structure to the E46's rear chassis under high-stress conditions, eliminating the common weak points in the RACP while providing the confidence you need for performance driving. Don't let chassis flex limit your car’s potential—upgrade your E46 with the Turner Motorsport Rear Subframe Reinforcement Brace today!
How It Works:
During performance driving, the Rear Axle Carrier Panel (RACP) must react the forces of longitudinal and lateral accelerations. During forward acceleration, the differential transmits torque through the subframe to the RACP, forcing the rearmost subframe mounting points downward. This downward movement flexes the carrier panel, reducing its ability to handle torque efficiently. By linking the rearmost subframe mounting points to the rear shock towers, downward flex is restricted, resulting in improved torque transfer and stability. Alternatively, high-grip cornering generates lateral acceleration (side-to-side) forces across the RACP. Similar to how a rear strut brace functions, connecting the rear shock towers helps to counteract these forces. Adding the subframe to this connection further reduces lateral loads, eliminating side-to-side flex and enhancing overall stability.
Features & Design:
Four-Point Triangulated Structure: Links the rearmost subframe mounting locations to both rear strut towers for superior load distribution. Enhanced Stability: Reduces lateral and longitudinal RACP flex during acceleration, braking, and cornering. Improved Torque Transfer: Minimizes downward flex of the RACP, ensuring efficient power delivery for enhanced driveability. High-Performance Durability: Heavy-duty steel tube construction ensures lasting support during spirited driving, track use, and for vehicles with increased power output. Blue Powdercoat Finish: Offers fantastic corrosion resistance, protection from scuffs and scratches, and a stylish appearance that is sure to complement your performance-centric E46. Underside Reinforcement Compatibility: Designed to work seamlessly alongside our underside RACP reinforcement plates (TDR4675412, T#91). Kit Includes:
Rear Subframe Brace Extended-Length Drill Bit (1/4", 12" Overall Length) High-Speed Drill Bit (12.5mm, 152mm Overall Length) Drill Bit Guide Extended Subframe Bolts Zinc-Plated Steel Hex Nut (2) Installation & Support:
Need installation tips? Our team has assembled a guided start-to-finish installation tutorial, including detailed instructions on drilling and cutting your trunk floor panel for perfect fitment. Click HERE for Installation Instructions.
This product was last offered at the strikethrough price on
05-03-2026
This product was last offered at the strikethrough price on
05-03-2026
Rear Axle Carrier Panel (RACP) failure is a well-documented issue that plagues all BMW E46 models. Due to thin sheet metal mounting, the forces applied during cornering, acceleration, and braking create stress fractures in the carrier panel, resulting in large cracks or breaks that risk the structural integrity of your chassis. To fix this issue, many enthusiasts opt to install weld-in reinforcement plates on the underside of the RACP. While this remedies the formation of additional stress cracks and adds rigidity to failure-prone areas, it does not prevent the entire carrier panel from flexing during high-performance driving.
Our all-new Rear Subframe Reinforcement Brace is engineered to add structure to the E46's rear chassis under high-stress conditions, eliminating the common weak points in the RACP while providing the confidence you need for performance driving. Don't let chassis flex limit your car’s potential—upgrade your E46 with the Turner Motorsport Rear Subframe Reinforcement Brace today!
How It Works:
During performance driving, the Rear Axle Carrier Panel (RACP) must react the forces of longitudinal and lateral accelerations. During forward acceleration, the differential transmits torque through the subframe to the RACP, forcing the rearmost subframe mounting points downward. This downward movement flexes the carrier panel, reducing its ability to handle torque efficiently. By linking the rearmost subframe mounting points to the rear shock towers, downward flex is restricted, resulting in improved torque transfer and stability. Alternatively, high-grip cornering generates lateral acceleration (side-to-side) forces across the RACP. Similar to how a rear strut brace functions, connecting the rear shock towers helps to counteract these forces. Adding the subframe to this connection further reduces lateral loads, eliminating side-to-side flex and enhancing overall stability.
Features & Design:
Four-Point Triangulated Structure: Links the rearmost subframe mounting locations to both rear strut towers for superior load distribution. Enhanced Stability: Reduces lateral and longitudinal RACP flex during acceleration, braking, and cornering. Improved Torque Transfer: Minimizes downward flex of the RACP, ensuring efficient power delivery for enhanced driveability. High-Performance Durability: Heavy-duty steel tube construction ensures lasting support during spirited driving, track use, and for vehicles with increased power output. Blue Powdercoat Finish: Offers fantastic corrosion resistance, protection from scuffs and scratches, and a stylish appearance that is sure to complement your performance-centric E46. Underside Reinforcement Compatibility: Designed to work seamlessly alongside our underside RACP reinforcement plates (TDR4675412, T#91). Kit Includes:
Rear Subframe Brace Sedan Subframe Brace Spacers Extended-Length Drill Bit (1/4", 12" Overall Length) High-Speed Drill Bit (12.5mm, 152mm Overall Length) Drill Bit Guide Extended Subframe Bolts Zinc-Plated Steel Hex Nut (2) Installation & Support:
Need installation tips? Our team has assembled a guided start-to-finish installation tutorial, including detailed instructions on drilling and cutting your trunk floor panel for perfect fitment. Click HERE for Installation Instructions
Save 20%

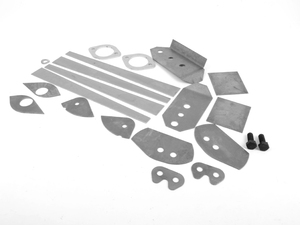

The E46 is by no means a very old car. But more and more E46s are seeing track use or being converted to all-out track cars. And the odometers aren't rolling backwards. With age, mileage, and hard use the chassis will develop weak points that threaten the overall integrity of the car. When suspension points and subframes start to rip from the car, it puts the driver and anyone else at a serious safety risk. Not to mention the obvious effects on the performance of the car. TMS has developed reinforcements for the most-common weak points in the E46 chassis. With these kits in place you can be sure that your car spends less time on a body rack and more time on the race track. Included in this package are all of the reinforcements we developed for the E46:
