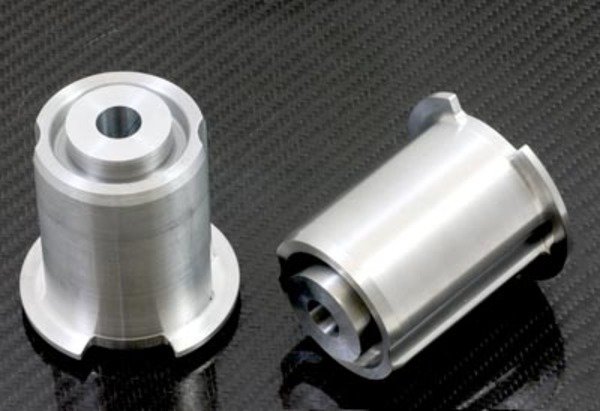

Rear Subframe-Diff Mount Set - Turner Solid Race - E36 318ti, Z3

Mfg Part #
TMS1336
Turner Part #
T#1336
Brand
Note:This product is no longer available.

Product Details

Made in the USA A BMW’s subframe is the heart of the rear suspension. The differential is part of the subframe, as it is a stress member system. When the subframe moves, so do all of the rear suspension mounting points. Replacing the stock rubber subframe bushings with solid aluminum will limit drivetrain and suspension movement and keep your car’s suspension geometry the way it’s supposed to be. The Delrin diff mount bushing is a near-solid mount that will last longer than the original rubber and does not 'wind up' under load/unload. This transfers more power through the axles to the wheels. The Turner Motorsport E36 318ti and Z3 solid subframe and differential mount bushing kit is a direct replacement for the stock BMW subframe mounts and differential bushing. We have incorporated ideas from our other race style solid bushings not only make these very light weight but also to be fully serviceable and removable in the case of subframe or diff cover replacement. This kit is a legal upgrade in many racing classes.

Note: solid subframe mounts are only sold with the solid diff mount. Using a rubber diff mount with the solid subframe mount will result in excessive deflection and twist in the diff mount. With the known issue of weak floor and diff mounts on the Z3 we only recommend using solid mounts together.

Click here for Z3 / E36ti Subframe Mount installation instructions.
Click here for Z3 / E36ti Differential installation instructions.

This item fits the following BMWs:
1995-1999 E36 BMW 318ti
1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i M Roadster M Coupe
Previous Revisions
  • TMS1462

Kit Contents

Description Qty

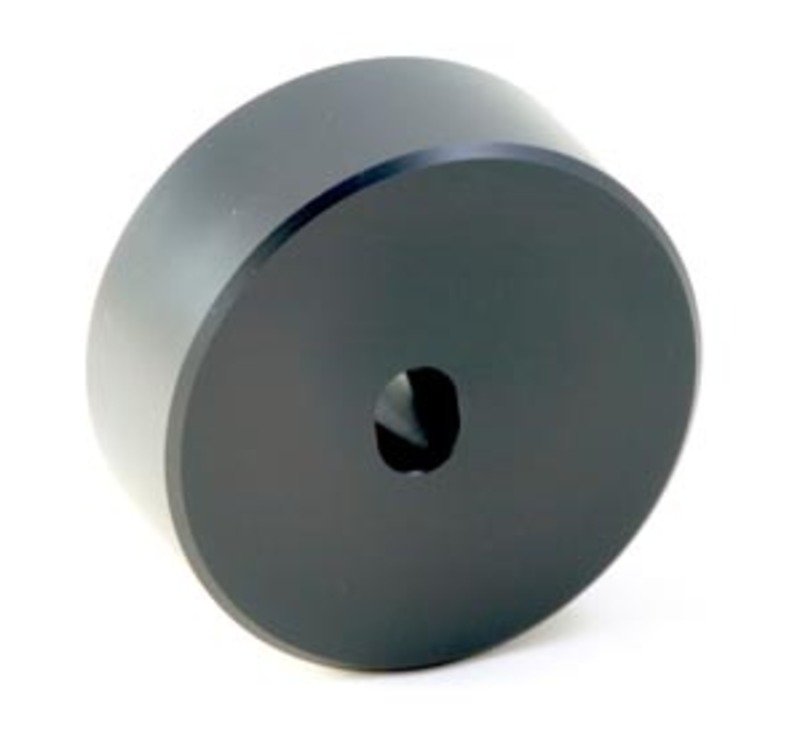

Rear Differential Mount - Turner Solid Delrin - E30, E36 318ti, Z3 1
Solid Rear Subframe Mounts 1
