Apex SM-10 Flow Formed Wheel - 19x9.0 ET28 - 5x112 - Race Silver
Lifetime Replacement Program! Read more here
Text Us!
, or
[email protected].
Product Details

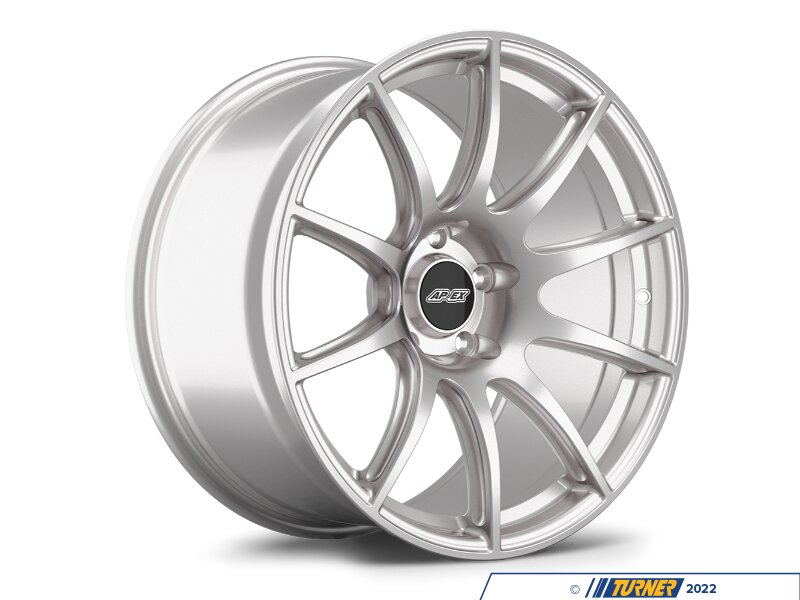

The Apex SM-10 in 19x9.0" ET28 Race Silver is a flow formed wheel that's hub-centric on G-series BMWs like the G20, G80/G82 M3/M4 and G87 M2. The SM-10 is a modern motorsport design with I-beam spokes and a reinforced inner lip, giving it strength without extra weight.
Turner's take: Ten spokes for a more tuner look, bringing JDM styling to BMW.
Features
- Flow-formed construction
- I-beam spokes remove non-structural weight
- Reinforced inner lip for added strength
- Maximum clearance for Big Brake Kits (BBK)
Specifications
| Size | 19x9.0" ET28 |
| Bolt Pattern | 5x112 |
| Center Bore | 66.6mm |
| Face Profile | Profile 3 |
| Weight | approx. 22.6 lbs |
| Load Rating | 1,550 lbs per wheel |
| Lug Seat | 60° conical |
| Construction | Flow Formed, Evolution Line |
| Finish | Race Silver |
| Apex Part # | SM10199ET28-5112-666-RS |
Good to Know
Will it fit my BMW?
It matches the 5x112 bolt pattern and 66.6mm hub, so no hub rings are needed. Our vehicle fitment list confirms bolt pattern and hub only, not front or rear placement. Most BMWs use different widths and offsets front and rear, and some models also change diameter or center bore between axles. Offsets outside the usual range can sometimes work with wheel spacers and longer lug bolts. Big Brake Kits (BBK) and widebody setups also affect clearance, so confirm front and rear fitment for your car before ordering.
What lug bolts does it use?
60° conical-seat lug bolts. BMW factory bolts are ball seat and can't be reused.
Does it come with a center cap?
It comes with an Apex gloss black center cap, and BMW OEM caps also fit.
Is this one wheel or a set?
Price is per wheel. Check your front and rear sizes first, or choose one of our matched Apex wheel sets.
