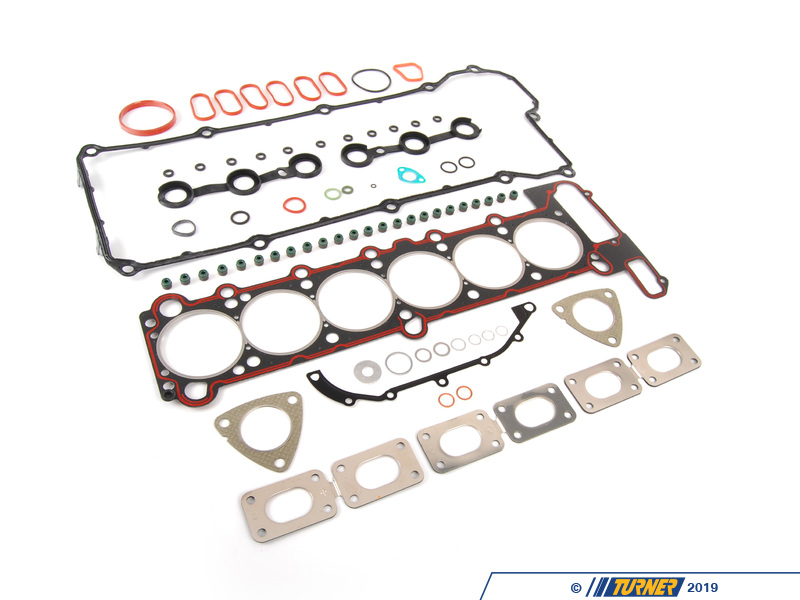

Head Gasket Set - E36 M3 95 (S50US Engine)

This set of OEM gaskets covers everything you would want to replace when rebuilding the cylinder head on the S50US 3.0L engine. It includes the head gasket, valve cover gaskets, o-rings, seals, and other parts for doing a head job on the 1995 E36 M3.

This set of gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when performing this overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With this area of the engine apart you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because some states have very strict emissions regulations and vacuum and oil leaks can lead to failed inspections tests. On newer cars this can also create issues in the on-board diagnostics system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.

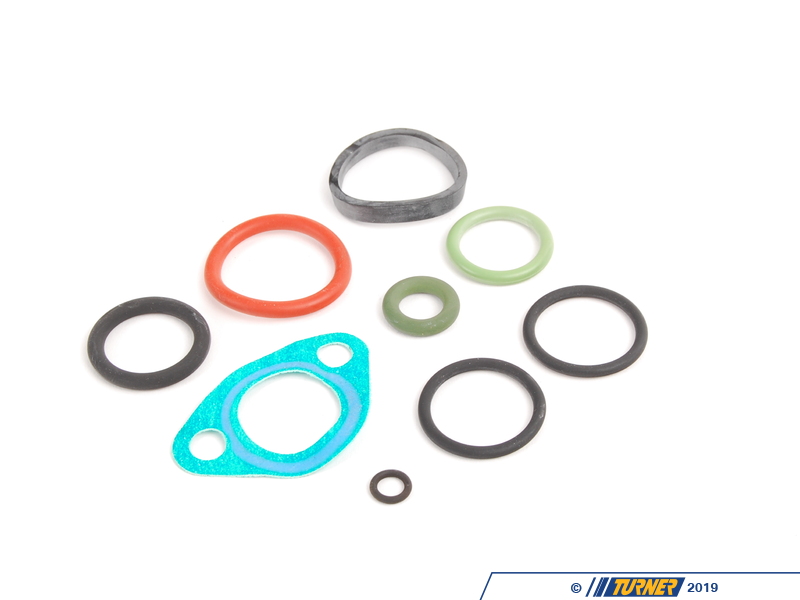

Complete Parts List(click to expand) BMW p/n Qty Description 07119963130 3 coolant temp sensor o-ring,
block coolant connector o-ring

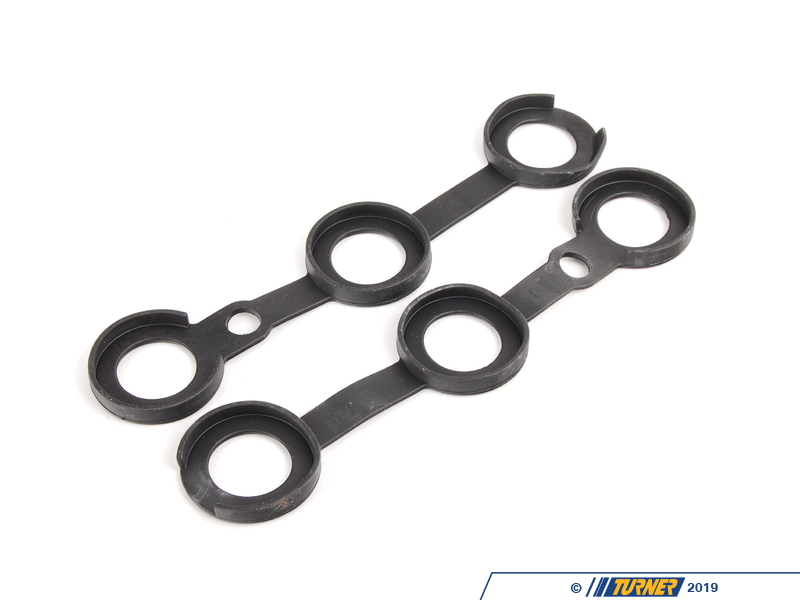

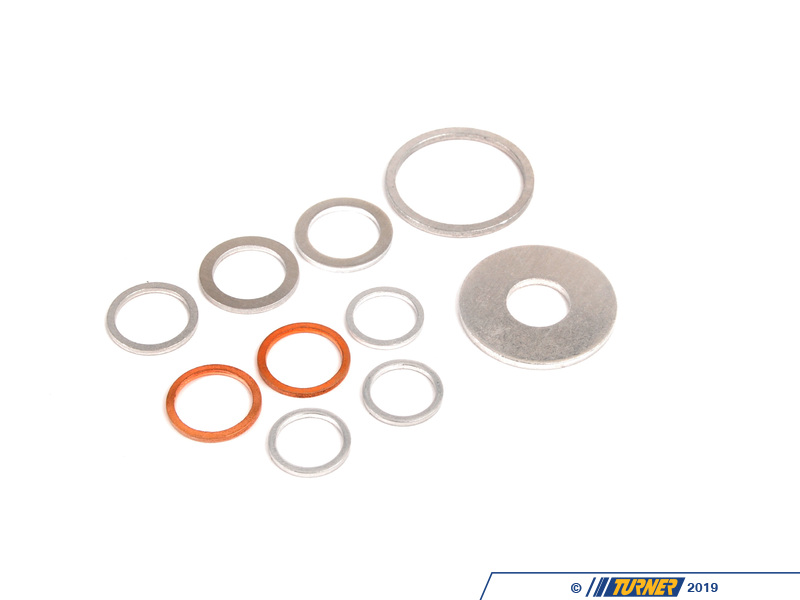

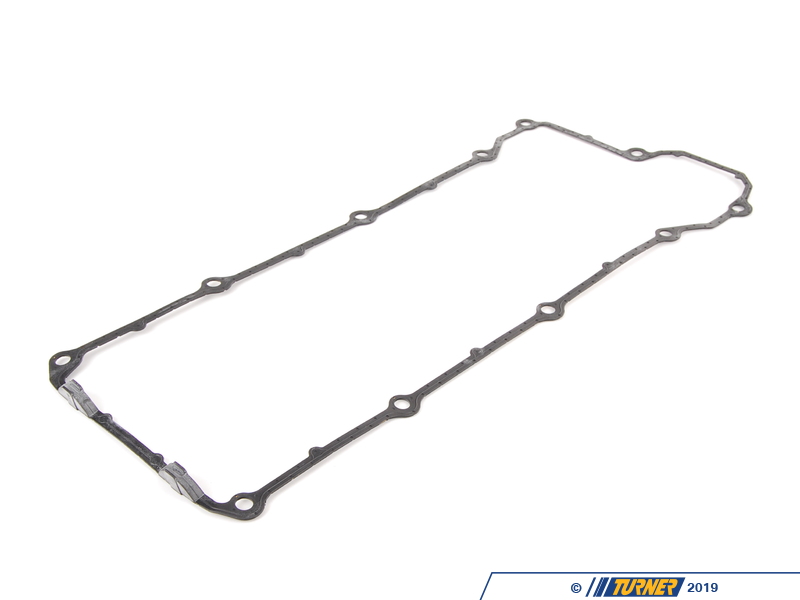

07119963200 1 block coolant drain seal ring07119963201 2 exhaust manifold plug seal ring07119963418 1 timing chain tensioner o-ring11120034107 1 valve cover gaskets,
main valve cover, spark plug holes

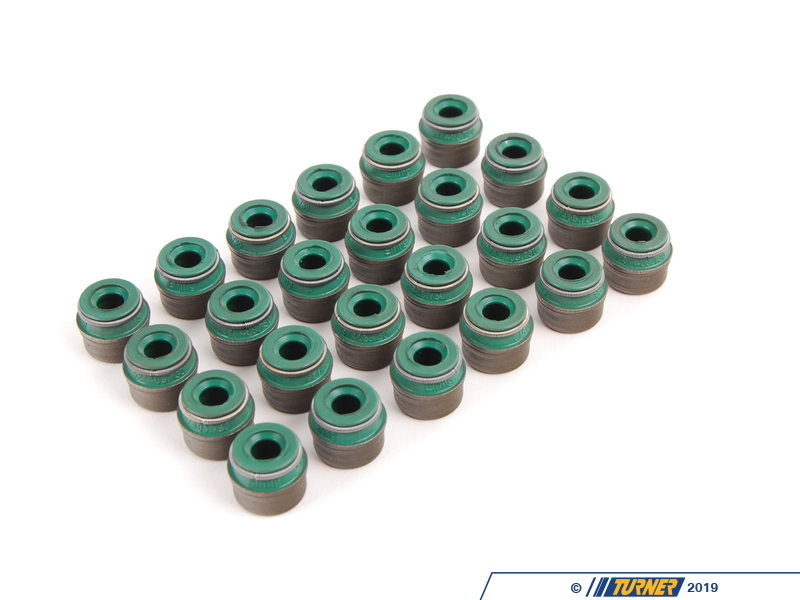

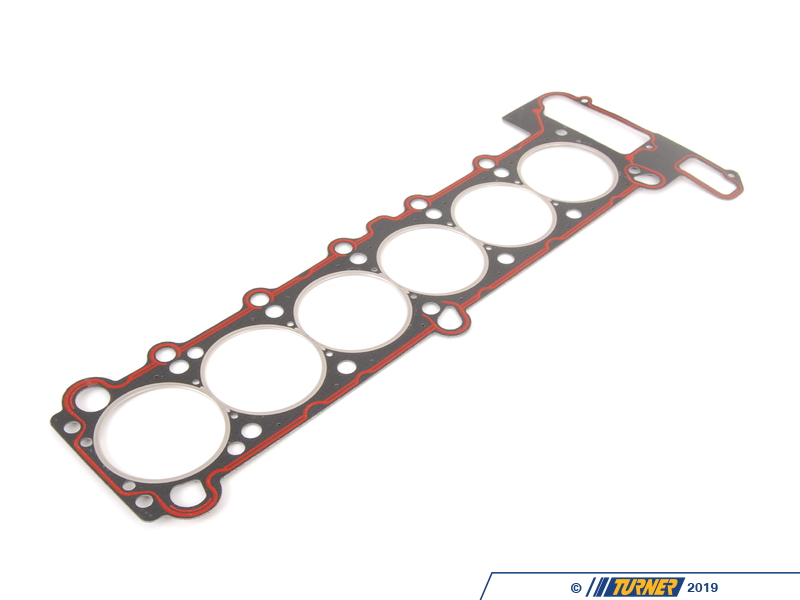

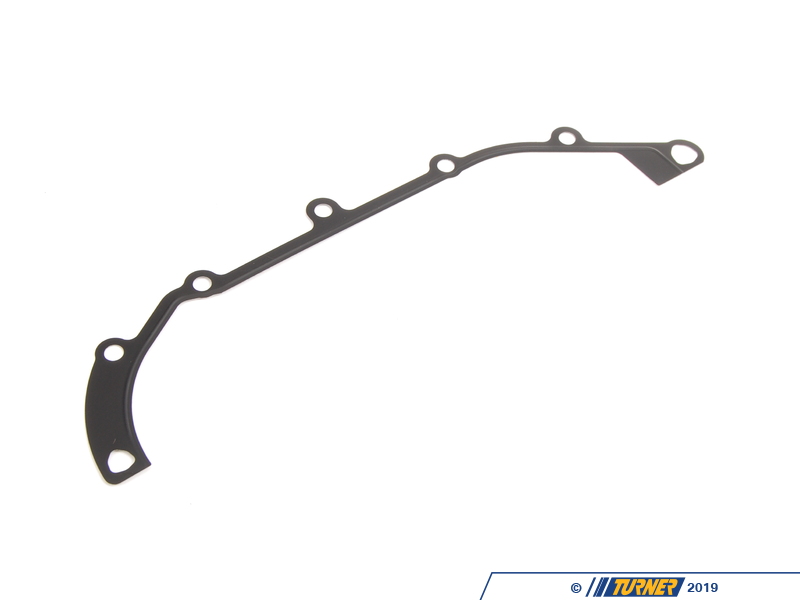

11121405106 1 head gasket11121738963 1 rear coolant flange gasket11151730724 1 crankcase vent o-ring11349064457 2 valve stem seals,
2 sets = 24 valves

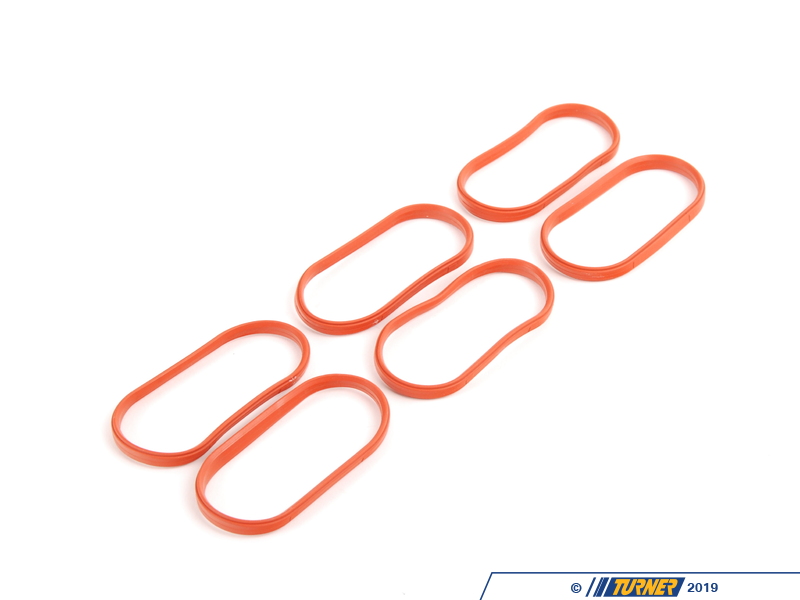

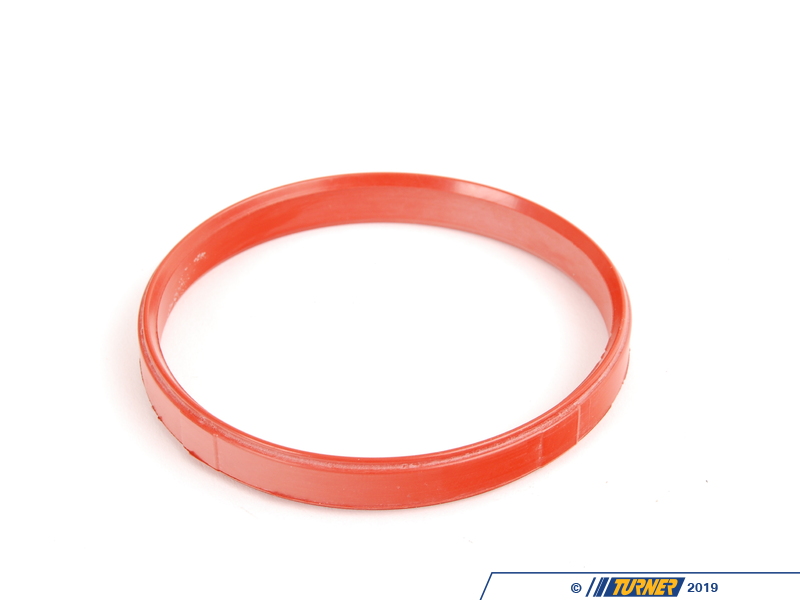

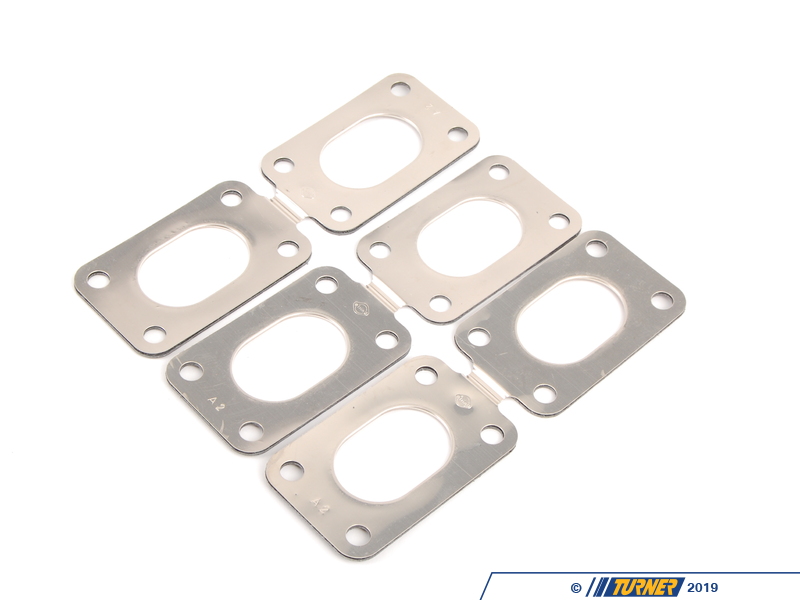

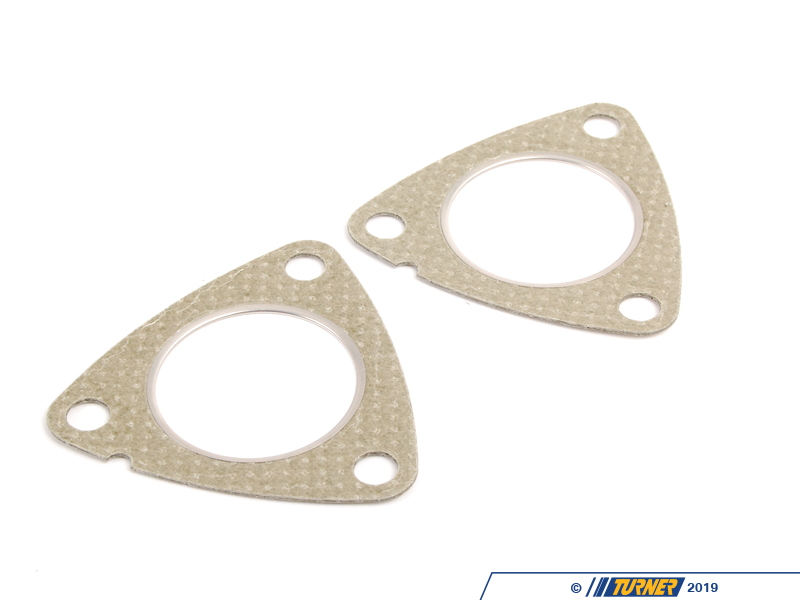

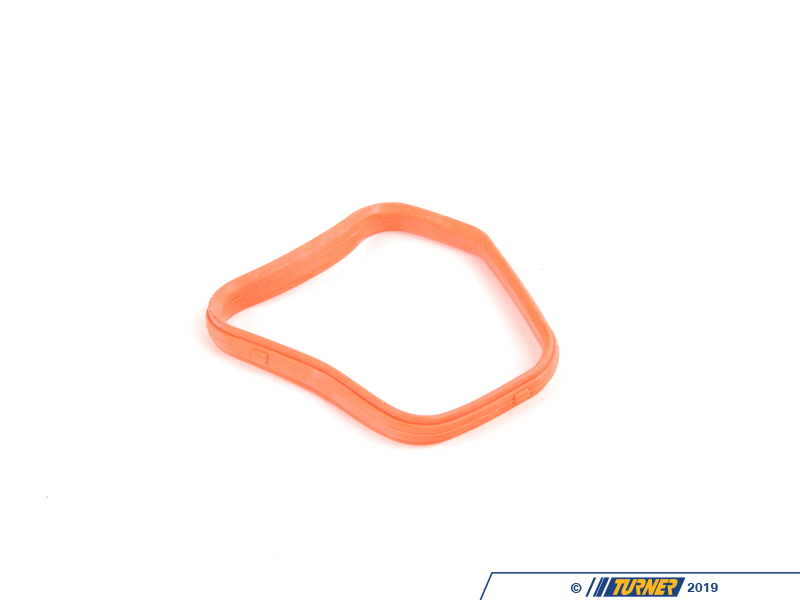

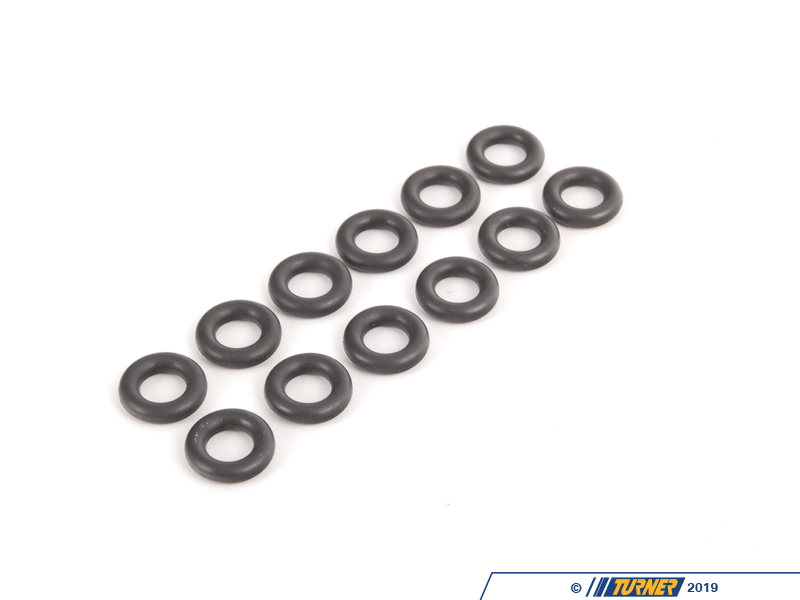

11361740840 1 VAN0S unit profile gasket11531265084 1 thermostat o-ring11531740437 1 thermostat housing gasket11611716174 1 throttle body o-ring gasket11611717259 6 intake manifold port gaskets11611730725 1 crankcase breather o-ring11611735735 1 intake air temp sensor o-ring11611735736 1 intake air temp sensor o-ring11611735859 1 o-ring11621728983 3 exhaust manifold gasket plate12141748398 1 cam position sensor o-ring13531720251 1 fuel pressure regulator o-ring13531720252 1 fuel pressure regulator o-ring13541735380 1 throttle body thermostat o-ring13641730767 12 fuel injector o-ring18301716888 2 exhaust flange gasket32411093596 2 VAN0S oil line o-ring

This item fits the following BMWs:
1995 E36 BMW M3 (US model)
T#: 1711 | Part#: 11129067421
286.95 $286.95
Free Shipping
Expected Ship Date: Oct 27, 2021
