Apex ARC-8 Flow Formed Wheel Set - Square (4) 17x8.0 ET25 - 4x100 - Anthracite
Lifetime Replacement Program! Read more here
Text Us!
, or
[email protected].
Product Details

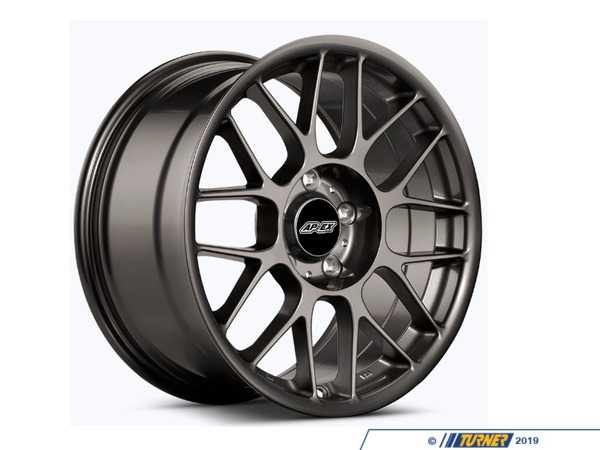

This square set of four Apex ARC-8 wheels, all 17x8.0" ET25 in Anthracite, fits BMWs with a 4x100 bolt pattern and 57.1mm center bore. The ARC-8 has been Apex's best seller for more than 15 years, and it's the lightest, most affordable flow-formed wheel in the lineup. Its muscular design is just as at home on a daily driver as on a track car.
Turner's take: The OG Apex wheel, with a classic motorsport-inspired Y-spoke look.
Features
- Flow-formed for low weight at an approachable price
- Deep concave spokes in select sizes
- Open hub center for fast wheel swaps at the track
Specifications
| Size | 17x8.0" ET25 |
| Bolt Pattern | 4x100 |
| Center Bore | 57.1mm |
| Face Profile | Profile 1 |
| Weight | 17.9 lbs |
| Load Rating | 1,455 lbs per wheel |
| Lug Seat | 60° conical |
| Construction | Flow Formed, Classic Line |
| Finish | Anthracite |
| Apex Part # | ARC8178ET25-4100-571-AN (x4) |
Good to Know
Will it fit my BMW?
This set matches the 4x100 bolt pattern and 57.1mm hub, with front and rear sizes chosen to work together. Every car on our vehicle list for this set is a confirmed fit for that chassis. Lowering, fender flares and tire width all change clearance, so factor in your setup before ordering.
What lug bolts does it use?
60° conical-seat lug bolts. BMW factory bolts are ball seat and can't be reused.
Does it come with a center cap?
It comes with an Apex gloss black center cap, and BMW OEM caps also fit.
Can I rotate tires on this set?
Yes. All four wheels are the same size, so tires can rotate front to back.
Prop 65 Warning
Kit Contents
| Qty | Description | Brand | T# | Part# | Lifetime |
|---|---|---|---|---|---|
| 4 | Apex ARC-8 Flow Formed Wheel - 17x8.0 ET25 - 4x100 - Anthracite |
|
T#180813 | ARC8178ET25AN | YES |
