APEX Wheels Apex SM-10 Flow Formed Wheel Set - Staggered - Front (2) 19x9.5 ET28 / Rear (2) 19x10.5 ET45 - 5x120 - Anthracite sm101995105anKT1

Apex SM-10 Flow Formed Wheel Set - Staggered - Front (2) 19x9.5 ET28 / Rear (2) 19x10.5 ET45 - 5x120 - Anthracite

Front: 19x9.5" ET28Rear: 19x10.5" ET45Construction: Flow FormedPattern: 5x120 / CB 72.56mmColor: AnthraciteWeight: approx. 22.6 / approx. 23.1 lbs
APEX Wheels APEX Wheels
T#: 20518599 | Part#: sm101995105anKT1
2X Entries Into Our F80 M3 Sweepstakes 2X Entries For Our Spin To Win Sweepstakes!
2016.00 $2016.00
Lifetime Replacement
This product is backed by our
Lifetime Replacement Program! Read more here
Free Shipping
Availability:
Ships Directly From Supplier
Est. Ship Date:
in 5 Business Days
Qty
Add to Wish List
Facebook Twitter Pinterest Google+ Email Price Alert
APEX Wheels Apex SM-10 Flow Formed Wheel Set - Staggered - Front (2) 19x9.5 ET28 / Rear (2) 19x10.5 ET45 - 5x120 - Anthracite sm101995105anKT1
Apex SM-10 Flow Formed Wheel Set - Staggered - Front (2) 19x9.5 ET28 / Rear (2) 19x10.5 ET45 - 5x120 - Anthracite
$2016.00

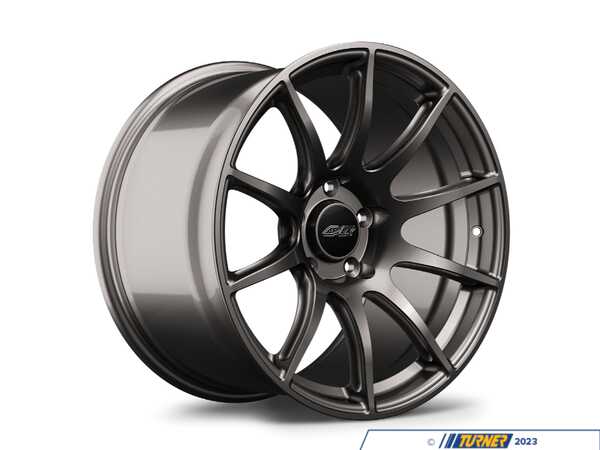

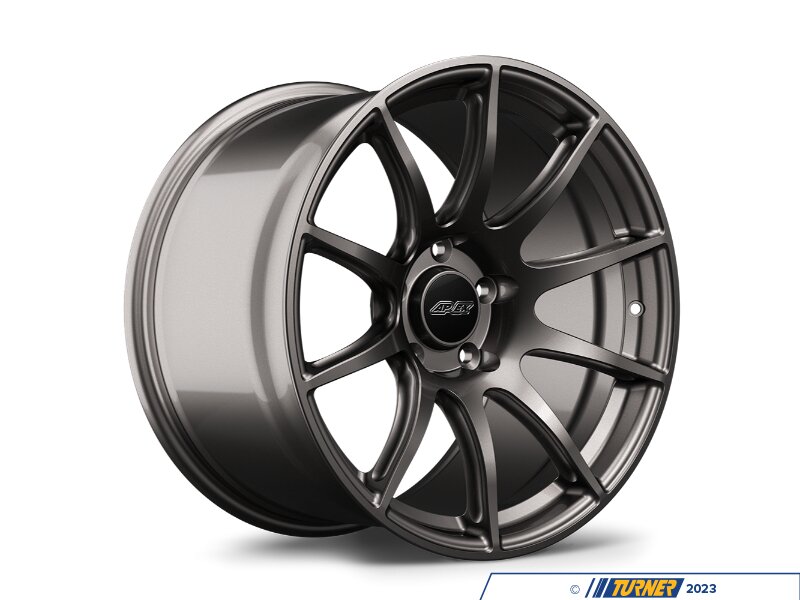

This staggered set of four Apex SM-10 wheels in Anthracite pairs two 19x9.5" ET28 fronts with two wider 19x10.5" ET45 rears, and fits BMWs with a 5x120 bolt pattern and 72.56mm center bore. The SM-10 is a modern motorsport design with I-beam spokes and a reinforced inner lip, giving it strength without extra weight.

Turner's take: Ten spokes for a more tuner look, bringing JDM styling to BMW.

Features

  • Flow-formed construction
  • I-beam spokes remove non-structural weight
  • Reinforced inner lip for added strength
  • Maximum clearance for Big Brake Kits (BBK)

Specifications

Front (2)Rear (2)
Size19x9.5" ET2819x10.5" ET45
Face ProfileProfile 3Profile 3
Weightapprox. 22.6 lbsapprox. 23.1 lbs
Bolt Pattern5x120
Center Bore72.56mm
Load Rating1,550 lbs per wheel
Lug Seat60° conical
ConstructionFlow Formed, Evolution Line
FinishAnthracite
Apex Part #SM101995ET28-5120-7256-ANSM1019105ET45-5120-7256-AN

Good to Know

Will it fit my BMW?
This set matches the 5x120 bolt pattern and 72.56mm hub, with front and rear sizes chosen to work together. Every car on our vehicle list for this set is a confirmed fit for that chassis. Lowering, fender flares and tire width all change clearance, so factor in your setup before ordering.

What lug bolts does it use?
60° conical-seat lug bolts. BMW factory bolts are ball seat and can't be reused.

Does it come with a center cap?
It comes with an Apex gloss black center cap, and BMW OEM caps also fit.

Can I rotate tires on a staggered set?
Not front to back, because the sizes differ. Non-directional tires can still swap side to side.

Prop 65 WarningProp 65 Warning
Qty Description Brand T# Part# Lifetime
2 Apex SM-10 Flow Formed Wheel - 19x9.5 ET28 - 5x120 - Anthracite APEX Wheels T#18766665 sm101995et28AN~A YES
2 Apex SM-10 Flow Formed Wheel - 19x10.5 ET45 - 5x120 - Anthracite APEX Wheels T#18700371 SM1019105ET45AN~ YES
