Head Gasket Set - E30 E36 318I M42 1989-1992

Product Details

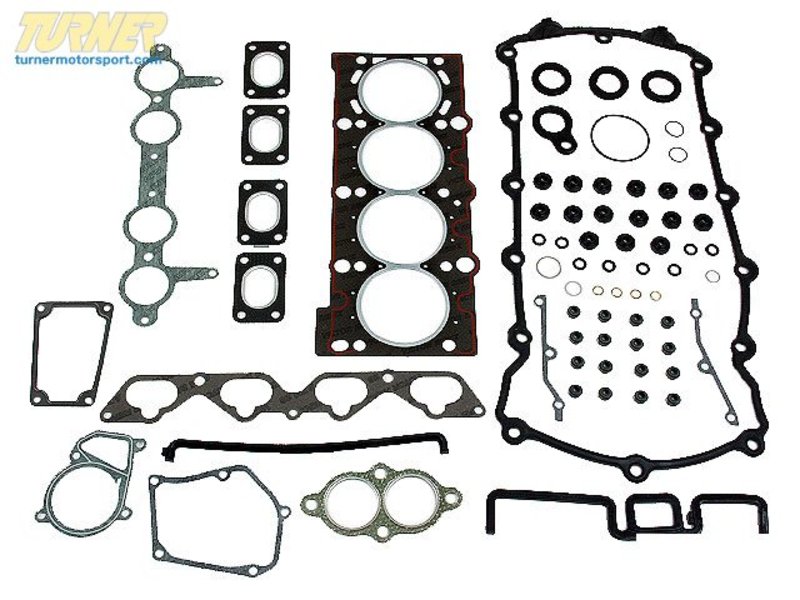

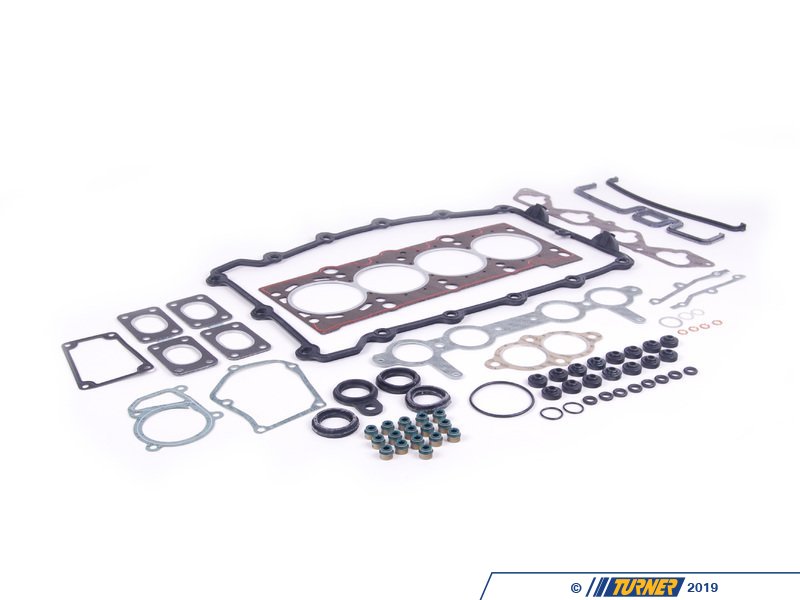

Head Gasket Set for E30 318i 318is 318ic 1989-1993 with M42 engine, E36 318i 318is 1992. Includes all the gaskets and seals needed when rebuilding the cylinder head. Includes head gasket.

This set of gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when performing this overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With this area of the engine apart you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because some states have very strict emissions regulations and vacuum and oil leaks can lead to failed inspections tests. On newer cars this can also create issues in the on-board diagnostics system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.
If you drive a European vehicle, chances are high your vehicle came equipped with one or more Victor Reinz gaskets. Choose OE quality VR gaskets and seals and do the job right the first time.

Complete Parts List

(click to expand)

BMW p/nQtyDescription

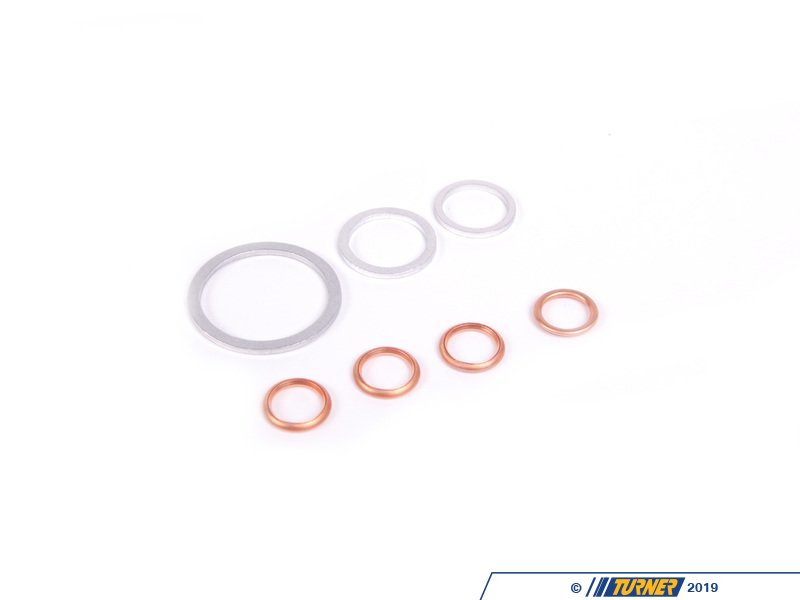

071199630414gasket ring

071199631301coolant temp sensor o-ring

071199632001coolant temp sensor o-ring

071199633551timing chain tensioner o-ring

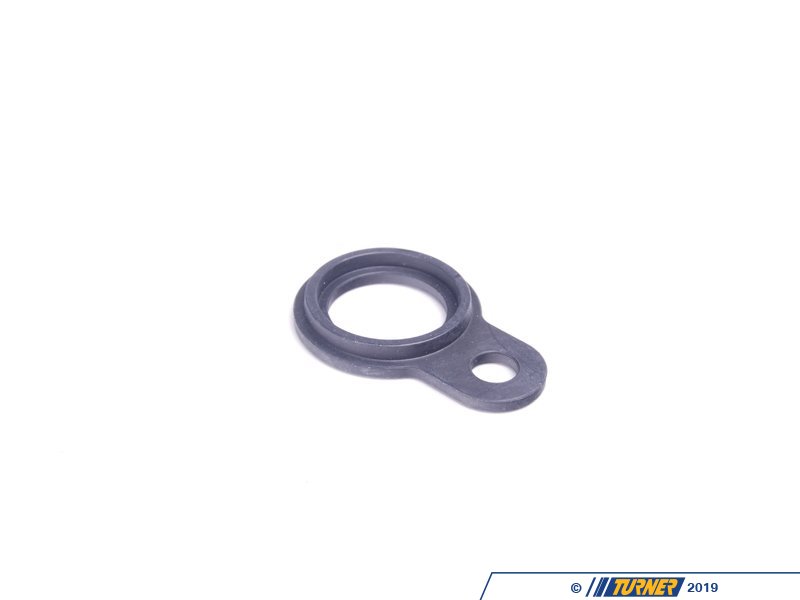

111217214751spark plug / valve cover screw profile gasket

111217214763spark plug profile gasket

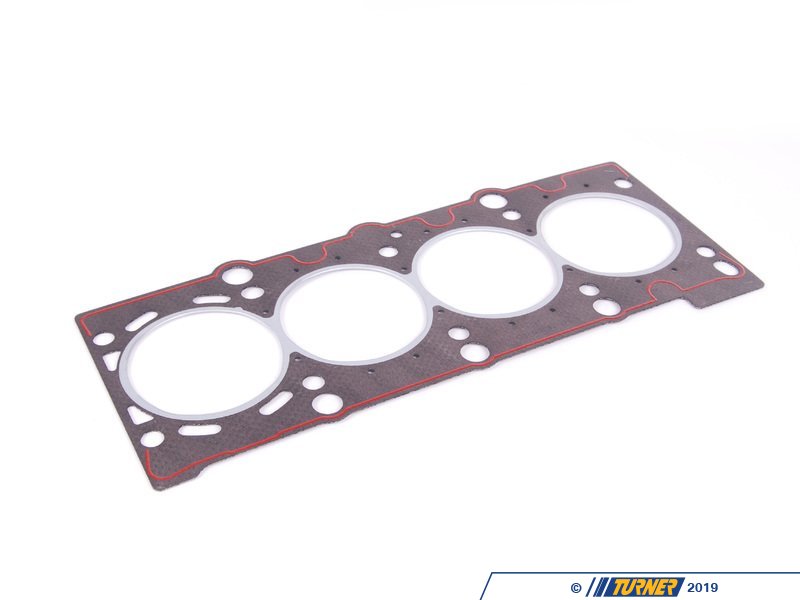

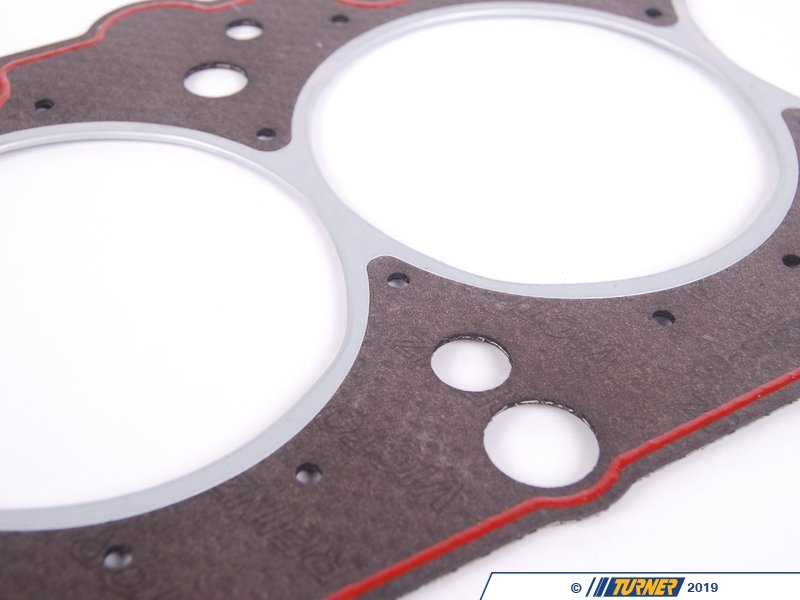

111217215461head gasket

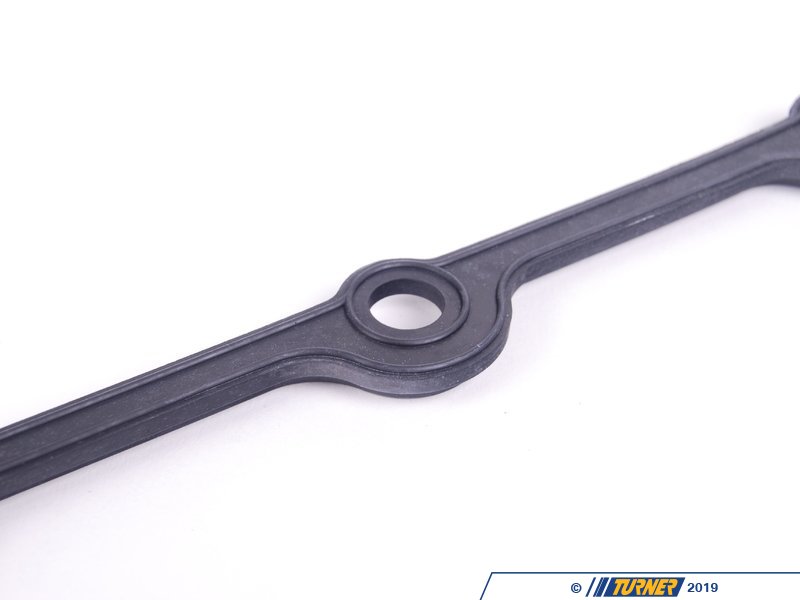

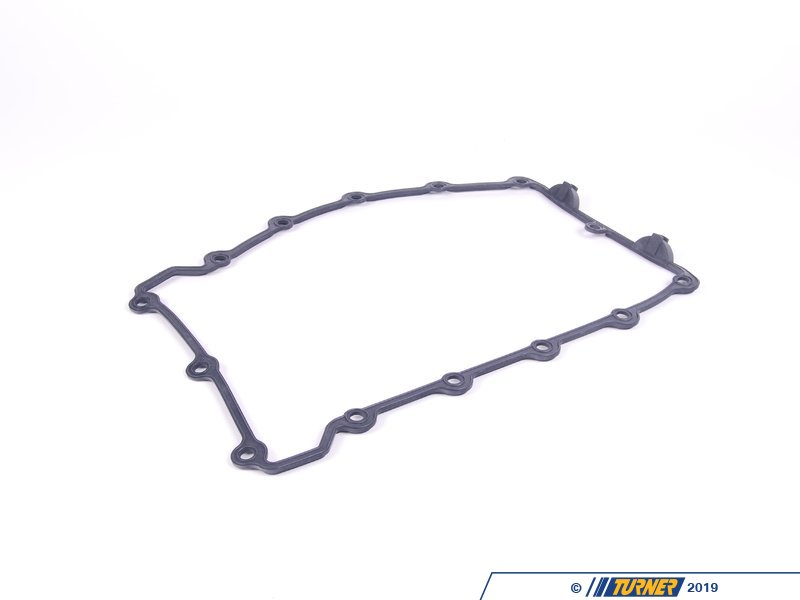

111217218761valve cover gasket

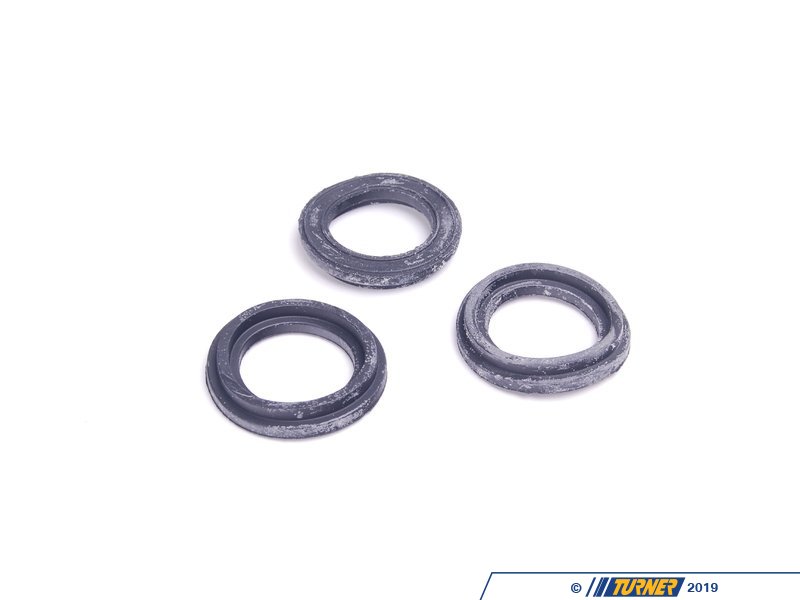

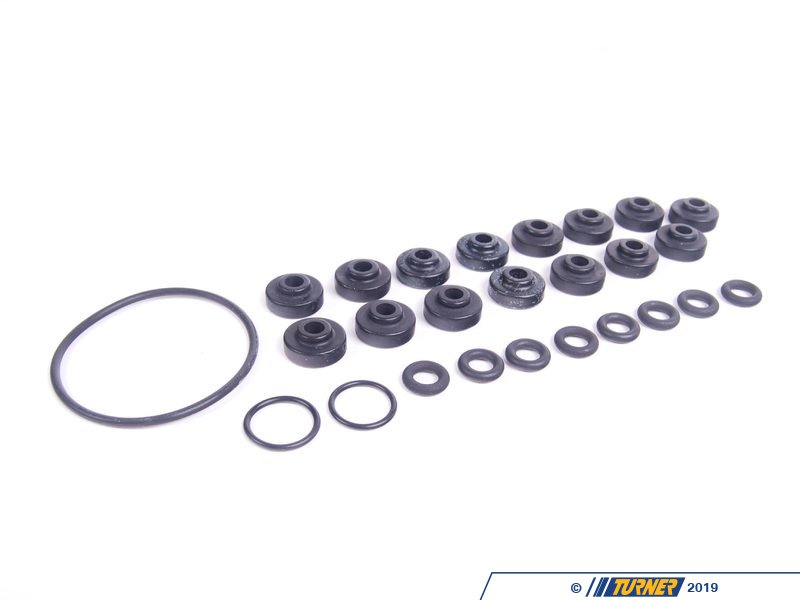

1112172187915valve cover mounting bolt seal

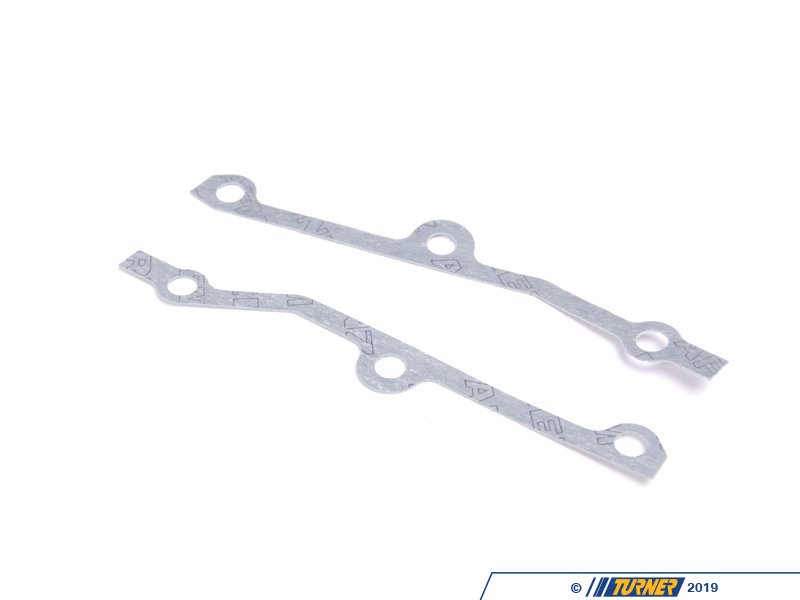

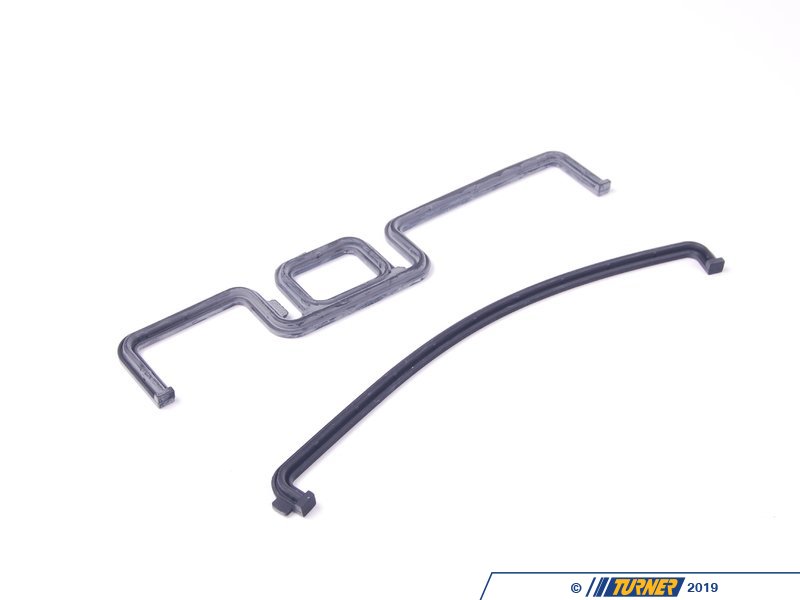

111412478371profile gasket between outer upper
and lower timing covers

111412478491profile gasket between inner upper
and lower timing covers

111417219191upper timing cover profile gaskets

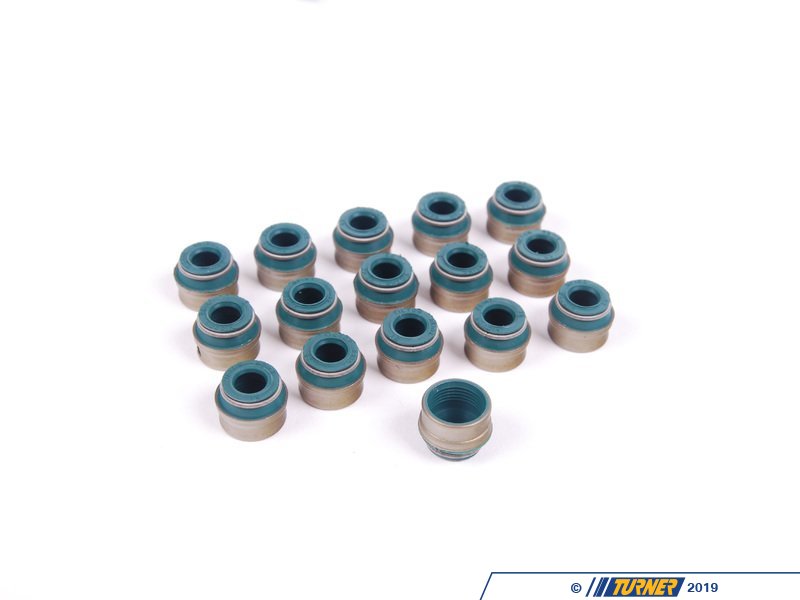

113490591712valve stem seals
2 sets = 16 valves

115317211721thermostat housing profile gasket

115317212181thermostat o-ring

116117177611intake plenum-to-intake trumpet
profile gasket (E30 only)

116117344901profile gasket between upper
and lower intake manifold sections (E36 only)

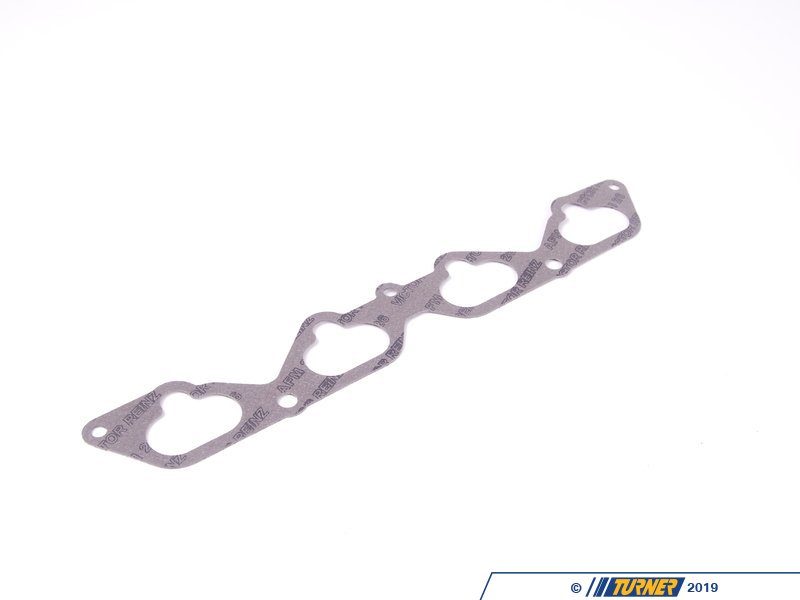

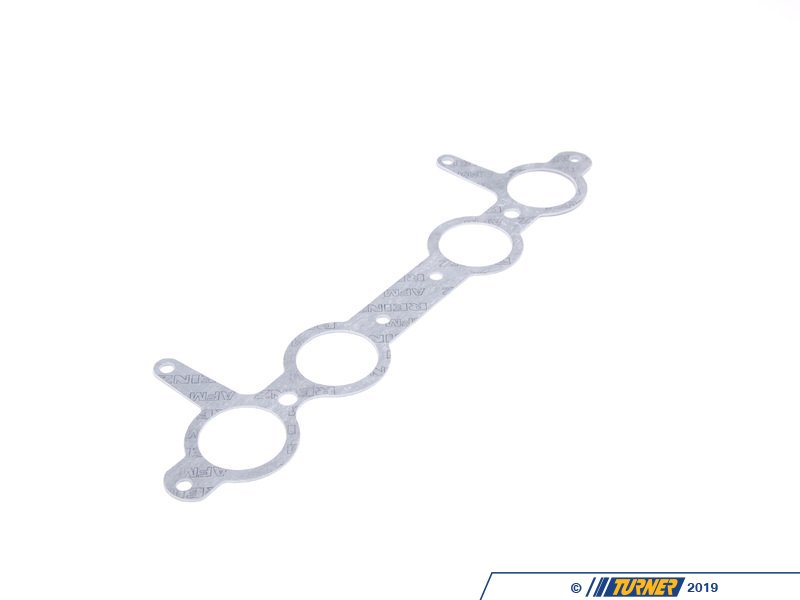

116117346841lower intake manifold profile gasket

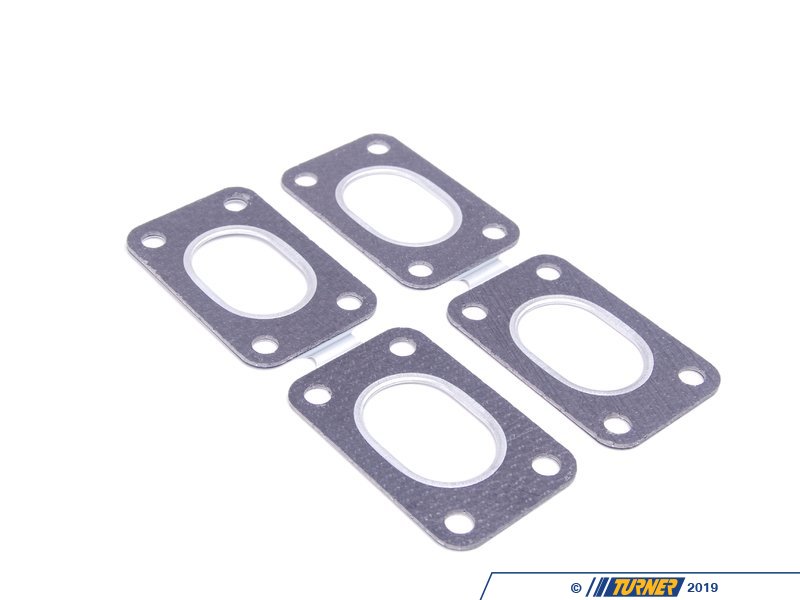

116217289832exhaust manifold gasket plate

121417272201camshaft position sensor o-ring

135317202511fuel pressure regulator o-ring, large

135317202521fuel pressure regulator o-ring, small

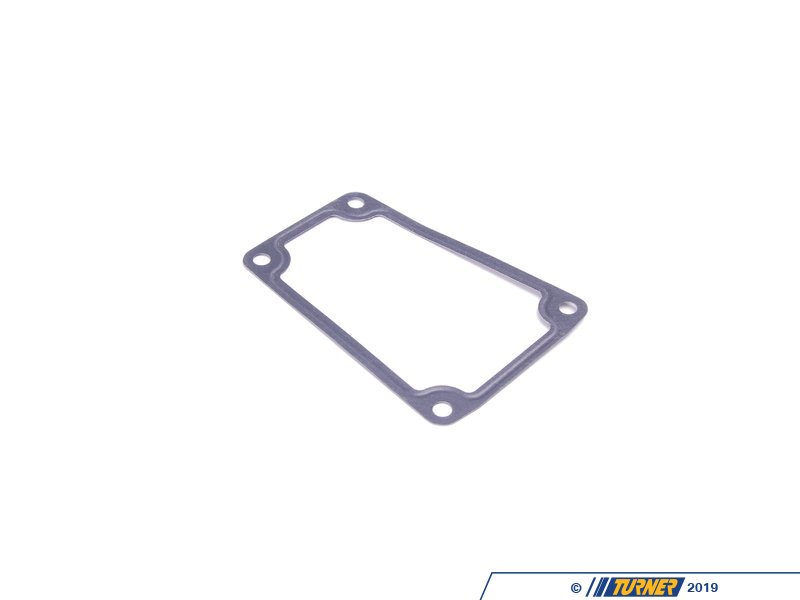

135417432611throttle body-to-manifold profile gasket

136417307678fuel injector o-ring

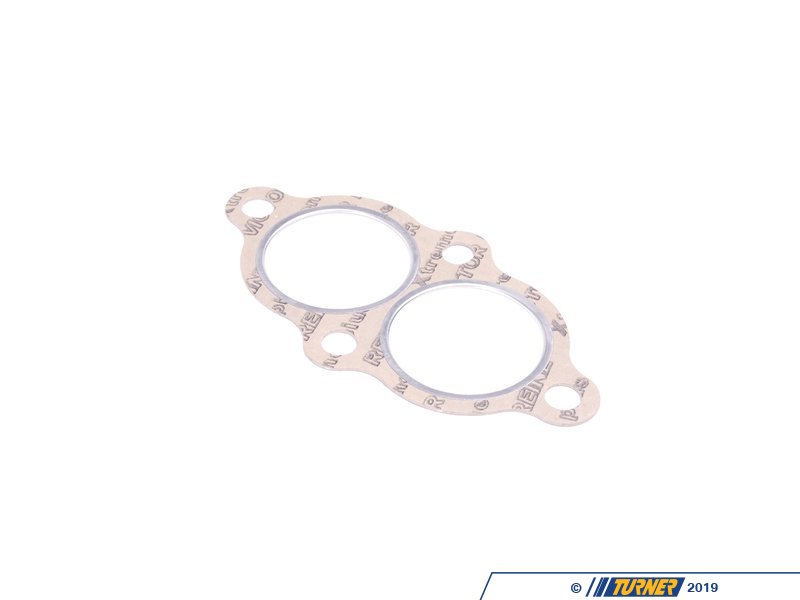

183017119691exhaust manifold flange gasket

This item fits the following BMWs:
1989-1993 E30 BMW 318i 318is 318ic
1992 E36 BMW 318i 318is
