TWH9905001 - Turner Motorsport Front Hub Extenders (Pair)

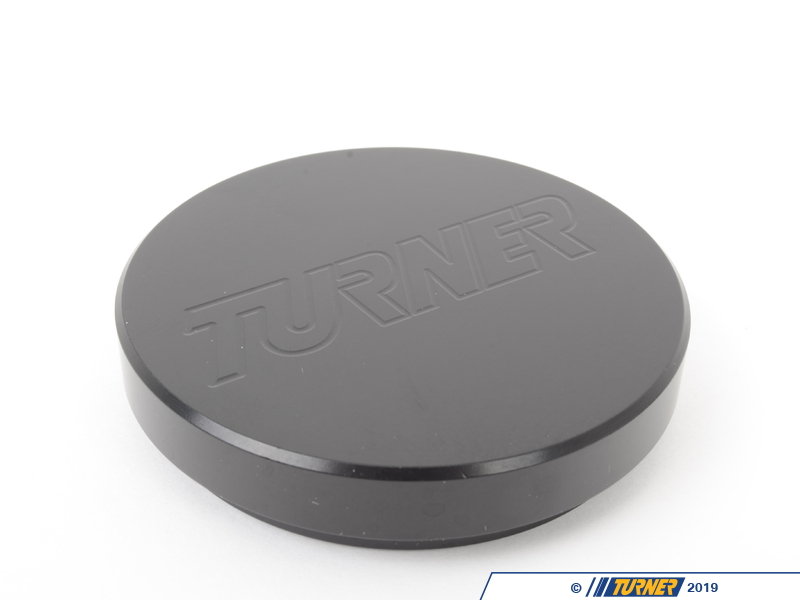

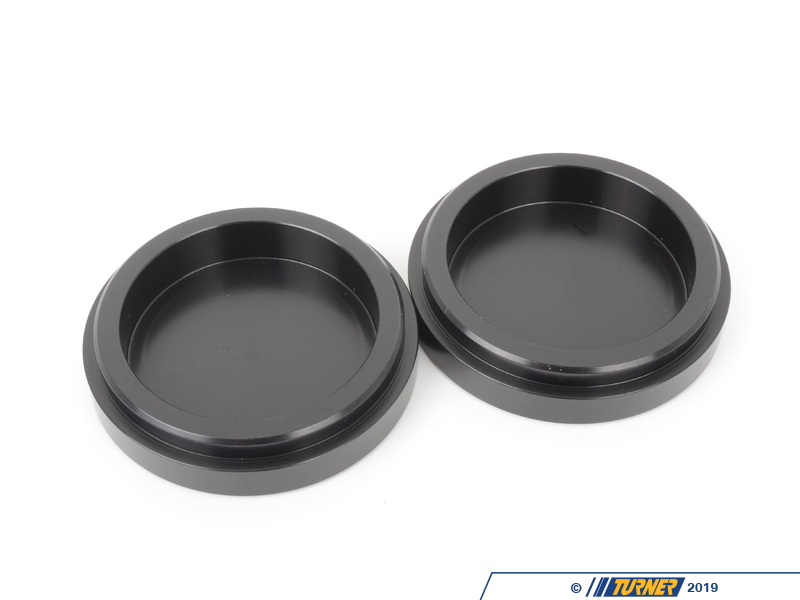

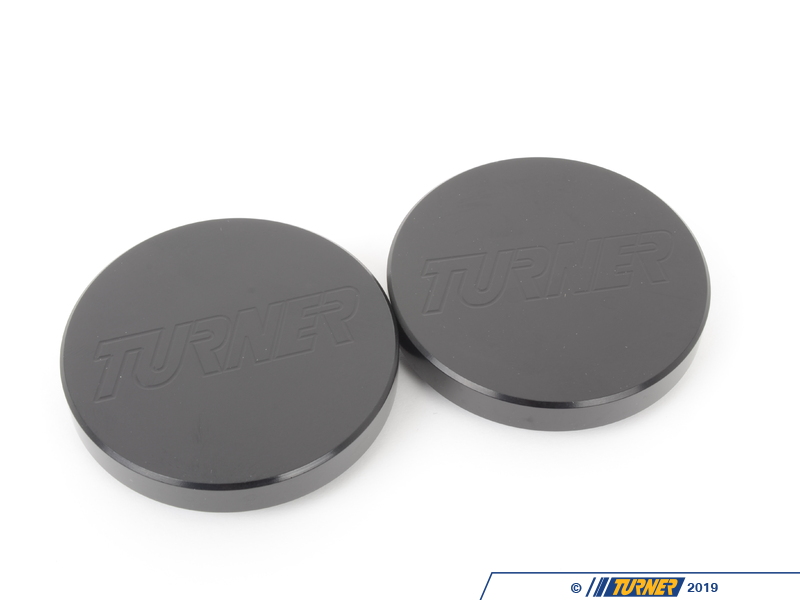

Turner Motorsport Front Hub Extenders (Pair)
Hub Extenders are the solution that no one else has! BMW wheels must fit on a hubcentric lip to be securely (and safely) mounted to the hub. But with a 3, 5, 8, or some 10mm spacers on a lip measuring no more than 11mm that presented a huge problem - there would be no lip left over for the wheel to rest on! As one of the world's leading BMW tuners and race teams, we came up with a way to extend the lip and get back the lost surface area for the wheel to safely mount on. Our Hub Extenders are the first of their kind.

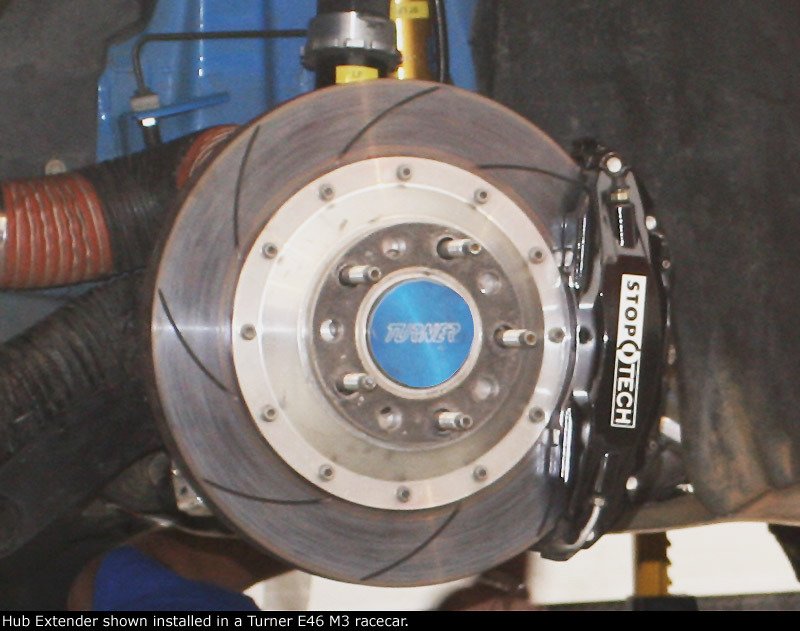

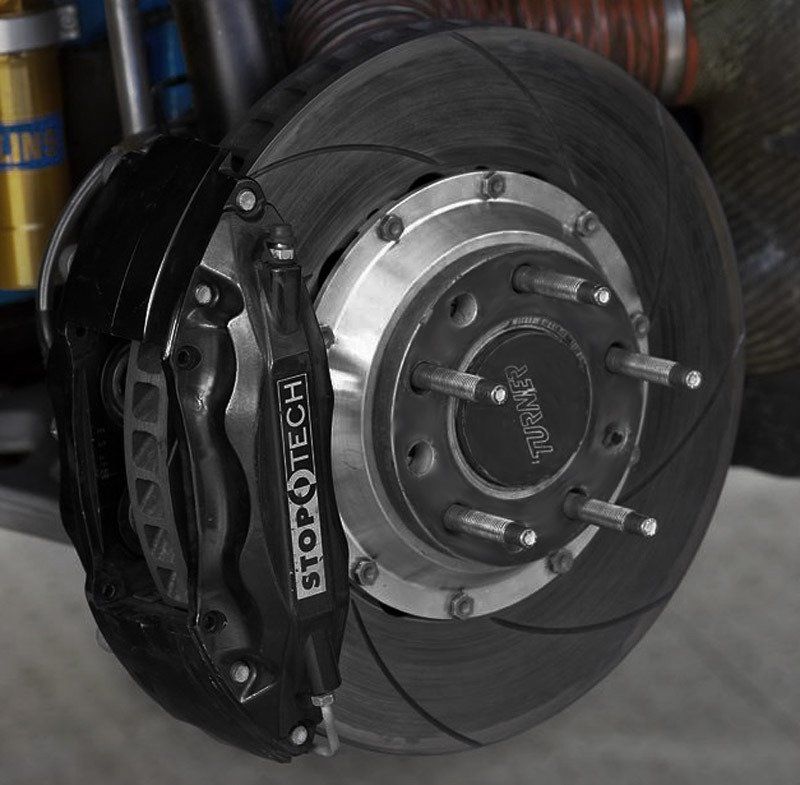

Hub Extenders fit where the stock dust cap is usually fitted on the front wheel hub. Pop out the dust cap and tap the Hub Extender into its place. It becomes an extension of the original lip. These will only work on the front hubs of the cars listed below because the rear hub is tapered inside (narrows down). These will not work with Xi AWD models because the front axle shaft protrudes through the hub. With Hub Extenders in place you can use nearly any flat wheel spacer - 3mm, 5mm, 7.5mm, 10mm, or possibly more without worrying that the wheel will not be securely seated. This is perfect for wheels that have chamfers on the back of the wheel that don't match up to existing spacers (Kosei K1 spacers for example).
Turner Hub Extender Features --
+ hub extension makes flat spacers a true hubcentric fitment + precise tolerance fitment thanks to CAD process and CNC mill machine + aerospace grade aluminum light weight but very strong with a high resistance to corrosion + additional military-spec hardcoat for further corrosion resistance + stealthy black color with laser engrave Turner logo + Turner Motorsport track and street tested! + Made in the USA
Wheel Limitations. Special consideration needs to be taken since wheel design and manufacture differ from brand to brand. The key dimension is the dept of the center bore. Some wheels won't work with larger spacers and a Hub Extender because of the additional protrusion into the center bore. Please measure your wheel to make sure it can accommodate an extra 2.5-5mm of hub extending into the center bore. Click here for a diagram.
Hub Limitations. BMW has multiple hub designs but not all are compatible with our Hub Extenders. The inside lip of the hub must be flat and smooth for at least 13mm (the depth our Extender fits into the hub). Some BMW hubs have a bowl shape or have tapered inside walls which will prevent the Hub Extender from seating all the way. Remove the hub dust cap to check before opening your Turner Hub Extenders.
This item fits the following BMWs: 2014+ F22 F23 BMW 228i M235i 1988-1991 E30 BMW M3 1992-1998 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic M3 1999-2005 E46 BMW 323i 323ci 325i 325ci 328i 328ci 330i 330ci M3 10/2013+ F30 BMW 320i 328i 335i - Sedan 10/2013+ F31 BMW 328i - Wagon 10/2013+ F34 BMW 328i - Gran Turismo 10/2013+ F32 BMW 428i 435i - Coupe 10/2013+ F33 BMW 428i 435i - Convertible 10/2013+ F36 BMW 428i 435i - Gran Coupe 1982-1988 E28 BMW 524td 528e 533i 535i 535is M5 1989-1995 E34 BMW 525i 530i 535i 540i M5 1982-1989 E24 BMW 633csi 635csi M6 1988-1994 E32 BMW 735i 735il 740i 740il 750il 1995-2001 E38 BMW 740i 740il 750il 1990-1999 E31 BMW 840i 840ci 850i 850ci 850csi 1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i M Roadster M Coupe 2003-2008 Z4 BMW Z4 2.5i Z4 3.0i Z4 3.0si Z4 M Roadster M Coupe
Hub Extenders are the solution that no one else has! BMW wheels must fit on a hubcentric lip to be securely (and safely) mounted to the hub. But with a 3, 5, 8, or some 10mm spacers on a lip measuring no more than 11mm that presented a huge problem - there would be no lip left over for the wheel to rest on! As one of the world's leading BMW tuners and race teams, we came up with a way to extend the lip and get back the lost surface area for the wheel to safely mount on. Our Hub Extenders are the first of their kind.
Hub Extenders fit where the stock dust cap is usually fitted on the front wheel hub. Pop out the dust cap and tap the Hub Extender into its place. It becomes an extension of the original lip. These will only work on the front hubs of the cars listed below because the rear hub is tapered inside (narrows down). These will not work with Xi AWD models because the front axle shaft protrudes through the hub. With Hub Extenders in place you can use nearly any flat wheel spacer - 3mm, 5mm, 7.5mm, 10mm, or possibly more without worrying that the wheel will not be securely seated. This is perfect for wheels that have chamfers on the back of the wheel that don't match up to existing spacers (Kosei K1 spacers for example).
Turner Hub Extender Features --
+ hub extension makes flat spacers a true hubcentric fitment + precise tolerance fitment thanks to CAD process and CNC mill machine + aerospace grade aluminum light weight but very strong with a high resistance to corrosion + additional military-spec hardcoat for further corrosion resistance + stealthy black color with laser engrave Turner logo + Turner Motorsport track and street tested! + Made in the USA
Wheel Limitations. Special consideration needs to be taken since wheel design and manufacture differ from brand to brand. The key dimension is the dept of the center bore. Some wheels won't work with larger spacers and a Hub Extender because of the additional protrusion into the center bore. Please measure your wheel to make sure it can accommodate an extra 2.5-5mm of hub extending into the center bore. Click here for a diagram.
Hub Limitations. BMW has multiple hub designs but not all are compatible with our Hub Extenders. The inside lip of the hub must be flat and smooth for at least 13mm (the depth our Extender fits into the hub). Some BMW hubs have a bowl shape or have tapered inside walls which will prevent the Hub Extender from seating all the way. Remove the hub dust cap to check before opening your Turner Hub Extenders.
This item fits the following BMWs: 2014+ F22 F23 BMW 228i M235i 1988-1991 E30 BMW M3 1992-1998 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic M3 1999-2005 E46 BMW 323i 323ci 325i 325ci 328i 328ci 330i 330ci M3 10/2013+ F30 BMW 320i 328i 335i - Sedan 10/2013+ F31 BMW 328i - Wagon 10/2013+ F34 BMW 328i - Gran Turismo 10/2013+ F32 BMW 428i 435i - Coupe 10/2013+ F33 BMW 428i 435i - Convertible 10/2013+ F36 BMW 428i 435i - Gran Coupe 1982-1988 E28 BMW 524td 528e 533i 535i 535is M5 1989-1995 E34 BMW 525i 530i 535i 540i M5 1982-1989 E24 BMW 633csi 635csi M6 1988-1994 E32 BMW 735i 735il 740i 740il 750il 1995-2001 E38 BMW 740i 740il 750il 1990-1999 E31 BMW 840i 840ci 850i 850ci 850csi 1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i M Roadster M Coupe 2003-2008 Z4 BMW Z4 2.5i Z4 3.0i Z4 3.0si Z4 M Roadster M Coupe
Reviews
Product Q&A
Fits These Cars
MAKE
MODEL
SUBMODEL
ENGINE
BMW
E24
630CSi
M30 3.0L
BMW
E24
633CSi
M30 3.2L
BMW
E24
635CSi
M30 3.4L
BMW
E24
M6
S38 3.5L
BMW
E28
524td
M21 2.4L
BMW
E28
528e
M20 2.7L
BMW
E28
533i
M30 3.2L
BMW
E28
535i
M30 3.4L
BMW
E28
535is
M30 3.4L
BMW
E28
M5
S38 3.5L
BMW
E30
M3
S14 2.3L
BMW
E31
840Ci
M60 4.0L
BMW
E31
840Ci
M62 4.4L
BMW
E31
850Ci
M70 5.0L
BMW
E31
850Ci
M73 5.4L
BMW
E31
850CSi
S70 5.6L
BMW
E32
730i
M60 3.0L
BMW
E32
735i
M30 3.4L
BMW
E32
735iL
M30 3.4L
BMW
E32
740i
M60 4.0L
BMW
E32
740iL
M60 4.0L
BMW
E32
750i
M70 5.0L
BMW
E32
750iL
M70 5.0L
BMW
E34
525i
M20 2.5L
BMW
E34
525i
M50 2.5L
BMW
E34
530i
M60 3.0L
BMW
E34
535i
M30 3.4L
BMW
E34
540i
M60 4.0L
BMW
E34
M5
S38 3.5L
BMW
E36
318i
M42 1.8L
BMW
E36
318i
M44 1.9L
BMW
E36
318ic
M42 1.8L
BMW
E36
318ic
M44 1.9L
BMW
E36
318is
M42 1.8L
BMW
E36
318is
M44 1.9L
BMW
E36
318ti
M42 1.8L
BMW
E36
318ti
M44 1.9L
BMW
E36
320i
M50 2.0L
BMW
E36
323i
M52 2.5L
BMW
E36
323ic
M52 2.5L
BMW
E36
323is
M52 2.5L
BMW
E36
325i
M50 2.5L
BMW
E36
325ic
M50 2.5L
BMW
E36
325is
M50 2.5L
BMW
E36
328i
M52 2.8L
BMW
E36
328ic
M52 2.8L
BMW
E36
328is
M52 2.8L
BMW
E36
M3
S50 3.0L
BMW
E36
M3
S52 3.2L
BMW
E38
740i
M60 4.0L
BMW
E38
740i
M62 4.4L
BMW
E38
740iL
M60 4.0L
BMW
E38
740iL
M62 4.4L
BMW
E38
750i
M73 5.4L
BMW
E38
750iL
M73 5.4L
BMW
E46
323Ci
M52 2.5L
BMW
E46
323i
M52 2.5L
BMW
E46
325Ci
M54 2.5L
BMW
E46
325i
M54 2.5L
BMW
E46
325xi
M54 2.5L
BMW
E46
328Ci
M52 2.8L
BMW
E46
328i
M52 2.8L
BMW
E46
330Ci
M54 3.0L
BMW
E46
330i
M54 3.0L
BMW
E46
330xi
M54 3.0L
BMW
E46
M3
S54 3.2L
BMW
F22
228i
N20 2.0L
BMW
F22
228i xDrive
N20 2.0L
BMW
F22
230i
B46 2.0L
BMW
F22
230i xDrive
B46 2.0L
BMW
F22
M235i
N55 3.0L
BMW
F22
M235i xDrive
N55 3.0L
BMW
F22
M240i
B58 3.0L
BMW
F22
M240i xDrive
B58 3.0L
BMW
F23
228i
N20 2.0L
BMW
F23
228i xDrive
N20 2.0L
BMW
F23
230i
B46 2.0L
BMW
F23
230i xDrive
B46 2.0L
BMW
F23
M235i
N55 3.0L
BMW
F23
M235i xDrive
N55 3.0L
BMW
F23
M240i
B58 3.0L
BMW
F23
M240i xDrive
B58 3.0L
BMW
F30
320i
N20 2.0L
BMW
F30
320i xDrive
N20 2.0L
BMW
F30
328d
N47 2.0L
BMW
F30
328d xDrive
N47 2.0L
BMW
F30
328i
N20 2.0L
BMW
F30
328i xDrive
N20 2.0L
BMW
F30
330e iPerformance
B48 2.0L
BMW
F30
330i
B48 2.0L
BMW
F30
330i xDrive
B48 2.0L
BMW
F30
335i
N55 3.0L
BMW
F30
335i xDrive
N55 3.0L
BMW
F30
340i
B58 3.0L
BMW
F30
340i xDrive
B58 3.0L
BMW
F30
ActiveHybrid 3
N55 3.0L
BMW
F32
428i
N20 2.0L
BMW
F32
428i xDrive
N20 2.0L
BMW
F32
430i
B46 2.0L
BMW
F32
430i xDrive
B46 2.0L
BMW
F32
435i
N55 3.0L
BMW
F32
435i xDrive
N55 3.0L
BMW
F32
440i
B58 3.0L
BMW
F32
440i xDrive
B58 3.0L
BMW
F33
428i
N20 2.0L
BMW
F33
428i xDrive
N20 2.0L
BMW
F33
430i
B46 2.0L
BMW
F33
430i xDrive
B46 2.0L
BMW
F33
435i
N55 3.0L
BMW
F33
435i xDrive
N55 3.0L
BMW
F33
440i
B58 3.0L
BMW
F33
440i xDrive
B58 3.0L
BMW
F36
428i
N20 2.0L
BMW
F36
428i xDrive
N20 2.0L
BMW
F36
430i
B46 2.0L
BMW
F36
430i xDrive
B46 2.0L
BMW
F36
435i
N55 3.0L
BMW
F36
435i xDrive
N55 3.0L
BMW
F36
440i
B58 3.0L
BMW
F36
440i xDrive
B58 3.0L
BMW
Z3
1.9
M44 1.9L
BMW
Z3
2.3
M52 2.5L
BMW
Z3
2.5
M52 2.5L
BMW
Z3
2.5i
M54 2.5L
BMW
Z3
2.8
M52 2.8L
BMW
Z3
3.0i
M54 3.0L
BMW
Z3
M Coupe
S52 3.2L
BMW
Z3
M Coupe
S54 3.2L
BMW
Z3
M Roadster
S52 3.2L
BMW
Z3
M Roadster
S54 3.2L
BMW
Z4
2.5i
M54 2.5L
BMW
Z4
3.0i
M54 3.0L
BMW
Z4
3.0i
N52 3.0L
BMW
Z4
3.0Si
N52 3.0L
BMW
Z4
M Coupe
S54 3.2L
BMW
Z4
M Roadster
S54 3.2L
BMW
Z4
sDrive28i
N20 2.0L
BMW
Z4
sDrive30i
N52 3.0L
BMW
Z4
sDrive35i
N54 3.0L
BMW
Z4
sDrive35is
N54 3.0L
