Transmission Cooler Hose Set - E39 540i 99-03, E38 740i/iL 99-01

The oil cooler/heat exchanger for the automatic transmission is one of the most overlooked sections of the 540i and 740i cooling system. The cooler (heat exchanger) is a part of the overall cooling system and uses coolant circulated from the regular cooling system to cool the transmission oil running through this small cooling block. Some of the hoses are shared with the rest of the cooling system as well. The E38/E39 heat exchanger is located along the driver's side frame rail and is accessed from the wheel well. We recommend servicing or cleaning the heat exchanger along with any cooling system overhaul. Or if you're having transmission faults (especially for temperature) you may want to clean the transmission cooler anyway and these hoses will be a nice finishing touch.

Replacing or cleaning the heat exchanger components could lead to better shifting of the automatic as the cooler itself can become clogged. If you're experiencing harder or hesitating shifts, and the internal transmission temperature is rising without being regulated, the components in this system are the likely cause. Staying on top of the cooling needs of the transmission will help prevent a very costly transmission repair in the future. These hoses are easily replaced and you can clean the heat exchanger easily with brake cleaner and some brushes.

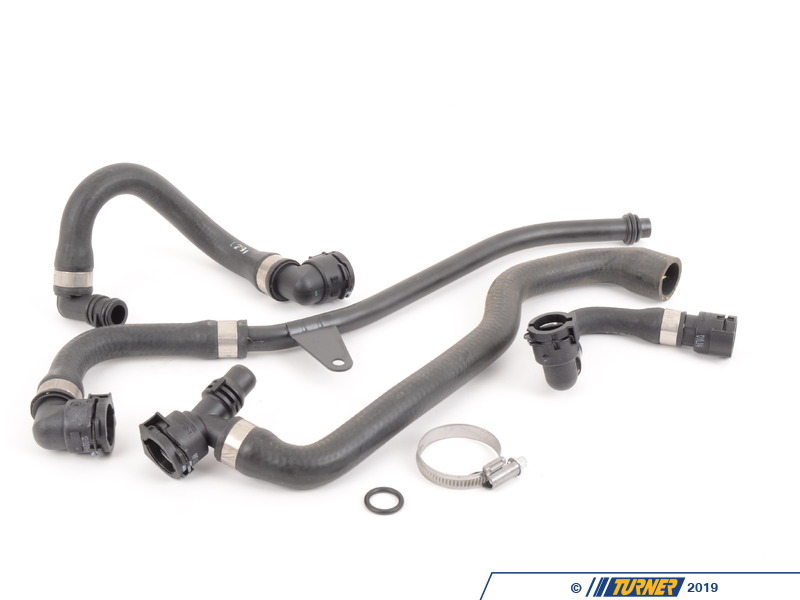

Included in this handy package are:
  • 11531711381 - transmission cooling hose from water pump to radiator (with t-connector)
  • 11531711385 - transmission cooling hose from radiator to cooler
  • 11531711384 - transmission cooling hose from cooler to water pump
  • 11537511207 - transmission cooling hose from cooler to chassis
  • hose clamp
  • o-ring



  • This hose set fits the following BMWs:
    1999-2003 E39 BMW 540i
    1999-2001 E38 BMW 740i 740il
    T#: 338705 | Part#: TMS16592
    Starting at $141.63
    141.63 $141.63
    Qty
    Free Shipping
    Ships in 3 Business Days

    Select Options

    No Thanks
    Packaged by Turner Transmission Cooler Hose Set - E39 540i 99-03, E38 740i/iL 99-01 TMS16592
    Include a new oil cooler temp regulator valve and o-rings (17211437772-987)
    Packaged by Turner - Corporate Logo
    T#: 302929
    |
    Part#: 17211437772-987
    Ships on Oct 22, 2019
    $87.85
    Qty: 1
    No Thanks
    Include A New Heat Exchanger/Oil Cooler (17217505823)
    Nissens - Corporate Logo
    T#: 401923
    |
    Part#: 17217505823
    Direct Ship
    $116.95
    Qty: 1
    Packaged by Turner Transmission Cooler Hose Set - E39 540i 99-03, E38 740i/iL 99-01 TMS16592
    Transmission Cooler Hose Set
    Packaged by Turner - Corporate Logo
    T#: 16592
    |
    Part#: TMS16592
    Ships in 3 Business Days
    $141.63
    Qty: 1
    Transmission Cooler Hose Set - E39 540i 99-03, E38 740i/iL 99-01
    $141.63
