Genuine BMW - Level 3 Timing Chain Kit - M62TU E53 4.4L 4.6L

Product Details

Timing chain guides are a main failure point in the otherwise bulletproof M62. Common symptoms of failure include excessive vibration or “slap” from the timing chain, and the possibility of plastic particles throughout the oil. Symptoms typically begin to surface between 80,000 and 100,000 miles. If left untouched, the issue can compound itself so far as to allow the timing chain to jump out of time, leaving you with a potentially damaged head and larger repair costs.

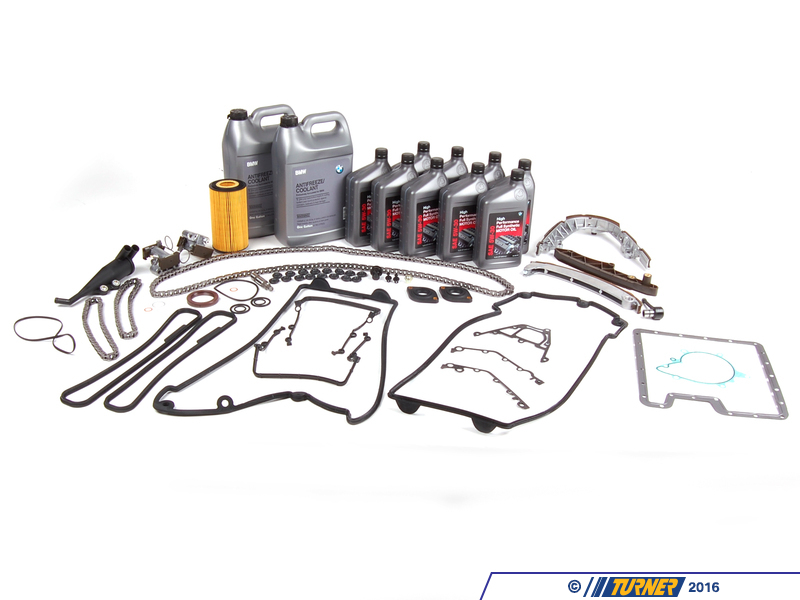

Kit Contents

Qty	Description	T#	Part#	Lifetime
1	Genuine BMW Differential Plug Gasket, 22x27 - 07119963355	T#348476	07119963355~OEB	YES
1	Valve Cover Gasket - Cylinders 1-4 - (right side) - M62 V8 1999-2003	T#348223	11120034104	YES
1	Valve Cover Gasket - Cylinders 5-8 - (left side) - M62 V8 1999-2003	T#348224	11120034105	YES
2	Genuine BMW Non-Return Valve - M62 4.4L	T#19417	11121706921	YES
6	Valve Cover Seal Washer - M42 M44 M62 S62 - Priced Each	T#348652	11121721879	YES
1	Genuine BMW Oil Pan Gasket - E53 X5 M62 4.4L 4.6L	T#360587	11137500261	YES
1	Genuine BMW Crankshaft Seal - Front	T#360590	11141275466	YES
2	Genuine BMW Gasket-Flange - 11141435023 - E38,E39,E53	T#6642	11141435023	YES
1	Genuine BMW Timing Chain Cover Gasket Set - Lower	T#360591	11141436978	YES
1	Genuine BMW Oil Separator - E53 X5 M62 4.4L 4.6L	T#12626	11151705237	YES
1	Genuine BMW Collar Screw M18X1,5X65 - 11231736585 - E34,E38,E39,E53	T#12927	11231736585	YES
1	Genuine BMW Camshaft Timing Chain Tensioner - M62 4.4L M62 4.6L	T#360633	11311435026	YES
1	Genuine BMW Camshaft Timing Chain Tensioner - M62 4.4L M62 4.6L	T#360634	11311435027	YES
1	Genuine BMW Timing Chain Tensioner Rail, Right - 11311741236 - M62	T#360636	11311741236	YES
1	Genuine BMW Timing Chain - Main - M62 4.4L M62 4.6L	T#360637	11311741746	NO
1	Genuine BMW Timing Chain Guide Rail - M62 4.4L M62 4.6L	T#360638	11311741777	YES
1	Genuine BMW Timing Chain Guide Rail - E39 525i 528i 530i 540i M5	T#360639	11311745406	YES
2	Genuine BMW Cylinder Head Timing Chain - M62 4.4L M62 4.6L	T#360640	11311747437	YES
1	Timing Chain Tensioner - E39 E38 E53 E34 E32 Z8	T#6771	11317531813	YES
1	Genuine BMW Oil Filter Kit - M60 M62 S62 M70 M73 S70	T#348231	11427510717	NO
1	Genuine BMW Engine O-ring 11431707164	T#14542	11431707164	YES
1	Gasket - Water Pump to Block - M60/M62 V8 engine	T#12225	11511731372	YES
2	Cooling O-Ring - Priced Each	T#360674	11531710048	YES
2	Water Pump O-Ring (Small) - Priced Each	T#360675	11531710055	YES
1	Genuine BMW Alternator Gasket	T#7138	12317507996	YES
2	BMW Expanding Rivet	T#7436	17111712963	YES
2	BMW Antifreeze Coolant - 1 Gallon	T#1474	82141467704	NO
16	Valve Cover Seal Washer - S85 S65 M50 M52 M54 M56 M62 S52 S54 S62 M60	T#348064	11121437395	YES
1	Upper Timing Cover Gasket - Cylinders 1-4 - E39 E38 E53	T#362656	11141741127	YES
1	Upper Timing Cover Gasket - Cylinders 5-8 - E39 E38 E53	T#362705	11141741128	YES
9	BMW 5W-30 Twinpower Turbo Longlife Synthetic Oil	T#210888	83212365946	NO
1	Oil Drain Plug	T#9319239	11137568309	YES
