DeatschWerks Performance Fuel Injector Set - 750cc - BMW M54 & S54 Engines
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
Lifetime Replacement Program! Read more here
Product Details

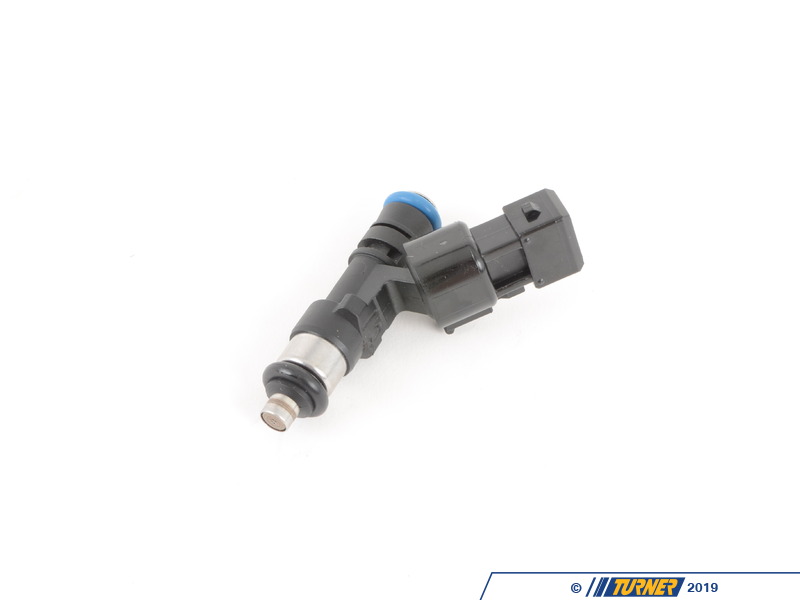

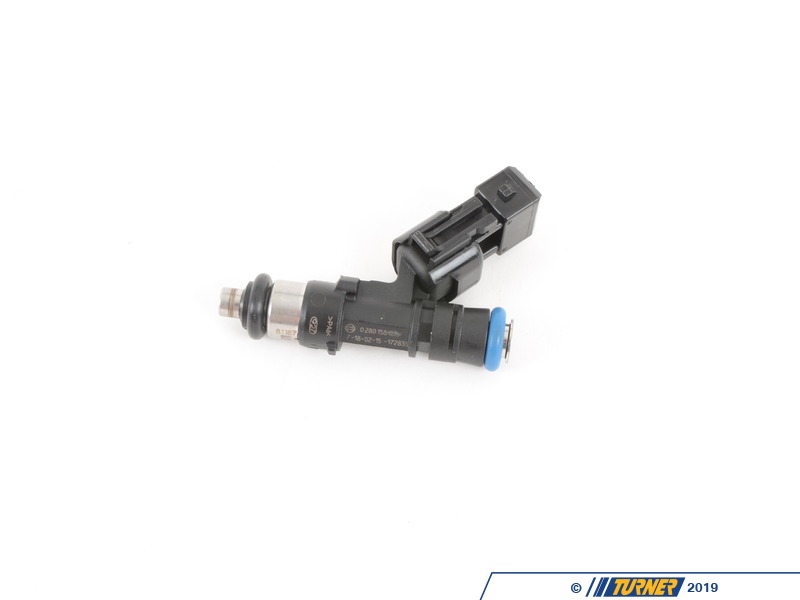

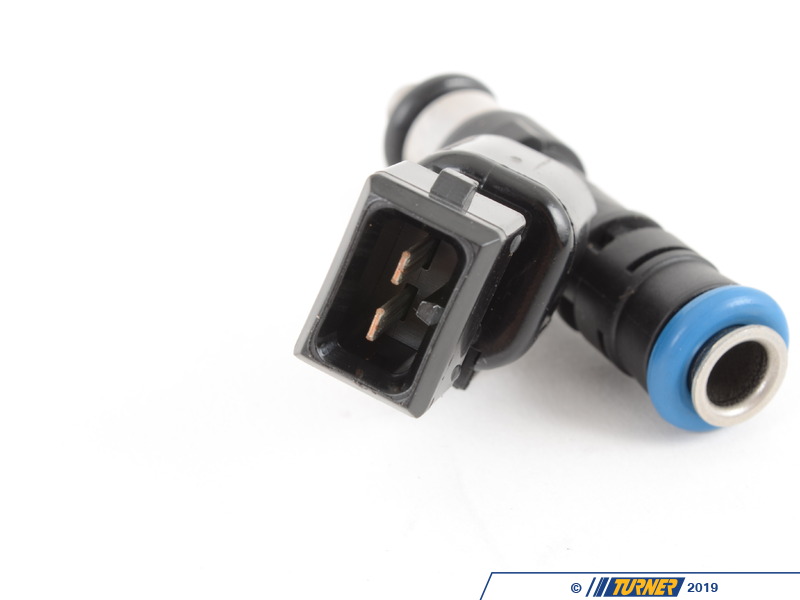

The DeatschWerks 17U-01-0750-6 fuel injector kit represents a premium solution for precision fuel delivery. By leveraging a high-impedance coil design, these injectors remain compatible with the majority of factory and aftermarket Engine Control Units (ECUs) without the need for a resistor box. The 750cc flow rate provides ample headroom for builds targeting roughly 450-600 horsepower (depending on fuel type and aspiration). Beyond just raw volume, these injectors are prized for their linear response, allowing tuners to dial in perfect air-fuel ratios across the entire RPM range, from a stable low-RPM cruise to wide-open throttle at the redline.
Key Features
Optimized Atomization: Specifically designed nozzle plates create a fine fuel mist, improving combustion efficiency and throttle response.
Dynamic Balancing: Unlike basic static testing, DeatschWerks tests injectors across a range of pulse widths to ensure performance is matched in "real world" driving conditions.
No-Hassle Installation: Engineered to seat perfectly into factory intake manifolds and fuel rails, maintaining a factory-like seal.
In-House Testing: All quality control is performed at the DeatschWerks facility in Oklahoma City, ensuring high standards of reliability.
Tuning Support: Includes comprehensive "Calibration Summaries" that take the guesswork out of injector dead-times and flow constants.
Specifications
Static Flow Rate (3 Bar): 750cc/min.

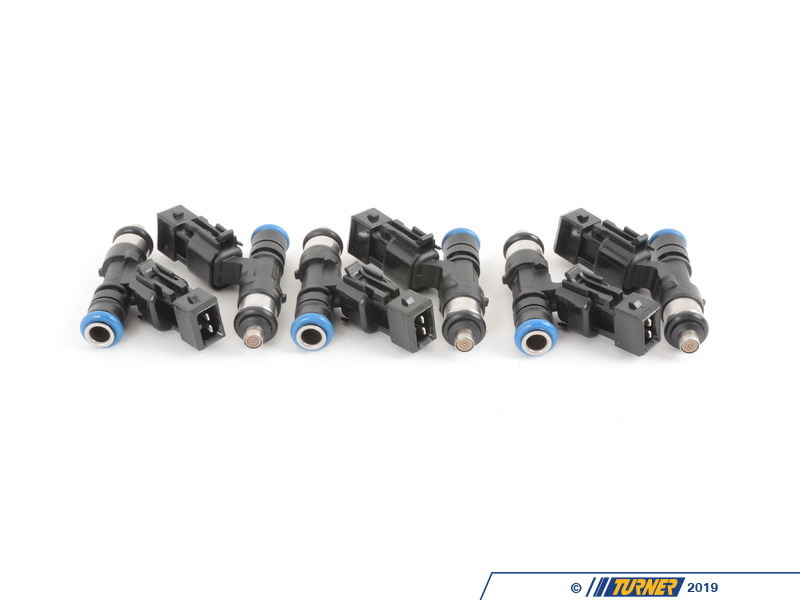

Number of Injectors: 6 matched units.
O-Ring Material: Viton (for superior chemical and heat resistance).
Coil Resistance: 12.4 Ohms (High Impedance).
Inlet Diameter: 14mm (Standard).
Spray Pattern: Single spray cone for targeted intake valve wetting.
Operating Pressure Range: 30 psi to 100 psi.
DeatschWerks was founded in 2004 in Oklahoma and has dedicated themselves to providing high quality EFI applications to a wide variety of manufacturers. DW has developed a wide variety of innovative fuel system components including fuel pumps, modular surge tanks, conversion fuel rails, dual-stage fuel filters, and ethanol compatible fuel pressure regulators.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
