Garagistic Garagistic E30 Boosterless Conversion Plumbing Kit - BMW E30 3-Series (With ABS) K0048
Garagistic E30 Boosterless Conversion Plumbing Kit - BMW E30 3-Series (With ABS)

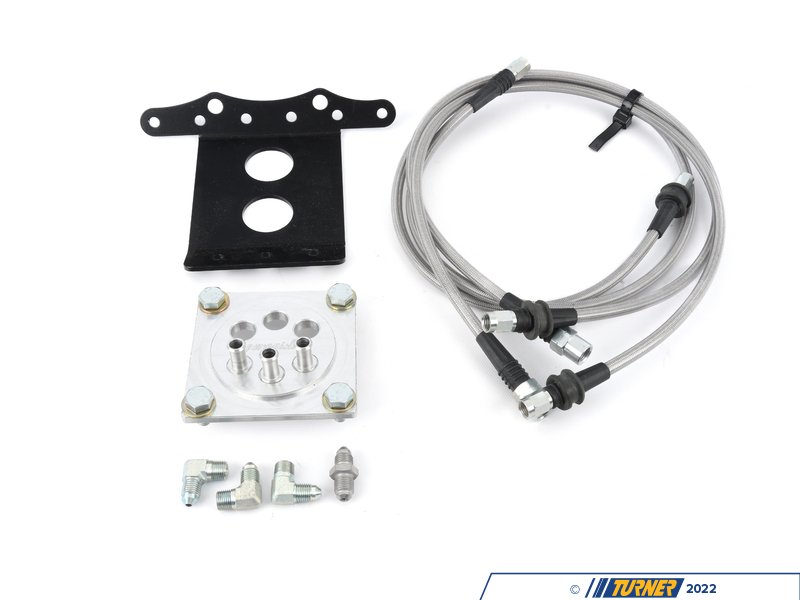

This is optional, but Garagistic strongly recommends this plumbing kit designed for use with their Boosterless Brake Setup to simplify installation and provide a clean finished product. It can be used with other brake booster delete units on the markets as well. This makes the plumbing of the lines a bolt-on affair. Some customers prefer to bend new lines, this is for those who do not want to make custom brake lines and simply plug in lines from the newly relocated master cylinder under the dash, to the brake lines that are still in the engine bay. It includes a block-off plate for the firewall.

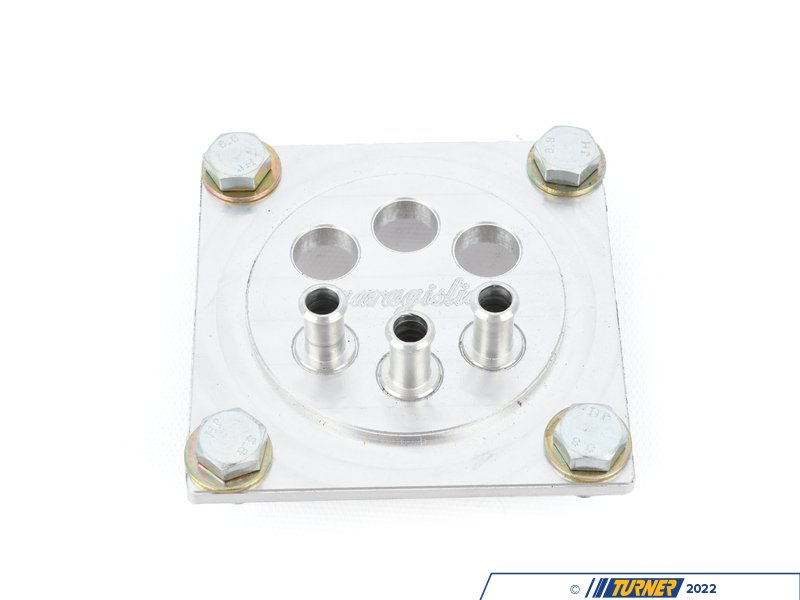

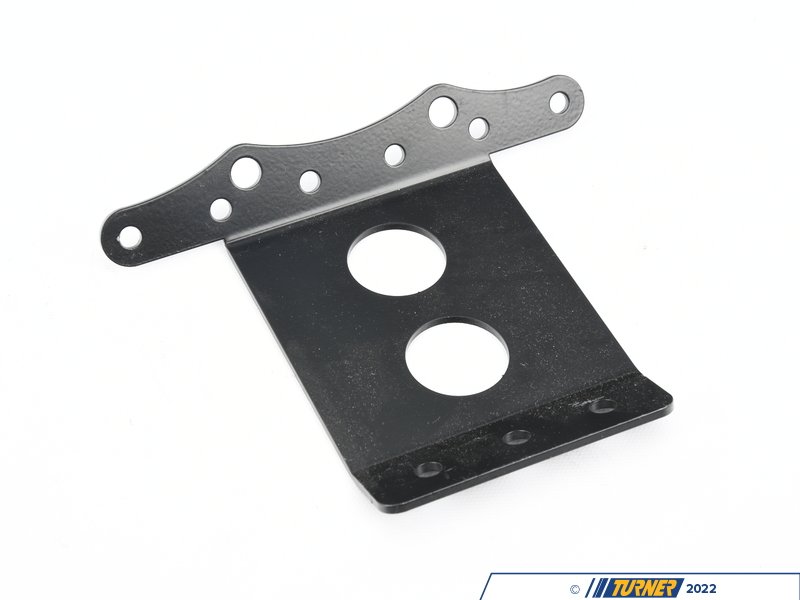

The block-off plate is machined from a billet piece of 6061 Aluminum. The 3 upper holes are for new brake line routing (1 for clutch, and 2 for brake lines). The 3 lower protrusions are for the reservoirs to slip into the master cylinders. This kit includes a powder-coated L bracket to hold your Tilton reservoir (sold separately) or your 3 Wilwood reservoir included in Garagistic's E30 boosterless brake conversion. Also includes all needed stainless steel brake lines.

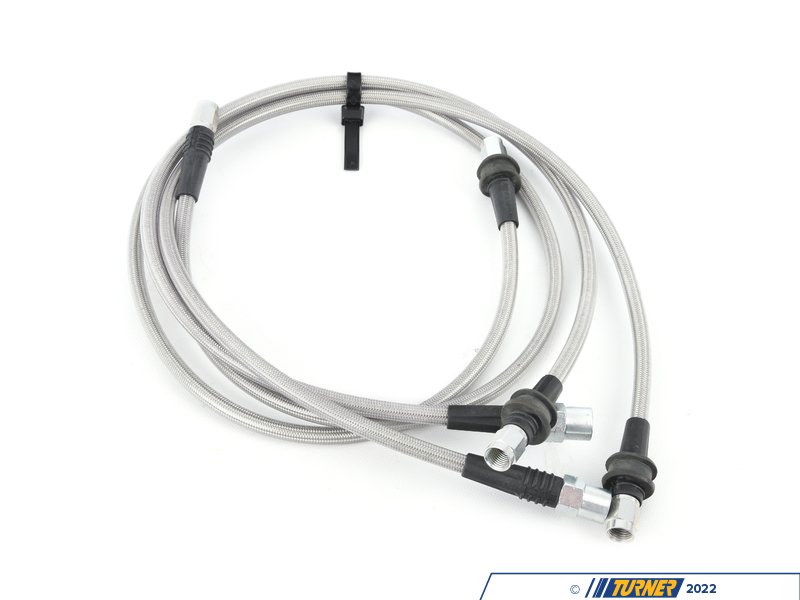

  • 2 brake hoses (-3an to metric)
  • 1 -3an clutch line (and -3an to BMW clutch line fitting)

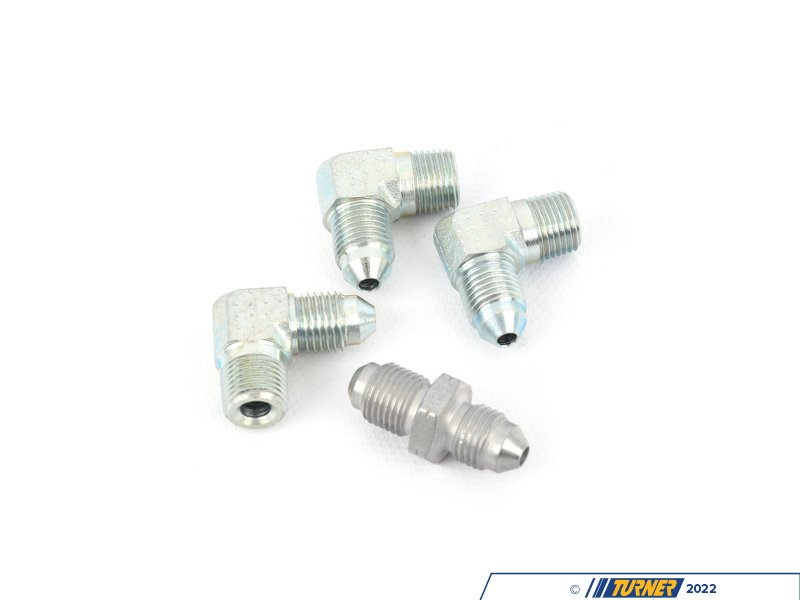

  • 3 90 degree fittings. (1 longer clutch line, and 2 shorter brake lines)

Please note that the reservoir mount off the firewall does not allow a standard strut bar to be installed.

 NOTE: THIS IS DESIGNED TO BE PLUG AND PLAY FOR A CAR EQUIPPED WITH ABS
