I-06-RM - BC Racing RM Series Coilover Suspension Kit - E39 525i 528i 530i 540i Sedan
BC Racing RM Series Coilover Suspension Kit - E39 525i 528i 530i 540i Sedan
BC Racing has made a name for themselves in the automotive enthusiast communities by developing adjustable, street-and-track capable coilover kits for over a decade that are not only extremely effective, but also don't brake the bank!

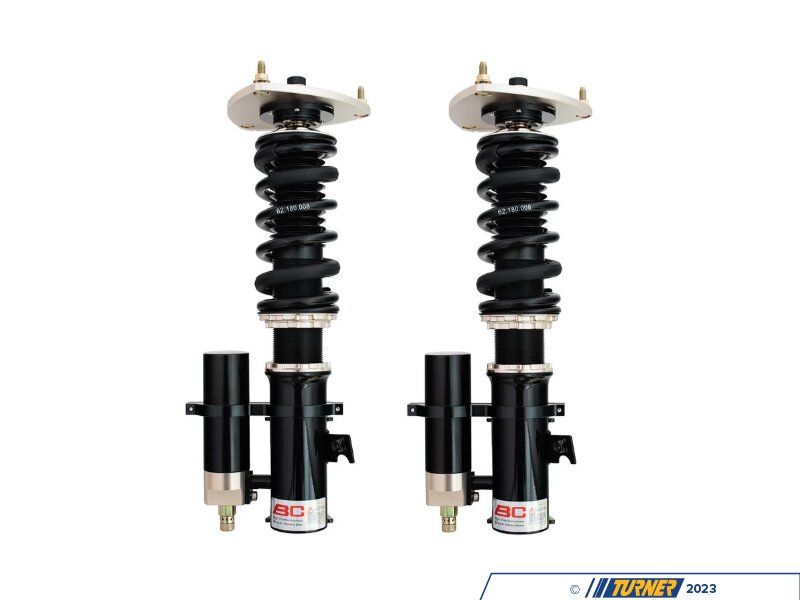

The BC Racing RM Series Coilover System uses a mono-tube inverted damper in the front and rear of vehicles that use McPherson style OEM strut suspension. On vehicles that use front struts only, BC Racing provides an inverted front strut and then provides an upright BR Series damper for the rear. Inverted dampers are useful in decreasing unsprung weight by moving the greatest mass of the strut to the top where it connects to the sprung weight of the chassis, where weight can be more easily shaved.
The RM series feature high quality damping adjustable monotube inverted dampers at the front or front and rear, depending on vehicle. The RM coilovers offer the majority of the features of the BR series but with the additional benefit of the inverted damper unit. Inverting the damper unit brings with it a number of advantages. The large 42mm damper rod and inverted design gives the inverted damper units much greater strength and resistance to side loadings. By reducing flex the RM inverted units lead to more consistent steering geometry resulting in more predictable and responsive handling.
Know your protected from the elements! The damper units are black chromed steel to give superb durability even through the darkest of European winters. The aluminum components (top mounts, locking collars etc.) are anodized and the steel lower mounts go through an electrophoretic disposition process followed by powder coating. A random selection of steel components (brackets, dampers, screws etc.) are put through a salt spray test once a month to check the quality of the protective processes and that anti corrosive properties are kept at the highest possible standard.
Features:
Highly Customizable
Inverted Mono-Tube Damper
Linear Piston And Damping Curve
Height Adjustment Independent Of Spring Compression
30-Clicks Of Simultaneous Compression/Rebound Adjustment
Front Camber Plates Standard On Applicable Kits
Rear Camber Plates Available For Applicable Kits
Custom Spring Rates And Swift Spring Compatible
Custom Valving Or Valving Paired For Custom Spring Rates
1-Year Warranty Against Manufacturers Defect
Fully Rebuildable
BC Racing RM Series Coilover Suspension Kit - E39 525i 528i 530i 540i Sedan
$1495.00
Product Details
BC Racing has made a name for themselves in the automotive enthusiast communities by developing adjustable, street-and-track capable coilover kits for over a decade that are not only extremely effective, but also don't brake the bank!
The BC Racing RM Series Coilover System uses a mono-tube inverted damper in the front and rear of vehicles that use McPherson style OEM strut suspension. On vehicles that use front struts only, BC Racing provides an inverted front strut and then provides an upright BR Series damper for the rear. Inverted dampers are useful in decreasing unsprung weight by moving the greatest mass of the strut to the top where it connects to the sprung weight of the chassis, where weight can be more easily shaved.
The RM series feature high quality damping adjustable monotube inverted dampers at the front or front and rear, depending on vehicle. The RM coilovers offer the majority of the features of the BR series but with the additional benefit of the inverted damper unit. Inverting the damper unit brings with it a number of advantages. The large 42mm damper rod and inverted design gives the inverted damper units much greater strength and resistance to side loadings. By reducing flex the RM inverted units lead to more consistent steering geometry resulting in more predictable and responsive handling.
Know your protected from the elements! The damper units are black chromed steel to give superb durability even through the darkest of European winters. The aluminum components (top mounts, locking collars etc.) are anodized and the steel lower mounts go through an electrophoretic disposition process followed by powder coating. A random selection of steel components (brackets, dampers, screws etc.) are put through a salt spray test once a month to check the quality of the protective processes and that anti corrosive properties are kept at the highest possible standard.
Features:
Highly Customizable
Inverted Mono-Tube Damper
Linear Piston And Damping Curve
Height Adjustment Independent Of Spring Compression
30-Clicks Of Simultaneous Compression/Rebound Adjustment
Front Camber Plates Standard On Applicable Kits
Rear Camber Plates Available For Applicable Kits
Custom Spring Rates And Swift Spring Compatible
Custom Valving Or Valving Paired For Custom Spring Rates
1-Year Warranty Against Manufacturers Defect
Fully Rebuildable
Prop 65 Warning
Product Q&A
Lifetime Replacement
This Product Is Covered By Our Lifetime Replacement Program
Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.
If you have any questions, would like to learn more or are ready to place a replacement claim, click here!
Fits These Cars
MAKE
MODEL
SUBMODEL
ENGINE
Special Fitment Notes
BMW
E39
525i
M54 2.5L
Use vehicle selector to confirm fitment
BMW
E39
528i
M52 2.8L
Use vehicle selector to confirm fitment
BMW
E39
530i
M54 3.0L
Use vehicle selector to confirm fitment
BMW
E39
540i
M62 4.4L
Use vehicle selector to confirm fitment
BMW
E39
M5
S62 5.0L
Use vehicle selector to confirm fitment
*The above product applications have been written by Turner Motorsport. All
warranties, product application, fitment, and performance are the responsibility of Turner Motorsport.
