Camshaft Timing Tool - M50 M52 S50 S52 M42 M44 - (NO LONGER AVAILABLE)

Mfg Part #
138002
Turner Part #
T#5523
Brand
Note:This product is no longer available.

Product Details

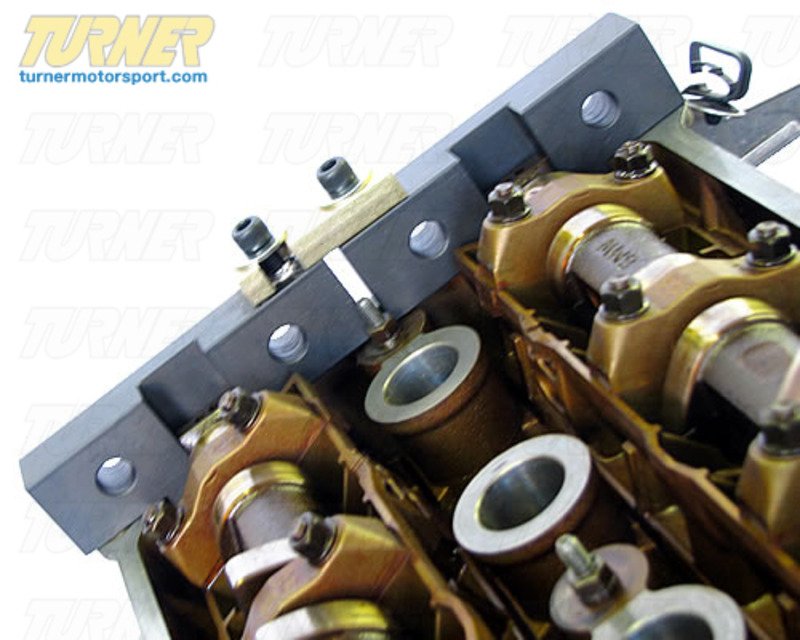

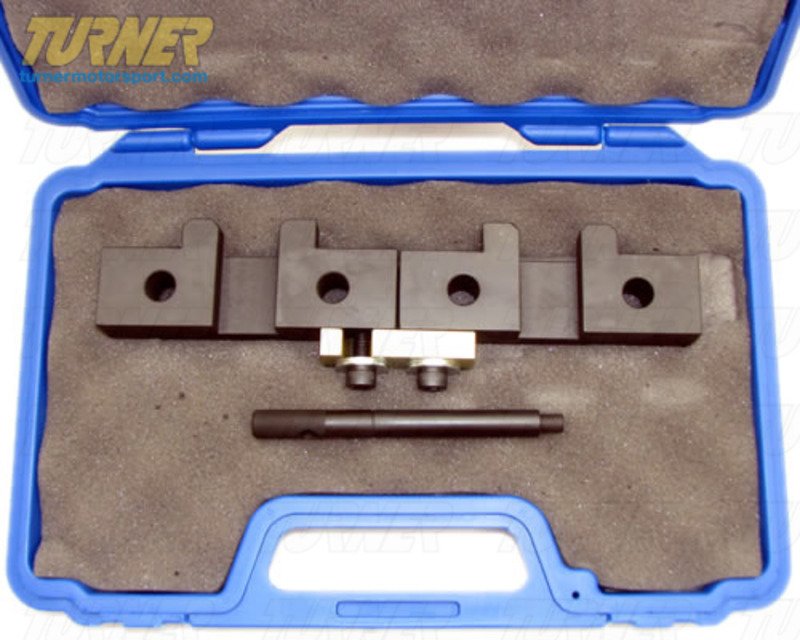

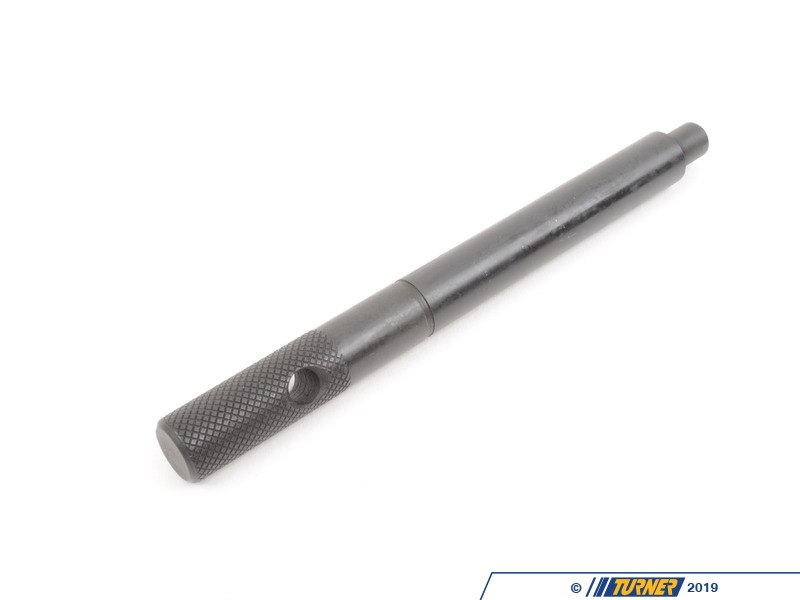

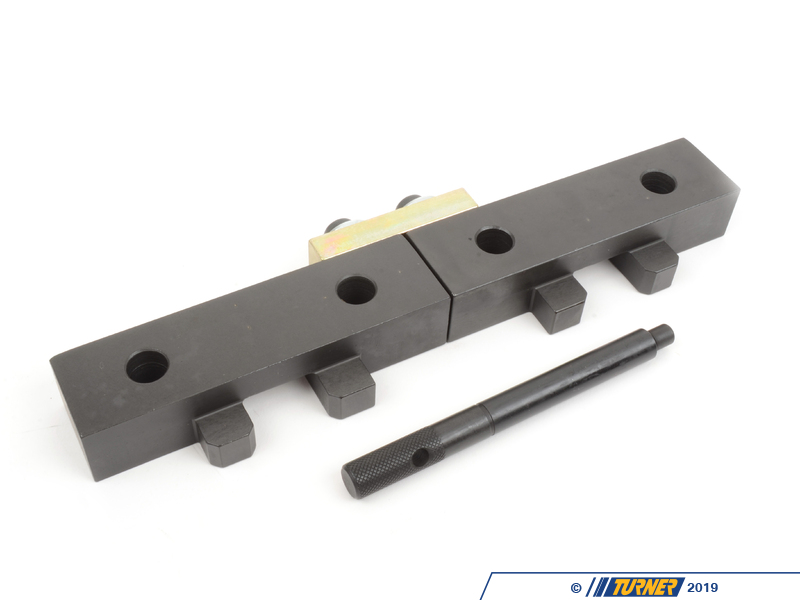

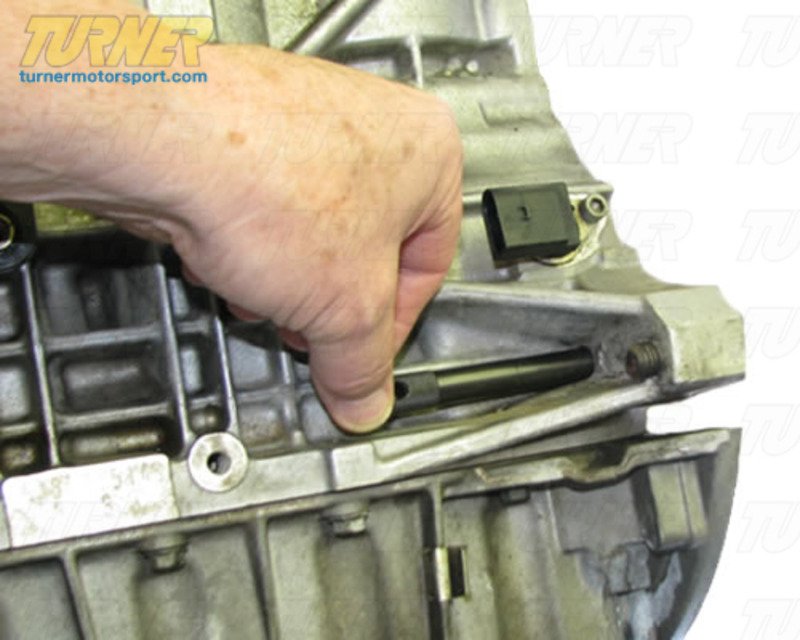

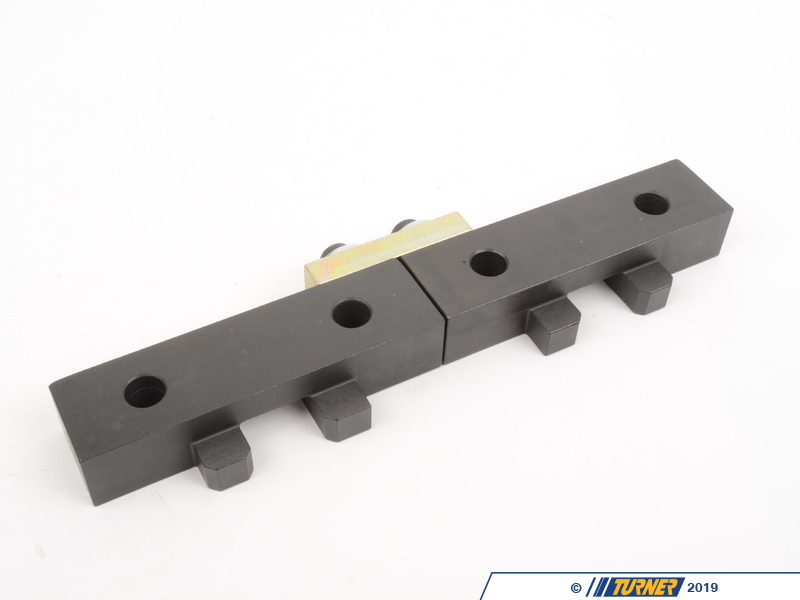

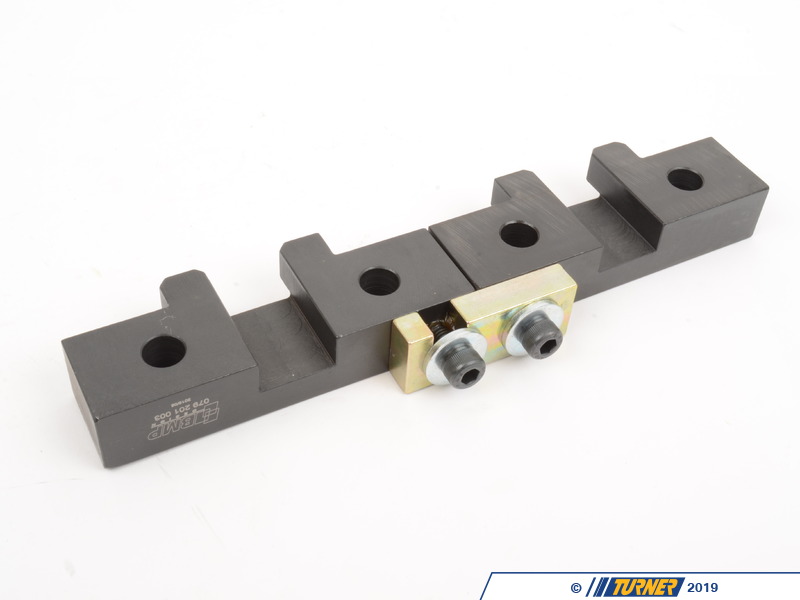

If you have ever attempted to do a valve job or cylinder head gasket project on an M42, M44, M50, or M52 engine you know that the repair manual will refer to the special BMW timing tool kit. This tool kit includes a flywheel locating lock pin, and a special set of camshaft locators that lock the cams in a precise location. The tools are very easy to install. The kit is specifically designed to hold the engine and cams in proper timing during the cylinder head removal and re installation process. This avoids the chance of bending the valves doing the head install process. The precision ground holding blocks lock over the square ends of both intake and exhaust cams. The CNC machined flywheel locating pin passes through a hole in the rear of the engine block and passed through a machined hole in the flywheel.

To avoid improper cam timing on the latest BMW engines, the factory has devised a cam timing system that locks the crankshaft and cams into a specific position prior to cylinder head removal. This method was devised to avoid any misalignment, resulting in piston to valve damage. Unfortunately without these tools re-timing the camshafts after a valve job is almost impossible. The factory specification manual does not supply installation specifications. This cam timing kit includes all the necessary components to do the job.

This item fits the following BMWs:
1990-1991 E30 BMW 318i 318is 318ic
1992-1998 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic M3
1999-2005 E46 BMW 323i 323ci 325i 325ci 325xi 328i 328ci 330i 330ci 330xi
NOTE: Not compatible with S50B30 and S50B32 Euro engines!
