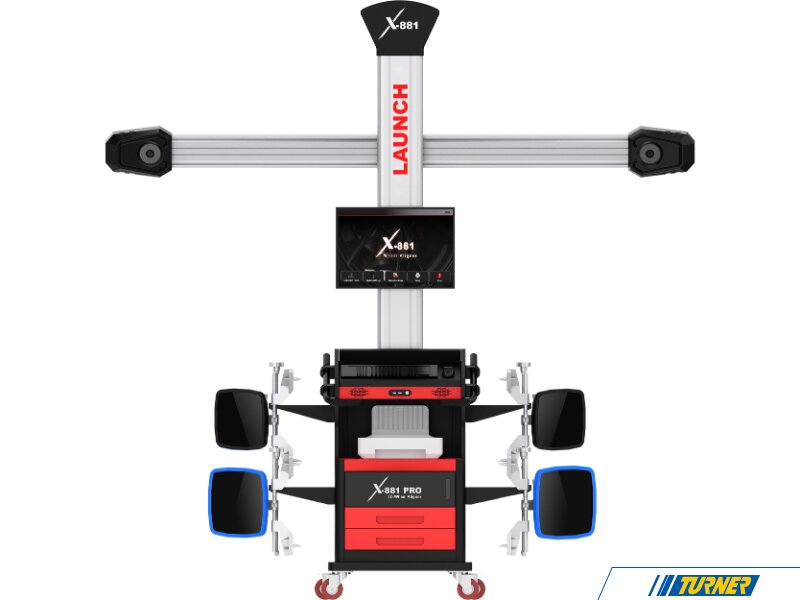

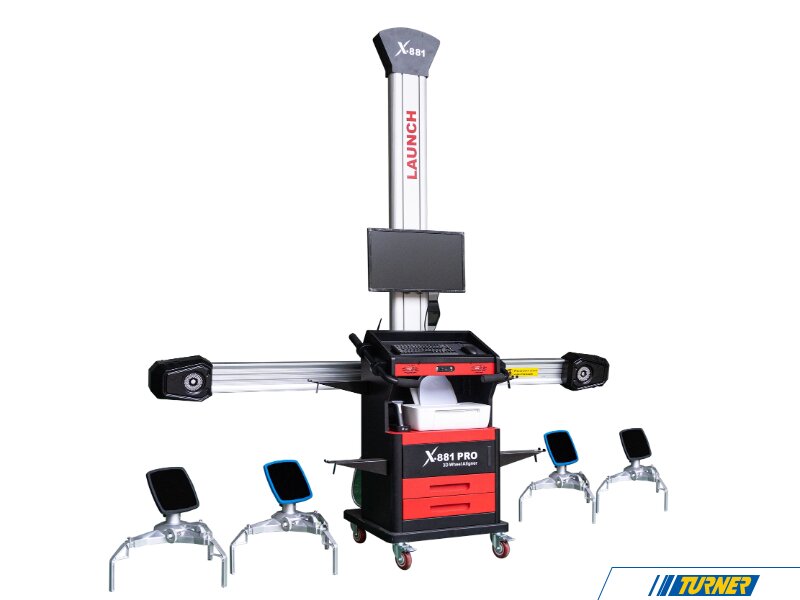

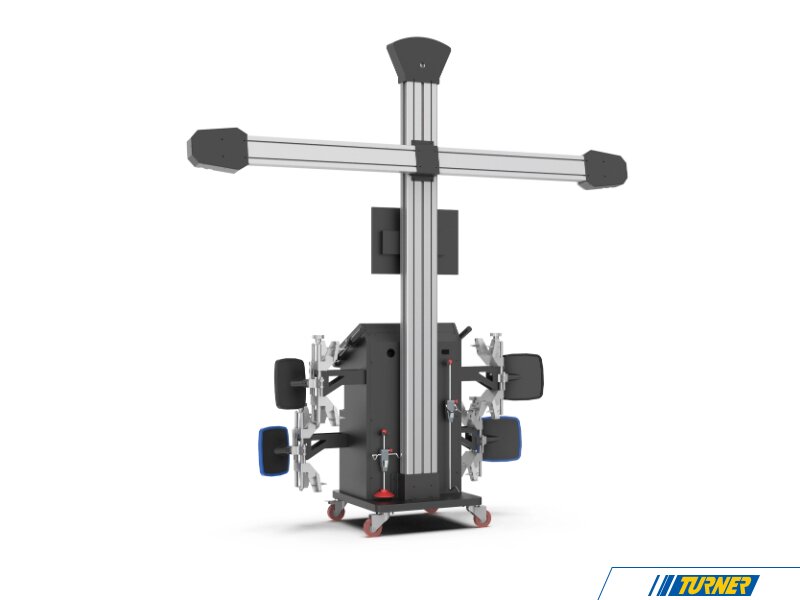

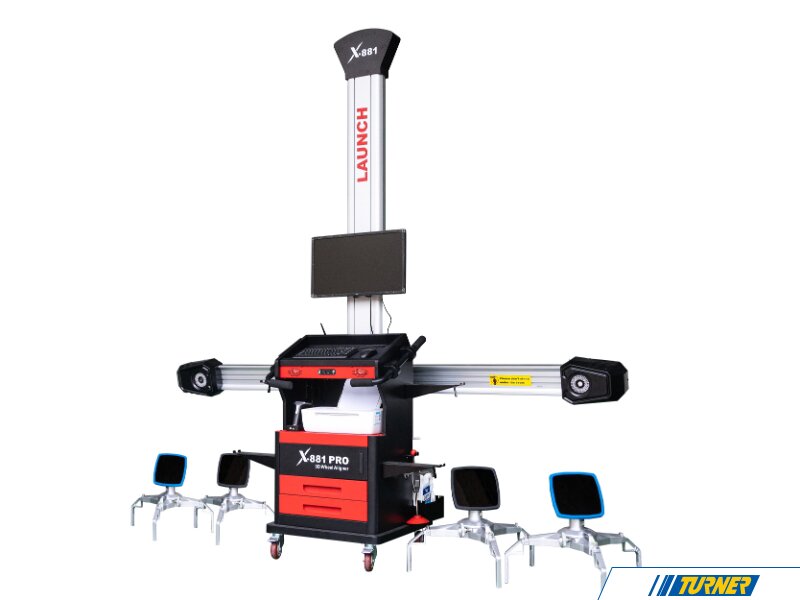

Launch X-881 Pro 3D Wheel Alignment System
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
MSRP stands for Manufacturer's Suggested Retail Price. This is the suggested retail price provided by the manufacturer, supplier or seller.
Product Details
The Launch Tech X-881 Pro redefines shop efficiency by delivering incredibly fast, highly precise 3D wheel alignments without the limitations of a fixed installation. Whether you are running a high-volume tire center or a multi-bay European specialty shop, the X-881 Pro adapts to your workflow. Unlike traditional aligners that require a dedicated 4-post lift and perfectly level ground, the X-881 Pro is a true multi-bay aligner. It features advanced compensation technology capable of handling uneven floors with up to a 30-degree variance, allowing you to perform accurate alignments on virtually any 2-post or 4-post lift in your facility.
Operating the X-881 Pro is seamless. Featuring two 5MP smart imaging cameras with automatic target tracking and a massive 32-inch high-definition monitor, the system guides you through complex alignments quickly and intuitively. Simply scan the vehicle's VIN using the included wireless scanner, attach the wheel targets (compatible with 10" to 24" rims), and perform a short roll-back run-out compensation. The system provides OE-spec data for camber, caster, toe, SAI, and thrust angle, and even supports ADAS pre-calibration alignment jobs. When the job is done, instantly generate detailed alignment reports and print them on the spot with the included color inkjet printer.
Features:
True Multi-Bay Flexibility: Mobile design requires no permanent installation. Easily move the aligner between different bays and lifts.
Uneven Floor Compensation: Advanced software compensates for surface variances up to 30 degrees, making it uniquely compatible with standard 2-post lifts as well as 4-post alignment racks.
High-Resolution 3D Cameras: Equipped with 5MP smart imaging cameras featuring automatic target tracking for rapid, accurate measurements.
Wireless VIN Scanning: Built-in wireless bar code scanner instantly decodes the VIN and pulls the exact OEM alignment specifications from the database.
Comprehensive Measurements: Delivers highly accurate readings for camber, caster, toe, SAI, kingpin inclination, wheelbase setback, and thrust angle.
ADAS Ready: Supports ADAS pre-calibration wheel alignment jobs according to OEM specifications.
Premium User Interface: Runs on a fast Windows 10 Intel-based PC, displayed on a massive 32-inch color monitor.
Instant Reporting: Generates detailed before-and-after alignment reports that can be saved, emailed, or printed directly via the included color printer.
Specifications:
Cameras: 5 Megapixel (5MP)
Display: 32" Color Monitor
Operating System: Windows 10 64-bit (Intel-based PC)
Rim Diameter Compatibility: 10" - 24"
Measurement Ranges: Caster (±20°), Thrust Angle (±10°), Camber (±10°)
Accuracy: ±0.03° for Caster/Retraction, ±0.01° for Thrust Angle
Power Supply: 110/220VAC 50/60Hz
What's in the Box?
X-881 Pro Mobile Alignment Cabinet with PC
Camera Beams & Monitor Mounting Bracket
32" Color Monitor
4x Wheel Clamp Targets (10"-24")
Wireless VIN Decoder Bar Code Scanner
Steering Wheel Holder Device
Brake Pedal Depressor Device
Color Inkjet Printer
USB Receiver & Necessary Cables
Dust Cover
