E34 M5 Bilstein/H&R Sport Suspension Package

Mfg Part #
E34M5SPORT
Turner Part #
T#21496
Brand
Price:
Qty
821.70
Ships on Aug 16, 2018
Free Shipping Free Shipping
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

This H&R-Bilstein package replaces the M5's standard shocks and springs with more-capable bits from Bilstein and H&R. Using a stiffer spring will mean less weight transfer and bodyroll in corners and a slightly lower ride height for better aesthetics. This package will bolt in to any E34 M5 with the optional E34 Self-Leveling Delete Kit.

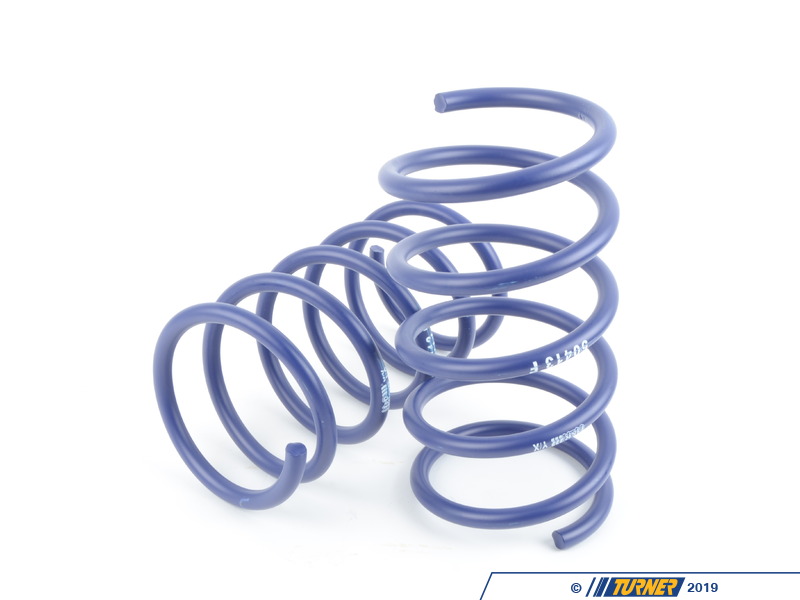

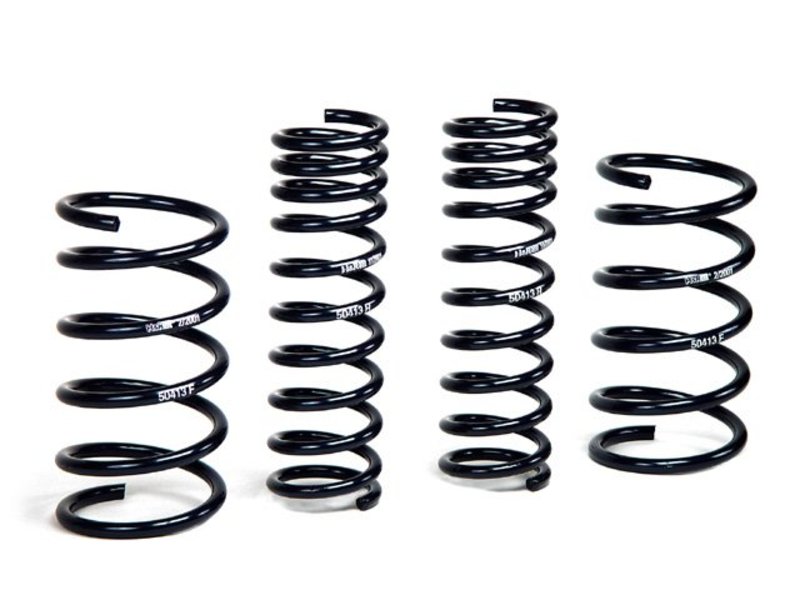

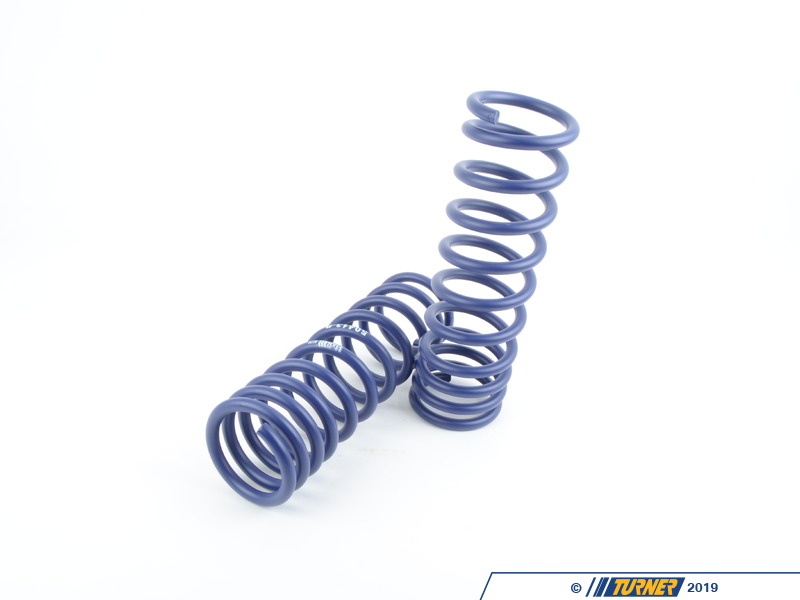

H&R Sport springs lower the M5's ride height by .8" in front and 0.3" in the rear and stiffens the spring rate. Both combine to lower the car's center of gravity and reduce the amount of bodyroll in corners. The springs are progressive rate so their initial stiffness is actually very compliant and it becomes stiffer as the spring is compressed. This is great for street cars that see bumps and potholes where suspension compliance is key. Overall, they are about 20% stiffer than the stock original springs.

We use Bilstein Sport shocks as the dampers and they feature Bilstein's patented and innovative valving system. On the E34, suspension travel is crucial especially with a lowered ride height. This suspension is stiff but delivers uncompromising handling. These fit with the stock strut and shock mounts, making for an easy and clean install. Because BMW used multiple combinations of front strut and strut mount we will need specific information from your car in order to send you the correct parts.

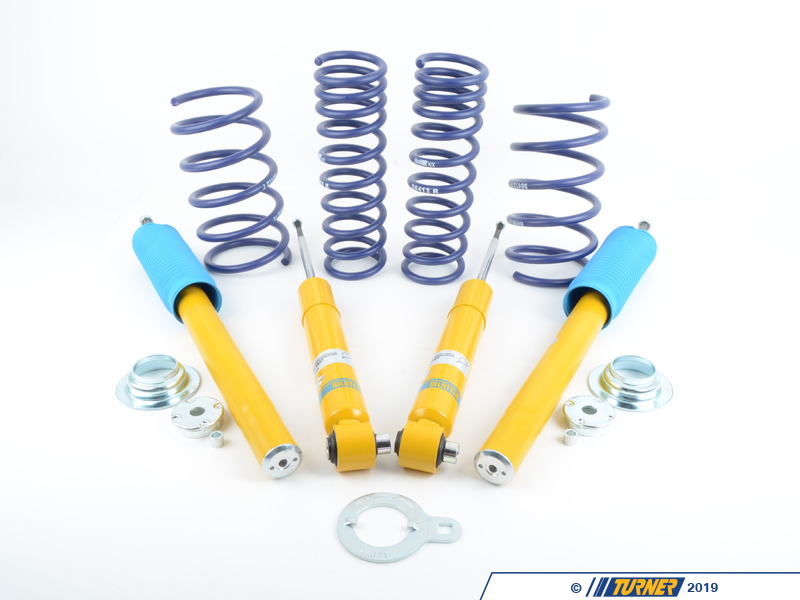

Parts list:

  • 1 set - H&R Sport Springs

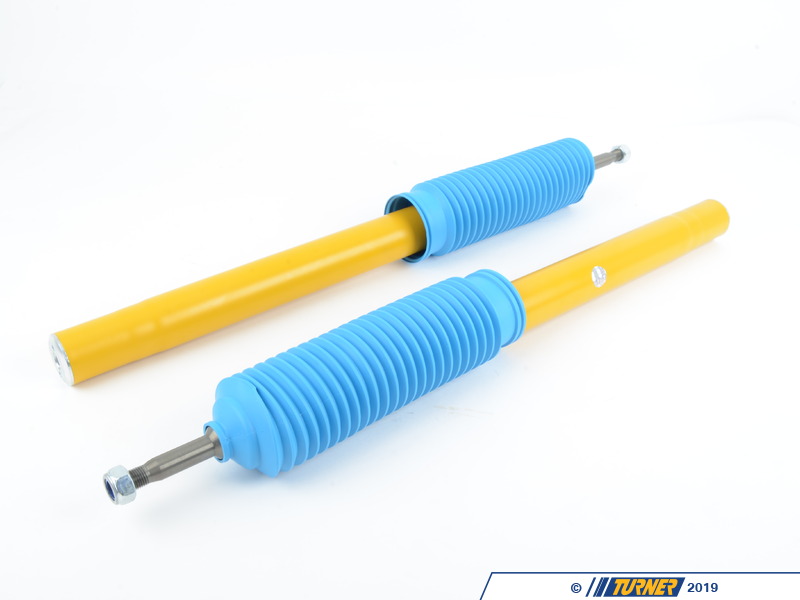

  • 1 pair - Bilstein Front Sport struts

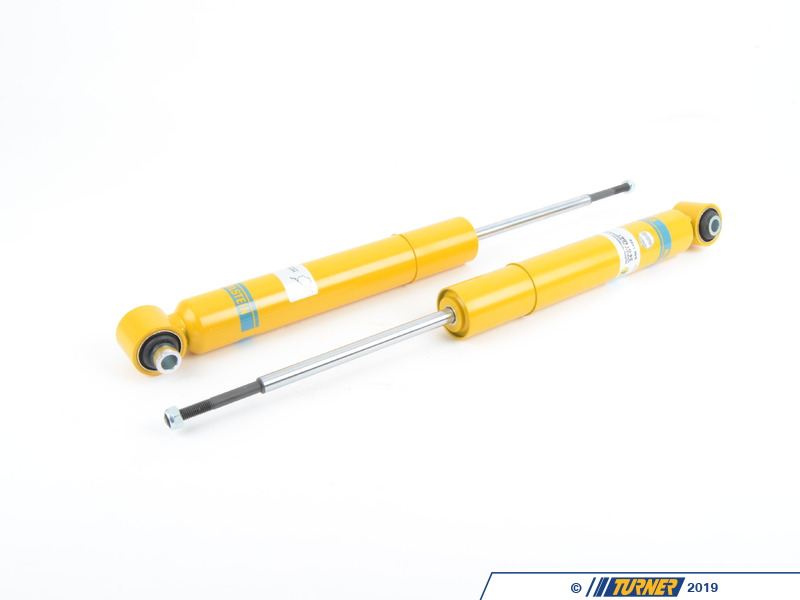

  • 1 pair - Bilstein Rear Sport Shocks (rear self-leveling must be disabled or removed) We offer a Self Leveling Elimination Kit)


Fitment note: some very late E34 models were equipped with an EDC electronic damping system. This must be disabled to use this suspension.

This item fits the following BMWs:
1991-1995 E34 BMW M5 sedan

Kit Contents

Description Qty
H&R Sport Spring Set - E34 535i 89-91, 530i/540i 93-95 1
Bilstein B8 Performance Plus Rear Shock - E34 525i, 530i, 535i, 540i 8/1990-1995 2
Bilstein B8 Performance Plus Front Strut Insert - E34 525i, 535i, 530i, 540i, M5 2

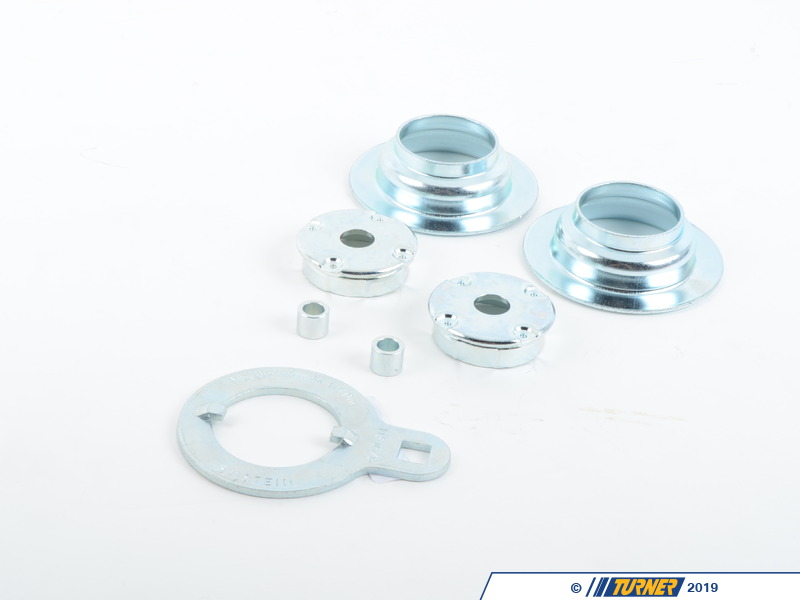

Gland Nut Wrench - E30/E34/E24/E28 1

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E34 M5 S38 3.5L
