Top Turner Suspension & Camber Products | Z4 & Z4 M

Whether you need a camber change or you are looking for more adjustment with your camber plates, you can change your camber by shimming the strut and spindle with the TMS bolt kit. There are some things to take into account with this kit so please read the installation tips below. An alignment is strongly recommended after installing this kit.

Click here for installation instuctions.

This item fits the following BMWs:
1992-1998 E36 BMW 318i 318is 318ti 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic M3
1997-2002 Z3 BMW Z3 1.9 Z3 2.3 Z3 2.5i Z3 2.8 Z3 3.0i M Roadster M Coupe
2006-2008 E85 E86 BMW Z4 M Roadster M Coupe

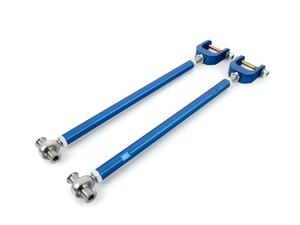

Top seller! The Turner Adjustable Rear Camber Arms: The Only Adjustable Arms Approved for Grand-Am Continental Tire Challenge Racing Series

Why you should use Turner Motorsport camber arms on your car:

• If you have a lowered car and have run out of adjustment with the stock camber arms.
• If you have a track car and are looking for increased camber adjustment, light weight pieces, stronger components, and improved suspension handling
• Two bushing styles to meet your needs: solid rod-end for track-only use, or rubber bushing for mixed street/track use (approved by Grand-Am!)
• The high range of adjustment allows a full racecar setup or a heavily lowered car to maintain factory specifications.
• Only high quality and high strength materials and components are used
• Aluminum camber arms are designed as a lightweight component, thereby reducing wear and tear on other, more critical parts (rear subframe, control arm bushings, etc). Each camber arm weighs only 2.5 lbs making for a total of 5 lbs for both parts! Stock camber arms weigh 3 lbs each. We have seen competitor's arms that weigh twice as much!
• Hardcoat anodized aluminum, stainless steel turnbuckles, and stainless rod ends to all but eliminate corrosion from getting into the threads and making adjustment difficult.
• CNC-machined double shear design for ease of installation, high strength, and choice of outside bushing material. But we do suggest using with (outer bushing # 33326775551) for best performance.
• Easy adjustment - our main adjustment point is on the outside by the wheel so there is no need to work around the exhaust or subframe to adjust camber.
• All hardware included.

Installation Instructions:
Instructions for Rod-End Style (TSU9940001)
Instructions for Bushing-End Style (TSU9940B77)

This item fits the following BMWs:
1992-1999 E36 BMW 318i 318is 318ic 323is 323ic 325i 325is 325ic 328i 328is 328ic M3
1999-2006 E46 BMW 323i 323ci 325i 325ci 325xi 328i 328ci 330i 330ci 330xi M3
2001-2006 SpecE46 BMW 330i 330ci
2003-2008 E85 BMW Z4 2.5i Z4 3.0i Z4 3.0si Z4 M Roadster M Coupe

Our renowned TMS adjustable front sway bar / swaybar links for BMWs are now available in custom lengths, making them easy to order for any aftermarket or custom suspension setups. Simply measure for your ideal link length, and order the links with the best length range (below). Each sway bar link has a 10mm diameter mounting pin/stud, which is the typical factory/stock size for a universal fitment. These are sold by the pair, and each set includes two matching sway bar end links.

These end links offer the quiet operation and long life of "stock" BMW end links, but with the strength and adjustability of rod-end style sway bar links. These sway bar links can be used on a wide variety of BMWs and aftermarket BMW suspensions. When measuring, please consider that the length ranges of our Custom Adjustable end links are measured from the center to center on the end link mounting stud / pin, as shown in our diagram.

Note for E9X M3: the unique mounting on the M3 strut requires a set of our adapter seats (#TSU9912AF9). You can add them with your links from the menu below.


TMS Part#Center to Center (mm)Center to Center (inch)

TSU9912A35155.00mm - 170.00mm6.10" - 6.69"

TSU9912A40170.00mm - 185.00mm6.69" - 7.28"

TSU9912A45180.00mm - 195.00mm7.08" - 7.67"

TSU9912A50190.00mm - 205.00mm7.48" - 8.07"

TSU9912A55207.00mm - 222.00mm8.15" - 8.74"

TSU9912AF1220.00mm - 235.00mm8.66" - 9.25"

TSU9912A70240.00mm - 255.00mm9.45" - 10.04"

TSU4612AF3250.00mm - 265.00mm9.84" - 10.43"

TSU9912A80261.00mm - 276.00mm10.28" - 10.87"

TSU5012AF8280.00mm - 295.00mm11.02" - 11.61"

TSU9912A95290.00mm - 305.00mm11.42" - 12.00"

TSU9912110320.00mm - 335.00mm12.59" - 13.19"

TSU9912115330.00mm - 345.00mm12.99" - 13.58"

TSU9912130362.00mm - 377.00mm14.25" - 14.84"

TSU9912135370.00mm - 385.00mm14.57" - 15.16"

TSU9912140381.00mm - 396.00mm15.00" - 15.60"

TSU9912145389.00mm - 404.00mm15.31" - 15.91"

Please select your length below.
